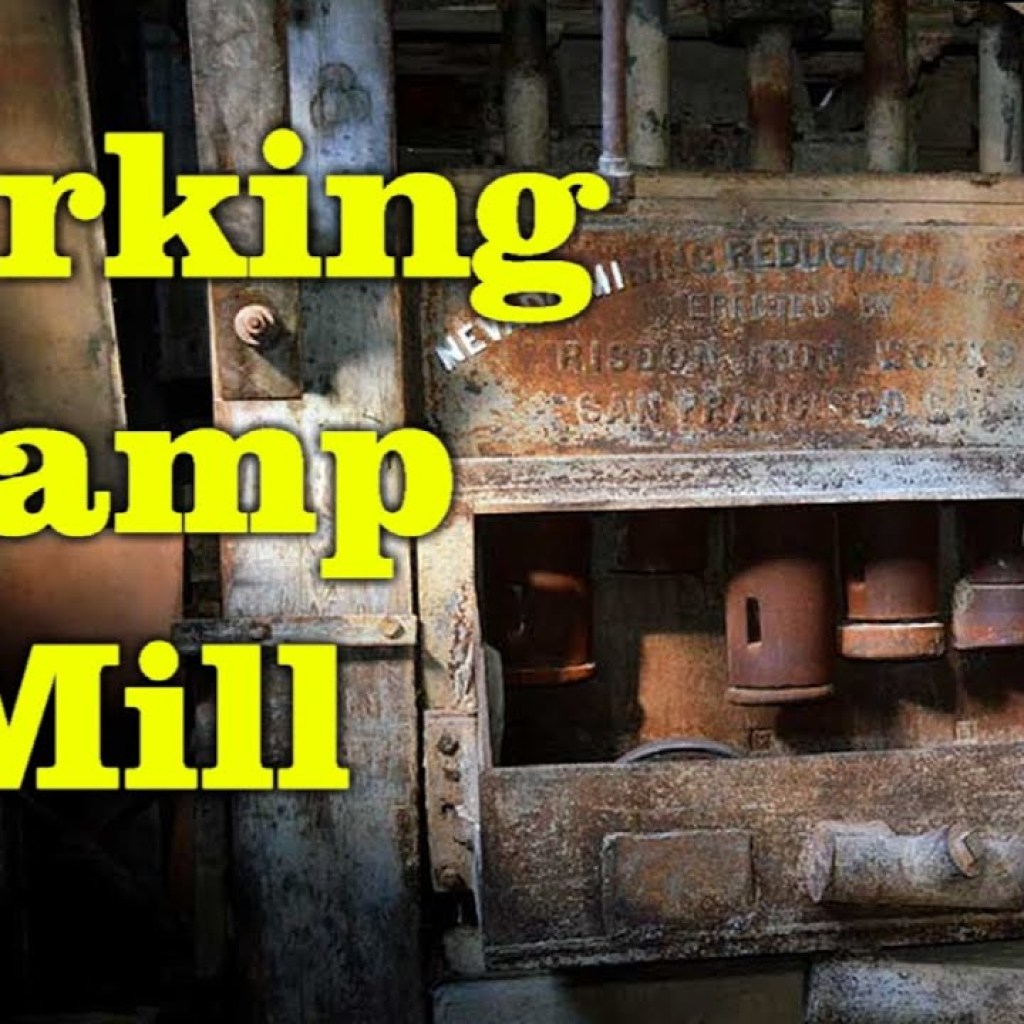

What is a Stamp Mill Crushing Ore Through Time

What is a stamp mill? A question that unlocks a rich history of mining and industry. Imagine the rhythmic clang of heavy metal, the relentless pounding of ore against stone, a symphony of raw power shaping the landscape and fueling civilizations. From ancient methods to ingenious innovations, the stamp mill’s story is one of ingenuity and adaptation, a testament to humanity’s enduring quest for resources deep within the earth.

For centuries, the stamp mill stood as a crucial link in the chain of extracting valuable minerals from the earth. Its powerful, repetitive blows reduced stubborn ore into manageable fragments, paving the way for further processing and the extraction of precious metals. This simple yet effective machine played a vital role in the economic and technological development of countless societies, leaving an indelible mark on our history and environment.

Definition and History of Stamp Mills

Stamp mills are machines used for crushing and pulverizing ore, typically metallic ores, to liberate valuable minerals for further processing. Their operation relies on the repeated impact of heavy, stamp-shaped weights onto the ore, reducing its particle size. This process is crucial in the extraction of metals like gold, silver, and copper from their respective ores.

Basic Function of a Stamp Mill

A stamp mill’s primary function is comminution—the size reduction of ore. The process begins with the ore being fed into a mortar, a strong, usually cast iron, container. Heavy stamps, typically made of iron or steel, are raised and then dropped onto the ore within the mortar. This repeated impact breaks down the ore into smaller particles. The size reduction is controlled by factors such as the weight of the stamps, the height of their drop, and the duration of the crushing process.

The resulting pulverized ore, known as pulp, is then typically further processed through techniques like amalgamation or cyanidation to extract the desired minerals.

Historical Development of Stamp Mills

The origins of stamp mills can be traced back to ancient civilizations. Early forms involved simple hand-operated pestles and mortars. However, the development of water-powered stamp mills marked a significant technological advancement, increasing efficiency and scale. The industrial revolution saw the introduction of steam power, leading to larger and more productive mills. Further innovations included the incorporation of automated feeding mechanisms, improved stamp designs for better impact and wear resistance, and the development of more efficient ore handling systems.

The transition from simple wooden structures to robust, engineered iron and steel constructions also significantly improved durability and longevity.

Examples of Different Types of Stamp Mills

Throughout history, various types of stamp mills have been employed, reflecting technological advancements and the specific requirements of different mining operations. Early mills were predominantly water-powered, with simple wooden stamps. Later developments included steam-powered mills with multiple stamps operating simultaneously, increasing throughput. Variations also emerged in the design of the stamps themselves, the mortars, and the overall mill construction, tailored to the specific characteristics of the ore being processed and the available power sources.

Some mills incorporated screening systems to separate the crushed ore into different particle sizes, optimizing subsequent processing stages.

Timeline of Stamp Mill Evolution

Components of a Stamp Mill

A stamp mill comprises several interconnected components working in concert to crush ore. The efficient operation and longevity of the mill depend on the robust design and proper interaction of these parts. Material selection is crucial, balancing cost-effectiveness with resistance to wear and tear from the constant impact and abrasion inherent in the milling process.

Stamp Head

The stamp head is the heavy, impacting component of the stamp mill. Typically forged from high-carbon steel or manganese steel alloys, its design maximizes impact force while minimizing fracturing. A common design incorporates a square or rectangular shape with a slightly tapered bottom to facilitate penetration into the ore. The stamp head’s weight significantly influences the crushing efficiency of the mill, with heavier heads generally producing finer ore.

A typical stamp head might have dimensions of approximately 600mm x 600mm x 300mm (length x width x height) and weigh around 500 kg. The choice of material prioritizes high tensile strength, impact resistance, and wear resistance to withstand the repetitive impacts and abrasive action of the ore. The high carbon content in steel alloys enhances hardness, while manganese additions improve toughness and resistance to impact-induced cracking.

Mortar

The mortar is a robust, stationary container that houses the ore being crushed. It is typically constructed from cast iron or high-strength steel, designed to withstand the continuous pounding from the stamp heads. Its internal shape, often cylindrical or slightly conical, is optimized to direct the ore flow and promote efficient crushing. The mortar’s material selection is critical to prevent cracking or deformation under heavy impact loads.

Cast iron offers a good balance of strength and cost-effectiveness, while steel alloys provide higher strength and resistance to wear for longer operational life. The mortar’s lining, often made from replaceable wear-resistant materials like manganese steel or ceramic tiles, is crucial in mitigating wear and tear.

Camshaft

The camshaft is the rotating component that lifts and drops the stamp heads. It is typically a large-diameter steel shaft with precisely machined cams. These cams interact with tappets attached to the stamp heads, initiating the lifting and dropping action. The camshaft’s design dictates the speed and impact force of the stamp heads. High-strength steel is essential for the camshaft’s construction due to the significant bending moments and cyclic loading it endures.

The shaft’s diameter and material properties are selected to ensure adequate fatigue life under continuous operation.

Feeder

The feeder is responsible for delivering a consistent flow of ore into the mortar. Various designs exist, ranging from simple gravity-fed chutes to more complex mechanisms involving rotating arms or vibrating troughs. The material selection depends on the ore type and its characteristics. Wear-resistant materials such as hardened steel or abrasion-resistant alloys are frequently used in components exposed to direct contact with the ore.

The feeder’s function is to maintain an optimal ore level in the mortar, ensuring consistent crushing and preventing overloading.

Diagram of Stamp Mill Components

[Imagine a diagram showing a side view of a stamp mill. A large, heavy rectangular stamp head is shown suspended above a cylindrical mortar. A cam on a horizontal camshaft engages a tappet connected to the stamp head. The camshaft is powered by a motor (not shown). A hopper or chute is shown above the mortar, feeding ore into the mortar.

Arrows indicate the downward motion of the stamp head and the flow of ore. The mortar is shown to have a thick, durable base and possibly a replaceable lining.] The diagram clearly illustrates the arrangement of the stamp head, mortar, camshaft, and feeder, and how the camshaft’s rotation drives the stamp head’s cyclical crushing action on the ore within the mortar.

The feeder’s position above the mortar shows its role in delivering the ore to the crushing zone.

Operational Principles of a Stamp Mill

A stamp mill operates through a cyclical process of lifting and dropping heavy stamps onto ore, progressively reducing its size. The energy imparted during this impact crushes and breaks the ore, liberating valuable minerals for subsequent processing. This section details the step-by-step process, the mechanics of crushing, influencing factors, and energy transfer within the system.

Step-by-Step Ore Crushing Process

The crushing action within a stamp mill proceeds in a series of repetitive cycles. First, the stamps are raised to a predetermined height by a cam mechanism. Then, the stamps are released, falling under gravity onto the ore contained within a mortar box. The impact of the falling stamps crushes the ore. This crushed material is then progressively moved towards the discharge opening of the mortar box by the movement of the stamps and the flow of water used in the process.

The cycle repeats continuously until the ore reaches the desired size reduction.

Crushing Action through Stamp Movement

The crushing action is primarily achieved through the kinetic energy of the falling stamps. As the stamps are raised, potential energy is stored. Upon release, this potential energy is converted into kinetic energy, resulting in a significant impact force upon contact with the ore. The weight and height of the fall of the stamps directly influence the force of the impact and thus the effectiveness of the crushing.

The design of the mortar box, including the shape and material of the dies (the bottom surface of the mortar box), also plays a role in directing and concentrating the crushing force.

Factors Affecting Stamp Mill Efficiency

Several factors significantly impact the efficiency of a stamp mill. Ore hardness is a primary factor; harder ores require more energy and time to crush, reducing throughput. Stamp weight is another critical factor; heavier stamps deliver greater impact force, resulting in increased crushing efficiency but potentially causing increased wear on the equipment. The moisture content of the ore also influences efficiency, as excessively wet ore can lead to clogging and reduced crushing effectiveness.

Finally, the size and type of the ore feed also affect the milling efficiency. Larger or harder pieces require more time to break down, potentially leading to lower overall efficiency.

Energy Transfer from Power Source to Stamps

The energy transfer begins with the primary power source, typically a steam engine, electric motor, or internal combustion engine. This power source drives a rotating camshaft. The camshaft, through a system of cams and connecting rods, lifts the stamps to a predetermined height. As the stamps fall, the potential energy is converted to kinetic energy, which is then transferred to the ore during impact.

The energy transfer is not entirely efficient; some energy is lost due to friction in the moving parts and sound and heat generated during the impact.

Operational Sequence Flow Chart

A simplified flow chart depicting the operational sequence of a stamp mill is presented below.[A textual representation of a flowchart is provided below, as image creation is outside the scope of this response. Imagine a flowchart with boxes and arrows. The boxes would contain the following text, and the arrows would indicate the flow between steps.]Box 1: Power Source (e.g., Electric Motor) supplies power.Arrow: ->Box 2: Camshaft rotates, lifting the stamps.Arrow: ->Box 3: Stamps are released, falling onto the ore.Arrow: ->Box 4: Ore is crushed by stamp impact.Arrow: ->Box 5: Crushed ore is discharged.Arrow: ->Box 6: Cycle repeats.

Applications and Uses of Stamp Mills: What Is A Stamp Mill

Stamp mills, while largely superseded by more efficient technologies, held a significant place in the history of mineral processing. Their application spanned various industries and ore types, reflecting their adaptability to different geological contexts and economic demands. Understanding their historical use provides valuable context for appreciating the evolution of extractive metallurgy.

Historical Industrial Applications of Stamp Mills

Stamp mills found widespread application across diverse industries during the 19th and early 20th centuries. Their primary use was in the extraction of valuable metals from their ores, but they also saw application in other sectors requiring comminution (size reduction) of materials. The scale of operation varied significantly, from small-scale artisanal mining to large-scale industrial operations. Gold mining, in particular, was heavily reliant on stamp mills, driving their development and widespread adoption.

Beyond gold, silver, copper, and lead mining operations also utilized stamp mills extensively. Furthermore, stamp mills were occasionally used in the processing of certain non-metallic ores, such as those containing certain industrial minerals.

Ore Types Processed Using Stamp Mills

Stamp mills were effective in processing a range of ores, but their efficiency varied depending on the ore’s characteristics. They were particularly well-suited for relatively soft and brittle ores, where the crushing action of the stamps effectively liberated the valuable minerals. Gold-bearing quartz veins were a prime example, with the stamp mill’s action breaking down the rock and releasing the gold particles for subsequent recovery processes such as amalgamation or cyanidation.

Similarly, silver-bearing ores, copper sulfides, and lead ores were commonly processed using stamp mills. However, harder and more resistant ores often required pre-crushing stages before being fed into the stamp mill, or were simply less efficiently processed using this method.

Comparison of Stamp Mills with Other Ore Processing Technologies

Stamp mills represent a relatively low-technology approach to ore processing compared to modern methods. Modern technologies, such as ball mills, rod mills, and high-pressure grinding rolls, offer significantly higher throughput and finer particle size reduction. These newer technologies are also generally more energy-efficient and require less maintenance. However, stamp mills possessed the advantage of simplicity in design and construction, making them suitable for remote locations with limited infrastructure and skilled labor.

Their robustness and relative ease of repair also contributed to their historical popularity, especially in early mining operations.

Advantages and Disadvantages of Stamp Mills Compared to Modern Methods, What is a stamp mill

• Advantages: Relatively simple design and construction; robust and easy to maintain; suitable for remote locations; low initial capital cost (historically).
• Disadvantages: Low throughput compared to modern mills; high energy consumption per unit of ore processed; produces a relatively coarse product; significant noise and vibration; high maintenance requirements over long-term operation.

Applications of Stamp Mills by Industry and Ore Type

The following bullet points categorize the applications of stamp mills based on the industry and ore type:

• Gold Mining: Quartz veins, alluvial deposits (often with pre-crushing).
• Silver Mining: Various silver-bearing ores, often in conjunction with other metals.
• Copper Mining: Sulfide ores, often requiring pre-crushing or other pre-processing steps.
• Lead Mining: Lead sulfide ores, often processed alongside other base metals.
• Other Applications: Limited use in processing some industrial minerals requiring comminution.

Modern Relevance and Legacy of Stamp Mills

The stamp mill, once a ubiquitous feature of the mining landscape, has experienced a significant decline in its prevalence. This shift is attributable to a confluence of factors, including technological advancements, evolving economic considerations, and growing environmental concerns. While largely superseded by more efficient and less environmentally impactful technologies, the stamp mill’s legacy continues to resonate in various ways.The decline in the use of stamp mills stems primarily from the development of more efficient and cost-effective ore processing technologies.

Ball mills, rod mills, and autogenous grinding mills offer superior grinding capacity and finer particle size distribution, leading to improved metal extraction rates. These newer technologies often require less energy and labor, resulting in lower operating costs. Furthermore, advancements in flotation and other concentration techniques have further diminished the reliance on stamp milling for efficient mineral processing.

Remaining Applications of Stamp Mills

Despite their decline, stamp mills retain a niche role in certain contexts. Small-scale mining operations, particularly in remote areas with limited access to sophisticated equipment, may still utilize stamp mills due to their relative simplicity and lower initial investment costs. They can also be advantageous for processing softer ores where the less aggressive crushing action of a stamp mill is preferred to prevent excessive fine material generation.

Additionally, some artisanal and small-scale gold mining operations, particularly in developing countries, continue to employ stamp mills due to their affordability and ease of maintenance.

Environmental Impact of Stamp Mill Operations

Historically, stamp mill operations have presented significant environmental challenges. The process generated substantial quantities of tailings, which often contained toxic heavy metals and other harmful substances. Improper disposal of these tailings led to widespread water and soil contamination, impacting both ecosystems and human health. The noise and air pollution generated by the machinery also contributed to environmental degradation.

Modern environmental regulations have significantly mitigated some of these impacts, requiring more responsible tailings management and stricter emission controls. However, legacy sites continue to pose environmental remediation challenges. For example, the abandoned mercury-contaminated tailings from numerous historic gold stamp mills continue to pose a significant threat to water quality in many regions.

Preserved Stamp Mills

Several historical stamp mills have been preserved as landmarks or museum exhibits, serving as reminders of their past importance in mining and industrial history. Many examples exist across the globe, often incorporated into larger mining heritage sites. These preserved sites offer valuable insights into the technological and social history of mining, demonstrating the scale and complexity of these operations.

For instance, numerous preserved stamp mills are found in the former gold-mining regions of California, Australia, and South Africa, often forming part of larger interpretive centers detailing the history of those regions’ mining industries.

Visual Appearance of a Typical Stamp Mill

A typical stamp mill presents a visually striking industrial landscape. The structure is typically large and robust, constructed primarily of steel and timber. The central feature is a series of heavy, vertically mounted stamps, usually several tons each, which are raised and dropped onto an ore bed. These stamps are typically forged from high-strength steel, reflecting the demanding nature of their function.

The supporting structure, often a substantial timber frame or steel framework, houses the stamps and the associated crushing and screening mechanisms. A network of conveyors and chutes moves the ore through the process, creating a complex and visually dynamic scene. The overall appearance conveys a sense of raw power and industrial might, a testament to the scale and impact of the technology in its heyday.

The rhythmic thud of the stamp mill, once a ubiquitous sound across mining landscapes, may have faded into the background of history, but its legacy remains. From its humble beginnings to its eventual decline, the stamp mill’s impact on mining and industrial development is undeniable. Its story serves as a reminder of the ingenuity and resilience of human innovation, a testament to our persistent pursuit of resources and our enduring relationship with the earth from which they come.

The echoes of its powerful blows continue to resonate, a testament to its enduring significance.

Commonly Asked Questions

What materials were typically used to construct stamp mills?

Stamp mills were typically constructed from durable materials like wood, iron, and later, steel, depending on the era and technological advancements.

How dangerous was working in a stamp mill?

Working in a stamp mill was inherently dangerous, with risks of crushing injuries, exposure to dust and toxic materials, and heavy machinery malfunctions.

Were stamp mills used for anything besides gold mining?

While prominently associated with gold, stamp mills were used to process various ores including silver, copper, lead, and other metals.

What replaced stamp mills in modern mining?

Modern mining utilizes more efficient and technologically advanced methods such as jaw crushers, cone crushers, and ball mills, which offer increased productivity and safety.
