Are CPU Coolers Universal The Truth Revealed

Are CPU coolers universal sets the stage for this enthralling narrative, offering readers a glimpse into a story that is rich in detail with lang leav author style and brimming with originality from the outset.

Navigating the intricate world of PC building often leads to a pivotal question: are CPU coolers universal? This exploration delves deep into the often-misunderstood concept of CPU cooler compatibility, dissecting the fundamental differences in mounting systems, the diverse landscape of CPU sockets, and the various cooler form factors that populate the market. We will unravel the critical components that dictate a cooler’s fit, laying the groundwork for a comprehensive understanding of what truly determines if a cooler will find its home on your motherboard.

Understanding CPU Cooler Compatibility

Alright, let’s dive into what makes a CPU cooler play nice with your motherboard and processor. It’s not as simple as just buying the biggest fan; there are some key technical bits to get right to avoid headaches and ensure your CPU stays cool and happy. We’ll break down the different systems, sockets, and the coolers themselves so you can make an informed decision.Getting the right CPU cooler is all about matching its mounting hardware and physical dimensions to your specific CPU socket and motherboard.

Think of it like fitting a puzzle piece; if it’s not the right shape, it just won’t go in, and forcing it can cause serious damage. Understanding these fundamental differences is the first step to a successful build or upgrade.

CPU Cooler Mounting Systems

CPU coolers attach to your motherboard via a mounting system that varies significantly between manufacturers and even generations of motherboards. These systems are designed to provide a secure and even pressure distribution across the CPU’s heat spreader, which is crucial for effective heat transfer.The primary differences lie in how the cooler’s backplate (if used) or mounting brackets interface with the motherboard and the CPU socket itself.

Some systems use pre-installed standoffs on the motherboard, while others require you to install a backplate behind the motherboard, securing it with screws and nuts. The retention mechanism, often a clip or a bracket that screws into the standoffs, then holds the cooler baseplate firmly against the CPU.

• Intel Stock Coolers: Typically use plastic push-pins that insert into holes around the CPU socket. These are simple but can sometimes offer less mounting pressure than aftermarket solutions.
• AMD Stock Coolers: Often utilize a clip-on system that attaches to plastic retention clips already present on AMD motherboards. Some higher-end stock coolers might use a backplate and screws.
• Aftermarket Universal Mounting Kits: Most aftermarket coolers come with a comprehensive set of brackets and hardware designed to support a wide range of Intel and AMD sockets. This usually involves a universal backplate, various standoffs, and different retention clips or brackets for specific socket types. The goal is to provide robust mounting with adjustable pressure.
• Proprietary Mounting Systems: Some AIO liquid coolers or high-end air coolers might have their own unique mounting solutions, though they generally still aim for broad compatibility through included adapter kits.

CPU Socket Types and Physical Dimensions

The CPU socket is the physical interface on the motherboard where the processor is installed. Different manufacturers (Intel and AMD) use different socket designs, and even within those brands, socket types evolve, changing pin layouts and physical dimensions. This is a critical factor for cooler compatibility.The physical dimensions of a socket determine not only the shape of the CPU but also the spacing of the mounting holes around it, which is what CPU cooler brackets need to align with.

If a cooler’s mounting system doesn’t match these specific dimensions, it won’t be able to attach correctly.

Intel Sockets

Intel has a long history of different socket types, each with its own pin configuration and physical footprint. While the overall design philosophy has changed over the years, cooler manufacturers design their mounting kits to accommodate the most common and recent Intel sockets.

• LGA (Land Grid Array) Sockets: In LGA sockets, the pins are located on the motherboard socket, not on the CPU itself. This is Intel’s current standard. Examples include:
  • LGA 1700: Found in Intel’s 12th, 13th, and 14th Gen Core processors. It’s physically larger than previous LGA sockets and has a different mounting hole pattern.
  • LGA 1200: Used for Intel’s 10th and 11th Gen Core processors.
  • LGA 115X (1150, 1151, 1155, 1156): A very common series used for many generations of Intel Core processors. While the socket name varies, the mounting hole pattern is generally the same for most coolers designed for this range.
  • LGA 20XX (2011, 2066): High-end desktop (HEDT) platforms, typically featuring larger CPUs and different mounting hole spacing compared to mainstream sockets.

It’s important to note that while many aftermarket coolers support LGA 115X, support for the newer LGA 1700 and LGA 1200 often requires a specific mounting bracket update or a newer cooler model. Always check the cooler’s specifications for compatibility with your specific Intel socket.

AMD Sockets

AMD also uses various socket types, with their AM series being the most prevalent for desktop processors. AMD’s sockets often feature pin-grid array (PGA) designs for their CPUs, where the pins are on the processor, but their AM4 and AM5 sockets are LGA.

• AM5: The latest mainstream socket for AMD Ryzen 7000 series and newer processors. It is an LGA socket, similar to Intel’s, with a specific mounting hole pattern.
• AM4: A highly successful and widely adopted socket that has supported multiple generations of Ryzen processors (1000 through 5000 series). It is an LGA socket and has a standardized mounting hole pattern.
• AM3+/AM3/AM2+/AM2: Older AMD sockets that are largely phased out but might be found in older systems. They typically used a clip-on retention system.
• TR4/sTRX4/sWRX8: These are AMD’s sockets for their high-end desktop (HEDT) and workstation Threadripper processors. They are physically much larger than mainstream sockets and require specific, often larger, coolers.

Most aftermarket coolers designed for AM4 will also support AM5, as AMD has strived to maintain backward compatibility with the mounting hole pattern for these mainstream sockets. However, for TR4/sTRX4/sWRX8, a different and larger cooler is always required.

CPU Cooler Form Factors

The form factor of a CPU cooler refers to its physical design and how it’s intended to fit within a computer case and around other components. This is a crucial consideration for clearance and airflow within your system.Different form factors are designed to meet varying cooling demands and space constraints. A high-performance cooler might be large and require ample vertical space, while a compact system might necessitate a low-profile solution.

• Tower Coolers: These are the most common type of aftermarket air coolers. They consist of a heatsink with multiple fins stacked vertically, connected to a baseplate via heat pipes. A fan is mounted on the side of the heatsink to push air through the fins.
  • Advantages: Excellent cooling performance, good value for money.
  • Disadvantages: Can be tall and may interfere with RAM slots or side panels in smaller cases.
• Low-Profile Coolers: Designed for small form factor (SFF) PCs or systems with limited vertical clearance. They typically have a flatter heatsink design, often with the fan mounted directly on top of the heatsink, blowing downwards onto the motherboard.
  • Advantages: Fit in very compact cases, often compatible with slim cases.
  • Disadvantages: Generally offer less cooling performance than tower coolers, can be noisy at higher fan speeds to compensate for less surface area.
• All-In-One (AIO) Liquid Coolers: These are closed-loop liquid cooling systems. They consist of a water block that attaches to the CPU, a pump (often integrated into the water block), tubing, a radiator, and one or more fans attached to the radiator.
  • Advantages: Can offer superior cooling performance, often quieter than high-end air coolers under heavy load, can improve aesthetics with RGB lighting.

  • Disadvantages: More expensive, potential for leaks (though rare with modern designs), requires radiator mounting space in the case.
• Stock Coolers: These are the coolers that come bundled with CPUs. They are generally basic and designed for standard operating temperatures without overclocking. Their form factor is usually compact to ensure compatibility with most motherboards and cases.

Critical CPU Cooler Components Affecting Fit

Several components of a CPU cooler are directly responsible for its physical fit with your motherboard and CPU socket. Understanding these parts helps in troubleshooting compatibility issues and making informed purchasing decisions.The interaction between the cooler’s mounting hardware, its overall dimensions, and the surrounding motherboard components is what determines if it will fit and function correctly.

• Backplate: This is a plate that attaches to the back of the motherboard, providing a stable anchor point for the cooler’s mounting brackets. Its dimensions and the location of its screw holes must align with the motherboard’s socket mounting points. Some coolers come with universal backplates that have multiple sets of holes to accommodate different socket types.
• Mounting Brackets/Standoffs: These are the pieces that connect the cooler’s baseplate to the backplate or directly to the motherboard. Standoffs are typically small cylindrical pieces that create space, while brackets are shaped pieces that secure the cooler. Their design dictates how the cooler aligns with the specific socket’s mounting holes. The height of standoffs is also critical for achieving proper mounting pressure.

• Retention Mechanism: This is the final piece that secures the cooler to the mounting brackets. It can be clips, screws, or thumbscrews. The design of this mechanism must be compatible with the chosen brackets and standoffs for the specific socket.
• Heatsink Dimensions (Height, Width, Length): For air coolers, the overall size of the heatsink and fan assembly is paramount.
  • Height: This is the most common clearance issue. Tower coolers must fit within the vertical clearance of the computer case (side panel) and must not obstruct the motherboard’s CPU socket area, especially around the RAM slots.
  • Width/Length: These dimensions can affect clearance with motherboard heatsinks (VRM heatsinks), RAM modules, and even the PCIe slots. Low-profile coolers are specifically designed to minimize height but may have a larger footprint on the motherboard.
• Radiator and Fan Size (for AIOs): For liquid coolers, the radiator size (e.g., 120mm, 240mm, 360mm) and its thickness, along with the fan size and thickness, dictate where it can be mounted within the case (top, front, rear, bottom) and if it will interfere with other components like RAM or motherboard VRM heatsinks.

Factors Determining CPU Cooler Universality

So, you’ve got a CPU cooler and you’re wondering if it’ll actually fit your motherboard. It’s not just about plugging it in; there are a few key things that make a CPU cooler “universal” or, more accurately, compatible with a wide range of systems. Let’s break down what those are.The idea of a truly “universal” cooler is a bit of a marketing term.

What manufacturers mean is that the cooler comes with a mounting system designed to work with the vast majority of modern CPU sockets. This adaptability is crucial because different CPU generations and manufacturers use different socket designs, which dictate how a cooler physically attaches to the motherboard.

So, about those CPU coolers being universal, it’s a bit tricky, not like knowing how to update airpods pro software which is quite straightforward! Different sockets mean different mounts, so you gotta check your motherboard, yeah? But hey, at least you know your tech!

CPU Socket Compatibility

The motherboard’s CPU socket is the absolute foundation for cooler compatibility. It’s the physical interface where the CPU sits, and it has specific dimensions and mounting hole patterns. CPU cooler manufacturers design their mounting hardware to accommodate these different patterns.A cooler is considered “universal” because its mounting kit includes brackets and hardware that can be configured to align with the standard mounting hole spacing for a wide array of CPU sockets.

For instance, Intel’s LGA sockets (like LGA 1700, 1200, 115x) and AMD’s AM sockets (like AM5, AM4) have established mounting dimensions that cooler makers target. The mounting kit will typically have adjustable components or interchangeable parts to match these specific hole spacings. Without the correct brackets for your specific socket type, the cooler simply won’t mount securely, or at all.

CPU Cooler Mounting Hardware

This is where the “universality” magic really happens. The mounting hardware, often referred to as a “mounting kit” or “retention kit,” is the set of brackets, screws, standoffs, and clips that allow the cooler to be attached to the motherboard. For a cooler to be broadly compatible, its mounting kit needs to be versatile.These kits are designed with adjustability in mind.

For example, an Intel mounting bracket might have holes that can be shifted or rotated to align with the different dimensions of LGA 1700 versus LGA 1151. Similarly, AMD kits often feature adjustable clips or brackets that can accommodate the varying heights and positions of mounting points on different AM4 or AM5 motherboards. Some high-end coolers even include separate brackets for different socket generations, ensuring broader compatibility out of the box.Here’s a look at common components and their roles:

• Brackets: These are the primary pieces that interface with the motherboard’s socket area. They are often designed with multiple sets of holes or slots to match different socket mounting patterns.
• Standoffs: These are small cylindrical spacers that create the necessary gap between the motherboard and the cooler’s mounting hardware, ensuring a secure and even pressure.
• Screws and Clips: These secure the brackets to the motherboard and the cooler to the brackets. The length and thread of screws are crucial for proper fit.
• Backplates: Many coolers come with a backplate that mounts behind the motherboard. This provides a stable surface for the mounting hardware to press against, distributing the cooler’s weight and pressure more evenly across the socket area.

RAM Clearance Considerations

Even if the cooler physically bolts onto the motherboard, it might not be compatible if it clashes with your system’s RAM modules. This is a common issue, especially with large, high-performance air coolers that have substantial heatsinks and fans.The height and width of the CPU cooler’s heatsink and fan assembly are critical factors. If the cooler is too tall or too wide, it can overhang the RAM slots, preventing RAM modules (especially those with tall heat spreaders) from being installed or making it impossible to seat them properly.

This is why many cooler manufacturers provide specifications on their cooler’s dimensions and sometimes even diagrams illustrating potential RAM clearance issues. Some coolers feature offset fan mounts or slimmer fan designs to mitigate this problem. For instance, a cooler might have its fan mounted slightly higher on the heatsink, or it might use a 120mm fan instead of a larger 140mm fan on one side to gain extra clearance.

Case Clearance and Radiator Support

Alright, so we’ve covered how CPU coolers attach and what makes them

potentially* universal. But here’s the kicker

even if a cooler physically fits the CPU socket, it doesn’t mean it’ll actuallyfit inside your PC case*. This is where case clearance and radiator support come into play, and they’re absolutely crucial for a smooth build.Think of your PC case as a confined space. Just like you can’t fit a king-size mattress through a standard doorway, you can’t always fit the biggest, baddest CPU cooler into every case.

This section dives into how those physical dimensions dictate your cooler choices, especially when it comes to air coolers and the various sizes of radiators that come with all-in-one (AIO) liquid coolers.

Air Cooler Height Limitations

Air coolers, those chunky heatsinks with fans, can get pretty tall. Their height is a direct limitation imposed by your PC case. Most cases have a maximum CPU cooler height specification, and if your chosen cooler exceeds this, it simply won’t fit. This is a common point of failure for builders who get excited about a massive cooler without checking case specs.Here’s a breakdown of what to consider:

• Case Specification: Always check the “CPU Cooler Height Limit” in your case’s specifications. This is usually listed in millimeters (mm).
• Cooler Height: The CPU cooler’s specifications will also list its height. Make sure the cooler’s height is
  -less than* the case’s limit. A few millimeters of clearance is always a good idea to avoid any rubbing or forcing.
• Motherboard VRM Heatsinks: Sometimes, tall RAM modules or large VRM heatsinks on the motherboard can interfere with the cooler even if the cooler’s height itself is within limits. This is less common but worth noting for extreme builds.

All-In-One (AIO) Liquid Cooler Radiator Sizes and Mounting

AIO liquid coolers bring radiators into the mix, and these come in a variety of sizes, each requiring specific mounting points within a PC case. The radiator is where the heat is dissipated, and its size directly impacts cooling performance.Here are the common radiator sizes and their typical case support:

• 120mm Radiator: Often found in smaller AIOs, these are typically mounted to the rear of the case, often replacing a 120mm exhaust fan.
• 240mm Radiator: A very common size, this usually mounts to the top of the case or the front. Many cases support 240mm radiators in both locations.
• 280mm Radiator: Slightly larger than 240mm, these usually mount to the top or front of the case. They require mounting points designed for 140mm fans (two of them).
• 360mm Radiator: For enthusiasts seeking maximum cooling, these massive radiators are most commonly found mounted to the front of the case, but some larger cases can accommodate them at the top.

The mounting points for these radiators are essentially cutouts or brackets within the case designed to align with the screw holes on the radiator. Most modern cases will clearly list which radiator sizes they support and where (e.g., “Top: 240mm/280mm,” “Front: 120mm/240mm/360mm”).

Common PC Case Form Factors and Cooler Clearance

The size and type of your PC case significantly influence the cooler options available to you. Different form factors have different internal volumes and layouts, which directly translates to cooler clearance.Here’s a look at common form factors and their typical cooler clearance:

• Mini-ITX: These are the smallest cases, designed for compact builds. Cooler height is often very limited (sometimes under 100mm), and radiator support is usually restricted to a single 120mm or 140mm fan, often on the rear or side.
• Micro-ATX (mATX): A step up in size, mATX cases offer more flexibility. They typically support CPU cooler heights up to around 150-160mm and can often accommodate 240mm radiators, usually at the front or top.
• ATX: The most common form factor for gaming and enthusiast builds. ATX cases generally offer excellent cooler clearance, with heights often exceeding 160mm, and robust radiator support for 240mm, 280mm, and even 360mm units in the front, top, or sometimes bottom.
• E-ATX (Extended ATX): These are the largest cases, offering the most internal space and highest cooler clearance. They can easily accommodate the largest air coolers and multiple, large radiators.

It’s important to note that even within a form factor, there can be vast differences in internal design and clearance. Always check the specific case’s specifications.

Potential Conflicts Between Large CPU Coolers and Other Components

Even if a cooler fits within the height limit and the case supports the radiator size, there are other internal components that can cause conflicts, especially with large air coolers.Here are some common culprits:

• RAM Clearance: Tall RAM modules, especially those with large heat spreaders, can collide with the heatsink or fans of a large air cooler. Some coolers have a raised design or offset mounting to mitigate this, but it’s still a frequent issue.
• Motherboard VRM/IO Heatsinks: While less common, very wide coolers might interfere with large VRM heatsinks or the I/O shroud on some motherboards.
• Expansion Slot Clearance: In some very compact cases, a massive air cooler might overhang the first PCIe slot, potentially making it difficult to install a large graphics card or other expansion cards.
• GPU Sag/Clearance: With large air coolers, especially if the motherboard is installed vertically, there’s a potential for the cooler to physically interfere with the graphics card. This is more common in smaller builds or cases with unusual layouts.
• Side Panel Clearance: For air coolers, the distance between the cooler’s fan and the side panel of the case is important for airflow. If the cooler is too close, it can restrict airflow, impacting cooling performance.

For AIOs, the main conflict tends to be with the radiator placement. Ensuring the radiator and its fans don’t obstruct RAM slots, M.2 drives, or the motherboard’s power connectors is key.

Manufacturer Specifications and Resources

Navigating the world of CPU cooler compatibility can feel like deciphering a secret code sometimes, but thankfully, manufacturers provide the keys. Their official specifications and dedicated resources are your best bet for accurate compatibility information. Think of them as the instruction manual for your cooler and motherboard.Understanding these specifications is crucial because it directly impacts whether a cooler will physically fit and function correctly with your specific CPU and motherboard.

It’s not just about aesthetics; it’s about performance and avoiding costly mistakes.

Interpreting CPU Cooler Specifications

When you look at a CPU cooler’s product page or box, you’ll find a bunch of technical jargon. The most important part for compatibility is the “Socket Support” or “Compatibility” section. This lists all the CPU socket types the cooler is designed to work with. You’ll see designations like LGA 1700, AM5, AM4, and so on. It’s vital to match this list against your motherboard’s socket type.

Beyond the socket, you’ll also find dimensions (height, width, depth), which are critical for case clearance, and fan specifications, which relate to noise and cooling performance.

Checking CPU Cooler Compatibility with Specific Motherboards

The most reliable way to check compatibility is to cross-reference. First, identify the exact socket type of your motherboard. This is usually printed on the motherboard itself, near the CPU socket, or you can find it in your motherboard’s manual or on the manufacturer’s website. Once you have your motherboard’s socket type, check the CPU cooler’s specifications to ensure it supports that socket.

Many cooler manufacturers also provide dedicated compatibility lists or tools on their websites.

Manufacturer Websites Offering Compatibility Checkers, Are cpu coolers universal

Several major CPU cooler manufacturers provide excellent online tools to simplify this process. These often work by allowing you to select your motherboard model or CPU, and then they will list compatible coolers.Here are a few examples of manufacturers with robust compatibility resources:

• Noctua: Known for their extensive compatibility lists and excellent support, Noctua has a dedicated “Mainboard-CPU-Cooler compatibility checker” on their website. You can input your motherboard model, and it will show you compatible coolers, including notes on potential RAM or PCIe slot clearance issues.
• Cooler Master: They offer a “CPU Cooler Compatibility Checker” that allows you to select your CPU socket and then lists compatible cooler series. They also provide detailed product pages with clear socket support information.
• be quiet!: Similar to others, be quiet! provides detailed specifications for each cooler, including a list of supported CPU sockets. Their website also features product guides that can help users find suitable options.

Common CPU Socket Types and Cooler Compatibility Notes

CPU sockets are the physical interfaces on the motherboard where the CPU is installed. Different CPU generations and manufacturers use different socket designs, and cooler mounting hardware is specific to these sockets.Here’s a list of common CPU socket types and some general compatibility notes:

Common Misconceptions and Realities

Let’s cut through the noise and get real about CPU cooler “universality.” While the term gets thrown around a lot, the truth is a bit more nuanced. Thinking all coolers will magically fit every CPU is a common pitfall that can lead to frustration and wasted money. Understanding these nuances is key to a successful build.It’s easy to assume that if a cooler claims to be universal, it should just work.

However, this often overlooks the critical differences in CPU socket designs and the mounting mechanisms required for each. The “universal” aspect usually refers to the cooler’s ability to attach to a wide

range* of sockets, but this often necessitates using different brackets or hardware provided in the box.

The “Universal” Cooler and Its Mounting Hardware

The idea that a single CPU cooler can be bolted onto any motherboard without any changes is a myth. While the heatsink and fan itself might be designed to dissipate heat effectively, the way it physically attaches to the motherboard is dictated by the CPU socket. Different Intel and AMD sockets (like LGA 1700, AM5, AM4, etc.) have distinct mounting hole patterns and retention systems.A truly “universal” cooler comes equipped with a variety of mounting brackets and hardware.

This allows it to adapt to the specific requirements of different socket types. For example, an Intel cooler might use a push-pin system for older sockets or a backplate and screw system for newer ones. Similarly, AMD coolers often require specific brackets to align with the pins on the motherboard. The cooler’s base plate might be large enough to cover various CPU dies, but the connection to the motherboard is the critical, non-universal part.

Cost-Effectiveness: New Cooler vs. Mounting Kit

When faced with a cooler that doesn’t have the right mounting hardware for your current or future CPU, you’ll often weigh the cost of buying a separate mounting kit against purchasing an entirely new cooler. Generally, if a mounting kit is available and reasonably priced, it’s the more cost-effective solution.However, there are a few factors to consider:

• Availability: Not all manufacturers offer separate mounting kits for older coolers.
• Cost: If a mounting kit is nearly as expensive as a budget-friendly new cooler, the new cooler might be a better investment, especially if it offers improved performance or features.
• Compatibility: Ensure the mounting kit is
  -definitely* compatible with your specific cooler model and your motherboard’s CPU socket.
• Performance Upgrade: Sometimes, a new, entry-level cooler for a different socket might outperform your old cooler, even with the correct mounting.

Scenario: The Phantom Vibration

Imagine you’ve just installed a new CPU cooler, and your system is booting up. Everything looks good, but you notice a persistent, low-frequency vibration that seems to be coming from the PC case. You’ve checked all the case fans, the power supply, and even the hard drives, but the noise persists.This is a classic scenario where the cooler’s mounting pressure might be uneven.

The cooler is making contact, but the screws or clips aren’t tightened uniformly. This can cause the heatsink to slightly warp the motherboard around the CPU socket, leading to vibrations transmitted through the chassis. Resolution: The solution is to carefully re-mount the CPU cooler. This involves:

1. Gently loosening all mounting screws or clips.
2. Ensuring the cooler is perfectly seated on the CPU and the thermal paste has spread evenly.
3. Tightening the screws in a diagonal, star pattern, a little at a time. This ensures even pressure distribution.
4. Tighten until snug, but avoid over-tightening, which can damage the motherboard or CPU.

After re-mounting with even pressure, the phantom vibration often disappears, leaving you with a quiet and well-cooled system. This highlights how seemingly minor installation details can have noticeable effects.

Illustrative Scenarios and Visual Descriptions: Are Cpu Coolers Universal

To truly grasp the concept of CPU cooler universality, it’s helpful to visualize the components and how they interact. Let’s break down some common scenarios that highlight the challenges and solutions involved in fitting a cooler to your specific hardware.

CPU Cooler Mounting Bracket System Visualization

Imagine a CPU cooler’s mounting system as a versatile puzzle piece designed to adapt. At its core, you’ll typically find a universal backplate that sits behind the motherboard. This backplate often has an array of pre-drilled holes. Then come the mounting brackets, usually two distinct pieces, one for Intel and one for AMD, or a single set of brackets with adjustable components.

These brackets attach to the backplate using screws. The crucial part is the adjustability: the screw holes on the brackets themselves are often slotted, allowing you to slide them left or right, or up and down, to align perfectly with the mounting holes surrounding your specific CPU socket. This sliding mechanism is what allows a single cooler design to accommodate the different spacing requirements of various Intel and AMD sockets.

Physical Appearance of Different CPU Socket Types

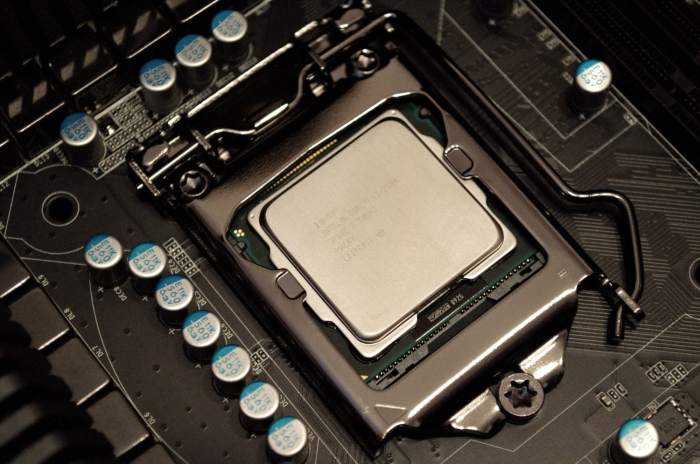

CPU sockets are the literal interface between your motherboard and your processor, and they look quite different.

• Intel Sockets (e.g., LGA 1700, LGA 1200, LGA 115x): These are characterized by a “Land Grid Array” (LGA) design. Instead of pins on the CPU, the socket itself has hundreds of tiny, delicate pins arranged in a grid. The CPU has corresponding flat pads that make contact with these pins. The overall footprint of these sockets varies, with LGA 1700 being notably wider than its predecessors like LGA 115x.

• AMD Sockets (e.g., AM5, AM4, TR4): AMD predominantly uses “Pin Grid Array” (PGA) or its modern iteration, LGA with the pins now on the CPU. AM4 and AM5 sockets, for instance, have a rectangular opening with a lever to secure the CPU, and the mounting holes for coolers are arranged in a specific square pattern around this opening. TR4, found on Threadripper CPUs, is significantly larger, featuring a much bigger socket and a corresponding larger mounting hole pattern to accommodate the massive processor.

The differences in the arrangement and spacing of these mounting holes are the primary reason why cooler manufacturers provide different bracket sets or adjustable mounting solutions.

RAM Module Obstruction with Large Air Coolers

Picture a monstrously large tower air cooler, designed for maximum heat dissipation. These coolers often have a substantial heatsink with numerous fins and one or more fans. When you go to install such a cooler on a motherboard, especially in a typical ATX or Micro-ATX case, the cooler’s base and its fans can overhang the RAM slots. If you have tall RAM modules (often called “high-profile RAM” or those with large heat spreaders), the cooler might physically not be able to sit low enough to make proper contact with the CPU.

This forces you to either:

• Install the RAM in slots further away from the CPU, if your motherboard layout allows.
• Adjust the height of the cooler’s fan(s) upwards on the heatsink to clear the RAM, which can sometimes compromise its ability to draw cool air from the case or even prevent the side panel from closing.
• In extreme cases, choose a smaller cooler or a liquid cooling solution.

Conceptual Airflow Path Diagram

Let’s visualize a common PC case setup with a tower air cooler.

The goal is to create a clear, directed path for cool air to enter the case, pass over the CPU heatsink, and then for hot air to be expelled.

Imagine your PC case with a front intake fan and a rear exhaust fan. The CPU cooler is a large tower situated directly above the CPU.

• Intake: Cool air is drawn into the front of the case by the front intake fan.
• CPU Cooler Interaction: This cool air is then directed towards the CPU cooler’s heatsink. The cooler’s fan(s) pull this air through the heatsink fins, absorbing heat from the CPU.
• Exhaust: The now-heated air is then pushed by the CPU cooler’s fan(s) towards the rear of the case. The rear exhaust fan helps to expel this hot air out of the system, completing the cycle.

In this configuration, the CPU cooler acts as a critical component in channeling and exhausting heat, working in tandem with case fans to maintain optimal temperatures.

Final Review

In essence, while the allure of a truly universal CPU cooler is strong, the reality is far more nuanced. Compatibility hinges on a delicate interplay between the CPU socket, the cooler’s mounting hardware, RAM clearance, and even the dimensions of your PC case. By understanding these factors and diligently consulting manufacturer specifications, you can confidently select a cooler that not only fits but also performs optimally, ensuring your CPU remains cool and your system runs smoothly, avoiding the common pitfalls that can turn a dream build into a frustrating puzzle.

FAQ Explained

What is a CPU socket and why is it important for cooler compatibility?

A CPU socket is the physical interface on the motherboard where the CPU is installed. Different CPU generations and manufacturers use distinct socket designs, each with specific dimensions and pin arrangements. The CPU cooler’s mounting mechanism must align precisely with the holes around the socket to ensure secure attachment and proper contact for heat dissipation. If the cooler’s mounting kit doesn’t match the socket type, it simply won’t fit.

How does RAM clearance affect CPU cooler installation?

Large air coolers, particularly those with tall heatsinks, can physically interfere with the RAM modules installed in the motherboard’s DIMM slots. The cooler might be too wide or hang too low, preventing the RAM from being seated correctly or at all. This is especially true for motherboards with RAM slots positioned very close to the CPU socket. Low-profile coolers or AIO liquid coolers generally have less of an issue with RAM clearance.

What are the common radiator sizes for AIO liquid coolers?

All-in-One (AIO) liquid coolers use radiators to dissipate heat. Common radiator sizes include 120mm, 240mm, 280mm, and 360mm. The size of the radiator dictates the amount of cooling potential and also the space required within the PC case for mounting. Cases have specific mounting points designed to accommodate these different radiator sizes, often at the top, front, or rear of the chassis.

Is it ever more cost-effective to buy a new mounting kit than a new cooler?

Yes, in some cases, it can be more cost-effective. If you’re upgrading your motherboard to a new socket type but your existing CPU cooler is otherwise performing well and is a high-quality model, purchasing a compatible mounting kit for the new socket can be significantly cheaper than buying an entirely new cooler. Many cooler manufacturers offer separate mounting kits for purchase.

What is the difference between a tower cooler and a low-profile cooler?

A tower cooler is designed to stand vertically above the CPU, with a heatsink and fan assembly extending upwards. These generally offer excellent cooling performance but can be tall and may interfere with side panels or RAM. A low-profile cooler is designed to be much shorter, often lying horizontally over the CPU socket. These are ideal for compact PC cases (like Small Form Factor builds) where vertical space is limited, though they typically offer less cooling capacity than larger tower coolers.
