Are Thermocouples Universal Truths and Limits

Are thermocouples universal? It’s a question that sparks curiosity, a puzzle that invites us to unravel the intricate world of temperature sensing. Imagine a tool so versatile, yet with its own set of quirks and boundaries. This is the journey we’re about to embark on, exploring the essence of thermocouples, their materials, their applications, and the very real limitations that define their reach.

Get ready for a deep dive that’s both enlightening and surprisingly relatable, much like discovering a hidden gem in your favorite bookstore.

At their core, thermocouples are ingenious devices that harness the thermoelectric effect to measure temperature. They’re built from two dissimilar metal wires joined at one end, forming a junction. When this junction is heated or cooled, a small voltage is produced, a subtle whisper of the temperature at play. This voltage, though tiny, is the key to unlocking temperature data across a vast spectrum.

Understanding the fundamental working principle, the basic components, the different junction types, and how this voltage output is generated is the first step in appreciating their role in our technological landscape.

Defining Thermocouples

Thermocouples are ubiquitous temperature sensors, valued for their simplicity, robustness, and wide operating range. Their ability to translate thermal energy into an electrical signal makes them indispensable across a vast spectrum of industrial and scientific applications. Understanding their core principles is key to leveraging their full potential.At its heart, a thermocouple operates on a phenomenon known as the Seebeck effect, a thermoelectric principle where a voltage is generated when two dissimilar metals are joined at two different temperatures.

This voltage is directly proportional to the temperature difference between the junctions, providing a reliable method for temperature measurement.

Fundamental Working Principle: The Seebeck Effect

The Seebeck effect, discovered by Thomas Johann Seebeck in 1821, describes the generation of an electromotive force (EMF) or voltage when two conductors of different materials are subjected to a temperature gradient. In a thermocouple, this gradient is established between the measuring junction (where the temperature is to be determined) and the reference junction (maintained at a known, constant temperature).

The magnitude of the generated voltage is characteristic of the specific pair of metals used and the temperature difference.

The Seebeck effect is the direct conversion of temperature differences into electric voltage, and vice versa.

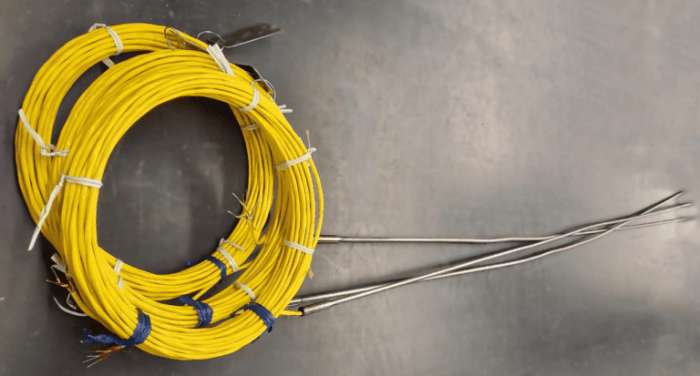

Basic Components of a Thermocouple

A functional thermocouple setup is comprised of a few essential components that work in concert to facilitate accurate temperature readings. These components are designed for durability and reliable performance in diverse environments.A typical thermocouple consists of:

• Two dissimilar metal wires: These are the core sensing elements. The choice of metals dictates the thermocouple’s temperature range, sensitivity, and resistance to specific environments.
• Measuring junction (hot junction): This is where the two dissimilar wires are joined together, and it is placed at the point where the temperature is to be measured.
• Reference junction (cold junction): This is the other end of the thermocouple wires, where they connect to the measuring instrument. For accurate readings, this junction must be kept at a known and stable temperature.
• Insulation: The individual wires are typically insulated from each other and the surrounding environment to prevent short circuits and interference.
• Protective sheath (optional but common): A sheath protects the thermocouple wires from harsh environments, corrosion, abrasion, and physical damage, extending its lifespan and ensuring measurement integrity.

Types of Thermocouple Junctions, Are thermocouples universal

The physical configuration of the measuring junction significantly impacts the thermocouple’s response time, durability, and susceptibility to external influences. Different junction types are suited for various applications, offering trade-offs between speed of response and robustness.Thermocouple junctions are commonly categorized as:

• Grounded junction: In this type, the two thermocouple wires are electrically connected to the inside of the protective sheath. This configuration offers excellent heat transfer and a fast response time, as the junction is in direct contact with the sheath. However, it can introduce electrical noise and may not be suitable for applications where electrical isolation is critical.
• Ungrounded junction: Here, the thermocouple wires are insulated from the protective sheath by a ceramic material. This provides electrical isolation and protection from electromagnetic interference, making it ideal for high-voltage applications or where contamination is a concern. The response time is slower compared to a grounded junction due to the insulating layer.
• Exposed junction: In this type, the tips of the thermocouple wires are welded together and exposed directly to the measuring environment without any sheath. This configuration offers the fastest response time, as there is minimal thermal mass to heat up. However, it is the least robust and most susceptible to corrosion and physical damage, making it suitable only for clean, non-corrosive environments.

Thermocouple Voltage Generation

The process by which a thermocouple generates a voltage is a direct consequence of the Seebeck effect, amplified by the thermoelectric properties of the chosen metal pair. The generated voltage is not a result of a chemical reaction or a static potential but rather a dynamic response to the thermal energy difference.The voltage output from a thermocouple is generated through the following mechanism:

1. Temperature Gradient: When a temperature difference exists between the measuring junction and the reference junction, charge carriers (electrons and holes) within the metal wires experience different kinetic energies.
2. Charge Carrier Movement: In each dissimilar metal, the density of charge carriers and their mobility differ. The temperature gradient causes a net diffusion of these charge carriers from the hotter region to the colder region.
3. Thermoelectric EMF: Because the two metals are dissimilar, the magnitude and direction of this charge carrier movement are different in each wire. This difference in charge flow creates an imbalance of charge at the reference junction, resulting in a net electromotive force (EMF) or voltage.
4. Voltage-Temperature Relationship: For a given thermocouple type, the generated voltage is approximately linearly proportional to the temperature difference between the junctions within a specific range. This relationship is typically non-linear over very wide temperature ranges and is described by complex polynomial equations or lookup tables specific to each thermocouple type.

The relationship between the temperature difference ($\Delta T$) and the generated voltage ($V$) can be conceptually represented as:

$V \approx S \times \Delta T$

where $S$ is the Seebeck coefficient, which is a material property dependent on the specific metals and temperature. More accurately, the voltage is an integral of the Seebeck coefficient over the temperature range.

Thermocouple Materials and Standards: Are Thermocouples Universal

The reliable measurement of temperature hinges critically on the selection of appropriate thermocouple materials. These materials, forming the very heart of a thermocouple, dictate its operational range, accuracy, and suitability for various environments. Understanding the common metal pairs and the established standards governing their use is paramount for accurate and consistent temperature sensing.

Common Thermocouple Metal Pairs and Temperature Ranges

Different combinations of dissimilar metals exhibit unique thermoelectric properties, making them suitable for specific temperature ranges and applications. These pairs are carefully chosen to balance sensitivity, durability, and cost-effectiveness.

• Type K (Chromel-Alumel): This is one of the most widely used thermocouple types due to its broad temperature range and availability. It typically operates from -200°C to 1250°C, with a maximum continuous use temperature often cited around 1100°C. Chromel (a nickel-chromium alloy) and Alumel (a nickel-aluminum alloy) are used.
• Type J (Iron-Constantan): Suitable for moderately high temperatures, Type J thermocouples are often used in inert or vacuum atmospheres. They generally operate from 0°C to 750°C, with a recommended maximum continuous use temperature of around 700°C. Iron and Constantan (a copper-nickel alloy) are the constituent metals.
• Type T (Copper-Constantan): Ideal for sub-zero and low-temperature applications, Type T thermocouples offer good stability and accuracy in these ranges. They are typically used from -200°C to 350°C. Copper and Constantan form this pair.
• Type E (Chromel-Constantan): Offering the highest output voltage per degree Celsius among the base-metal thermocouples, Type E provides excellent sensitivity. Its temperature range is similar to Type K, operating from -200°C to 900°C.
• Type R (Platinum-Rhodium/13% Rhodium): These are precious metal thermocouples, known for their accuracy and stability at very high temperatures. Type R is commonly used in oxidizing or inert atmospheres from 0°C to 1600°C.
• Type S (Platinum-Rhodium/10% Rhodium): Very similar to Type R, Type S also uses platinum and a platinum-rhodium alloy. It is frequently used as a reference standard in laboratories and operates from 0°C to 1600°C, with slightly lower rhodium content than Type R.
• Type B (Platinum-Rhodium/30% Rhodium & Platinum-Rhodium/6% Rhodium): Type B thermocouples are designed for extremely high temperatures and are particularly stable in oxidizing atmospheres. They are typically used from 500°C to 1700°C.

Standardization of Thermocouple Types and Color Codes

To ensure interchangeability and ease of identification, thermocouple types have been standardized by various organizations, most notably the International Electrotechnical Commission (IEC) and the American National Standards Institute (ANSI). These standards define the material composition, wire gauges, and, importantly, the color coding for thermocouple extension wires and sheaths.The color coding system is a crucial visual aid for technicians, allowing for quick identification of the thermocouple type, preventing incorrect connections that could lead to inaccurate readings or equipment damage.

IEC Color Codes (Commonly used internationally)

The IEC standard assigns specific colors to the positive and negative conductors of thermocouple extension wires.

ANSI Color Codes (Commonly used in North America)

The ANSI standard, while similar in principle, has some differences, particularly for common types.

It is crucial to verify the specific standard being used in a given application, as mixing standards can lead to misidentification and incorrect measurements.

Key Properties of Thermocouple Materials Influencing Performance

The effectiveness of a thermocouple is governed by several inherent material properties. These properties dictate how well the thermocouple can withstand its operating environment and accurately convert temperature differentials into measurable voltage signals.

• Seebeck Coefficient: This is the fundamental property that enables thermoelectric temperature measurement. It quantifies the voltage generated per degree Celsius (or Kelvin) of temperature difference between the hot and cold junctions. A higher Seebeck coefficient generally leads to a stronger signal and better resolution.
• Oxidation Resistance: For high-temperature applications, the ability of the thermocouple materials to resist oxidation is critical. Oxidation can degrade the wire, alter its thermoelectric properties, and eventually lead to failure.
• Melting Point: The melting point of the constituent metals sets an upper limit on the thermocouple’s operating temperature.
• Homogeneity: The uniformity of the alloy composition along the length of the thermocouple wire is essential for accurate and stable readings. Inhomogeneities can introduce spurious voltages.
• Mechanical Strength: The materials must possess sufficient tensile strength and ductility to withstand handling, installation, and the mechanical stresses of the application environment, especially at elevated temperatures.
• Chemical Inertness: In corrosive environments, the thermocouple materials must be resistant to chemical attack to maintain their integrity and accuracy.

Comparison of Advantages and Disadvantages of Different Thermocouple Material Combinations

Each thermocouple type offers a unique profile of strengths and weaknesses, making the choice dependent on the specific application requirements.

Universality in Thermocouple Application

The concept of “universality” when applied to temperature sensors, and specifically thermocouples, suggests a single device capable of accurately and reliably measuring temperature across an extremely wide range of conditions and environments. This would imply a sensor that is unaffected by chemical composition, atmospheric pressure, physical constraints, or the specific temperature range being measured. Such a hypothetical sensor would eliminate the need for specialized knowledge or selection processes when deploying a temperature measurement solution.However, in practical engineering and scientific applications, true universality for a single thermocouple type is an unattainable ideal.

While thermocouples are remarkably versatile, their performance is intrinsically linked to their material composition, which dictates their temperature range, accuracy, and susceptibility to various environmental factors. Therefore, a single thermocouple type cannot be universally applied to all temperature measurement scenarios. The inherent properties of the materials used to construct a thermocouple are the primary determinants of its suitability for a given application.

Factors Limiting Universal Thermocouple Applicability

Several critical factors constrain the universal applicability of any specific thermocouple type, making careful selection based on the intended application paramount. These limitations arise from the fundamental physics and chemistry governing thermocouple operation and their interaction with the surrounding environment.

• Temperature Range: Each thermocouple type has a defined upper and lower temperature limit beyond which its accuracy degrades significantly or the materials themselves can be damaged or undergo undesirable phase changes. For instance, Type K thermocouples are suitable for moderate to high temperatures but are not designed for cryogenic applications or extremely high-temperature furnaces.
• Atmospheric Conditions: The oxidizing or reducing nature of the surrounding atmosphere is a major consideration. Some thermocouple alloys are susceptible to oxidation or reduction at elevated temperatures, leading to calibration drift or failure. For example, in a reducing atmosphere, Type K thermocouples can suffer from “green rot,” a phenomenon that alters their thermoelectric properties.
• Chemical Compatibility: Direct contact with certain chemicals can cause contamination or corrosion of the thermocouple wires, leading to inaccurate readings and premature failure. This is particularly important in chemical processing or environments with aggressive media.
• Vibration and Mechanical Stress: While the thermocouple junction itself is robust, continuous vibration or mechanical stress can lead to wire fatigue, breakage, or even affect the integrity of the junction, particularly in exposed sensor configurations.
• Response Time Requirements: The physical construction of a thermocouple assembly, including sheath diameter and material, directly impacts its thermal response time. For applications requiring rapid temperature changes to be detected, a thin-sheathed or exposed junction thermocouple is necessary, which might not be suitable for all environments.
• Accuracy and Stability: Different thermocouple types offer varying levels of accuracy and long-term stability. For highly precise measurements or applications where recalibration is difficult, choosing a thermocouple type known for its stability within the operating range is crucial.
• Cost: While not a performance limitation, the cost of thermocouple materials can influence selection, especially for large-scale deployments or cost-sensitive applications. Precious metal thermocouples (e.g., Type B, R, S) offer excellent high-temperature performance but come at a higher price point than base metal thermocouples (e.g., Type K, J, T).

Common Industrial Applications and Suitable Thermocouple Types

The selection of the most appropriate thermocouple type is a critical decision in industrial temperature measurement, directly impacting process control, safety, and efficiency. Below is a list of common industrial applications and the thermocouple types typically recommended for each, considering the factors Artikeld previously.

Limitations and Considerations for Broad Use

While thermocouples boast remarkable universality, their widespread application is not without its inherent constraints and necessary precautions. Understanding these limitations is paramount to ensuring accurate, reliable, and long-lasting temperature measurement across diverse industrial and scientific environments. Ignoring these factors can lead to premature failures, erroneous data, and ultimately, compromised processes.

Environmental Factors Affecting Thermocouple Performance

The operational environment of a thermocouple plays a critical role in its accuracy, stability, and overall lifespan. Various external influences can degrade the thermocouple’s materials or interfere with its ability to generate a consistent voltage proportional to temperature.

• Temperature Extremes: While designed for a range of temperatures, exceeding the specified limits for a particular thermocouple type can lead to material degradation, embrittlement, or even melting of the thermocouple wires. Conversely, operating at the very low end of a thermocouple’s range can introduce non-linearity and reduced sensitivity.
• Corrosive Atmospheres: Exposure to oxidizing, reducing, acidic, or alkaline environments can chemically attack the thermocouple wires. This corrosion can thin the wires, alter their composition, and introduce impurities, leading to drift in the thermoelectric output and eventual failure. For instance, sulfurous atmospheres can severely degrade base metal thermocouples.
• Vibration and Mechanical Stress: Constant vibration or physical stress can cause fatigue and breakage of the thermocouple wires, especially at elevated temperatures where materials become more ductile. This is a common issue in rotating machinery or areas subjected to heavy industrial activity.
• Moisture and Humidity: Ingress of moisture, particularly in conjunction with corrosive substances, can lead to galvanic corrosion or short-circuiting of the thermocouple junction, disrupting the voltage signal.
• Radiation: High-energy radiation environments, such as those found in nuclear reactors, can induce structural changes in thermocouple materials, altering their thermoelectric properties and reducing their lifespan.
• Electrical Noise: External electromagnetic interference (EMI) can induce unwanted voltages in the thermocouple circuit, leading to noisy and inaccurate temperature readings. Proper shielding and grounding are essential in such environments.

Common Thermocouple Failure Modes

Understanding how thermocouples typically fail allows for proactive maintenance and troubleshooting. Recognizing these patterns can prevent costly downtime and ensure the integrity of temperature monitoring systems.

• Open Circuit: This is one of the most common failures, occurring when one or both thermocouple wires break. This can be due to mechanical stress, fatigue, corrosion, or insulation breakdown. An open circuit results in no voltage output, typically indicated by a reading at the maximum or minimum limit of the instrument.
• Short Circuit: A short circuit occurs when the positive and negative thermocouple wires come into direct contact, usually at the measuring junction or elsewhere along the lead. This can happen due to insulation degradation, melting at high temperatures, or physical damage. A short circuit results in a zero or significantly reduced voltage output, leading to incorrect temperature readings.
• Drift: Over time, the thermoelectric properties of the thermocouple materials can change due to diffusion, oxidation, or contamination. This gradual alteration in material composition leads to a slow but persistent error in the temperature reading, where the thermocouple indicates a temperature different from the actual one. This is often subtle and can go unnoticed without regular calibration.
• Contamination: Impurities from the surrounding environment can diffuse into the thermocouple wires, altering their thermoelectric characteristics. This is particularly prevalent in vacuum or high-purity gas applications where even trace contaminants can have a significant impact.
• Insulation Breakdown: The ceramic or polymer insulation surrounding the thermocouple wires can degrade over time due to heat, chemical attack, or mechanical abrasion. This breakdown can lead to short circuits or ground faults, compromising the signal.

Importance of Proper Installation and Calibration

The finest thermocouple is rendered useless if not installed and calibrated correctly. These steps are foundational to achieving the accuracy and reliability that thermocouples are known for.Proper installation ensures that the thermocouple is exposed to the intended measurement point and is protected from detrimental environmental factors. This includes:

• Secure Mounting: The thermocouple must be firmly fixed at the point where temperature measurement is required, ensuring good thermal contact without introducing undue stress.
• Protection Sheathing: Utilizing appropriate thermowells or protective sheaths shields the thermocouple from mechanical damage, corrosive atmospheres, and excessive pressure, thereby extending its lifespan and maintaining accuracy.
• Correct Wiring: Ensuring the correct polarity of the thermocouple wires and their connection to the instrumentation is fundamental. Reversing polarity will lead to inverted temperature readings.
• Minimizing Thermal Lag: The installation should aim to minimize the time it takes for the thermocouple to respond to temperature changes, which is crucial for dynamic processes.

Calibration is the process of comparing the thermocouple’s output to a known standard and adjusting the measuring instrument or documenting the deviation. This is critical because:

• Verifies Accuracy: Calibration confirms that the thermocouple is reading temperature within its specified tolerance.
• Detects Drift: Regular calibration helps identify and quantify any drift that may have occurred since the last calibration, allowing for corrections or replacement.
• Ensures Traceability: Calibrated thermocouples provide traceable measurements, which are often a requirement for quality control and regulatory compliance.
• Optimizes System Performance: Accurate temperature readings are essential for optimizing process control, energy efficiency, and product quality.

For critical applications, regular calibration against a traceable reference standard is indispensable. The frequency of calibration depends on the application, the operating environment, and the required accuracy.

Thermocouple Extension Wires and Signal Integrity

Thermocouple extension wires are a crucial component in extending the thermocouple’s reach from the measurement point to the temperature instrument. They are not merely simple conductors but are specifically designed to maintain the integrity of the low-level thermoelectric signal.The thermoelectric voltage generated by a thermocouple is relatively small, typically in the millivolt range. If standard copper wires were used to connect the thermocouple to the measuring instrument, a new, unintended thermocouple junction would be formed at the connection point between the copper and the thermocouple wire.

This junction, being at a different temperature than the measuring junction, would introduce an additional thermoelectric voltage, leading to significant measurement errors.To circumvent this, thermocouple extension wires are made from materials that have a similar thermoelectric characteristic to the thermocouple itself, but at a lower cost and in a more flexible form. They are designated with the same letter code as the thermocouple type they are intended to be used with (e.g., KX extension wire for a K-type thermocouple).The key principles and roles of extension wires include:

• Maintaining Thermoelectric Compatibility: Extension wires are manufactured to have a thermoelectric voltage versus temperature relationship that closely approximates that of the base thermocouple wire. This minimizes the error introduced by the connection.
• Color Coding: Extension wires are color-coded according to international standards (e.g., ANSI, IEC) to ensure correct pairing with the corresponding thermocouple type, preventing accidental mismatches. For example, a Type K thermocouple typically uses yellow-coded extension wires.
• Signal Strength and Noise Reduction: While designed for compatibility, extension wires can still be susceptible to electrical noise. Shielded extension wires are available for environments with high EMI, employing a metallic shield around the conductors to divert noise away from the signal.
• Durability and Environmental Resistance: Extension wires are available with various insulation and jacketing materials to withstand the environmental conditions between the thermocouple junction and the instrument, ensuring their longevity and the reliability of the signal transmission.

The length of extension wire used can also introduce a small error, as even matched extension wires will have some deviation from the ideal. Therefore, it is generally advisable to keep the length of extension wire to a minimum and to ensure that the extension wire-instrument connection point is at a stable and known temperature, ideally close to the instrument’s internal reference junction compensation.

Alternatives and Complementary Technologies

While thermocouples boast a remarkable universality, no single sensor technology reigns supreme in every temperature measurement scenario. Understanding their counterparts and how they can synergize with thermocouples is crucial for optimizing measurement systems. This section explores key alternatives and complementary technologies, highlighting their distinct characteristics and application niches.

Comparison of Thermocouples with RTDs and Thermistors

Each temperature sensing technology possesses a unique set of advantages and disadvantages that dictate its suitability for specific applications. Thermocouples, with their inherent robustness and wide temperature range, often compete with Resistance Temperature Detectors (RTDs) and thermistors, which offer different performance profiles.RTDs, typically made from platinum, exhibit excellent linearity and stability over a broad temperature range. Their resistance changes predictably with temperature, making them highly accurate.

However, RTDs generally have slower response times and are more susceptible to vibration than thermocouples. They also tend to be more expensive.Thermistors, on the other hand, are semiconductor devices whose resistance changes dramatically with temperature, often with a high degree of sensitivity. They are generally less expensive and have faster response times than RTDs. However, their operating temperature range is typically narrower, and their linearity can be poor, often requiring linearization circuitry.

They are also prone to self-heating due to their high resistance.

Scenarios Favoring Thermocouples

The ruggedness, simplicity, and wide temperature capability of thermocouples make them the preferred choice in numerous demanding environments. Their ability to withstand harsh conditions, including high temperatures, corrosive atmospheres, and mechanical stress, often outweighs the higher accuracy or faster response times offered by other sensors.For instance, in high-temperature industrial furnaces, molten metal processing, and exhaust gas monitoring in engines, thermocouples are indispensable.

Their self-powered nature and minimal susceptibility to electrical noise in these environments further solidify their position. Applications requiring rapid temperature changes, such as in heat-treating processes or rapid quenching, also benefit from the faster response times of certain thermocouple types, particularly those with fine gauge wires.

Complementary Use of Thermocouples with Other Measurement Devices

In complex measurement systems, thermocouples are often integrated with other devices to achieve a comprehensive understanding of process conditions. This synergy allows for redundancy, cross-validation, or the measurement of parameters beyond temperature.For example, in a high-temperature reactor, a thermocouple might monitor the core temperature, while an infrared pyrometer is used to measure the surface temperature of the vessel walls. This provides a more complete picture of the thermal dynamics.

In process control systems, a thermocouple could be used for primary temperature feedback, while a pressure transducer monitors system pressure, or a flow meter measures the rate of fluid entering the system. This multi-parameter approach is vital for sophisticated control and safety.

Comparative Table of Temperature Sensor Specifications

To further illustrate the distinctions, the following table provides a general comparison of key specifications for thermocouples, RTDs, and thermistors. It is important to note that specific types within each category can vary significantly.

Designing for Specific Applications

The inherent versatility of thermocouples is a significant advantage, but achieving optimal performance and longevity in diverse industrial settings hinges on a meticulous design process. This involves a deep understanding of the application’s specific demands, from the extreme temperatures it will encounter to the chemical nature of its environment and the precision required for accurate measurements. Failing to align these critical factors with the chosen thermocouple type can lead to premature failure, inaccurate data, and ultimately, costly operational disruptions.Selecting the correct thermocouple type is a multifaceted decision driven by a confluence of environmental and performance requirements.

Each thermocouple type, defined by its unique combination of metallic elements, possesses distinct temperature ranges, sensitivities, and resistances to various atmospheric conditions. Therefore, a thorough analysis of the application’s operating parameters is paramount to ensure reliable and accurate temperature sensing.

Thermocouple Type Selection Criteria

The process of selecting an appropriate thermocouple type for a given application is a systematic evaluation of several key parameters. These parameters directly influence the thermocouple’s ability to perform accurately and reliably under specific operating conditions.

• Temperature Range: This is often the primary determinant. Different thermocouple types are rated for specific temperature ranges, from cryogenic levels to extremely high temperatures exceeding 2000°C. For instance, Type K (Chromel-Alumel) is common for general-purpose use up to around 1260°C, while Type R or S (Platinum-Rhodium) are suitable for much higher temperatures, up to 1600°C, in oxidizing or inert atmospheres.

  Type N (Nicrosil-Nisil) offers better stability at higher temperatures than Type K.

• Atmosphere: The chemical environment in which the thermocouple will operate is critical. Some atmospheres can cause oxidation, reduction, or contamination of the thermocouple wires, leading to drift and eventual failure. Oxidizing or inert atmospheres are generally suitable for noble metal thermocouples (Types R, S, B) and Type K. Reducing atmospheres can be problematic for Type K, where Type N or noble metal types might be preferred.

  Vacuum environments also present unique challenges.

• Required Accuracy and Stability: Different thermocouple types offer varying levels of accuracy and long-term stability. Noble metal thermocouples generally offer superior accuracy and stability at high temperatures compared to base metal types. The required precision of the measurement will dictate whether a standard or special limits of error thermocouple is necessary.
• Response Time: The physical construction of the thermocouple, including the diameter of the wires and the type of sheath, significantly affects its response time to temperature changes. For fast-response applications, thinner gauge wires or exposed junction thermocouples are used, though these may be less durable.
• Cost: While performance is paramount, cost is also a consideration. Base metal thermocouples like Type K and J are generally more economical than noble metal thermocouples.

Hypothetical Scenario: High-Temperature Steel Annealing Furnace

Consider a hypothetical scenario involving the precise temperature control of a steel annealing furnace operating at temperatures up to 1100°C in an inert argon atmosphere. The process requires tight temperature uniformity across a large batch of steel, demanding high accuracy and long-term stability to ensure consistent material properties.For this application, a Type S (Platinum-10% Rhodium/Platinum) thermocouple would be the most appropriate choice.The justification for this selection is as follows:

• Temperature Range: Type S thermocouples are rated for continuous use up to 1600°C, comfortably exceeding the furnace’s maximum operating temperature of 1100°C.
• Atmosphere: The inert argon atmosphere is ideal for Type S thermocouples, as platinum and platinum-rhodium alloys are highly resistant to oxidation and contamination in such environments. This prevents drift and ensures the longevity of the sensor.
• Accuracy and Stability: Type S thermocouples offer excellent accuracy and stability at elevated temperatures. Their inherent resistance to drift ensures that the temperature readings remain reliable over extended periods, which is crucial for achieving uniform annealing and consistent material properties in the steel. While Type K could operate at this temperature, its stability in long-term high-temperature service, especially in demanding industrial furnaces, is inferior to Type S.

• Cost Consideration: Although Type S thermocouples are more expensive than base metal types, their superior performance, reliability, and extended lifespan in this demanding application justify the initial investment, preventing costly rework or material rejection due to inaccurate temperature control.

Protective Sheathing Impact on Harsh Environments

Protective sheathing is a critical component that dictates a thermocouple’s suitability for harsh environments. It acts as a barrier, shielding the delicate thermocouple wires from direct exposure to corrosive gases, abrasive particles, extreme pressures, and mechanical damage. The choice of sheathing material is as important as the thermocouple type itself and must be compatible with both the process environment and the thermocouple’s temperature range.Common sheathing materials include:

• Stainless Steel (e.g., 304, 316): Offers good corrosion resistance in many mild to moderately aggressive environments and is suitable for a wide range of temperatures.
• Inconel: Provides superior resistance to high temperatures and corrosive atmospheres, particularly in sulfurous or oxidizing conditions, making it suitable for combustion environments.
• Ceramics (e.g., Alumina, Silicon Carbide): Essential for extremely high temperatures and highly corrosive or abrasive environments where metals would fail. They offer excellent electrical insulation and chemical inertness.
• Hastelloy: Known for its exceptional resistance to a wide array of corrosive media, including strong acids and reducing agents.

The sheathing not only protects the thermocouple but also influences its thermal response time. Thicker or more robust sheathing materials will generally lead to slower response times due to increased thermal mass and resistance to heat transfer. Therefore, a balance must be struck between protection and the required speed of temperature measurement.

While thermocouples are not entirely universal in application due to specific environmental constraints, a similar quest for a definitive answer can be found in sports statistics. In a surprising turn, investigations into which city has hosted the most football season finales reveal concentrated historical significance. This exploration, however, does not negate the fact that thermocouple universality remains a subject of ongoing technical refinement.

Checklist for Specifying Industrial Thermocouples

When specifying a thermocouple for industrial use, a comprehensive checklist ensures all critical factors are considered, leading to a robust and reliable temperature measurement solution.

Essential Considerations for Industrial Thermocouple Specification

Final Review

So, are thermocouples universal? The answer, as we’ve discovered, is a nuanced “not entirely, but incredibly useful.” While no single thermocouple can conquer every temperature challenge, their adaptability, wide temperature ranges, and cost-effectiveness make them indispensable in countless scenarios. From the searing heat of industrial furnaces to the delicate cold of cryogenic applications, thermocouples offer a reliable, albeit sometimes imperfect, window into thermal conditions.

By understanding their materials, standards, limitations, and the importance of proper application, we can harness their power effectively, ensuring that these workhorses of temperature measurement continue to serve us well, always with a keen eye on their specific strengths and the environments they are best suited for.

Frequently Asked Questions

What is the Seebeck effect?

The Seebeck effect is the phenomenon where a voltage is produced across the junction of two dissimilar conductors when there is a temperature difference between them, which is the fundamental principle behind thermocouple operation.

Can I use any two wires to make a thermocouple?

No, not all metal pairs will work effectively as thermocouples. Specific combinations of dissimilar metals are required to generate a predictable and measurable voltage output that correlates to temperature.

Do extension wires affect thermocouple readings?

Yes, extension wires are designed to have similar thermoelectric properties to the thermocouple itself to minimize errors. However, improper selection or damage to extension wires can introduce inaccuracies into the temperature reading.

Are thermocouples suitable for vacuum environments?

Thermocouples can be used in vacuum environments, but their lifespan and accuracy can be influenced by the specific materials and the presence of any reactive gases, even in trace amounts.

How often should a thermocouple be calibrated?

Calibration frequency depends on the application’s criticality and the operating environment. For critical applications, regular calibration (e.g., annually or semi-annually) is recommended, while less demanding applications might require less frequent calibration.
