How to Rebuild Hydraulic Cylinder Your Ultimate Guide to DIY Power

Yo, what’s up, gengs! We’re diving headfirst into the world of how to rebuild hydraulic cylinder. Forget throwing out your busted cylinders, we’re talking about bringing ’em back to life! This ain’t your grandpa’s workshop manual, we’re gonna break it down, step-by-step, in a way that’s easy to understand, even if your only tool is a wrench and a whole lotta semangat.

Hydraulic cylinders are the unsung heroes of heavy machinery, from the excavators digging deep to the forklifts lifting high. They’re the muscle, the power behind the movement. But like all heroes, they sometimes need a little TLC. Rebuilding ’em is a total win-win: saves you cash, reduces waste, and gives you mad skills. Let’s get this party started and learn how to do it right!

Introduction to Hydraulic Cylinder Rebuilding

Eyyy wassup, gengs! So, you wanna learn about hydraulic cylinder rebuilding? Basically, it’s like giving your ride a sick makeover, but for industrial machinery. Instead of replacing the whole thing, we’re talking about fixing it up, saving you some serious cash and keeping things running smooth. Let’s dive in, shall we?

Fundamental Components and Their Functions

Hydraulic cylinders are the muscle of a lot of heavy machinery. They convert hydraulic energy (pressure from fluid) into mechanical force. These bad boys are built from a few key components working together.

• Cylinder Barrel (Body): This is the main housing, usually a thick steel tube. It contains all the internal components and provides the structural support. Think of it as the cylinder’s main frame, where everything happens.
• Piston: This is a cylindrical component that moves inside the barrel. It’s connected to a rod and, when the fluid pressure acts on it, the piston moves, which provides the force that moves the machine. The piston is like the engine’s piston, but uses fluid power.
• Piston Rod: Attached to the piston, this rod extends outside the cylinder and connects to the load being moved. This is the part you see doing the work, like lifting a heavy object.
• Seals: These are crucial for preventing leaks and maintaining pressure. They keep the hydraulic fluid inside the cylinder, where it belongs. Without good seals, you’re losing power and efficiency.
• End Caps (Heads): These close off the cylinder barrel, providing a mounting point and housing the ports where the hydraulic fluid enters and exits. They keep the whole thing sealed up.
• Ports: These are openings in the end caps where the hydraulic fluid flows in and out, creating the pressure that drives the piston.

A Brief History of Hydraulic Cylinder Technology

Hydraulic cylinders aren’t a new thing, they’ve been around for a while, evolving from basic designs to the complex systems we see today.The earliest concepts of hydraulic power can be traced back to ancient civilizations. However, the modern hydraulic cylinder really started to take shape during the Industrial Revolution.

• Early Days: Early cylinders were pretty simple, used for basic tasks like pressing and lifting. They were mostly used in applications like presses and rudimentary machinery.
• 20th Century Boom: The 20th century saw rapid advancements. Innovations in materials, seals, and manufacturing techniques led to more powerful, efficient, and reliable cylinders.
• Modern Era: Today, hydraulic cylinders are used in everything from construction equipment and agriculture machinery to aerospace and manufacturing. Micro-hydraulics and advanced materials are pushing the boundaries even further.

Benefits of Rebuilding Hydraulic Cylinders vs. Replacement

So, why rebuild instead of just swapping the whole thing out? It’s all about being smart with your money and time. Rebuilding can often be the smarter choice.

• Cost Savings: Rebuilding a cylinder is usually significantly cheaper than buying a new one. Think of it like fixing a flat tire versus buying a new set of rims – you save a lot of cash.
• Extended Lifespan: Rebuilding can restore a cylinder to its original performance and extend its lifespan. It’s like giving it a new lease on life.
• Environmental Benefits: Rebuilding reduces waste. You’re reusing parts instead of throwing them away, which is good for the environment.
• Customization: Sometimes, you can even improve the cylinder during the rebuild, making it more efficient or better suited to its application.
• Reduced Downtime: Rebuilding often takes less time than ordering and waiting for a new cylinder, minimizing downtime for your equipment.

Safety Precautions Before Disassembly

Bro, before ko’ mulai bongkar-bongkar hydraulic cylinder, penting sekali ki’ jaga keselamatan. Ini bukan cuma soal nda’ cedera, tapi juga supaya kerjaanmu lancar dan nda’ ada masalah. Ingat, keselamatan nomor satu, baru kerjaan.

Personal Protective Equipment (PPE) Requirements

Mau kerja aman? Harus pake perlengkapan pelindung diri (PPE) yang tepat. Ini daftar yang wajib ki’ pake:

• Safety Glasses: Lindungi mata dari serpihan, minyak, atau cairan hydraulic yang bisa bikin buta. Pastikan kacamatamu kuat dan tahan benturan.
• Gloves: Pake sarung tangan yang tahan minyak dan bahan kimia. Lindungi tanganmu dari luka, iritasi, dan kontak langsung dengan cairan hydraulic.
• Safety Shoes: Sepatu safety penting sekali, apalagi kalau kerja di bengkel. Lindungi kakimu dari benda jatuh atau tertimpa.
• Overalls or Work Clothes: Pake baju kerja yang pas dan nyaman. Hindari baju yang longgar karena bisa tersangkut di mesin.
• Hearing Protection: Kalau ada suara bising dari alat-alat, pake penutup telinga atau earplugs untuk lindungi pendengaranmu.

Procedures for Depressurizing and Disconnecting a Hydraulic Cylinder

Sebelum ki’ mulai bongkar, harus ki’ buang tekanannya dulu. Ini penting sekali supaya nda’ ada hydraulic oil yang menyembur dan bikin cedera. Ikuti langkah-langkah ini:

1. Isolate the Cylinder: Matikan mesin atau sumber tenaga yang nyambung ke hydraulic cylinder.
2. Relieve Pressure: Buka katup pelepas tekanan (relief valve) secara perlahan. Ini akan membuang tekanan dari sistem. Jangan langsung buka semua, tapi bertahap.
3. Disconnect Hydraulic Lines: Setelah tekanan hilang, baru ki’ bisa lepas selang hydraulic. Pastikan selang sudah dingin sebelum ki’ pegang. Siapkan wadah untuk menampung minyak yang keluar.
4. Cap and Plug: Tutup semua lubang selang dan fitting dengan tutup atau sumbat yang sesuai. Ini supaya nda’ ada kotoran yang masuk dan merusak sistem.

Penting: Jangan pernah mencoba membuka hydraulic cylinder kalau masih ada tekanan. Ini sangat berbahaya dan bisa menyebabkan cedera serius.

Safety Checklist

Supaya lebih aman, pake checklist ini sebelum dan selama proses pembongkaran:

• Read the Manual: Baca dulu manual hydraulic cylinder-nya. Pahami semua bagian dan cara kerjanya.
• Prepare the Workspace: Pastikan tempat kerja bersih, terang, dan ada ventilasi yang baik.
• Use the Right Tools: Pake alat yang tepat dan dalam kondisi yang baik. Jangan pake alat yang rusak atau nda’ sesuai.
• Secure the Cylinder: Pastikan hydraulic cylinder terpasang dengan baik sebelum ki’ mulai membongkar. Pake alat pengaman tambahan kalau perlu.
• Control Oil Spills: Siapkan wadah untuk menampung minyak yang tumpah. Lap tumpahan minyak secepatnya untuk menghindari kecelakaan.
• Follow Instructions: Ikuti semua instruksi dan panduan dengan teliti. Jangan coba-coba kalau nda’ yakin.
• Take Breaks: Jangan terlalu lama kerja tanpa istirahat. Kalau capek, istirahat dulu.

Disassembly Procedures

Eeeh, jadi, sekarang kita masuk ke bagian seru, yaitu bongkar pasang si hidrolik silinder ini. Jangan panik, walaupun keliatan ribet, aslinya gampang kok, asal ikutin langkah-langkahnya dengan teliti. Ingat, keselamatan nomor satu, jadi siapin alat pelindung diri kayak sarung tangan, kacamata, dan sepatu safety. Kalo udah siap, mari kita mulai!

Disassembly of Hydraulic Cylinder Components

Sebelum mulai bongkar, pastikan area kerja bersih dan rapi. Siapin juga wadah buat naruh komponen-komponen yang udah dibongkar, biar gak ilang atau ketuker. Jangan lupa, catet posisi setiap komponen pas dibongkar, biar gampang pasang lagi nanti.

1. Preparation and Safety First: Pastikan area kerja bersih dan bebas dari halangan. Pakai alat pelindung diri (APD) lengkap, seperti sarung tangan, kacamata pelindung, dan sepatu safety. Siapkan juga alat dan wadah yang dibutuhkan.
2. Depressurize the Cylinder: Lepaskan tekanan hidrolik dari silinder. Ini penting banget buat mencegah cedera karena tekanan yang tiba-tiba lepas. Buka semua katup dan saluran yang terhubung ke silinder.
3. Secure the Cylinder: Jepit silinder dengan kuat menggunakan ragum atau alat penjepit lainnya. Pastikan silinder stabil selama proses pembongkaran.
4. Loosen and Remove External Components: Lepaskan semua selang, fitting, dan komponen eksternal lainnya yang terpasang pada silinder. Tandai atau catat posisi komponen-komponen ini untuk memudahkan pemasangan kembali.
5. Remove the Cylinder Head: Gunakan kunci pas yang sesuai untuk melonggarkan dan melepaskan kepala silinder. Beberapa silinder mungkin menggunakan mur atau baut khusus.
6. Extract the Piston Rod: Setelah kepala silinder dilepas, tarik keluar batang piston secara hati-hati. Pastikan piston tidak tersangkut di dalam silinder.
7. Disassemble Internal Components: Bongkar komponen internal lainnya, seperti piston, seal, dan bushing. Catat urutan dan posisi komponen-komponen ini.
8. Inspect and Clean Components: Setelah semua komponen dibongkar, bersihkan dan periksa setiap komponen. Ganti komponen yang rusak atau aus.
9. Component Storage: Simpan semua komponen yang sudah dibersihkan dan diperiksa di tempat yang bersih dan kering. Gunakan wadah atau kantong yang sesuai untuk melindungi komponen dari debu dan kerusakan.

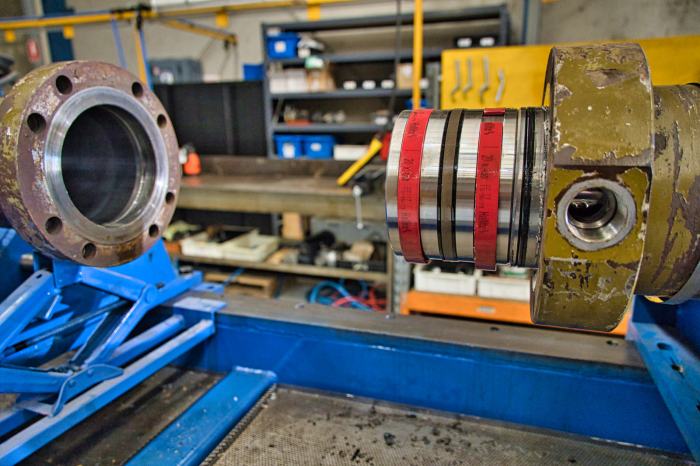

Removing the Cylinder Head and Piston Rod

Proses ini krusial, jadi perhatiin bener-bener ya. Salah langkah bisa bikin silinder rusak atau bahkan bikin cedera.

1. Loosening the Cylinder Head: Gunakan kunci pas yang sesuai ukuran untuk melonggarkan kepala silinder. Kalo susah, coba kasih pelumas penetran dulu, tunggu beberapa menit, baru coba lagi. Kalo masih susah, mungkin perlu bantuan palu dan obeng untuk memutar kepala silinder.
2. Removing the Cylinder Head: Setelah longgar, putar kepala silinder sampai terlepas sepenuhnya. Hati-hati, karena ada kemungkinan oli hidrolik masih tersisa di dalam silinder.
3. Extracting the Piston Rod: Tarik keluar batang piston secara perlahan dan hati-hati. Pastikan piston tidak tersangkut di dalam silinder. Kalo susah, coba goyang-goyangkan batang piston sambil ditarik.
4. Handling and Storing Components: Simpan kepala silinder dan batang piston di tempat yang bersih dan kering. Jangan biarkan komponen ini bersentuhan dengan benda-benda tajam atau kasar.
5. Marking and Labeling: Sebelum menyimpan, beri tanda atau label pada setiap komponen. Ini akan sangat membantu saat perakitan kembali.

Techniques for Handling and Storing Cylinder Components

Supaya komponen-komponen gak rusak dan awet, kita harus tau cara nyimpennya yang bener.

• Cleaning: Bersihkan semua komponen dari kotoran, debu, dan sisa-sisa oli. Gunakan cairan pembersih yang sesuai dan lap dengan kain bersih.
• Inspection: Periksa semua komponen secara visual untuk melihat adanya kerusakan, seperti goresan, retak, atau aus. Ganti komponen yang rusak.
• Storage Containers: Gunakan wadah atau kantong yang bersih dan kering untuk menyimpan komponen. Jangan gunakan wadah yang bisa menyebabkan karat atau korosi.
• Orientation: Simpan komponen dalam posisi yang benar untuk mencegah kerusakan. Misalnya, simpan batang piston secara horizontal.
• Lubrication: Oleskan sedikit oli hidrolik pada komponen sebelum disimpan untuk mencegah karat dan korosi.
• Environment: Simpan komponen di tempat yang kering, bersih, dan berventilasi baik. Hindari paparan langsung terhadap sinar matahari atau suhu ekstrem.

Component Inspection and Assessment

Eyyy, so after you’ve already ripped apart your hydraulic cylinder (hopefully safely, yeah?), the real

fun* begins

figuring out what’s still good and what needs to go. This ain’t just about slapping things back together; it’s about making sure your cylinder doesn’t go kaput again in, like, a week. We’re talkin’ crucial stuff here, fellas. This part determines the whole shebang. Let’s get to it, – bro*.

Common Types of Damage in Hydraulic Cylinder Components

Hydraulic cylinders are tough, but they ain’t invincible, bruh. They get beat up from all sorts of stresses. Understanding the common types of damage is key to a proper rebuild. Here’s the lowdown on what to watch out for:

• Scratches and Gouges: These are like the
  -ngeri* (scary) scars of the cylinder world. They happen when something hard, like debris or metal fragments, gets in between the moving parts. Deep scratches can mess up the seal and cause leaks.
• Corrosion: Rust and corrosion are the enemies. Moisture and the hydraulic fluid itself can eat away at the metal, weakening the components and causing leaks. If you see reddish-brown spots,
  -waspadalah* (beware)!
• Wear: Over time, the constant friction causes wear, especially on the piston rod and cylinder barrel. This can lead to increased clearance, reduced performance, and leaks. Think of it like wearing down your shoes, but for metal.
• Cracks: Cracks are
  -fatal* (deadly). They can appear from over-pressurization, impact, or fatigue. A cracked component is a broken component, period.
• Deformation: Components can bend or warp under extreme pressure or impact. This can prevent proper sealing and cause the cylinder to fail.
• Seal Damage: Seals are the gatekeepers, and they can be torn, cracked, or hardened from age, heat, or chemical attack. Damaged seals will definitely cause leaks.

Inspecting Cylinder Barrels, Piston Rods, and Seals

Okay, so you’ve got the parts in front of you. Now, how do you actuallysee* the damage? Here’s the breakdown, –

guys*

• Cylinder Barrels: The barrel is where the magic happens.
  • Visual Inspection: Start with a good ol’ visual check. Look for scratches, gouges, rust, and any signs of deformation. Shine a bright light inside the barrel to get a better view.
  • Dimensional Checks: Use a bore gauge or inside micrometer to measure the inside diameter of the barrel at multiple points. Compare these measurements to the manufacturer’s specifications. Any significant variation means trouble.
  • Straightness Check: Use a straightedge or precision level to check for any bends or warpage along the length of the barrel. Even a slight bend can cause sealing problems.
• Piston Rods: The piston rod takes a beating, so inspect it carefully.
  • Visual Inspection: Same deal as the barrel: look for scratches, corrosion, and wear. Pay close attention to the areas where the rod slides through the seals.
  • Surface Finish: The rod’s surface finish is crucial for seal life. A rough surface will wear down the seals quickly. Use a surface roughness tester or a profilometer to measure the surface finish.
  • Straightness Check: Use a dial indicator to check the rod for any bends. Rotate the rod while the dial indicator is in contact with it. Any runout (wobble) indicates a bend.
  • Hardness Check: In some cases, you might want to check the hardness of the rod, especially if it’s showing excessive wear. Use a hardness tester to measure the surface hardness.
• Seals: These are the unsung heroes of the hydraulic system.
  • Visual Inspection: Look for cracks, tears, cuts, hardening, and any signs of chemical attack. Even small imperfections can cause leaks.
  • Flexibility Test: Try bending the seal. If it’s stiff or brittle, it’s probably past its prime.
  • Dimensional Checks: Compare the seal dimensions to the manufacturer’s specifications. Seals can shrink or swell over time.

Criteria for Component Reuse or Replacement

Alright, you’ve inspected everything. Now comes the hard part: deciding what to keep and what to toss. Here’s a guide to help you make the call:

• Cylinder Barrels:
  • Reuse: If the barrel is free of significant scratches, gouges, and corrosion, and the bore diameter and straightness are within the manufacturer’s specifications, it can likely be reused. Honing might be necessary to remove minor imperfections.
  • Replace: If the barrel has deep scratches, gouges, significant corrosion, is out of round, or has any cracks, it must be replaced.
• Piston Rods:
  • Reuse: If the rod is free of significant scratches, corrosion, and wear, and the surface finish and straightness are within the manufacturer’s specifications, it can likely be reused. Polishing might be needed to improve the surface finish.
  • Replace: If the rod has deep scratches, significant corrosion, excessive wear, is bent, or has any cracks, it must be replaced.
• Seals:
  • Reuse: Never reuse seals, unless they are brand new and were accidentally removed. Seals are designed to conform to the shape of their housing and will not seal properly if reinstalled after removal.
  • Replace: Always replace all seals during a rebuild. Even if they look okay, their performance is likely compromised.

Important Note: When in doubt, replace the component. It’s better to be safe than sorry, especially when it comes to hydraulic systems. A failing cylinder can cause serious damage or injury.

Cleaning and Preparation

Oke guys, so you’ve taken apart your hydraulic cylinder, right? Congrats! But before you start slapping everything back together, you gotta get thingsbersih* – clean! This ain’t just about looking pretty; it’s about making sure your cylinder works like a boss, and doesn’t leak everywhere. We’re talking serious performance and longevity, ya know? Let’s get into how to do it right, Makassar style.

Cleaning Hydraulic Cylinder Components

Cleaning iskunci* (key) to a successful rebuild. Dust, dirt, metal shavings, and old hydraulic fluid are enemies of your cylinder. They can cause leaks, wear, and overall

rusak* (damage). We’re going to break down how to clean the main parts

the barrel, piston, and rod.

• Barrel Cleaning: The barrel is the cylinder’s body. It’s usually a tough piece, so we need a tough cleaning approach.
  • Use a parts washer with a solvent designed for metal. These solvents will eat away at grime without harming the metal. Make sure the solvent is compatible with the seals you’ll be using later.

  • If you don’t have a parts washer, use a strong degreaser and a good scrubbing brush. Get into every nook and cranny.
  • After cleaning, rinse the barrel thoroughly with clean water or a suitable solvent. Make sure all the cleaning agent is gone.
  • Inspect the barrel for any scratches, rust, or damage after cleaning.
• Piston Cleaning: The piston is where the magic happens, so it needs extra attention.
  • Remove any old seals from the piston before cleaning.
  • Clean the piston with a solvent and a soft brush. Don’t use anything abrasive that could scratch the surface.
  • Pay close attention to the seal grooves. Any leftover debris here will cause leaks.
  • Rinse the piston thoroughly and dry it completely.
  • Check the piston for any wear or damage.
• Rod Cleaning: The rod takes a beating, so cleaning it is crucial.
  • Clean the rod with a solvent and a soft cloth. Be gentle to avoid scratching the surface.
  • Use a polishing compound if there are any light scratches. Heavy scratches mean a replacement is needed.
  • Inspect the rod for any bends, corrosion, or damage.
  • Make sure the rod is completely clean and dry before reassembly.

Importance of Removing Contaminants

Removing contaminants isn’t just a suggestion; it’s awajib* (must). Contaminants lead to problems, plain and simple.

• Seal Damage: Dirt and debris act like sandpaper on your seals, wearing them down and causing leaks. This is the most common reason for hydraulic cylinder failure.
• Valve Clogging: Contaminants can clog up the small passages in your valves, causing erratic operation or complete failure.
• Component Wear: Metal shavings and other abrasive particles will grind away at your cylinder’s internal components, leading to premature wear and failure. This is why filtering your hydraulic fluid is important.
• Performance Issues: Contamination can cause sticking, jerky movements, and reduced power output. Nobody wants a slow or weak cylinder.

Choosing Cleaning Agents and Techniques

Choosing the right cleaning agents and techniques is crucial for a successful rebuild. Wrong choices can damage your parts.

• Solvents: Choose solvents that are compatible with the materials in your cylinder, especially the seals. Some common options include:
  • Mineral spirits: Good for general cleaning.
  • Parts cleaner: Specifically designed for cleaning metal parts.
  • Citrus-based degreasers: Environmentally friendly and effective.
• Techniques:
  • Parts washer: The best option for thorough cleaning.
  • Ultrasonic cleaner: Great for removing stubborn contaminants.
  • Brushing and wiping: Use soft brushes and cloths to avoid scratching surfaces.
• Safety First: Always wear safety glasses and gloves when working with solvents. Work in a well-ventilated area. Dispose of cleaning agents properly.

Component Replacement and Repair: How To Rebuild Hydraulic Cylinder

Mane, sekarang kita masuk ke bagian yang paling penting, yaitu ganti-ganti komponen yang rusak. Ini kayak operasi bedah, tapi buat mesin hidrolik. Kita bakal bahas gimana caranya ganti seal, O-ring, dan benerin atau ganti barrel sama piston rod yang kena musibah. Pokoknya, siap-siap tangan kotor, tapi hasilnya mantap jiwa!

Replacing Seals and O-rings, How to rebuild hydraulic cylinder

Seal dan O-ring ini kayak pertahanan terakhir dari kebocoran. Kalo rusak, siap-siap oli muncrat kemana-mana. Prosesnya emang detail, tapi kalo teliti, pasti bisa.

• Pemilihan Seal dan O-ring: Pertama, pastikan ukuran dan jenisnya pas. Jangan sampai salah pilih, nanti malah bocor lagi. Cek katalog, ukur dengan teliti, dan pilih bahan yang sesuai sama jenis oli dan tekanan yang dipakai. Contohnya, nitrile rubber (NBR) buat oli mineral, atau Viton buat yang lebih ekstrem.
• Pembersihan: Bersihin semua bagian yang mau dipasang seal dan O-ring baru. Jangan ada debu atau kotoran yang nempel. Pakai cairan pembersih yang aman buat komponen hidrolik.
• Pemasangan Seal: Pasang seal dengan hati-hati. Jangan sampai robek atau tertekuk. Gunakan alat bantu, kayak seal installer atau mandrel, biar lebih gampang. Lumasi seal dengan oli hidrolik sebelum dipasang.
• Pemasangan O-ring: O-ring biasanya lebih gampang dipasang. Tapi, tetap hati-hati. Pastikan O-ring masuk ke alurnya dengan pas. Kalo perlu, pakai pelumas biar nggak macet.
• Tips Tambahan:
  • Gunakan pelumas yang direkomendasikan.
  • Periksa kondisi permukaan tempat seal dan O-ring dipasang. Kalo ada goresan atau kerusakan, harus diperbaiki dulu.
  • Kencangkan baut dengan torsi yang sesuai. Jangan terlalu kencang atau terlalu kendor.

Repairing or Replacing Damaged Cylinder Barrels or Piston Rods

Barrel sama piston rod ini tulang punggungnya silinder hidrolik. Kalo rusak, ya udah, nggak bisa kerja lagi. Kita bahas gimana cara benerin atau ganti, tergantung tingkat kerusakannya.

• Pemeriksaan Kerusakan: Periksa dengan teliti. Lihat ada goresan, penyok, atau karat nggak. Ukur diameter barrel dan piston rod. Bandingkan sama spesifikasi pabrikan.
• Perbaikan Barrel:
  • Goresan Ringan: Bisa dihalusin pakai amplas halus atau honning.
  • Goresan Dalam: Harus di-reboring atau di-sleeving. Reboring itu memperbesar diameter barrel, sementara sleeving itu memasukkan selongsong baru ke dalam barrel.
  • Penyok: Kalo penyoknya parah, biasanya harus diganti.
• Perbaikan Piston Rod:
  • Goresan Ringan: Bisa dihalusin pakai amplas halus atau polishing.
  • Goresan Dalam: Harus diganti.
  • Bengkok: Harus diganti.
• Penggantian Komponen: Kalo kerusakan terlalu parah, ya udah, ganti aja. Pastikan ukuran dan jenisnya sama.
• Contoh Kasus: Di industri, kerusakan barrel atau piston rod sering terjadi karena gesekan atau korosi. Contohnya, di alat berat, barrel yang kena lumpur atau pasir bisa cepat rusak. Solusinya, perawatan rutin dan pengecekan berkala.

Techniques for Properly Installing New Components

Pasang komponen baru nggak boleh asal-asalan. Harus presisi dan teliti, biar nggak ada masalah di kemudian hari.

• Persiapan: Bersihkan semua komponen dengan seksama. Pastikan nggak ada kotoran atau debu.
• Pelumasan: Lumasi semua komponen dengan oli hidrolik sebelum dipasang. Ini buat mengurangi gesekan dan mempermudah pemasangan.
• Pemasangan Piston:
  • Pasang seal dan O-ring di piston.
  • Masukkan piston ke dalam barrel dengan hati-hati. Pastikan nggak ada seal yang terlipat atau rusak.
  • Gunakan alat bantu, kayak piston installer, biar lebih gampang.
• Pemasangan Piston Rod:
  • Pasang seal dan O-ring di piston rod.
  • Masukkan piston rod ke dalam piston.
  • Kencangkan mur atau baut dengan torsi yang sesuai.
• Pemasangan Tutup Silinder:
  • Pasang seal dan O-ring di tutup silinder.
  • Pasang tutup silinder ke barrel.
  • Kencangkan baut dengan torsi yang sesuai.
• Pengecekan Akhir:
  • Periksa kebocoran. Isi silinder dengan oli hidrolik dan beri tekanan.
  • Periksa gerakan piston. Pastikan nggak ada hambatan atau macet.
• Ilustrasi: Bayangkan lagi pasang puzzle. Semua bagian harus pas, nggak boleh ada yang kebalik. Begitu juga pasang komponen hidrolik.

Reassembly Procedures

Oke guys, now that you’ve dismantled the hydraulic cylinder, inspected everything, and replaced the parts that needed replacing, saatnya kita pasang balik nih! Reassembly is where the magic happens, but it’s crucial to do it right. Salah langkah, bisa bocor lagi, atau bahkan cylinder-mu gak berfungsi sama sekali. So, fokus, teliti, and let’s get this thing back together!

Detailed Steps for Reassembling a Hydraulic Cylinder

This section will guide you through the step-by-step process of putting your hydraulic cylinder back together. Each step is important, so don’t skip anything!

1. Preparation is Key. Before you start, make sure your work area is clean and organized. Lay out all the components you’ve cleaned and inspected. Have your new seals and any other replacement parts ready. Lubricate all seals and moving parts with the appropriate hydraulic fluid. This helps with assembly and prevents damage.

2. Install the Piston Seal. Carefully install the new piston seals onto the piston. Pay attention to the seal orientation – the direction of the seal is critical for proper sealing. Consult the manufacturer’s instructions for the specific seal type you are using. Make sure the seal isn’t twisted or damaged during installation.
3. Insert the Piston into the Cylinder Barrel. Gently slide the piston assembly into the cylinder barrel. Use a piston ring compressor if necessary to compress the piston seals and prevent damage to them as they enter the barrel. Make sure the piston moves smoothly through the bore.
4. Install the Cylinder Head. Carefully install the cylinder head onto the cylinder barrel. Align the head with the barrel and any locating features.
5. Install the Rod Seal and Bearing. Place the new rod seal and bearing into the cylinder head. Lubricate them well. Ensure they are correctly oriented and seated properly.
6. Insert the Piston Rod. Carefully insert the piston rod through the cylinder head and into the piston assembly. Make sure the rod doesn’t damage the rod seal or bearing during insertion.
7. Secure the Cylinder Head. Secure the cylinder head to the cylinder barrel. This typically involves tightening bolts or using a retaining ring. Torque the bolts to the manufacturer’s specifications. Don’t overtighten!
8. Install the End Caps (if applicable). If your cylinder has end caps, install them now. Make sure they are properly aligned and secured.
9. Final Inspection. Before testing, perform a visual inspection of the entire cylinder. Make sure all components are correctly installed and that there are no visible leaks or damage.

Aligning and Tightening Components Correctly

Alignment and proper tightening are essential for the hydraulic cylinder’s performance and longevity. Misalignment can lead to premature wear and failure. Over-tightening can damage components, while under-tightening can cause leaks.

1. Alignment Techniques. Use appropriate tools, such as alignment pins or guide bushings, to ensure proper alignment of the cylinder head, end caps, and other components during assembly.
2. Torque Specifications. Always use a torque wrench and follow the manufacturer’s torque specifications for all bolts and fasteners.
3. Tightening Sequence. Tighten bolts in a cross-pattern or star pattern to ensure even distribution of force.
4. Lubrication. Apply lubricant to threads before tightening bolts. This reduces friction and ensures accurate torque readings.
5. Checking for Leaks. After reassembly and before putting the cylinder back in service, perform a leak test to identify any potential issues.

Testing and Calibration

Cylinders yang sudah direbuild, bro, nda bisa langsung dipake begitu saja. Kita musti tes dan kalibrasi supaya yakin performanya mantap, sesuai standar, dan nda bikin masalah di kemudian hari. Ini kayak ngecek HP baru, harus dicek semua fiturnya berfungsi dengan baik, biar nda nyesel pas udah dipake sehari-hari.

Importance of Hydraulic Cylinder Testing

Testing itu penting banget, cuy! Kita mau mastiin kalau cylinder yang udah direbuild itu aman dan berfungsi dengan baik. Kalau nda dites, bisa bahaya. Bayangin kalau cylinder bocor pas lagi kerja, bisa bikin kecelakaan kerja, kerusakan alat, atau bahkan bikin rugi banyak.

• Mendeteksi Kebocoran: Tes tekanan membantu kita menemukan kebocoran yang mungkin nda kelihatan pas inspeksi visual.
• Memastikan Performa: Tes juga memastikan cylinder bisa ngasih tenaga yang sesuai sama spesifikasi yang diminta.
• Mencegah Kerusakan: Dengan tes, kita bisa mencegah kerusakan lebih lanjut yang disebabkan oleh masalah yang nda terdeteksi.
• Memenuhi Standar: Tes memastikan cylinder memenuhi standar kualitas dan keamanan yang berlaku.

Pressure Testing Procedures

Pressure testing itu penting banget buat ngecek cylinder. Caranya, kita kasih tekanan ke cylinder pake fluida hidrolik, trus kita pantau apakah ada kebocoran atau nda.

1. Persiapan:

   Bersihin cylinder dari debu dan kotoran. Pastiin semua sambungan kencang dan aman.

2. Pemasangan:

   Pasang cylinder ke alat uji tekanan. Pastiin semua koneksi terpasang dengan benar.

3. Pengisian Tekanan:

   Naikin tekanan secara bertahap sampe ke tekanan uji yang ditentukan. Biasanya, tekanan uji lebih tinggi dari tekanan kerja normal.

4. Pemeriksaan Kebocoran:

   Perhatiin apakah ada kebocoran di sekitar seal, sambungan, atau badan cylinder. Gunakan sabun atau cairan deteksi kebocoran buat bantu ngecek.

5. Pengukuran Performa:

   Ukur kecepatan gerakan piston dan gaya yang dihasilkan cylinder. Pastiin sesuai sama spesifikasi.

6. Pencatatan Hasil:

   Catat semua hasil tes, termasuk tekanan uji, kebocoran, dan performa cylinder. Ini penting buat dokumentasi dan referensi di kemudian hari.

Contoh: Untuk cylinder yang dipakai di alat berat, tekanan uji bisa mencapai 1,5 kali tekanan kerja normal.

Methods for Cylinder Calibration

Kalibrasi itu penting buat mastiin cylinder bekerja secara optimal. Kita atur settingan cylinder supaya bisa ngasih performa yang pas, sesuai sama kebutuhan.

• Pengaturan Tekanan: Atur tekanan kerja cylinder sesuai sama kebutuhan aplikasi. Gunakan katup pengatur tekanan (pressure relief valve) buat membatasi tekanan maksimum.
• Pengaturan Kecepatan: Atur kecepatan gerakan piston dengan menggunakan katup pengatur aliran (flow control valve).
• Pengaturan Posisi: Pasang sensor posisi (proximity sensor atau linear transducer) buat memantau posisi piston dan mengontrol gerakan cylinder.
• Pengaturan Sinkronisasi: Kalau ada beberapa cylinder yang bekerja bersamaan, atur sinkronisasinya supaya gerakan mereka seragam.
• Pengujian Ulang: Setelah kalibrasi, lakukan pengujian ulang buat mastiin cylinder bekerja sesuai dengan yang diharapkan.

Troubleshooting Common Issues

Oke guys, so you’ve rebuilt your hydraulic cylinder, keren! But sometimes, even with the best efforts, things can still go wrong. Don’t panic! This section is all about figuring out what’s up when your cylinder acts up and how to fix it. We’ll be talking about leaks, performance issues, and other common headaches that can pop up after your rebuild.

So, siap-siap, kita bahas masalah yang sering muncul dan cara ngatasinnya, ala anak Makassar yang selalu kreatif!

Addressing Leaks After Rebuild

A leaky hydraulic cylinder is like a leaky boat – not good! Leaks can happen for a bunch of reasons after a rebuild. Let’s break down the common culprits and how to tackle them.

• Seal Failure: This is probably the most common cause. Seals can be damaged during installation, or they might just wear out prematurely. Make sure you’re using the right seals for the job, and install them carefully. Check for any scratches or damage to the seal surfaces.
• Loose Fittings: Make sure all fittings are tightened to the correct torque specifications. Over-tightening can damage threads, while under-tightening can cause leaks.
• Contamination: Dirt, debris, or other contaminants can damage seals and cause leaks. Always clean all components thoroughly before reassembly, and use clean hydraulic fluid.
• Rod Damage: Scratches, dents, or corrosion on the cylinder rod can damage the rod seals, leading to leaks. Inspect the rod carefully and replace it if necessary.
• Cylinder Tube Damage: Internal damage to the cylinder tube, like scratches or corrosion, can affect the seals.
• Improper Assembly: Seals not seated correctly during reassembly can be another source of leaks.

Resolving Reduced Performance

Your cylinder might not leak, but it could be sluggish or not working as it should. Performance issues are frustrating, but often solvable.

• Air in the System: Air bubbles in the hydraulic fluid can compress and reduce the cylinder’s power. Bleed the system to remove any air.
• Contaminated Fluid: Contaminated fluid can clog valves and damage components, leading to reduced performance. Flush the system and replace the fluid with clean fluid.
• Internal Leakage: Worn seals or damaged components can cause fluid to bypass the piston, reducing the cylinder’s force. This can be difficult to diagnose without proper testing equipment.
• Incorrect Valve Settings: Make sure that the relief valve and other valves are set to the correct pressure.
• Pump Problems: A failing hydraulic pump can also reduce cylinder performance. Check the pump’s output pressure and flow rate.
• Binding: If the cylinder binds during operation, it could be due to misalignment or damage to internal components.

Diagnosing and Resolving Cylinder Malfunctions

When things go sideways, you need a systematic approach to troubleshoot. Here’s a game plan.

1. Visual Inspection: Start by looking for obvious problems, like leaks, damaged components, or loose connections.
2. Pressure Testing: Use a pressure gauge to check the system pressure. This can help identify problems with the pump, valves, or cylinder.
3. Flow Testing: Measure the flow rate of the hydraulic fluid. This can help identify restrictions or leaks in the system.
4. Component Isolation: Disconnect the cylinder from the system and test it separately. This can help determine if the problem is with the cylinder or with other components.
5. Consult the Manual: Refer to the cylinder’s service manual for troubleshooting tips and specific instructions.

Remember: Safety first! Always relieve pressure before working on a hydraulic system.

Tools and Equipment Required

Oke guys, so you’re tryna get your hands dirty and rebuild a hydraulic cylinder, right? Cool! Before you start, you gotta have the rightalat* and

• peralatan* (tools and equipment). Think of it like this

  you wouldn’t try to make

• sop konro* without a
• kuali* (wok), right? Same vibe. Having the right stuff makes the whole process smoother, safer, and gets you a better result. So, let’s get into what you need.

Essential Tools and Equipment List

The following list Artikels the essential tools and equipment needed for a successful hydraulic cylinder rebuild. Each item plays a crucial role in the disassembly, inspection, cleaning, repair, and reassembly processes. Using the right tools will not only make the job easier but also prevent damage to the cylinder components and ensure optimal performance after the rebuild.

• Wrench Set (Metric and SAE): You’ll need a comprehensive set of wrenches, both metric and SAE (Society of Automotive Engineers) sizes, to handle various nuts, bolts, and fittings on the cylinder. A good set will have open-end, box-end, and adjustable wrenches.
• Socket Set (Metric and SAE): Similar to wrenches, a socket set is essential for loosening and tightening bolts and nuts. Choose a set with a range of sizes, including deep sockets for accessing hard-to-reach areas. Consider a set with both standard and impact sockets for different applications.
• Torque Wrench: This is a MUST. A torque wrench ensures you tighten bolts to the manufacturer’s specifications. Overtightening can damage components, while undertightening can lead to leaks and failure. Look for a digital torque wrench for accuracy.
• Hydraulic Cylinder Disassembly Tools: These specialized tools are designed to make disassembling the cylinder easier and safer. This might include a cylinder rod wrench, gland nut wrench, and piston nut wrench.
• Hydraulic Cylinder Assembly Tools: Similar to disassembly tools, these are used for the reassembly of the cylinder. This may include a piston installer, seal installer, and gland nut installer.
• Measuring Tools: Precision is key. You’ll need a digital caliper for measuring diameters, lengths, and clearances, a micrometer for extremely precise measurements, and a ruler or measuring tape.
• Cleaning Supplies: A clean environment is vital. You’ll need a parts washer (or a suitable cleaning solution and container), cleaning brushes, lint-free cloths, and a designated workspace.
• Inspection Tools: To assess the condition of the components, you’ll need a magnifying glass, a flashlight, and potentially a surface plate to check for flatness.
• Bench Vise: A sturdy bench vise is crucial for securely holding cylinder components during disassembly and assembly. Choose a vise with a swivel base for flexibility.
• Hydraulic Testing Equipment: After the rebuild, you’ll need equipment to test the cylinder for leaks and proper function. This may include a hydraulic test bench or a pressure gauge.
• Safety Gear: Safety first,
  -bro*! You need safety glasses, gloves, and appropriate clothing to protect yourself from potential hazards.

Recommendations for Selecting High-Quality Tools and Equipment

Choosing quality tools is an investment that pays off in the long run. Cheap tools can break, damage components, and make the job harder. Here’s what to look for:

• Durability: Opt for tools made from high-quality materials like chrome vanadium steel. These tools are built to last and can withstand the rigors of frequent use.
• Accuracy: For measuring tools, accuracy is paramount. Look for tools with precise calibrations and clear markings.
• Ergonomics: Choose tools that are comfortable to hold and use. Ergonomic designs reduce fatigue and improve control.
• Brand Reputation: Research reputable brands known for producing reliable tools. Brands like Snap-on, Mac Tools, and Craftsman are generally considered high-quality. However, also explore local brands that can be reliable.
• Warranty: A good warranty indicates the manufacturer’s confidence in their product. Choose tools with a warranty that covers defects in materials and workmanship.
• Reviews and Recommendations: Read online reviews and seek recommendations from experienced mechanics or technicians. Their insights can help you make informed decisions.

Tools and Equipment Table

The table below summarizes the essential tools and equipment, their uses, and provides brief descriptions.

Types of Hydraulic Cylinders and Their Specific Rebuilding Needs

Ehh, bro and sis, mauki’ tau tentang hydraulic cylinder? Bukan cuma satu jenis ji’, ada banyak macamnya, masing-masing punya cara perbaikan yang beda-beda. Jadi, kalau mau jago benerin, haruski’ paham betul jenis-jenisnya dan apa yang perlu diperhatikan saat dibongkar pasang.

Differences in Rebuilding Procedures for Single-Acting vs. Double-Acting Cylinders

Perbedaan utama dalam rebuilding antara single-acting dan double-acting cylinders terletak pada desain dan fungsinya. Single-acting cylinders hanya punya satu port untuk masuknya fluida, sementara double-acting punya dua. Ini yang bikin cara perbaikannya beda.

• Single-Acting Cylinders: Cylinder ini biasanya pakai pegas untuk kembali ke posisi semula. Fokus perbaikannya biasanya di seal yang bocor dan memastikan pegas berfungsi dengan baik. Kalau pegasnya rusak, cylinder ndak akan balik dengan benar.
• Double-Acting Cylinders: Cylinder ini bisa bergerak maju dan mundur dengan tekanan fluida. Rebuildingnya lebih kompleks karena ada dua port dan seal yang perlu diperiksa dan diganti. Perlu diperhatikan juga kondisi piston rod dan cylinder barrelnya.

Methods for Rebuilding Telescopic Cylinders

Telescopic cylinders, alias cylinder yang bisa panjang pendek kayak antena radio, punya cara perbaikan yang lebih spesifik lagi. Karena konstruksinya yang unik, proses rebuildingnya juga butuh ketelitian ekstra.

• Disassembly: Proses pembongkaran dimulai dari melepas penutup dan seal-sealnya. Penting untuk menandai urutan setiap stage cylinder agar saat pemasangan kembali tidak terbalik.
• Inspection: Periksa semua komponen, mulai dari cylinder barrel, piston, seal, sampai bushing. Perhatikan dengan seksama tanda-tanda kerusakan, seperti goresan, aus, atau korosi.
• Component Replacement: Ganti seal yang rusak dengan seal yang baru dan sesuai spesifikasi. Pastikan juga semua permukaan bersih sebelum memasang komponen baru.
• Reassembly: Pasang kembali komponen-komponennya sesuai urutan yang sudah ditandai. Gunakan pelumas yang sesuai untuk mempermudah pemasangan dan mencegah kerusakan.
• Testing: Lakukan pengujian untuk memastikan cylinder berfungsi dengan baik setelah diperbaiki. Periksa kebocoran dan respons terhadap tekanan.

Table of Different Cylinder Types, Their Applications, and Unique Rebuilding Considerations

Berikut tabel yang bikin lebih jelas jenis-jenis cylinder, aplikasinya, dan apa yang perlu diperhatikan saat diperbaiki.

Sourcing Replacement Parts

Membongkar dan memperbaiki hydraulic cylinder itu kayak ngedandanin motor balap, bro! Kudu tau part mana yang bagus, biar performa cylinder-mu gak loyo. Nah, bagian paling penting dari rebuild adalah nyari suku cadang yang pas dan berkualitas. Jangan sampai salah beli, bisa-bisa kerjaanmu malah jadi masalah baru.

Rebuilding a hydraulic cylinder demands precision, mirroring the care needed when addressing other mechanical components. While focusing on hydraulic seals and piston rods, it’s also crucial to understand related systems. For instance, the process of dismantling and reassembling a vehicle’s ignition system, such as how to replace ignition lock cylinder , shares similar methodical approaches. Ultimately, both endeavors necessitate meticulous attention to detail to ensure optimal functionality of the equipment.

Resources for Sourcing High-Quality Replacement Parts

Banyak banget tempat buat nyari spare part hydraulic cylinder, tapi gak semuanya sama kualitasnya. Kamu harus pintar-pintar milih, biar gak rugi di kemudian hari. Ini beberapa sumber yang bisa kamu coba:

• Local Hydraulic Shops: Toko spesialis hydraulic di Makassar biasanya punya stok lengkap dan bisa kasih saran yang oke. Mereka juga seringkali punya akses ke part yang gak dijual bebas.
• Online Retailers: Banyak banget toko online yang jual spare part hydraulic. Contohnya, Amazon atau eBay. Tapi, kudu hati-hati, cek reputasi penjual dan pastikan part-nya asli.
• Manufacturer Websites: Kalau mau aman, beli langsung dari website pabrikan hydraulic cylinder-mu. Harganya mungkin lebih mahal, tapi kualitasnya pasti terjamin.
• Industrial Supply Stores: Toko-toko yang jual peralatan industri juga biasanya punya spare part hydraulic. Mereka seringkali punya banyak pilihan merek dan harga.

Tips for Identifying the Correct Parts for a Specific Cylinder Model

Salah beli part itu bisa bikin pusing tujuh keliling, bro. Jadi, sebelum beli, pastikan kamu tau betul spesifikasi cylinder-mu. Ini beberapa tipsnya:

• Identify the Cylinder Model Number: Ini kunci utama! Model number biasanya ada di body cylinder, biasanya di-emboss atau di-stamping. Cari yang jelas, jangan sampai salah baca.
• Consult the Cylinder Manual: Kalau ada manualnya, baca baik-baik. Di situ biasanya ada daftar part lengkap dengan part number-nya.
• Measure the Parts: Ukur semua part yang mau diganti, kayak diameter piston, panjang rod, dll. Bandingkan dengan spesifikasi yang ada di manual atau website pabrikan.
• Take Pictures: Foto semua part yang rusak, terutama yang bentuknya unik atau gak standar. Ini bisa bantu kamu saat nyari penggantinya.
• Ask for Expert Advice: Kalau ragu, jangan sungkan minta bantuan mekanik atau teknisi hydraulic yang berpengalaman. Mereka pasti bisa kasih saran yang tepat.

Part Numbers, Descriptions, and Purchase Sources

Contoh nih, misal kamu punya hydraulic cylinder merek “HydraTech” model “HT-1234”. Ini contoh daftar part yang mungkin kamu butuhkan, lengkap dengan part number, deskripsi, dan sumber belinya:

Catatan: Daftar di atas cuma contoh. Part number dan sumber belinya bisa beda-beda, tergantung merek dan model hydraulic cylinder-mu. Selalu periksa spesifikasi part dan reputasi penjual sebelum membeli.

Documentation and Record Keeping

Moi, guys! Rebuilding hydraulic cylinders itu kayak bikin resep makanan, bro. Kalo nda ada catatan, bisa-bisa cilakanya, nda tau apa yang salah pas ada masalah. Makanya, dokumentasi itu penting banget biar kita bisa tracing semua yang kita kerjain.

Importance of Documenting the Rebuilding Process

Dokumentasi itu kayak buku harian buat kerjaan kita, guys. Dengan dokumentasi yang bagus, kita bisa tau semua detail dari proses rebuilding, mulai dari awal sampai akhir.

• Track Progress and Identify Issues: Catatan yang detail bantu kita liat progress, dan kalo ada masalah, kita bisa langsung tau di mana letak kesalahannya.
• Improve Efficiency: Dengan catatan yang lengkap, kita bisa belajar dari pengalaman sebelumnya, dan bikin proses rebuilding jadi lebih cepat dan efisien.
• Ensure Quality Control: Dokumentasi yang baik juga bantu kita jaga kualitas hasil kerjaan, biar nda ada lagi cerita cylinder bocor atau nda berfungsi dengan baik.
• Provide a Reference: Kalo ada masalah di kemudian hari, kita bisa balik lagi ke catatan untuk cari solusi. Ini juga berguna kalo ada orang lain yang mau kerja di cylinder yang sama.
• Comply with Regulations: Beberapa industri mewajibkan dokumentasi lengkap untuk semua perbaikan, termasuk rebuilding hydraulic cylinder.

Template for Creating a Detailed Record

Nah, biar nda bingung mau mulai dari mana, nih ada template buat bikin catatan rebuilding hydraulic cylinder yang detail.

Examples of Information to Include in the Documentation

Supaya lebih jelas, mari kita liat contoh-contoh informasi yang bisa dimasukkan dalam dokumentasi.

• Parts Replaced: Contohnya, “Seal kit diganti dengan part number SK-123 dari merek Parker. Rod seal, wiper seal, dan piston seal diganti semua.”
• Testing Results: Contohnya, “Cylinder diuji pada tekanan 3000 psi selama 15 menit. Tidak ada kebocoran yang terdeteksi.”
• Issues Encountered: Contohnya, “Saat pembongkaran, ditemukan karat pada rod. Rod kemudian dibersihkan dan dipoles.”
• Component Dimensions: Contohnya, “Piston rod diukur dengan diameter 2.000 inci. Setelah dipoles, diameternya menjadi 1.998 inci.”
• Torque Values: Contohnya, “Head cap dipasang dengan torque 150 ft-lbs.”
• Photos/Diagrams: Tambahkan foto atau diagram untuk membantu menjelaskan proses rebuilding. Misalnya, foto kondisi cylinder sebelum dan sesudah rebuilding.

Preventive Maintenance for Hydraulic Cylinders

Eyyy, welcome back, gengs! Setelah kita bongkar pasang and ngerti cara rebuild hydraulic cylinder, sekarang kita bahas gimana caranya biar cylinder lo awet kayak cinta pertama yang tak lekang oleh waktu. Preventive maintenance, alias perawatan preventif, itu kunci utama biar cylinder lo gak gampang rusak dan tetep nge-perform maksimal. So, siap-siap catet, karena ini penting banget!

Strategies for Extending the Life of Rebuilt Hydraulic Cylinders

Biar cylinder yang udah direbuild bisa tahan lama, ada beberapa strategi jitu yang perlu lo terapin. Ini bukan cuma buat hemat duit, tapi juga biar kerjaan lo lancar jaya tanpa hambatan.

• Keep it Clean, Dude! Debu, kotoran, dan air itu musuh utama cylinder. Pastiin area kerja lo bersih, terutama di sekitar cylinder. Bersihin cylinder secara berkala pake kain bersih dan lap kering. Jangan sampe ada kotoran yang masuk ke dalam sistem.
• Use the Right Fluid, Bro! Ganti oli hidrolik secara rutin sesuai rekomendasi pabrikan. Oli yang berkualitas dan sesuai spesifikasi cylinder itu krusial banget. Oli yang udah gak layak bikin cylinder cepat aus dan rusak.
• Avoid Overloading, Guys! Jangan pernah memaksakan cylinder bekerja di luar batas kemampuannya. Overloading bisa bikin seal rusak, batang piston bengkok, dan komponen lainnya jebol. Baca manual book cylinder lo biar tau kapasitasnya.
• Control the Temperature, Man! Panas berlebih bisa merusak seal dan mempercepat degradasi oli. Pastiin sistem pendingin bekerja dengan baik. Kalau perlu, pasang cooler tambahan.
• Regular Inspections are Key! Lakukan pemeriksaan visual secara rutin. Perhatiin adanya kebocoran oli, karat, atau kerusakan lainnya. Jangan tunda perbaikan kalau ada masalah.

Maintenance Schedule to Ensure Optimal Cylinder Performance

Nah, biar lebih terstruktur, lo perlu bikin jadwal perawatan yang jelas. Ini contoh jadwal yang bisa lo sesuaikan sama kebutuhan dan kondisi kerja cylinder lo. Ingat, ini cuma contoh, ya!

Recommendations for Monitoring Cylinder Performance and Identifying Potential Problems Early

Gimana caranya biar lo bisa deteksi masalah sebelum terlambat? Gampang, pantau terus performa cylinder lo!

• Listen to the Cylinder! Perhatiin suara cylinder saat bekerja. Suara aneh, seperti berdecit atau berisik, bisa jadi indikasi ada masalah.
• Check the Speed! Kalau kecepatan cylinder tiba-tiba menurun, bisa jadi ada kebocoran internal atau masalah pada pompa.
• Monitor the Pressure! Gunakan pressure gauge untuk memantau tekanan oli. Tekanan yang tidak stabil atau terlalu rendah bisa jadi tanda masalah.
• Analyze the Oil! Lakukan analisis oli secara berkala. Analisis ini bisa mendeteksi adanya kontaminasi atau kerusakan pada komponen.
• Record Everything! Catat semua perawatan dan perbaikan yang dilakukan. Ini akan membantu lo melacak masalah dan mencegahnya terjadi lagi.

Outcome Summary

So, there you have it, the lowdown on how to rebuild hydraulic cylinder, from start to finish. You’ve got the knowledge, the skills, and hopefully, the confidence to tackle this project. Remember, it’s all about patience, attention to detail, and a little bit of elbow grease. Now go forth, rebuild those cylinders, and keep the machines moving! And don’t forget, if you get stuck, there’s always YouTube, right?

FAQ

Can I really rebuild a hydraulic cylinder myself, or do I need to be a pro?

For real, you can totally do it! It’s all about following the steps, having the right tools, and not being afraid to get your hands dirty. Start with a simple cylinder and work your way up. Practice makes perfect, bruh!

What are the most common problems I’ll face when rebuilding a cylinder?

Leaks are the usual suspects! Worn seals are the main culprits. Other common issues include scratches on the rod, damaged barrels, and contamination. Proper inspection and part replacement are key to a successful rebuild.

Where can I get replacement parts?

Online is your best bet, banyak sekali options! Search for hydraulic cylinder parts suppliers. Make sure you know your cylinder model and specs. Local auto parts stores and equipment dealers can also be helpful.

How do I know if a cylinder is beyond repair?

If the barrel is severely damaged (cracked or heavily scored), or the rod is bent beyond repair, it’s time to consider a replacement. But most of the time, you can fix it! Judge by the damage and cost of repair vs. replacement.

How do I dispose of the old parts and fluids?

Don’t just toss ’em! Oil and other fluids need to be disposed of properly, according to local regulations. Take them to a recycling center or hazardous waste facility. Scrap metal dealers will take the old cylinder parts. Be responsible, man!
