How to Clean Cylinder Head A Comprehensive Guide

How to clean cylinder head is a crucial skill for anyone working on internal combustion engines. It’s not just about making things look pretty; a thorough cleaning job directly impacts engine performance, efficiency, and longevity. A dirty cylinder head can lead to all sorts of problems, from poor compression to overheating. This guide will take you step-by-step through the entire process, ensuring you have the knowledge and tools to get the job done right, whether you’re a seasoned mechanic or a DIY enthusiast.

We’ll cover everything from the initial preparation and safety precautions to the various cleaning methods, including chemical, mechanical, and ultrasonic techniques. You’ll learn how to identify different cylinder head materials, select the right cleaning agents, and inspect your work for any potential issues. This isn’t just a how-to; it’s a deep dive into the why and how of cylinder head cleaning, equipping you with the understanding to tackle any engine project with confidence.

Preparation for Cleaning

Preparing a cylinder head for cleaning is crucial for ensuring effective and safe results. This process involves several critical steps, including gathering necessary safety equipment, tools, and supplies, identifying the cylinder head material, and properly removing the head from the engine. Each step contributes to a successful cleaning process that preserves the integrity of the cylinder head and promotes optimal engine performance.

Necessary Safety Equipment

Safety is paramount when cleaning a cylinder head, as the process often involves harsh chemicals and potential hazards. Proper safety equipment is essential to protect the user from injury.

• Eye Protection: Safety glasses or goggles are required to protect the eyes from flying debris, chemical splashes, and abrasive materials. These should meet ANSI Z87.1 standards.
• Gloves: Chemical-resistant gloves, such as nitrile or neoprene gloves, are necessary to protect the skin from harsh cleaning chemicals. The specific glove material should be chosen based on the chemicals being used, and glove selection should always refer to the chemical’s safety data sheet (SDS).
• Respiratory Protection: A respirator with appropriate cartridges or filters is crucial to prevent the inhalation of harmful fumes and dust. The type of respirator needed depends on the cleaning method and chemicals used, ranging from a simple dust mask for light sanding to a respirator with organic vapor cartridges for chemical cleaning.
• Protective Clothing: A long-sleeved shirt, pants, and an apron or shop coat will protect the skin from chemical splashes and debris. The clothing should be made of a material that is resistant to the chemicals being used.
• Hearing Protection: Earplugs or earmuffs should be worn if using power tools, such as grinders or sandblasters, to protect against noise-induced hearing loss.
• Ventilation: Work in a well-ventilated area to prevent the buildup of harmful fumes. If adequate ventilation is not available, use a fume extractor or work outdoors.

Tools and Supplies Checklist for Various Cleaning Methods

The tools and supplies needed for cleaning a cylinder head vary depending on the chosen cleaning method. Here’s a checklist for common methods.

• Chemical Cleaning:
  • Cleaning solution (e.g., degreaser, solvent, or specialized cylinder head cleaner)
  • Spray bottle or container for applying the cleaning solution
  • Parts cleaning tank or container for soaking the cylinder head (if applicable)
  • Stiff brushes (nylon or brass) for scrubbing
  • Rags or shop towels for wiping
  • Protective gloves and eye protection (as specified in safety equipment)
• Mechanical Cleaning (e.g., Wire Brushing):
  • Wire brush (various sizes and shapes)
  • Power drill or die grinder (optional, for use with wire brush attachments)
  • Safety glasses and gloves (as specified in safety equipment)
  • Cleaning solution (to remove any remaining debris)
  • Rags or shop towels for wiping
• Abrasive Blasting (e.g., Sandblasting, Media Blasting):
  • Sandblasting cabinet or blasting equipment
  • Abrasive media (e.g., sand, glass beads, walnut shells)
  • Air compressor
  • Air hose and nozzle
  • Protective gear (as specified in safety equipment, including a sandblasting hood)
  • Plug or tape to cover any openings to prevent media from entering the ports
  • Cleaning solution (to remove any remaining debris)
  • Rags or shop towels for wiping
• Ultrasonic Cleaning:
  • Ultrasonic cleaner
  • Ultrasonic cleaning solution
  • Rinse tank
  • Protective gloves and eye protection (as specified in safety equipment)
  • Rags or shop towels for wiping

Identifying Cylinder Head Material

Identifying the cylinder head material is essential for selecting the appropriate cleaning method and avoiding damage. The two primary materials are aluminum and cast iron.

• Visual Inspection:
  • Aluminum: Aluminum cylinder heads typically have a silver or gray appearance. They often feature intricate designs and cooling passages. Aluminum heads are also often marked with casting numbers.
  • Cast Iron: Cast iron cylinder heads usually have a dark gray or black appearance. They are heavier than aluminum heads and may have a rougher surface texture.
• Magnet Test:
  • Cast Iron: Cast iron is magnetic. Use a magnet to test the cylinder head. If the magnet sticks, the head is likely cast iron.
  • Aluminum: Aluminum is not magnetic. If the magnet does not stick, the head is likely aluminum.
• Spark Plug Hole Inspection:
  • Examine the spark plug holes. Aluminum cylinder heads typically have spark plug threads made of aluminum or steel inserts.
• Casting Numbers:
  • Locate the casting numbers, usually found on the underside or in less visible areas of the head. These numbers can be cross-referenced with manufacturer specifications to confirm the material. Online resources and automotive repair manuals often provide this information.

Steps for Cylinder Head Removal, How to clean cylinder head

Properly removing a cylinder head from an engine is crucial for a successful cleaning process. These steps should be followed carefully to prevent damage to the engine and ensure a safe working environment.

1. Disconnect the Battery: Disconnect the negative battery cable to prevent electrical shorts.
2. Drain Coolant: Drain the coolant from the cooling system. This can be done by opening the drain cock on the radiator or removing the lower radiator hose. Collect the coolant in a suitable container for proper disposal.
3. Remove Components:
   • Remove any components attached to the cylinder head, such as the intake manifold, exhaust manifold, valve cover, and any associated wiring harnesses or hoses. Label and organize all removed parts for reassembly.
   • Disconnect the fuel lines, vacuum lines, and any other lines connected to the cylinder head. Cap or plug these lines to prevent contamination.
4. Remove Accessories: Detach any accessories that are attached to the cylinder head, such as the power steering pump, air conditioning compressor, and alternator.
5. Loosen Head Bolts:
   • Loosen the cylinder head bolts in the reverse order of the tightening sequence specified by the engine manufacturer. This helps to prevent warping of the cylinder head.
   • Use a torque wrench to ensure the bolts are loosened evenly.
6. Remove Head Bolts: Remove the cylinder head bolts completely.
7. Separate the Cylinder Head: Carefully lift the cylinder head off the engine block. It may be necessary to use a pry bar or other suitable tool to break the seal between the head and the block. Be careful not to damage the head or the engine block surfaces.
8. Inspect and Clean:
   • Once the cylinder head is removed, inspect the head gasket and the cylinder head surface for any damage.
   • Clean the engine block surface thoroughly to remove any gasket material or debris.

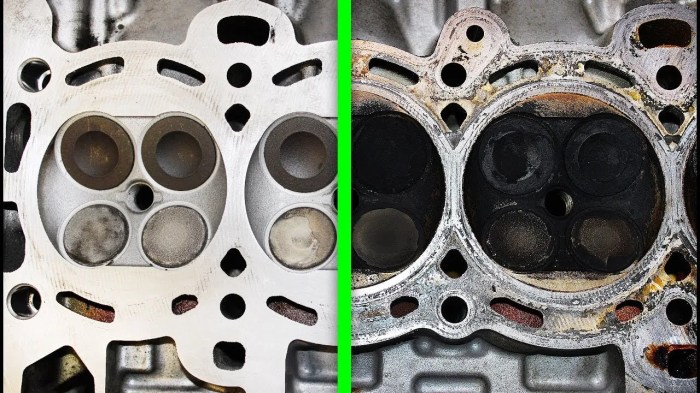

Cleaning Methods

Cleaning a cylinder head effectively is crucial for optimal engine performance and longevity. Several methods exist, each with its own advantages and disadvantages. The choice of cleaning method depends on factors like the type of contaminants, the material of the cylinder head, and the desired level of cleanliness. Selecting the appropriate cleaning technique will significantly impact the engine’s operational efficiency.

Chemical Cleaning Solutions

Chemical cleaning solutions offer a convenient method for removing oil, grease, and carbon deposits from cylinder heads. These solutions work by dissolving or breaking down contaminants, making them easier to remove.

• Advantages:
  1. Effectiveness: Chemical cleaners can effectively dissolve a wide range of contaminants, including stubborn carbon deposits and oil residue.
  2. Accessibility: Many chemical cleaning solutions are readily available and relatively inexpensive.
  3. Ease of Use: The cleaning process typically involves soaking or spraying the cylinder head with the solution, followed by rinsing.
  4. Versatility: Chemical cleaning can be used on various cylinder head materials, including aluminum and cast iron.
• Disadvantages:
  1. Environmental Concerns: Some chemical cleaners contain harsh chemicals that can be harmful to the environment. Proper disposal is essential.
  2. Material Compatibility: Certain chemical cleaners can damage or discolor some cylinder head materials, especially aluminum. Always check compatibility.
  3. Safety Hazards: Chemical cleaners can be corrosive and pose a safety risk. Protective gear, such as gloves and eye protection, is necessary.
  4. Incomplete Cleaning: Chemical cleaning might not remove all contaminants, particularly those deeply embedded or baked onto the surface.

Bead Blasting versus Walnut Shell Blasting

Abrasive blasting techniques utilize a stream of abrasive material propelled at high velocity to remove contaminants from the cylinder head’s surface. Two common abrasive blasting methods are bead blasting and walnut shell blasting.

• Bead Blasting:
  1. Process: Bead blasting uses small glass beads to impact the surface, removing contaminants through abrasion.
  2. Effectiveness: Effective for removing rust, paint, and moderate deposits.
  3. Material Removal: Can remove some material from the cylinder head, potentially altering dimensions.
  4. Surface Finish: Leaves a relatively smooth surface.
  5. Example: Used in automotive restoration to clean cylinder heads and other engine components, such as engine blocks.
• Walnut Shell Blasting:
  1. Process: Walnut shell blasting uses crushed walnut shells as the abrasive medium.
  2. Effectiveness: Gentle enough for delicate parts while still removing carbon deposits and other contaminants.
  3. Material Removal: Less aggressive than bead blasting, minimizing material removal.
  4. Surface Finish: Provides a slightly textured surface.
  5. Example: Often used on aluminum cylinder heads and intake manifolds to avoid damage. Also, walnut shell blasting is commonly used in the cleaning of the valves seats and combustion chambers of cylinder heads.

Ultrasonic Cleaning for a Cylinder Head

Ultrasonic cleaning uses high-frequency sound waves to create cavitation bubbles in a cleaning solution. These bubbles implode on the surface of the cylinder head, dislodging contaminants. This method is effective for cleaning intricate parts and removing contaminants from hard-to-reach areas.

• Process:
  1. The cylinder head is submerged in a cleaning solution within an ultrasonic cleaning tank.
  2. Ultrasonic transducers generate high-frequency sound waves.
  3. The sound waves create cavitation bubbles that implode on the cylinder head’s surface, removing contaminants.
  4. The cylinder head is then rinsed and dried.
• Advantages:
  1. Thorough Cleaning: Effective in removing contaminants from all surfaces, including intricate passages and hard-to-reach areas.
  2. Non-Abrasive: Does not damage the cylinder head’s surface.
  3. Environmentally Friendly: Can be used with environmentally friendly cleaning solutions.
• Disadvantages:
  1. Cost: Ultrasonic cleaning equipment can be expensive.
  2. Cleaning Solution: The effectiveness of the cleaning depends on the cleaning solution used.
  3. Time-Consuming: The cleaning process can take a significant amount of time, depending on the size and complexity of the cylinder head.

Comparison of Cleaning Techniques

The following table Artikels the pros and cons of different cleaning techniques:

Chemical Cleaning Procedures

Chemical cleaning offers a powerful approach to removing stubborn deposits from cylinder heads, often achieving results unattainable through mechanical methods alone. However, the effectiveness of chemical cleaning is intrinsically linked to the safe and responsible handling of the cleaning agents. This section Artikels the crucial aspects of chemical cleaning, focusing on safe practices, proper equipment usage, and environmentally conscious disposal methods.

Understanding these procedures is essential for both effective cleaning and minimizing potential risks to health and the environment.

Proper Handling and Disposal of Chemical Cleaning Agents

The chemicals used for cleaning cylinder heads can be hazardous and require careful handling to prevent injury and environmental contamination. Following safety guidelines is paramount.The following points detail the essential considerations for handling and disposing of chemical cleaning agents:

• Personal Protective Equipment (PPE): Always wear appropriate PPE, including chemical-resistant gloves (nitrile or neoprene are common choices), eye protection (safety glasses or a face shield), and respiratory protection (a respirator with the correct filter for the specific chemical) when handling cleaning agents. The type of respirator filter required depends on the chemical being used; consult the Safety Data Sheet (SDS) for guidance.

• Ventilation: Ensure adequate ventilation in the work area to prevent the buildup of chemical vapors. This may involve using a well-ventilated workshop or employing a local exhaust ventilation system.
• SDS Review: Before using any chemical cleaner, thoroughly review the Safety Data Sheet (SDS). The SDS provides crucial information about the chemical’s hazards, safe handling procedures, first-aid measures, and disposal instructions.
• Storage: Store chemical cleaning agents in their original, labeled containers in a cool, dry, and well-ventilated area. Keep them away from incompatible materials, such as strong acids or bases, as indicated on the SDS. Secure storage is crucial to prevent spills and unauthorized access.
• Spill Response: Have a spill kit readily available in case of accidental spills. The spill kit should contain absorbent materials (e.g., absorbent pads, booms), a disposal container, and appropriate PPE. Follow the SDS instructions for spill cleanup.
• Waste Disposal: Chemical waste disposal must comply with local, state, and federal regulations. Never pour chemical cleaners down the drain or into the environment. Collect used cleaning solutions and contaminated materials in designated waste containers. Contact a licensed hazardous waste disposal service for proper disposal. The disposal method depends on the chemical’s composition and local regulations.

  For example, some cleaning solutions can be recycled through a specialized service, while others must be incinerated.

• Mixing and Dilution: Always follow the manufacturer’s instructions for mixing and diluting chemical cleaners. Improper dilution can reduce the cleaner’s effectiveness or increase the risk of hazards.

Step-by-Step Guide for Using a Parts Washer with a Chemical Solution

Parts washers provide a controlled environment for chemical cleaning, enhancing both safety and cleaning efficiency. The following guide provides a step-by-step approach to utilizing a parts washer effectively:

• Preparation: Ensure the parts washer is clean and in good working order. Inspect the pump, nozzles, and filters. Fill the parts washer with the appropriate chemical cleaning solution, following the manufacturer’s recommendations for concentration and volume. The type of cleaning solution will vary based on the contaminants to be removed and the materials of the cylinder head. For example, alkaline cleaners are often used for removing carbon deposits and oil, while acidic cleaners are effective at removing rust.

• PPE: Don the necessary PPE, including gloves, eye protection, and potentially a respirator, before handling the cylinder head or operating the parts washer.
• Pre-Cleaning (Optional): If the cylinder head is heavily soiled, consider pre-cleaning it to remove loose debris before placing it in the parts washer. This can be done with a pressure washer or by hand using a solvent.
• Placement: Carefully place the cylinder head inside the parts washer. Ensure that all surfaces to be cleaned are exposed to the cleaning solution. Secure the cylinder head to prevent it from moving during the cleaning process.
• Operation: Turn on the parts washer. The pump will circulate the cleaning solution, spraying it onto the cylinder head. Adjust the spray nozzles to ensure complete coverage. Many parts washers have timers that allow for setting the cleaning duration.
• Cleaning Time: Follow the cleaning solution manufacturer’s recommended contact time. This time varies depending on the type of cleaner, the level of contamination, and the material of the cylinder head. Over-cleaning can damage some materials, such as aluminum.
• Inspection: After the cleaning cycle, carefully remove the cylinder head from the parts washer. Inspect it for cleanliness. If necessary, repeat the cleaning process or use a different cleaning method.
• Rinsing: Thoroughly rinse the cylinder head with clean water to remove all traces of the cleaning solution. Use a pressure washer or a hose with a spray nozzle.
• Drying: Dry the cylinder head completely after rinsing. Use compressed air, or allow it to air dry. Ensure all water is removed to prevent rust formation.
• Post-Cleaning: Clean the parts washer after use, following the manufacturer’s instructions. Dispose of the used cleaning solution properly.

Tips for Neutralizing the Cleaning Solution After Use

Neutralizing cleaning solutions after use is critical to minimizing environmental impact and preparing the solution for proper disposal. The process varies depending on the chemical cleaner used.

• Identify the Cleaner: Determine the type of cleaning solution used (e.g., alkaline, acidic, or neutral). This information is crucial for selecting the appropriate neutralizing agent. Refer to the SDS for the specific cleaning agent.
• pH Testing: Use pH test strips or a pH meter to measure the pH of the used cleaning solution. This provides a baseline reading to guide the neutralization process.
• Neutralizing Agents:
  • For Alkaline Cleaners: Use an acid, such as vinegar (acetic acid) or a commercially available neutralizing agent. Add the acid slowly, while monitoring the pH.
  • For Acidic Cleaners: Use a base, such as baking soda (sodium bicarbonate) or a commercially available neutralizing agent. Add the base slowly, while monitoring the pH.
• Slow Addition and Monitoring: Add the neutralizing agent slowly, in small increments, while continuously monitoring the pH. Stir the solution to ensure thorough mixing.
• Target pH: Aim for a neutral pH (around 7). The exact target pH may vary depending on local regulations.
• Testing and Confirmation: After adding the neutralizing agent, let the solution sit for a short period, then re-test the pH to confirm neutralization.
• Disposal: Once the solution is neutralized, it may be suitable for disposal, depending on local regulations. Consult with a hazardous waste disposal service to determine the proper disposal method.

Demonstration of Safely Cleaning a Cylinder Head with a Specific Chemical Cleaner, Noting the Contact Time

This example uses an alkaline cleaner for demonstration purposes. The steps and contact time are for illustrative purposes and should be adapted based on the specific cleaner and cylinder head being used. Always consult the cleaner’s SDS for precise instructions.This scenario assumes the cylinder head is moderately soiled with carbon deposits and oil residue.

• Chemical Cleaner: An example is a commercial alkaline degreaser specifically designed for automotive applications.
• PPE: Nitrile gloves, safety glasses, and a respirator are essential.
• Parts Washer: A standard parts washer with a circulating pump and spray nozzles.
• Step 1: Preparation. Fill the parts washer with the alkaline cleaner, following the manufacturer’s recommended concentration (e.g., 1 part cleaner to 5 parts water). Ensure the parts washer is clean and functioning correctly.
• Step 2: Pre-Cleaning (Optional). Rinse the cylinder head with water to remove any loose debris.
• Step 3: Placement. Place the cylinder head securely in the parts washer, ensuring all surfaces are exposed to the spray.
• Step 4: Operation and Contact Time. Turn on the parts washer. Set the timer for a contact time of 20 minutes. The manufacturer’s instructions for the chosen cleaner specify this duration. This duration allows the alkaline cleaner to dissolve carbon deposits and remove oil residue effectively without damaging the aluminum alloy of the cylinder head.
• Step 5: Inspection. After 20 minutes, carefully remove the cylinder head. Inspect it for cleanliness. If heavy deposits remain, repeat the cleaning cycle for another 10 minutes.
• Step 6: Rinsing. Rinse the cylinder head thoroughly with clean water, using a pressure washer to remove all traces of the alkaline cleaner.
• Step 7: Drying. Dry the cylinder head completely with compressed air. Ensure all water is removed to prevent rust.
• Step 8: Neutralization and Disposal. Test the pH of the used cleaning solution. Add vinegar (acetic acid) slowly, while monitoring the pH, until the solution reaches a neutral pH (around 7). Dispose of the neutralized solution according to local regulations.

Mechanical Cleaning Procedures

Mechanical cleaning methods offer a range of approaches for removing stubborn deposits and preparing a cylinder head for further processes. These techniques often employ abrasive action, leveraging tools and equipment to dislodge contaminants that resist chemical treatments. Mechanical cleaning is particularly effective for removing carbon buildup, rust, and old gasket material. Careful execution is crucial to avoid damaging the cylinder head’s surfaces and compromising its integrity.

Bead Blasting a Cylinder Head

Bead blasting is a widely used mechanical cleaning technique that employs a stream of abrasive media propelled by compressed air to remove contaminants from a surface. This process is effective for removing carbon deposits, rust, and paint. Proper execution of bead blasting requires careful selection of media, nozzle type, and pressure.To bead blast a cylinder head effectively, the following steps should be followed:

1. Preparation: Before bead blasting, the cylinder head should be thoroughly cleaned of loose debris and oil. Mask any sensitive areas, such as valve seats and guides, with appropriate plugs or tape to prevent damage.
2. Media Selection: The choice of blasting media significantly impacts the cleaning outcome. Common media include glass beads, aluminum oxide, and walnut shells. Glass beads are often preferred for cylinder heads due to their relatively gentle abrasive action, which minimizes material removal.
3. Nozzle Selection: The nozzle’s size and shape affect the air stream and the media’s impact. A wider nozzle provides a broader cleaning pattern, while a narrower nozzle concentrates the blast. The nozzle material should be resistant to abrasion. Tungsten carbide nozzles are durable and suitable for this application.
4. Pressure Adjustment: The air pressure determines the media’s impact force. The optimal pressure varies depending on the media and the cylinder head’s material. Start with a lower pressure (e.g., 60-80 psi) and increase it gradually until the desired cleaning effect is achieved without causing damage. Excessive pressure can erode the base metal.
5. Blasting Technique: Hold the nozzle at a consistent distance (e.g., 6-8 inches) from the surface and move it in a systematic pattern, ensuring complete coverage. Overlap the passes to avoid leaving uncleaned areas. Avoid focusing the blast on one spot for an extended period to prevent localized damage.
6. Post-Blasting Inspection: After blasting, inspect the cylinder head for any remaining contaminants or damage. Thoroughly clean the head to remove all traces of blasting media.

Using a Wire Brush to Remove Stubborn Deposits

Wire brushes are valuable tools for removing stubborn deposits, such as heavy carbon buildup or rust, from cylinder head surfaces. The effectiveness of a wire brush depends on the brush type, the material of the wires, and the technique used.Proper use of a wire brush involves the following:

1. Brush Selection: Select a wire brush appropriate for the task. Consider the type of wire (e.g., steel, stainless steel, brass) and the brush’s shape (e.g., cup brush, wheel brush, hand brush). Steel wire brushes are effective for removing rust and heavy deposits, while softer wire brushes, like brass, are suitable for less aggressive cleaning and for use on softer metals.
2. Safety Precautions: Always wear appropriate personal protective equipment (PPE), including safety glasses, gloves, and a respirator, to protect against flying debris and dust.
3. Application Technique: Apply the brush to the surface with moderate pressure, using a back-and-forth or circular motion. Avoid excessive pressure, which can damage the cylinder head. For hard-to-reach areas, use a smaller brush or a brush attachment for a power tool.
4. Direction of Brushing: When possible, brush in the direction of the surface grain to minimize the risk of creating scratches or grooves.
5. Cleaning the Brush: Regularly clean the wire brush to remove debris and maintain its effectiveness.

Using a Scraper to Remove Gasket Material and Carbon Build-up

Scrapers are essential tools for removing old gasket material and carbon buildup from cylinder head surfaces. Careful scraping is critical to avoid damaging the sealing surfaces.To effectively use a scraper, follow these steps:

1. Tool Selection: Choose a scraper with a sharp, flat blade. A razor blade scraper or a specialized gasket scraper is ideal. Avoid using sharp-edged tools, like screwdrivers, that can gouge the surface.
2. Angle of Attack: Hold the scraper at a shallow angle to the surface (approximately 15-30 degrees). This helps to prevent the blade from digging into the metal.
3. Technique: Apply firm, even pressure to the scraper, pushing it along the surface to remove the gasket material or carbon buildup. Work in a controlled manner, making short, overlapping strokes.
4. Avoid Gouging: Be careful to avoid digging the scraper into the cylinder head surface. If resistance is encountered, reassess the angle and pressure.
5. Surface Inspection: After scraping, inspect the surface for any remaining gasket material or damage. Clean the surface thoroughly with a solvent to remove any residue.

Comparison of Blasting Media Abrasiveness

The abrasiveness of blasting media significantly affects the cleaning outcome and the potential for damage to the cylinder head. The following table provides a comparison of the abrasiveness of different blasting media:

Ultrasonic Cleaning

Ultrasonic cleaning offers a highly effective method for removing contaminants from cylinder heads, particularly in areas that are difficult to access using traditional cleaning methods. This technique utilizes high-frequency sound waves to create cavitation bubbles in a liquid, which then implode, generating powerful forces that dislodge dirt, oil, carbon deposits, and other debris from the component’s surface. This process is non-abrasive and can clean intricate geometries without damaging the underlying material.

Principle of Ultrasonic Cleaning and Its Effectiveness

Ultrasonic cleaning operates on the principle of cavitation. When an object is submerged in a cleaning solution and exposed to high-frequency sound waves, typically between 20 kHz and 400 kHz, microscopic bubbles are formed. These bubbles are created by the alternating compression and rarefaction cycles of the sound waves. As these bubbles grow to a critical size, they implode violently.

The implosion creates intense localized energy, generating shock waves that effectively scrub the surface of the cylinder head. This process is particularly effective because it reaches into crevices, blind holes, and other difficult-to-access areas that are often missed by other cleaning methods. The effectiveness of ultrasonic cleaning is dependent on several factors, including the frequency of the sound waves, the cleaning solution used, the temperature of the solution, and the duration of the cleaning cycle.

Higher frequencies typically produce smaller bubbles and are better suited for cleaning delicate parts with intricate details, while lower frequencies generate larger bubbles and are more effective at removing heavier contamination. The process is also safe for most metals, including aluminum, cast iron, and steel, commonly used in cylinder head construction.

Procedure for Setting Up and Operating an Ultrasonic Cleaner

Setting up and operating an ultrasonic cleaner requires careful attention to detail to ensure optimal cleaning results and prevent damage to the cylinder head or the cleaning equipment.

1. Preparation: Before starting, gather all necessary equipment and materials. This includes the ultrasonic cleaner, a suitable cleaning solution (discussed below), a container for the cylinder head (if the cleaner is not large enough), safety glasses, gloves, and a method for handling the cylinder head, such as a hoist or sturdy hooks.
2. Solution Preparation: Prepare the cleaning solution according to the manufacturer’s instructions. Ensure the solution is at the recommended concentration and temperature. For many cylinder head applications, a pre-mixed, dedicated ultrasonic cleaning solution is the best option.
3. Cylinder Head Placement: Carefully place the cylinder head into the ultrasonic cleaner or a suitable container. Ensure the head is fully submerged in the cleaning solution. If using a separate container, place it inside the ultrasonic cleaner, ensuring it does not touch the bottom of the tank.
4. Ultrasonic Cleaning Cycle: Activate the ultrasonic cleaner. Set the appropriate time and temperature based on the manufacturer’s recommendations for the cleaning solution and the level of contamination. The cleaning time can vary from 15 minutes to an hour or more, depending on the severity of the contamination.
5. Rinsing: After the ultrasonic cleaning cycle is complete, carefully remove the cylinder head from the cleaning solution. Rinse the head thoroughly with clean water, preferably distilled water, to remove any residual cleaning solution.
6. Drying: Dry the cylinder head completely. This can be done using compressed air, a drying oven, or by allowing it to air dry. Ensure all water is removed to prevent rust or corrosion.
7. Disposal: Dispose of the used cleaning solution according to local environmental regulations.

Best Cleaning Solutions for Ultrasonic Cleaners for Cylinder Heads

Selecting the correct cleaning solution is critical for achieving optimal cleaning results and protecting the cylinder head material. The best cleaning solutions for ultrasonic cleaning of cylinder heads typically address various types of contamination.

• Alkaline Cleaners: Alkaline cleaners are highly effective at removing oil, grease, and carbon deposits. They are generally formulated with surfactants, chelating agents, and builders to lift and emulsify contaminants. However, it is essential to select an alkaline cleaner that is compatible with the cylinder head material, especially aluminum. High pH levels can damage aluminum. A common example is a diluted solution of a heavy-duty degreaser specifically designed for automotive applications.

• Acidic Cleaners: Acidic cleaners are effective at removing rust, scale, and other mineral deposits. They often contain mild acids, such as citric acid or phosphoric acid. However, acidic cleaners can also be corrosive, and it is crucial to carefully monitor the cleaning process and rinse thoroughly after cleaning to neutralize any residual acid.
• Neutral Cleaners: Neutral cleaners offer a gentler cleaning approach, suitable for delicate components or when a less aggressive cleaning action is desired. These cleaners typically have a pH close to 7 and can be effective for removing light oil and dirt.
• Solvent-Based Cleaners: Solvent-based cleaners are often used for removing heavy grease, oil, and tar. These cleaners may be effective, but they require careful handling due to their flammability and potential health hazards. Ensure proper ventilation and follow safety guidelines.
• Proprietary Ultrasonic Cleaning Solutions: Many manufacturers offer specialized ultrasonic cleaning solutions specifically formulated for cylinder heads. These solutions often combine multiple cleaning agents and are designed to be effective, safe for various metals, and easy to use.

Process of Inspecting the Cylinder Head After Ultrasonic Cleaning

Inspecting the cylinder head after ultrasonic cleaning is a crucial step to ensure the cleaning process was successful and that no damage occurred. This inspection should be performed thoroughly to identify any remaining contamination or potential issues.

1. Visual Inspection: Begin with a thorough visual inspection of the entire cylinder head. Look for any remaining deposits of carbon, oil, or rust. Inspect all surfaces, including the combustion chambers, valve seats, valve guides, and water passages. Use a bright light and magnifying glass if necessary.
2. Valve Seat Inspection: Examine the valve seats for any signs of pitting, erosion, or damage. These areas are critical for proper valve sealing, and any imperfections can lead to performance issues.
3. Valve Guide Inspection: Inspect the valve guides for wear or damage. Check for excessive play, which can affect valve stem seal performance and lead to oil consumption.
4. Water Passage Inspection: Inspect the water passages for any remaining scale, rust, or blockages. Ensure the passages are clear to allow for proper coolant flow and prevent overheating.
5. Threaded Hole Inspection: Inspect all threaded holes for cleanliness and damage. Use a thread chaser to remove any debris or corrosion that might interfere with bolt installation.
6. Surface Finish Inspection: Check the surface finish of critical areas, such as the combustion chambers and valve seats. The ultrasonic cleaning process should not significantly alter the surface finish.
7. Leak Testing (Optional): If the cylinder head is being rebuilt, a leak test may be performed to check for cracks or leaks. This can involve pressurizing the water passages or combustion chambers and checking for any pressure loss.

Cleaning Specific Areas

The cylinder head houses critical components that directly impact engine performance and longevity. Thorough cleaning of specific areas is crucial to remove contaminants, restore functionality, and prevent future issues. This section details specialized cleaning techniques for the combustion chambers, valve seats, valve guides, oil passages, and exhaust ports. Neglecting these areas can lead to significant engine problems, including reduced compression, valve damage, oil contamination, and exhaust flow restrictions.

Cleaning Combustion Chambers and Valve Seats

Combustion chambers and valve seats are prone to carbon buildup, which can negatively affect engine efficiency. Cleaning these areas requires a multi-step approach to ensure all contaminants are removed without damaging the surfaces.Abrasive blasting can be used to remove carbon deposits, but it must be done carefully to avoid erosion of the aluminum or other materials. The process typically involves using a media such as walnut shells or glass beads.

• Preparation: Before cleaning, thoroughly inspect the combustion chambers and valve seats for any damage, such as pitting or cracks. Note the condition of each valve seat.
• Abrasive Blasting (if applicable): If using abrasive blasting, select an appropriate media. Walnut shells are often preferred for aluminum cylinder heads due to their gentler action. Glass beads can also be used, but require more caution. Control the blasting pressure to prevent damage. Direct the blast at a 45-degree angle to the surface.

• Manual Cleaning: Following abrasive blasting (if used), use a brass wire brush or a specialized combustion chamber cleaning tool to remove any remaining deposits. Be cautious not to scratch the surface.
• Valve Seat Cleaning: Use specialized valve seat cutters or grinding stones to clean and resurface the valve seats. This is particularly important if the valve seats are pitted or damaged. Consult the manufacturer’s specifications for the correct angles and widths. This process ensures proper sealing of the valves.
• Final Cleaning: After cleaning, thoroughly wash the combustion chambers and valve seats with a solvent or degreaser to remove any residual abrasive media or debris. Ensure all traces of cleaning agents are removed.

Cleaning Valve Guides and Oil Passages

Valve guides and oil passages are critical for proper valve operation and engine lubrication. Cleaning these areas is essential to remove any obstructions that might restrict oil flow or cause valve sticking.

• Valve Guide Cleaning: Use a specialized valve guide cleaning tool or a wire brush of the appropriate diameter to remove carbon deposits and debris from the valve guides. Ensure the tool does not damage the guide’s internal surface. Soak the guides in penetrating oil before cleaning to help loosen stubborn deposits.
• Oil Passage Cleaning: Use compressed air and a suitable solvent to flush out the oil passages. Insert a small, flexible brush or pipe cleaner into the passages to dislodge any stubborn debris. Ensure all passages are clear and free of obstructions. Repeat the process multiple times to ensure complete cleaning.
• Inspection: After cleaning, visually inspect the valve guides and oil passages to ensure they are clean and free of any remaining debris. Use a bright light to check for blockages.

Removing Carbon Deposits from Exhaust Ports

Exhaust ports are highly susceptible to carbon buildup, which restricts exhaust flow and reduces engine performance. Effective cleaning of these ports is crucial for optimal engine operation.

• Preparation: Before cleaning, protect the valve seats and combustion chambers from debris. You can do this by stuffing clean rags into the intake and exhaust ports.
• Mechanical Cleaning: Use a rotary tool with a carbon removal bit or a specialized exhaust port cleaning tool to remove carbon deposits. Work carefully to avoid damaging the port surfaces.
• Chemical Cleaning (Optional): Apply a carbon-removing solvent to the exhaust ports and allow it to soak for the recommended time. Follow the manufacturer’s instructions for the solvent.
• Final Cleaning: After cleaning, thoroughly wash the exhaust ports with a solvent or degreaser to remove any residual carbon deposits or cleaning agents. Use compressed air to ensure all debris is removed.

Common Issues and Resolutions During Cleaning

Cleaning a cylinder head can reveal pre-existing issues and introduce new ones if not handled correctly. Addressing these issues promptly is crucial for a successful rebuild.

• Issue: Pitting or damage to valve seats.
  • Resolution: Resurface or replace the valve seats. Use specialized tools to cut or grind the seats to the correct angles and dimensions.
• Issue: Blocked oil passages.
  • Resolution: Use compressed air and solvents to thoroughly flush the passages. Use flexible brushes or pipe cleaners to dislodge stubborn debris.
• Issue: Carbon buildup in combustion chambers.
  • Resolution: Use abrasive blasting (with appropriate media) or manual cleaning methods to remove carbon deposits. Ensure complete removal of deposits.
• Issue: Damage to valve guides.
  • Resolution: Inspect valve guides for wear and damage. Replace or ream the guides as necessary.
• Issue: Corrosion or rust.
  • Resolution: Use a rust-removing solvent or abrasive blasting to remove rust. Protect the cleaned surfaces with a corrosion inhibitor.
• Issue: Warping or distortion of the cylinder head.
  • Resolution: Check the cylinder head for flatness using a straightedge and feeler gauges. If warped, have the head resurfaced.

Inspection After Cleaning

Following the thorough cleaning of a cylinder head, a comprehensive inspection is crucial to assess its condition and ensure its suitability for reuse. This inspection process identifies potential issues, such as cracks, wear, and damage, that could compromise engine performance and longevity. A detailed inspection can prevent costly repairs or engine failures down the line.

Inspection for Cracks

Detecting cracks in a cylinder head is paramount, as they can lead to coolant leaks, compression loss, and ultimately, engine failure. Several methods are employed to identify these often-invisible defects.

• Visual Inspection: A meticulous visual examination is the first step. Using a bright light and magnifying glass, carefully scrutinize the entire cylinder head, paying close attention to areas prone to cracking, such as around the valve seats, spark plug holes, and between the valve springs. Look for any hairline fractures or discoloration.
• Dye Penetrant Testing: Dye penetrant testing, also known as liquid penetrant inspection, is a widely used and effective method. The process involves applying a dye to the cleaned surface, allowing it to penetrate any cracks. After a set time, the excess dye is removed, and a developer is applied. The developer draws the dye out of the cracks, making them visible under a UV light.

  This method is sensitive enough to detect very small cracks.

• Magnetic Particle Inspection (MPI): This method is suitable for cylinder heads made of ferrous materials (steel or cast iron). The cylinder head is magnetized, and magnetic particles are applied to the surface. Cracks disrupt the magnetic field, causing the particles to accumulate at the crack locations, making them visible.
• Pressure Testing: Pressure testing involves sealing the water passages of the cylinder head and applying air pressure. The cylinder head is submerged in water, and any leaks, including those caused by cracks, will be visible as bubbles escaping from the submerged component. This method is particularly useful for detecting cracks in water jackets.

Checking Valve Guide Wear

Valve guides play a critical role in the proper functioning of the engine’s valves. Wear in these guides can lead to valve stem movement, causing poor sealing, reduced compression, and excessive oil consumption.

• Visual Inspection: While not definitive, a visual inspection can reveal gross wear. Look for scoring or damage on the valve guide bores.
• Valve Stem-to-Guide Clearance Measurement: This is the most accurate method for assessing valve guide wear. A dial indicator is used to measure the lateral movement of the valve stem within the guide. The valve is installed in the cylinder head, and the indicator is mounted to measure the movement. The valve stem is then moved sideways, and the clearance is measured. Excessive clearance indicates worn guides.

  Specific clearance tolerances are specified by the engine manufacturer and must be adhered to.

• Valve Guide Wear Measurement Tools: Specialized tools are available to measure valve guide wear directly. These tools provide a more precise assessment than visual inspection.
• Valve Stem Seal Inspection: Even if the valve guides themselves are not excessively worn, the valve stem seals can deteriorate over time, leading to oil consumption. Inspect the seals for cracking, hardening, or damage.

Inspection of Valve Seats for Damage

Valve seats provide the sealing surface for the valves, ensuring proper compression and preventing leaks. Damage to these seats can lead to reduced engine performance, rough running, and even engine failure.

• Visual Inspection: A visual inspection can reveal obvious damage, such as pitting, cracks, or erosion on the valve seat surfaces. Use a bright light and magnifying glass.
• Valve Seat Contact Pattern Check: This method involves applying a marking compound to the valve face and installing the valve in the cylinder head. By rotating the valve against the seat, the contact pattern can be observed. An uneven or narrow contact pattern indicates damage to the valve seat or valve face, or misalignment.
• Vacuum Testing: Vacuum testing can be used to check the sealing of the valve seats. A vacuum is applied to the intake or exhaust port, and the vacuum level is monitored. A significant drop in vacuum indicates a leak, which could be caused by damage to the valve seat, valve face, or valve stem seal.
• Valve Seat Runout Measurement: This measurement checks the concentricity of the valve seat relative to the valve guide. Excessive runout can cause poor valve sealing. A dial indicator is used to measure the runout.
• Valve Seat Refacing: If the valve seats show minor damage or wear, they can often be resurfaced using specialized equipment. This process restores the proper sealing surface. However, severely damaged seats may require replacement.

Post-Cleaning Inspection Checklist

A checklist helps to ensure that all critical areas of the cylinder head are thoroughly inspected.

• Visual Inspection: Inspect for cracks in all areas (valve seats, spark plug holes, between valve springs, water jackets).
• Crack Testing: Perform dye penetrant testing or magnetic particle inspection (for ferrous heads).
• Valve Guide Wear: Measure valve stem-to-guide clearance.
• Valve Seat Inspection: Check for damage, contact pattern, and runout.
• Valve Stem Seal Condition: Inspect for cracking or hardening.
• Surface Flatness: Check the cylinder head surface for warpage, especially the deck surface.
• Combustion Chamber Volume: Measure the combustion chamber volume to ensure it meets the manufacturer’s specifications.
• Water Passage Inspection: Inspect water passages for obstructions or corrosion.
• Oil Passage Inspection: Ensure oil passages are clear of debris.
• Spark Plug Hole Threads: Check the condition of the spark plug threads.
• Valve Spring Condition: Inspect valve springs for broken or damaged.

Preventing Corrosion and Rust

The meticulous cleaning of a cylinder head, as discussed previously, leaves the bare metal vulnerable to corrosion and rust. Preventing these detrimental processes is crucial to ensure the longevity and optimal performance of the engine component. This section will delve into various methods and best practices to safeguard the cleaned cylinder head from environmental factors that could compromise its integrity.

Methods to Prevent Rust Formation

Several strategies can be employed to effectively prevent rust formation on a cleaned cylinder head. These methods aim to create a barrier between the metal surface and the corrosive elements, primarily oxygen and moisture. Proper implementation of these techniques is essential for preserving the head’s functionality and extending its lifespan.

• Surface Preparation: Before applying any protective coating, thorough surface preparation is paramount. This typically involves removing any remaining traces of cleaning agents, debris, or contaminants. This can be achieved through rinsing with clean water, followed by drying. For more aggressive surface preparation, consider using a light abrasive blasting with media like glass beads or aluminum oxide, which can also improve coating adhesion.

  However, ensure that the blasting process does not damage any critical surfaces or dimensions.

• Application of Rust Inhibitors: Rust inhibitors can be applied directly to the cleaned surface to provide a temporary barrier against corrosion. These inhibitors often contain chemicals that react with the metal surface to form a protective layer. Some common types include:
  • Rust Preventative Oils: These oils are easy to apply and provide a thin, protective film. They are suitable for short-term storage or situations where frequent disassembly is required.

  • Vapor Phase Corrosion Inhibitors (VpCI): VpCIs release volatile chemicals that form a protective layer on the metal surface. They are particularly useful for enclosed spaces, such as inside cooling passages.
• Application of Protective Coatings: Applying a protective coating is a more durable method of rust prevention. This creates a physical barrier that isolates the metal from moisture and oxygen. Common coatings include:
  • Paint: High-temperature engine paints, designed specifically for cylinder heads, provide excellent protection and can withstand the heat generated by the engine. These paints typically contain corrosion inhibitors and are available in various colors.

    Hello there! Cleaning a cylinder head, it’s a bit of a process, isn’t it? Make sure you take your time, okay? Now, sometimes, if you’re having trouble starting the engine, it might not be the head itself, but maybe the ignition key cylinder needs a change. If that’s the case, you can learn all about it by checking out how to replace the ignition key cylinder.

    After that, go back and finish cleaning that cylinder head, alright?

  • Powder Coating: Powder coating offers a durable and uniform finish. It is applied electrostatically and then cured in an oven, resulting in a robust, corrosion-resistant layer. The coating is thicker than paint, offering enhanced protection. However, ensure that the powder coating process does not compromise the dimensional accuracy of critical areas like valve seats or guide bores.
  • Ceramic Coatings: Ceramic coatings offer excellent thermal properties and corrosion resistance. They can withstand high temperatures and can be applied to both internal and external surfaces. Ceramic coatings can also improve heat dissipation.
• Proper Handling: Handle the cleaned cylinder head with clean gloves to prevent transferring oils or contaminants from your skin to the metal surface. Avoid touching the cleaned surfaces unnecessarily.

Steps for Applying a Protective Coating to the Cylinder Head

The process of applying a protective coating requires careful attention to detail to ensure optimal performance and longevity. The following steps provide a general guideline, although specific instructions may vary depending on the type of coating used.

1. Surface Preparation: Thoroughly clean the cylinder head to remove any remaining contaminants, oils, or debris. This may involve degreasing, rinsing with clean water, and drying completely. Abrasive blasting, as described previously, can improve coating adhesion.
2. Masking: Mask off any areas that should not be coated, such as valve seats, guide bores, and threaded holes. Use high-temperature masking tape designed for automotive applications.
3. Coating Application: Apply the coating according to the manufacturer’s instructions. This may involve spraying, dipping, or electrostatic application, depending on the coating type. Ensure even coverage and avoid runs or drips.
4. Curing/Drying: Allow the coating to cure or dry completely, as specified by the manufacturer. This typically involves allowing the part to air dry or baking it in an oven at a specific temperature for a specified duration. Proper curing is crucial for achieving the desired protective properties.
5. Inspection: Inspect the coated surface for any imperfections, such as missed areas, runs, or bubbles. Address any issues before using the cylinder head.

Importance of Proper Storage After Cleaning

Proper storage is crucial for maintaining the condition of a cleaned cylinder head and preventing corrosion. Even with protective coatings, improper storage can lead to rust formation and damage. The storage environment and the methods employed significantly impact the head’s lifespan and performance.

Recommended Storage Conditions for a Cylinder Head

Creating an optimal storage environment is vital for preserving the integrity of a cleaned cylinder head. These conditions will help minimize the risk of corrosion and ensure the head is ready for installation when needed.

• Clean and Dry Environment: Store the cylinder head in a clean and dry environment, away from moisture, humidity, and direct exposure to the elements. A climate-controlled environment is ideal.
• Temperature Control: Maintain a consistent temperature to minimize condensation and prevent rust formation. Avoid extreme temperature fluctuations.
• Humidity Control: Keep the humidity level low, ideally below 60%. Consider using a dehumidifier in the storage area.
• Protection from Contaminants: Protect the cylinder head from dust, dirt, and other contaminants. Cover the head with a protective covering, such as a plastic bag or a storage container. Avoid using materials that can trap moisture.
• Proper Support: Support the cylinder head properly during storage to prevent damage. Place it on a stable surface and avoid stacking heavy items on top of it.
• Ventilation: Ensure adequate ventilation to prevent the buildup of moisture.
• Regular Inspection: Periodically inspect the cylinder head for any signs of corrosion or damage. Address any issues promptly.
• VpCI Usage: Employing Vapor Phase Corrosion Inhibitors (VpCIs) can provide an added layer of protection within the storage environment. These inhibitors release volatile compounds that protect the metal surfaces.

End of Discussion: How To Clean Cylinder Head

In summary, mastering how to clean cylinder head is an essential part of engine maintenance and repair. From understanding the importance of safety to selecting the right cleaning method for the job, each step contributes to a successful outcome. By following the guidelines Artikeld in this guide, you can ensure your cylinder head is clean, efficient, and ready to deliver optimal performance.

Remember, a clean engine is a happy engine, and the effort invested in proper cleaning will pay dividends in the long run. Now, go forth and clean those cylinder heads with confidence!

Top FAQs

What safety equipment is absolutely essential when cleaning a cylinder head?

At a minimum, you’ll need safety glasses to protect your eyes from debris and chemicals, gloves to protect your skin from harsh cleaning agents, and a respirator or dust mask to avoid inhaling fumes or particles. Consider a face shield for bead blasting.

Can I use household cleaners to clean a cylinder head?

While some household cleaners might remove some surface grime, they are generally not strong enough for the job and can even damage the cylinder head material. It’s best to use dedicated engine cleaning products.

How often should I clean my cylinder head?

The frequency depends on how often you use your engine and the conditions it operates in. Generally, a cylinder head should be cleaned anytime the engine is disassembled for major maintenance or repair, or if you suspect carbon buildup or other contaminants are affecting performance.

What’s the best way to dispose of used cleaning solutions?

Always follow local regulations for hazardous waste disposal. Do not pour cleaning solutions down the drain. Contact your local waste management facility for proper disposal instructions.

Can I reuse cleaning solutions?

Some cleaning solutions can be reused, but they will become less effective over time as they accumulate contaminants. Filter your solutions regularly and replace them when they become excessively dirty or lose their cleaning power. Always follow the manufacturer’s recommendations.
