How to Remove Ignition Key Cylinder A Comprehensive Guide

How to remove ignition key cylinder is a journey into the heart of your vehicle’s starting system. This guide demystifies the process, transforming a potentially daunting task into an accessible endeavor. From understanding the core components to mastering the necessary techniques, we’ll equip you with the knowledge and confidence to tackle this project head-on.

We’ll delve into the intricacies of the ignition key cylinder, exploring its function, components, and the telltale signs of trouble. Then, we’ll meticulously Artikel the tools and materials you’ll need, along with step-by-step instructions for both standard and specialized removal methods. Whether you’re a seasoned DIY enthusiast or a curious beginner, this guide is your key to unlocking the secrets of your vehicle’s ignition system.

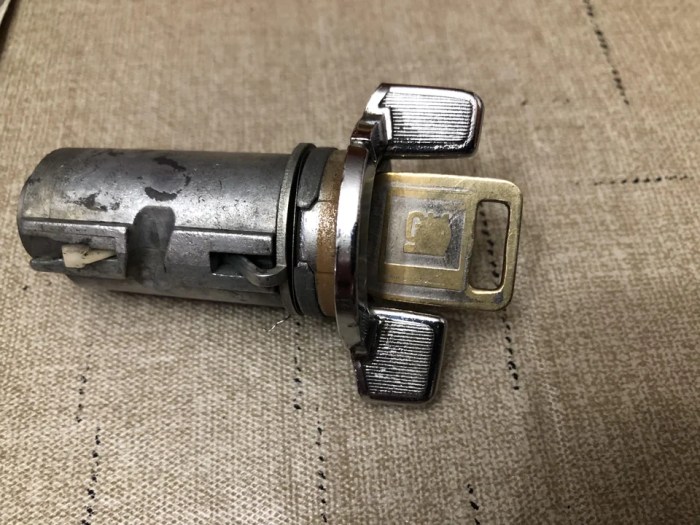

Understanding the Ignition Key Cylinder

The ignition key cylinder is a vital component of a vehicle’s starting system, acting as the primary interface between the key and the engine’s electrical system. Its proper function is essential for starting and operating the vehicle. Understanding its construction, operation, and potential problems is crucial for vehicle owners and anyone involved in automotive maintenance.

Fundamental Function of an Ignition Key Cylinder

The primary function of the ignition key cylinder is to receive the physical key and, through mechanical and electrical interactions, enable the vehicle’s engine to start and run. It serves as a security device, preventing unauthorized access and operation of the vehicle.The cylinder achieves this by:* Receiving the physical key, which is specifically designed with unique cuts and grooves.

• Aligning internal tumblers or wafers within the cylinder when the correct key is inserted.
• Allowing the key to rotate, typically through multiple positions (e.g., Off, Accessory, On/Run, Start).
• Activating electrical circuits at each key position, controlling various vehicle functions, including the starter motor, ignition system, and fuel pump.

The ignition key cylinder acts as the gateway to the vehicle’s electrical system. Without a functional cylinder, the engine cannot start, and many other vehicle systems will be disabled.

Components of an Ignition Key Cylinder

The ignition key cylinder is a complex assembly of several interconnected parts, each contributing to its overall function. Understanding these components is essential for diagnosing and addressing potential issues.Key components include:* Cylinder Housing: This is the outer shell of the cylinder, typically made of metal, providing structural support and housing the internal components. It often includes a faceplate that interfaces with the steering column or dashboard.

Keyway

This is the opening that receives the ignition key. Its shape and dimensions are specifically designed to accept the corresponding key.

Tumblers/Wafers

These are small, precisely shaped metal pieces that are aligned by the key’s cuts and grooves. When the correct key is inserted, the tumblers/wafers align, allowing the cylinder to rotate.

Shear Line

The point where the tumblers/wafers align to allow the cylinder to rotate. When the correct key is inserted and the tumblers are correctly aligned, the shear line is clear, allowing the cylinder to rotate.

Locking Mechanism

This mechanism prevents the cylinder from rotating without the correct key. It often includes a spring-loaded pin or a series of pins that engage with the steering column or other locking components.

Ignition Switch

This is an electrical switch that is activated by the rotation of the cylinder. It controls the flow of power to various vehicle systems, such as the starter motor, ignition system, and fuel pump.

Anti-Theft Devices

Modern ignition cylinders often incorporate anti-theft devices, such as transponder chips, that communicate with the vehicle’s immobilizer system. This prevents the engine from starting if the key is not recognized.These components work in concert to provide security and functionality, and any malfunction in one of them can prevent the vehicle from starting or operating correctly.

Different Types of Ignition Key Cylinders

Ignition key cylinders have evolved over time, with different designs and features appearing in various vehicle models. Understanding the different types can help in identifying the correct replacement part or diagnosing a specific issue.Here are some of the common types:* Mechanical Ignition Cylinders: These are the most basic type, relying solely on mechanical components to unlock and activate the ignition switch.

They typically use a series of tumblers or wafers that align when the correct key is inserted.

Transponder Key Ignition Cylinders

These cylinders incorporate a transponder chip in the key. When the key is inserted, the cylinder sends a signal to the transponder, and if the signal is recognized, the immobilizer system allows the engine to start.

Keyless Ignition Systems

These systems use a key fob that communicates wirelessly with the vehicle. The cylinder is replaced by a start/stop button, and the engine is started and stopped electronically.

Combination Ignition and Steering Lock Cylinders

Many vehicles combine the ignition cylinder with the steering lock mechanism, providing an additional layer of security. These cylinders typically require the key to be inserted and turned to unlock the steering wheel before the engine can be started.The specific type of ignition key cylinder used in a vehicle depends on the make, model, and year of manufacture.

Common Signs of a Faulty Ignition Key Cylinder

A faulty ignition key cylinder can manifest in several ways, affecting the vehicle’s ability to start and operate. Recognizing these signs can help in diagnosing the problem and taking appropriate action.Common signs of a faulty ignition key cylinder include:* Difficulty Inserting or Removing the Key: This can be caused by worn tumblers, debris in the keyway, or a damaged cylinder.

Key Sticking or Getting Stuck

This indicates a mechanical problem within the cylinder, such as worn tumblers or a misaligned locking mechanism.

Key Turning with Difficulty

This may be due to worn tumblers, a faulty ignition switch, or a problem with the steering lock.

Engine Failing to Start

If the key turns, but the engine does not crank, the ignition switch or a related electrical component may be faulty.

Intermittent Starting Issues

This can be caused by worn contacts in the ignition switch or a loose connection.

Key Not Turning at All

This can be due to a seized cylinder, a locked steering wheel, or a problem with the ignition switch.

Steering Wheel Locked and Key Won’t Turn

This is often a sign of a faulty steering lock mechanism or a problem with the ignition cylinder.

Warning Lights Illuminating

Some vehicles have warning lights that indicate a problem with the ignition system.Ignoring these signs can lead to further problems, including being stranded. Addressing the issue promptly is crucial for maintaining the vehicle’s reliability and security.

Tools and Materials Required: How To Remove Ignition Key Cylinder

Alright, let’s gear up! Removing an ignition key cylinder is a task that requires the right tools and materials. Having everything ready before you start is crucial for a smooth and successful operation. This prevents unnecessary delays and potential damage to your vehicle. It’s like a surgeon preparing for an operation; you wouldn’t start without sterilized instruments and the right supplies.

The secrets of the ignition key cylinder, locked away like a forgotten treasure, can be unlocked with patience and the right tools. But what if a different kind of cylinder troubles you? Perhaps a squeaky office chair, its fate intertwined with the knowledge of how to change office chair cylinder. Could the same methods, subtly altered, lead us back to the mysteries of the car’s ignition, ready to be deciphered?

Essential Tools for Ignition Key Cylinder Removal

Before diving in, let’s assemble the core essentials. Having these tools readily available will make the entire process significantly easier and more efficient. Remember, safety first! Always disconnect the negative terminal of your car battery before starting any electrical work.

• Screwdrivers: A set of screwdrivers, both Phillips head and flathead, in various sizes.
• Pliers: Needle-nose pliers and possibly regular pliers.
• Socket Set or Wrench Set: A set covering common metric or SAE sizes, depending on your vehicle.
• Flashlight: A bright flashlight or work light.
• Penetrating Oil: Such as WD-40, for loosening stuck components.
• Safety Glasses: To protect your eyes.
• Gloves: To protect your hands.
• Optional: Trim Removal Tools: For removing plastic trim pieces without damage.

Detailed Screwdriver Specifications, How to remove ignition key cylinder

Screwdrivers are your primary allies in this process. Different screw types and sizes are used throughout the ignition system. Having a comprehensive set is non-negotiable.

• Phillips Head Screwdrivers: You’ll need a range of sizes, typically including:
  • #1 Phillips (Small): For smaller screws.
  • #2 Phillips (Medium): For most common screws.
  • #3 Phillips (Large): For some larger screws.
• Flathead Screwdrivers: A selection of flathead screwdrivers is also essential.
  • Small Flathead: For prying and small adjustments.
  • Medium Flathead: For general use.

Optional Tools for Enhanced Efficiency

While the essential tools will get the job done, these optional tools can significantly improve your experience and reduce frustration. Consider these additions for a more streamlined process.

• Trim Removal Tools: These plastic tools are specifically designed to safely remove plastic trim pieces without scratching or breaking them.
• Magnetic Parts Tray: Keeps small screws and parts organized.
• Impact Driver: Can be helpful for loosening stubborn screws.

Tool and Use Summary Table

Here’s a handy table summarizing the tools and their respective uses. This should serve as a quick reference guide as you work.

Preparing the Vehicle

Alright, let’s get down to business! Before you even think about touching that ignition key cylinder, we need to make sure we’re doing this safely. This step is about minimizing risk and preventing potential damage to yourself and your vehicle. Remember, a little preparation goes a long way.

Safety Precautions Before Starting

Prioritizing safety is paramount. Before beginning any work on your vehicle, it’s crucial to take several precautions to protect yourself and prevent accidental damage. These steps are not just suggestions; they are essential for a safe and successful removal process.

• Disconnect the Battery: This is the single most important safety measure. Disconnecting the battery prevents electrical shocks and protects sensitive electronic components from damage. We’ll go into detail on how to do this in the next section.
• Work in a Well-Ventilated Area: If you’re working in a garage, ensure proper ventilation. This is particularly important if you’re using any solvents or lubricants, as fumes can be hazardous.
• Wear Safety Glasses: Protect your eyes from flying debris. Small metal fragments or plastic pieces can easily become projectiles during the removal process.
• Wear Gloves: Gloves provide a better grip and protect your hands from cuts, abrasions, and the potential effects of any chemicals you might encounter.
• Remove Jewelry: Remove any jewelry, such as rings or necklaces, that could get caught on parts of the vehicle.
• Ensure the Vehicle is Stable: If you’re lifting the vehicle, make sure it is securely supported by jack stands. Never work under a vehicle supported only by a jack.

Disconnecting the Vehicle’s Battery

The process of disconnecting the battery is a straightforward, yet critical, safety measure. It’s the first step in protecting yourself and the vehicle’s electrical system. Here’s a detailed guide on how to safely disconnect your car’s battery:

1. Locate the Battery: The battery is typically located under the hood, but can also be found in the trunk or under the rear seat in some vehicles. Consult your owner’s manual if you’re unsure of its location.
2. Identify the Terminals: Batteries have two terminals: positive (+) and negative (-). The terminals are usually marked with a “+” or “-” symbol. The positive terminal often has a red cover, and the negative terminal usually has a black cover.
3. Gather Your Tools: You’ll need a wrench or socket of the correct size to loosen the battery terminal clamps. A typical size is 10mm.
4. Disconnect the Negative Terminal First: Using your wrench, loosen the nut or bolt securing the negative terminal clamp to the negative battery post. Once loose, carefully remove the clamp from the terminal. This is the most important step, as it prevents accidental shorts.
5. Disconnect the Positive Terminal: Now, loosen the nut or bolt securing the positive terminal clamp and remove the clamp from the positive battery post.
6. Isolate the Terminals: After disconnecting both terminals, it’s good practice to move the battery cables away from the battery posts to prevent accidental contact.

Important Note: Always disconnect the negative terminal

• first* and reconnect it
• last*. This minimizes the risk of short-circuiting your vehicle’s electrical system.

Locating and Accessing the Ignition Key Cylinder

Finding the ignition key cylinder is usually pretty simple, but the process may vary slightly depending on your vehicle’s make and model.To access the ignition key cylinder:

• Locate the Steering Column: The ignition key cylinder is located within the steering column. It’s the long, cylindrical structure that runs from the steering wheel down towards the dashboard.
• Identify the Cylinder Housing: The key cylinder is usually housed within a plastic or metal casing. This casing is often located on the steering column, just behind the steering wheel.
• Check the Steering Wheel Surround: You might need to remove plastic trim pieces around the steering column to access the cylinder. These pieces are often held in place with screws or clips. Carefully remove these trim pieces.
• Examine the Area: Once the trim is removed, you should be able to see the ignition key cylinder. It’s usually held in place by a retaining clip or screws.

Example: In many older vehicles, the cylinder is held in place by a small retaining screw that’s accessible from the bottom of the steering column. Newer vehicles may have more complex locking mechanisms. Refer to your vehicle’s service manual for specific instructions.

Protecting the Vehicle’s Interior

Protecting your vehicle’s interior during this process is crucial to prevent scratches, dents, and other damage. Taking a few simple steps can save you from costly repairs or aesthetic issues.

• Use Protective Coverings: Cover the steering wheel, seats, and dashboard with protective covers. This will shield them from scratches, dirt, and any potential spills.
• Use Fender Covers: Place fender covers over the front fenders to protect the paint from scratches as you lean over the vehicle.
• Protect the Floor: Place a mat or protective covering on the floor to catch any dropped tools or parts.
• Work Carefully: Be mindful of the tools you are using and avoid letting them come into contact with the interior surfaces.
• Organize Your Tools: Keep your tools organized and within easy reach to avoid fumbling and potentially scratching surfaces.

Removing the Ignition Key Cylinder – Method 1

Alright, let’s dive into the core of the operation: removing that stubborn ignition key cylinder. This standard procedure is the go-to method for most vehicles, and by breaking it down step-by-step, we’ll conquer this challenge with confidence. Remember, patience and precision are your allies here. We’ll start with the basics and work our way through each crucial stage.

Removing the Steering Wheel (If Necessary)

Many vehicles require steering wheel removal to access the ignition cylinder. This process can seem daunting, but it’s manageable when broken down into manageable steps. Remember to always disconnect the negative battery cable before starting any electrical work on your car.Here’s how to do it:* Step 1: Disconnect the Battery. Disconnect the negative (black) terminal from your car’s battery. This is a crucial safety precaution to prevent accidental airbag deployment and electrical shorts.

> Ensure the key is not in the ignition.

Step 2

Locate and Remove the Airbag. Carefully detach the airbag module. This usually involves removing screws or clips located on the back or sides of the steering wheel. > Airbags contain explosive charges. Handle with extreme caution.

Step 3

Detach the Horn and Electrical Connections. Once the airbag is removed, disconnect any electrical connectors attached to the steering wheel, including the horn wiring. Note their positions for reassembly.

Step 4

Remove the Steering Wheel Nut. Use a socket wrench to remove the large nut securing the steering wheel to the steering column.

Step 5

Mark the Steering Wheel’s Position. Before removing the steering wheel, mark its position relative to the steering column using a marker. This will help you align the wheel correctly during reassembly.

Step 6

Remove the Steering Wheel. Using a steering wheel puller is highly recommended. Attach the puller to the steering wheel and tighten it to pull the wheel off the column. If a puller isn’t available, try gently rocking the wheel back and forth while pulling firmly.

Step 7

Inspect and Protect. Inspect the steering column for any damage. Cover the steering column shaft to prevent damage.

Removing the Plastic Covers Surrounding the Steering Column

Now that the steering wheel is out of the way (if required), let’s access the ignition key cylinder by removing the plastic covers. These covers often conceal screws and other fasteners that secure the cylinder.The process usually involves these steps:* Step 1: Locate the Fasteners. Identify the screws, clips, or other fasteners holding the steering column covers together. These are often located on the underside and sides of the column.

Step 2

Remove the Fasteners. Carefully remove the fasteners using the appropriate tools (screwdrivers, pliers, etc.). Be gentle to avoid breaking the plastic.

Step 3

Separate the Covers. Once the fasteners are removed, gently separate the two halves of the steering column covers. They may be clipped together, so carefully unclip them.

Step 4

Remove the Covers. With the covers separated, remove them from the steering column, exposing the ignition key cylinder and its surrounding components.

Extracting the Ignition Key Cylinder

This is the moment of truth! Now we’ll remove the ignition key cylinder itself. This step often involves a retaining clip or screw that needs to be disengaged. The exact method varies by vehicle, but the general principles remain the same.Here’s a detailed breakdown of the steps, visualized in a table:

Removing the Ignition Key Cylinder – Method 2: Using Specialized Tools

Sometimes, the ignition key cylinder refuses to budge, even after applying the techniques described earlier. This is when specialized tools become essential. These tools are designed to overcome stubborn cylinders and extract them efficiently, often saving considerable time and frustration. While requiring a slightly higher investment, they can be invaluable, especially for more complex removals or when dealing with damaged cylinders.

Situations Where Specialized Tools Are Necessary

Specialized tools are frequently needed in several challenging scenarios. A common situation involves a cylinder that is severely corroded or seized due to age or environmental factors like moisture and rust. Another situation arises when the key breaks off inside the cylinder, making it impossible to turn. Furthermore, if the cylinder has been damaged due to attempted theft or vandalism, the internal components might be distorted or jammed, requiring specialized extraction methods.

In addition, when dealing with vehicles equipped with advanced security systems, such as immobilizers, the removal process may become more complex, necessitating the use of specialized tools to avoid damaging the vehicle’s electronic components.

Using a Key Extraction Tool

A key extraction tool is a specialized device designed to remove broken keys from the ignition cylinder. The tool typically consists of a set of fine, hooked blades that can be inserted into the keyway to grip the broken key. The user then gently pulls the tool, extracting the key.Here’s a step-by-step guide on how to use a key extraction tool:

1. Preparation: Ensure the ignition is in the “off” position and the steering wheel is unlocked. Gather appropriate lighting to view the keyway clearly.
2. Insertion: Carefully insert the hooked blade(s) of the key extraction tool into the keyway, guiding them alongside the broken key.
3. Grip: Once the blade(s) are positioned behind the broken key, gently manipulate the tool to engage the hooks and grip the key.
4. Extraction: Slowly and steadily pull the tool, applying even pressure to avoid breaking the key further. Avoid jerking or excessive force.
5. Removal: Once the key is extracted, inspect the cylinder for any remaining fragments or damage.

Using a Lock Pick Set for Cylinder Removal

A lock pick set can be used to manipulate the internal components of the ignition cylinder, allowing you to bypass the key and turn the cylinder to the “on” or “accessory” position, which can then allow for easier extraction. This method requires a certain level of skill and practice.The following steps explain how to use a lock pick set for cylinder removal:

1. Preparation: Insert the tension wrench into the keyway and apply a slight turning pressure in the direction the key would normally turn. This applies pressure to the pins.
2. Pin Manipulation: Use the pick to individually lift each pin within the cylinder. You’ll feel a slight “click” as each pin is raised and sets into the shear line.
3. Rotation: Continue picking the pins until all are set, and the cylinder begins to turn. The tension wrench helps maintain the correct pressure.
4. Extraction: Once the cylinder can be turned, it may be possible to remove it using standard methods, or a key extraction tool.

Using a Slide Hammer for Cylinder Extraction

A slide hammer is a powerful tool used to extract stubborn ignition key cylinders. It works by attaching to the cylinder and using a sliding weight to generate a forceful impact, pulling the cylinder out.The following process describes the use of a slide hammer:

1. Attachment: Securely attach the slide hammer to the ignition key cylinder. This might involve using a specialized adapter or a screw-in fitting, depending on the cylinder’s design.
2. Preparation: Ensure the steering wheel is unlocked, and there are no obstructions around the cylinder.
3. Sliding Action: Hold the slide hammer’s handle and slide the weight back and forth. This creates momentum.
4. Impact: Release the weight to allow it to strike the stop, generating a forceful impact that pulls the cylinder outward.
5. Extraction: Repeat the sliding action until the cylinder is extracted. Be cautious, as the force can be significant.

Advantages and Disadvantages of Each Specialized Tool

Each specialized tool has its own set of advantages and disadvantages.

• Key Extraction Tool:
  • Advantages: Specifically designed for broken key removal, relatively inexpensive, and easy to use.
  • Disadvantages: Limited to broken key situations; may not work on severely seized cylinders; can potentially damage the keyway if used incorrectly.
• Lock Pick Set:
  • Advantages: Allows bypassing the key, useful for unlocking and turning the cylinder.
  • Disadvantages: Requires skill and practice; can be time-consuming; may not be effective on complex or damaged cylinders.
• Slide Hammer:
  • Advantages: Powerful and effective for stubborn cylinders; can extract cylinders that are seized or corroded.
  • Disadvantages: Can potentially damage the surrounding components if used carelessly; requires a secure attachment to the cylinder; can be expensive.

Addressing Stuck or Damaged Cylinders

The ignition key cylinder, a vital component of your vehicle’s security and starting system, can sometimes present challenges. Issues like a stuck cylinder or damage due to various factors can impede its functionality, requiring specific troubleshooting techniques. Understanding these issues and the correct methods to address them is crucial for maintaining your vehicle’s operability.

Reasons for a Stuck Ignition Key Cylinder

A stuck ignition key cylinder can arise from several common causes. These issues often relate to internal mechanical problems or external factors affecting the cylinder’s operation.

• Wear and Tear: Over time, the internal components of the cylinder, such as tumblers and springs, can wear down, leading to increased friction and sticking.
• Lack of Lubrication: Insufficient lubrication within the cylinder can cause the tumblers to bind, preventing the key from turning smoothly.
• Debris and Contamination: Dust, dirt, or other debris can accumulate inside the cylinder, interfering with the key’s ability to engage with the tumblers.
• Key Issues: A worn, bent, or damaged key can fail to properly engage with the cylinder’s internal mechanisms, leading to a stuck situation.
• Misalignment: The cylinder itself might be slightly misaligned within its housing, causing binding.
• Temperature Fluctuations: Extreme cold can cause metal components to contract, increasing friction, while extreme heat can cause expansion, potentially leading to sticking.

Methods for Lubricating a Stuck Cylinder

Lubricating a stuck ignition key cylinder is often the first step in resolving the issue. Proper lubrication can reduce friction and restore smooth operation.

• Choose the Right Lubricant: Use a dry, graphite-based lubricant specifically designed for automotive locks. Avoid using penetrating oils like WD-40, as they can attract dirt and grime over time, potentially worsening the problem.
• Application: Insert the nozzle of the lubricant into the keyway of the cylinder. Apply a small amount of lubricant, avoiding over-application.
• Key Insertion and Rotation: Insert the key and gently attempt to turn it back and forth, or up and down, to distribute the lubricant throughout the cylinder’s internal mechanisms. Avoid applying excessive force.
• Repeat as Needed: Repeat the lubrication and key insertion process several times, allowing the lubricant to penetrate and work its way through the cylinder.
• Test the Cylinder: After lubrication, try starting the vehicle. If the cylinder still sticks, further inspection and more extensive methods may be required.

Removing a Cylinder with a Broken Key Inside

Removing a cylinder with a broken key requires careful techniques to avoid further damage. The primary goal is to extract the broken key fragments without compromising the cylinder’s internal components.

• Assessment: Determine how much of the key remains inside the cylinder. This will dictate the appropriate extraction method.
• Extraction Tools: Utilize specialized tools designed for key extraction, such as key extractors (small hooks or picks) or tweezers. A strong pair of needle-nose pliers can also be used, with caution.
• Key Extraction Process:
  • If enough key fragment protrudes, carefully grasp it with pliers and gently pull it straight out. Avoid twisting or applying excessive force.
  • If the key fragment is flush with the cylinder face, use a key extractor or small pick to hook the edge of the key fragment and gently pull it out.
  • If the key is broken deep within the cylinder, try to manipulate the key fragments to align the tumblers and allow the key to be removed.
• Lubrication: Before attempting key removal, lubricate the cylinder as described previously.
• Professional Assistance: If the key extraction proves difficult, consult a locksmith. Attempting to force the key out can damage the cylinder beyond repair.

Handling a Cylinder Damaged Due to Tampering

A cylinder damaged due to tampering requires a cautious approach, as the damage can compromise the vehicle’s security and require specialized techniques for removal.

• Assessment of Damage: Carefully inspect the cylinder for signs of tampering, such as forced entry marks, broken components, or a jammed keyway.
• Security Considerations: Tampering may indicate a potential theft attempt. Consider the safety of the vehicle and surroundings. Contact law enforcement if necessary.
• Removal Methods: The removal process will depend on the extent of the damage. Methods may include:
  • Drilling: In some cases, drilling out the cylinder may be necessary. This should be done carefully to avoid damaging the ignition switch.
  • Specialized Tools: Locksmiths may use specialized tools to manipulate the cylinder’s internal mechanisms and remove it.
  • Forceful Removal: If the cylinder is severely damaged, it may need to be forcibly removed, potentially damaging the surrounding components.
• Replacement: After removal, the damaged cylinder must be replaced. A new cylinder and key will be required, and in some cases, the ignition switch may also need to be replaced.

Safety Measures for a Damaged Cylinder:

• Protect Yourself: Wear safety glasses and gloves to protect against flying debris.
• Secure the Vehicle: Ensure the vehicle is in a safe location and, if possible, disable the vehicle’s starting system to prevent unauthorized use.
• Professional Assistance: If you are not experienced with automotive lock repair, seek professional help from a qualified locksmith or automotive technician.
• Documentation: Document any evidence of tampering for insurance or law enforcement purposes.

Installing a New Ignition Key Cylinder

Replacing your ignition key cylinder is a critical step in restoring your vehicle’s functionality and security. This process, while seemingly straightforward, requires precision and attention to detail. Success hinges on proper alignment, secure reassembly, and a methodical approach. Let’s delve into the crucial steps involved in installing a new ignition key cylinder.

Process of Installing a New Ignition Key Cylinder

Installing a new ignition key cylinder involves reversing the removal process, but with a focus on ensuring the new cylinder is correctly positioned and functional. This stage requires careful attention to detail and a systematic approach to avoid any potential issues.

1. Insert the New Cylinder: Insert the new ignition key cylinder into the housing. Ensure it slides in smoothly and aligns with the steering column components.
2. Secure the Cylinder: Depending on the vehicle, this may involve inserting a retaining clip, a screw, or other securing mechanisms. Consult your vehicle’s service manual for specific instructions. The retaining mechanism is often a small clip that snaps into place.
3. Test the Key’s Functionality: Before fully reassembling, insert the key and test its operation. Verify that the key turns smoothly through all positions (Lock, Accessory, On, Start) and that the steering wheel lock engages and disengages correctly. This is a crucial step to confirm proper alignment and functionality.
4. Reassemble the Steering Column Components: Carefully reassemble any steering column components that were removed during the process. This includes the plastic shrouds, wiring connectors, and any other parts that were taken apart. Ensure all wires and connectors are securely attached.
5. Reconnect the Vehicle’s Battery: Once all components are reassembled, reconnect the vehicle’s battery. This is usually the final step before testing the ignition system.
6. Test the Ignition System: Start the vehicle and observe its performance. If the engine starts and runs smoothly, and all electrical systems function correctly, the installation was successful.

Ensuring Correct Alignment of the New Cylinder

Precise alignment is paramount for the new ignition key cylinder to function correctly. Misalignment can lead to various problems, including difficulty turning the key, steering wheel lock malfunctions, or even preventing the vehicle from starting.

• Visual Inspection: Before inserting the new cylinder, carefully inspect the housing and surrounding components for any obstructions or damage that could interfere with alignment.
• Key Insertion Test: Insert the new key into the cylinder
  -before* fully securing it. This allows you to check for smooth operation and ensure the key turns easily through all positions.
• Steering Wheel Lock Engagement: Verify that the steering wheel lock engages and disengages correctly when the key is turned to the appropriate positions. This confirms that the cylinder is properly aligned with the locking mechanism.
• Reference Marks: Some ignition key cylinders have alignment marks or indicators. Use these marks as a guide to ensure the cylinder is positioned correctly within the housing.
• Consult the Service Manual: Your vehicle’s service manual provides specific instructions and diagrams for the correct alignment of the ignition key cylinder. Always refer to this manual for precise guidance.

Steps to Reassemble the Steering Column Components

Reassembling the steering column components involves carefully putting back together all the parts that were removed during the cylinder replacement process. This includes plastic shrouds, wiring harnesses, and any other components that provide access to the ignition key cylinder.

• Position the Shrouds: Align the upper and lower steering column shrouds and snap them together. Ensure the seams are aligned and the shrouds are securely fastened.
• Reconnect Wiring Harnesses: Plug the wiring harnesses back into their respective connectors. Make sure all connections are secure to avoid electrical issues.
• Install Any Additional Components: Reinstall any other components that were removed, such as the tilt steering lever (if applicable) and any brackets or screws that hold the steering column components in place.
• Verify Component Security: After reassembly, double-check that all components are securely fastened and that no wires or connectors are loose or pinched.
• Functionality Check: Once reassembled, test the operation of all steering column-related functions, such as the horn, turn signals, and windshield wipers.

Reconnecting the Vehicle’s Battery

Reconnecting the vehicle’s battery is the final step before testing the newly installed ignition key cylinder. This step restores power to the vehicle’s electrical system, allowing you to start the engine and test the functionality of the new cylinder.

• Locate the Battery Terminals: Identify the positive (+) and negative (-) terminals on the vehicle’s battery.
• Connect the Positive Terminal: Attach the positive (+) cable to the positive terminal of the battery. Tighten the terminal clamp securely.
• Connect the Negative Terminal: Attach the negative (-) cable to the negative terminal of the battery. Tighten the terminal clamp securely.
• Check for Loose Connections: After connecting both terminals, double-check that both cable clamps are securely tightened to prevent any electrical shorts or disruptions.
• Test the Vehicle’s Electrical System: After reconnecting the battery, turn on the ignition and check the functionality of all electrical systems, including the headlights, radio, and dashboard indicators.

Installation Process Table

Here’s a table summarizing the installation process:

Troubleshooting Common Problems

Successfully removing and installing an ignition key cylinder can sometimes present unexpected challenges. These issues can range from mechanical difficulties to electrical problems, often requiring a systematic approach to diagnose and resolve. Understanding these common problems and knowing how to address them will save time, prevent frustration, and ensure a smooth repair process.

Steering Wheel Lock Issues

The steering wheel lock is a common impediment during ignition key cylinder removal and installation. This mechanism is designed to prevent unauthorized vehicle operation.

• Problem: The steering wheel is locked, preventing the ignition cylinder from being turned or removed.
• Solution: Try gently wiggling the steering wheel back and forth while attempting to turn the key. This often releases the lock. If the key still won’t turn, try a lubricant like graphite or a commercial lock de-icer into the keyway. If these methods fail, you might need to apply a bit of pressure to the steering wheel while simultaneously attempting to turn the key.

  However, avoid excessive force, as this could damage the steering column or lock mechanism.

Ignition Switch Wiring Problems

Electrical issues can arise during the process, impacting the ignition switch wiring. These problems can lead to a non-functional ignition system.

• Problem: Damaged or disconnected wiring within the ignition switch assembly.
• Solution: Carefully inspect the wiring harness connected to the ignition switch. Look for any broken wires, loose connections, or signs of corrosion. Repair or replace any damaged wiring. Ensure all connectors are securely plugged in. A multimeter can be used to test for continuity in the wiring and confirm proper voltage supply.

Key Won’t Turn in New Cylinder

Sometimes, after installation, the key won’t turn in the new ignition key cylinder. This is a frustrating issue that needs immediate attention.

• Problem: The key doesn’t turn in the newly installed cylinder.
• Solution:
  • Check the Key: Ensure you are using the correct key for the new cylinder. Sometimes, keys get mixed up.
  • Lubricate the Cylinder: Apply a small amount of graphite lubricant into the keyway of the new cylinder.
  • Verify Cylinder Alignment: Make sure the cylinder is correctly aligned with the ignition switch mechanism. A misaligned cylinder can prevent the key from turning.
  • Inspect for Obstructions: Check for any debris or obstructions within the keyway or the cylinder itself.
  • Key Code Mismatch: If the new cylinder was coded to match an existing key, verify the key code was correctly entered.

Additional Troubleshooting Steps

Here’s a list of additional troubleshooting tips:

• Battery Issues: A weak battery can sometimes cause ignition problems. Ensure the battery is fully charged.
• Fuse Check: Inspect all fuses related to the ignition system. A blown fuse can prevent the system from working.
• Professional Assistance: If you’ve tried all the troubleshooting steps and the problem persists, consult a qualified automotive technician.

Post-Removal and Maintenance

Now that you’ve successfully replaced your ignition key cylinder, the journey doesn’t end there. Proper post-installation testing and ongoing maintenance are crucial to ensure the longevity and reliability of your new component, preventing future headaches and costly repairs. Let’s delve into the essential steps to secure a smooth and trouble-free operation.

Testing the New Ignition Key Cylinder

After the installation, comprehensive testing is paramount. This ensures the cylinder functions correctly and identifies any potential issues early on.

• Key Insertion and Rotation: Insert the key into the ignition cylinder and turn it through all positions – Accessory, Off, On, and Start. The key should turn smoothly and without resistance. Listen for the distinct clicks of each position. Observe the dashboard lights; they should illuminate appropriately for each key position.
• Electrical System Check: After turning the key to the ‘On’ position, verify that all electrical components are functioning correctly. This includes the radio, headlights, windshield wipers, and any other accessories. If any components are not working, recheck the wiring connections and fuses. A faulty ignition cylinder can sometimes prevent power from reaching certain circuits.
• Starting the Engine: Turn the key to the ‘Start’ position and observe the engine’s response. The engine should crank and start without hesitation. If the engine fails to start, double-check the battery connections, starter motor, and fuel supply. Repeated starting attempts might indicate a problem with the cylinder or the vehicle’s immobilizer system.
• Immobilizer System Verification (if applicable): If your vehicle is equipped with an immobilizer system, ensure that the system recognizes the new key. Some vehicles require the key to be programmed to the immobilizer. Consult your vehicle’s owner’s manual or a qualified technician for the programming procedure. If the key is not recognized, the engine will likely not start.
• Key Removal: After the engine is running, attempt to remove the key from the ignition cylinder. The key should release smoothly in the ‘Off’ position. If the key gets stuck, there might be a mechanical issue with the cylinder or the steering lock mechanism.

Maintenance Tips to Prevent Future Issues

Regular maintenance is key to preventing future ignition key cylinder problems and ensuring your vehicle’s reliability.

• Lubrication: Periodically lubricate the ignition cylinder with a graphite-based lubricant. Avoid using oil-based lubricants, as they can attract dirt and debris, which can gum up the cylinder. Apply the lubricant into the keyway and insert and remove the key several times to distribute the lubricant.
• Key Care: Avoid bending, twisting, or dropping your keys. Damaged keys can damage the ignition cylinder. Keep the key clean and free of dirt and debris.
• Steering Wheel Lock: When parking, ensure the steering wheel is not locked in a position that puts undue pressure on the ignition cylinder. Avoid forcing the key if the steering wheel is locked; gently wiggle the steering wheel while turning the key.
• Regular Inspections: Periodically inspect the ignition key cylinder for any signs of wear and tear, such as stiffness or difficulty turning the key. Address any issues promptly to prevent them from escalating.
• Professional Inspection: Consider having a qualified mechanic inspect the ignition system periodically, especially if you notice any unusual behavior or feel resistance when using the key.

Importance of Using the Correct Type of Key

Using the correct type of key is crucial for the proper functioning of your ignition system and the security of your vehicle. Using the wrong key can cause damage and prevent the vehicle from starting.

• Original Equipment Manufacturer (OEM) Keys: The best option is to use keys manufactured by the vehicle’s original equipment manufacturer. These keys are specifically designed to fit your vehicle’s ignition cylinder and are cut to the exact specifications.
• Transponder Keys: Modern vehicles often use transponder keys, which contain a small electronic chip. This chip communicates with the vehicle’s immobilizer system, and if the key is not recognized, the engine will not start.
• Key Blanks: When getting a replacement key, ensure you obtain the correct key blank. The key blank must match the year, make, and model of your vehicle. The key blank’s shape and design must be compatible with your ignition cylinder.
• Avoid Generic Keys: Avoid using generic or poorly made keys, as they may not be cut precisely and can damage the ignition cylinder.

Where to Get Replacement Keys and Cylinders

Knowing where to obtain replacement keys and cylinders is essential for convenience and peace of mind.

• Dealerships: The vehicle’s dealership is often the best source for replacement keys and cylinders. They have access to the correct key blanks and can program transponder keys.
• Locksmiths: A reputable locksmith specializing in automotive keys can provide replacement keys and cylinders. They often have the necessary equipment to cut and program keys.
• Online Retailers: Online retailers offer a wide selection of key blanks and ignition cylinders. Ensure you purchase from a reputable seller and verify the product’s compatibility with your vehicle. Professional installation is generally recommended.
• Auto Parts Stores: Some auto parts stores offer key cutting services and may stock replacement ignition cylinders.
• Verify Credentials: Always verify the credentials of any locksmith or key service provider to ensure they are qualified and reputable.

Key Care and Maintenance Tips:

• Keep your keys clean and dry.
• Avoid dropping or bending your keys.
• Use a graphite-based lubricant on the ignition cylinder.
• Avoid forcing the key.
• Store spare keys in a secure location.

Ending Remarks

In conclusion, removing an ignition key cylinder doesn’t have to be a source of frustration. With the right information, tools, and a bit of patience, you can successfully navigate this process. From understanding the basics to mastering the removal and installation techniques, you’re now equipped to handle this task with confidence. Embrace the knowledge, and enjoy the satisfaction of a job well done.

Your vehicle’s ignition system is now within your control!

Q&A

What are the common symptoms of a faulty ignition key cylinder?

Symptoms include a key that sticks, is difficult to turn, or won’t turn at all; the engine failing to start; or the key spinning freely without engaging the ignition.

Can I remove the ignition key cylinder without removing the steering wheel?

In many vehicles, yes. However, it depends on the vehicle model. Some designs require steering wheel removal for access.

What should I do if the key breaks off in the ignition key cylinder?

Use a key extraction tool or a specialized lock pick set to carefully remove the broken key. Avoid forcing it, as this can damage the cylinder further.

How important is it to disconnect the battery before removing the ignition key cylinder?

It’s crucial for safety. Disconnecting the battery prevents accidental electrical shorts that could damage your vehicle’s electrical system or cause injury.

Can I reuse the old ignition key cylinder after removal?

Generally, no. Once removed, a faulty or worn ignition key cylinder should be replaced with a new one to ensure proper functionality and security.
