How to Replace the Master Cylinder A Comprehensive Guide

How to replace the master cylinder is a critical skill for any vehicle owner looking to maintain their car’s safety and performance. This guide delves into the intricacies of this essential automotive task, providing a step-by-step approach to replacing a faulty master cylinder. From understanding its function within the braking system to mastering the bleeding process, this resource equips you with the knowledge needed to tackle this job with confidence.

The master cylinder, the heart of your car’s braking system, converts the mechanical force from the brake pedal into hydraulic pressure. This pressure then activates the brake calipers, bringing your vehicle to a stop. Recognizing the signs of failure, such as a spongy brake pedal or fluid leaks, is the first step toward ensuring your vehicle’s safety. This guide covers the various types of master cylinders, safety precautions, necessary tools, and detailed procedures for a successful replacement.

Understanding the Master Cylinder

The master cylinder is a critical component of a vehicle’s braking system, responsible for converting the force applied to the brake pedal into hydraulic pressure. This pressure is then transmitted to the brake calipers or wheel cylinders, which apply the brakes. Understanding its function, types, common failure signs, and related components is essential for vehicle maintenance and safety.

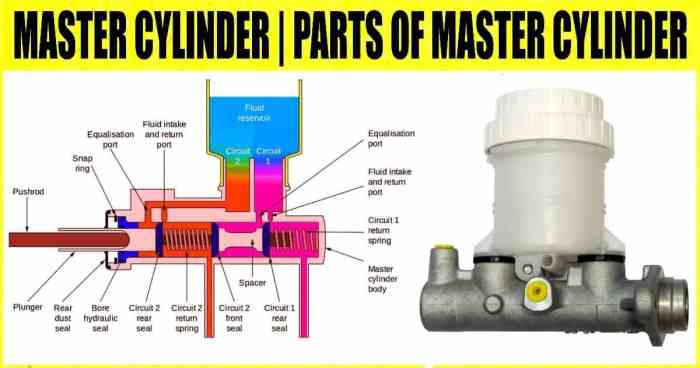

Function of a Master Cylinder in the Braking System

The master cylinder acts as the heart of the hydraulic braking system. When the brake pedal is pressed, a pushrod inside the master cylinder moves, compressing brake fluid within the cylinder’s chambers. This compression generates hydraulic pressure. This pressure is directly proportional to the force applied to the brake pedal. This pressure is then channeled through brake lines to the individual brakes at each wheel.

The pressure forces the brake pads against the rotors (in disc brakes) or the brake shoes against the drums (in drum brakes), creating friction and slowing the vehicle. The master cylinder effectively multiplies the driver’s foot pressure, providing the necessary force to stop the vehicle.

Types of Master Cylinders, How to replace the master cylinder

Master cylinders are categorized primarily by their design and the number of hydraulic circuits they serve. These variations impact braking performance and safety features.

• Single Master Cylinder: This older design has a single chamber and a single outlet, serving all brakes with one hydraulic circuit. If a leak or failure occurs in any part of the system, all braking ability is lost. These are generally found on older vehicles.
• Dual (or Tandem) Master Cylinder: This design is the most common type found in modern vehicles. It contains two separate chambers and two independent hydraulic circuits. Typically, one circuit operates the front brakes, and the other operates the rear brakes. If one circuit fails, the other circuit can still provide braking, although with reduced effectiveness. This design significantly enhances safety.

• Tandem Master Cylinder with a Brake Booster: Many vehicles incorporate a brake booster, which is a vacuum-assisted or hydraulic-assisted device that amplifies the force applied to the master cylinder. This reduces the effort required to press the brake pedal, especially during hard braking. The master cylinder is directly connected to the brake booster.

Common Signs of Master Cylinder Failure

Several symptoms can indicate a failing master cylinder. Recognizing these signs promptly can prevent serious braking issues and accidents.

• Soft or Spongy Brake Pedal: This is one of the most common symptoms. The brake pedal feels soft, and it travels further toward the floor before the brakes engage. This can be caused by air in the brake lines, but a failing master cylinder can also cause this symptom.
• Slow Brake Response: The brakes may take longer to engage when the brake pedal is pressed. This delay can compromise stopping distance.
• Brake Fluid Leaks: External leaks can be observed around the master cylinder, often at the seals or the connection points. Internal leaks may not be visible but can still affect braking performance.
• Brake Pedal Slowly Sinking to the Floor: If the brake pedal gradually sinks to the floor while constant pressure is applied, it indicates a leak within the master cylinder.
• Low Brake Fluid Level: A significant drop in brake fluid level, without any visible leaks, can indicate an internal leak within the master cylinder, or other components of the braking system.
• Warning Light Illumination: The brake warning light on the dashboard may illuminate, indicating a problem with the braking system.

Components that Work with the Master Cylinder

The master cylinder works in conjunction with several other components to ensure effective braking.

• Brake Pedal: The driver applies force to the brake pedal, which is connected to the master cylinder via a pushrod.
• Pushrod: This rod transmits the force from the brake pedal to the master cylinder’s piston.
• Brake Booster (if equipped): Amplifies the force applied to the master cylinder.
• Brake Lines and Hoses: These lines carry the brake fluid under pressure to the brake calipers or wheel cylinders.
• Brake Calipers (Disc Brakes) or Wheel Cylinders (Drum Brakes): These components apply the braking force to the rotors or drums.
• Brake Rotors (Disc Brakes) or Brake Drums (Drum Brakes): These components provide the friction surface for the brake pads or shoes.
• Brake Pads (Disc Brakes) or Brake Shoes (Drum Brakes): These friction components press against the rotors or drums to create the braking force.
• Brake Fluid Reservoir: This reservoir holds the brake fluid and supplies it to the master cylinder.
• ABS (Anti-lock Braking System) Components (if equipped): The ABS system modulates brake pressure to prevent wheel lockup during braking. The master cylinder feeds fluid to the ABS module.

Safety Precautions Before Starting

Working on brake systems requires a meticulous approach and unwavering attention to safety. Brakes are critical for vehicle control, and any errors can have severe consequences. Before you even think about touching your master cylinder, it’s paramount to establish a safe working environment and take precautions to protect yourself and your vehicle.

Essential Safety Gear

It’s crucial to equip yourself with the appropriate safety gear before commencing any brake work. This gear minimizes the risk of injury and ensures a safer working experience.

• Eye Protection: Safety glasses or goggles are non-negotiable. They protect your eyes from flying debris, brake fluid splashes, and other potential hazards. Brake fluid is corrosive and can cause serious eye damage.
• Gloves: Wear chemical-resistant gloves, such as nitrile gloves. Brake fluid can irritate the skin, and gloves prevent direct contact. They also improve your grip on tools.
• Protective Clothing: Consider wearing long sleeves and pants to protect your skin from brake fluid splashes. Old clothes are ideal, as brake fluid can stain.
• Footwear: Closed-toe shoes are essential to protect your feet from dropped tools or components. Steel-toed boots offer even greater protection.
• Respirator (Optional): In poorly ventilated areas, a respirator can protect you from inhaling brake dust, which can contain harmful particles.

Securing the Vehicle

Properly securing your vehicle is absolutely critical to prevent it from moving during the repair process. A moving vehicle can lead to serious injury or damage.

Here’s a step-by-step guide to securing your vehicle:

1. Park on a Level Surface: Ensure the vehicle is parked on a flat, stable surface. This prevents the vehicle from rolling unintentionally.
2. Engage the Parking Brake: Firmly apply the parking brake. This is your primary defense against movement.
3. Chock the Wheels: Use wheel chocks to block the wheels that are not being worked on. Place chocks both in front of and behind the wheels for added security. For example, if you are working on the front brakes, chock the rear wheels.
4. Jack and Support (if necessary): If you need to raise the vehicle to access the master cylinder, use a jack to lift the vehicle. Once raised, immediately place jack stands under the vehicle’s frame in the designated support points. Never work under a vehicle supported only by a jack.

Disconnecting the Battery

Disconnecting the vehicle’s battery is a vital safety step before working on the master cylinder or any other electrical components. This precaution prevents accidental electrical shocks and protects the vehicle’s electronic systems.

Here’s why disconnecting the battery is essential:

• Preventing Electrical Shocks: Modern vehicles have various electrical components. Disconnecting the battery eliminates the risk of accidental electrical shocks while you are working on the brake system.
• Protecting Electronic Components: Disconnecting the battery prevents potential damage to the vehicle’s electronic control units (ECUs) and other sensitive components that could occur during the repair process.
• Reducing the Risk of Short Circuits: Working near electrical wires can create a risk of short circuits. Disconnecting the battery minimizes this risk.

To disconnect the battery, locate the negative (-) terminal, typically indicated by a black or sometimes blue cable. Loosen the nut or clamp securing the cable to the terminal and remove the cable. Tuck the cable away from the terminal to prevent accidental contact. It is often recommended to disconnect the negative terminal first and reconnect it last.

Tools Needed

Having the correct tools on hand will make the job easier and safer. Here’s a list of the essential tools required for replacing a master cylinder:

• Wrench Set: A comprehensive set of wrenches, including metric and possibly SAE sizes, is essential. You’ll need wrenches to loosen and tighten brake line fittings and to remove and install the master cylinder mounting bolts.
• Socket Set: A socket set with various sizes is useful for removing and installing the master cylinder mounting bolts and other related components.
• Flare Nut Wrenches: Flare nut wrenches (also known as line wrenches) are designed to grip brake line fittings securely without damaging them. They are crucial for preventing rounding of the fittings.
• Brake Line Wrench (Optional): If your vehicle has a particularly difficult-to-reach brake line fitting, a dedicated brake line wrench might be useful.
• Pliers: Various types of pliers, such as needle-nose pliers and slip-joint pliers, are helpful for removing and installing retaining clips and other small components.
• Screwdrivers: A set of Phillips head and flathead screwdrivers will be necessary for removing and installing various parts.
• Brake Fluid: DOT 3 or DOT 4 brake fluid (check your vehicle’s specifications). You will need fresh brake fluid to refill the master cylinder and bleed the brake system.
• Bleeder Wrench: A small wrench for opening and closing the bleeder screws on the brake calipers.
• Bleeder Kit or Brake Bleeder: A brake bleeder kit or a vacuum brake bleeder to assist with bleeding the brake system.
• Turkey Baster or Syringe: For removing old brake fluid from the master cylinder reservoir.
• Shop Towels: For cleaning up spills and wiping down components.
• Jack and Jack Stands: If you need to raise the vehicle.
• Wheel Chocks: To secure the vehicle.
• Gloves and Safety Glasses: As previously mentioned, essential safety gear.

Preparing for Replacement: How To Replace The Master Cylinder

Before diving into the master cylinder replacement, proper preparation is crucial for a safe and successful outcome. This involves locating the master cylinder, safely removing the brake fluid reservoir cap, and effectively extracting the brake fluid. Each step is critical to minimizing spills, preventing air from entering the brake lines, and ensuring a clean working environment.

Locating the Master Cylinder

The master cylinder’s location varies depending on the vehicle’s make and model. However, it’s generally found in a consistent area.Typically, the master cylinder is located in the engine compartment, mounted on the firewall (the metal panel separating the engine compartment from the passenger compartment). The brake fluid reservoir, a plastic container, is directly connected to the master cylinder. Here’s a general guide for finding it:

• Front-Wheel Drive Vehicles: Often located on the firewall, near the driver’s side or passenger’s side depending on the engine layout.
• Rear-Wheel Drive Vehicles: Similar to front-wheel drive, it’s typically on the firewall, but the engine layout can affect its exact position.
• Trucks and SUVs: May be located on the firewall, but could also be mounted directly to the brake booster, which is a large, round component often found behind the master cylinder.
• Hybrid and Electric Vehicles: While the location is similar, always consult the vehicle’s service manual as these vehicles may have unique braking systems and require specific safety precautions.

Carefully examine the engine compartment. Look for a cylindrical or rectangular metal component with a plastic reservoir attached. The reservoir will have a cap that’s usually labeled with a brake fluid type (e.g., DOT 3, DOT 4). If unsure, consult your vehicle’s owner’s manual or a repair manual for the specific location.

Removing the Brake Fluid Reservoir Cap

Removing the brake fluid reservoir cap requires a gentle but firm approach. This is important to prevent spills and contamination of the brake fluid.Here’s how to remove the cap:

• Locate the Reservoir: Identify the plastic reservoir attached to the master cylinder.
• Inspect the Cap: Examine the cap for any tabs, clips, or locking mechanisms. Some caps may have a simple twist-off design, while others might have a hinged or snap-on design.
• Remove the Cap: If it’s a twist-off cap, turn it counterclockwise. If it’s a snap-on cap, carefully pry it off, usually by gently lifting the edges. If there are tabs or clips, depress them while lifting the cap.
• Note the Seal: Pay attention to the condition of the rubber seal on the cap. If it’s damaged or cracked, consider replacing the cap.
• Place the Cap: Set the cap aside in a clean place to prevent contamination.

Always handle the cap and reservoir with clean hands to prevent introducing any contaminants into the brake fluid system.

Removing Brake Fluid from the Reservoir

Before removing the master cylinder, the brake fluid must be removed from the reservoir. This step is critical to prevent spills and make the job easier. Several methods can be used to accomplish this safely and effectively.

• Using a Fluid Extractor: This is the preferred method as it’s the cleanest and most efficient. A fluid extractor is a handheld or pump-operated device that uses suction to remove the fluid.
• Using a Turkey Baster or Syringe: A clean turkey baster or large syringe can be used to manually extract the fluid. This method is less efficient than a fluid extractor but works in a pinch.
• Using a Bleeder Kit (with Caution): A bleeder kit can be used to draw fluid out, but this method may introduce air into the brake lines if not performed carefully. This is generally not recommended for this step.

Regardless of the method used, the following precautions should be taken:

• Use a Clean Container: Collect the brake fluid in a clean, clearly labeled container.
• Avoid Spills: Work carefully to prevent spills. Brake fluid is corrosive and can damage paint and other surfaces.
• Dispose of Fluid Properly: Dispose of the used brake fluid according to local regulations.

Brake Fluid Types and Compatibility

Using the correct type of brake fluid is crucial for the safe and efficient operation of your vehicle’s braking system. Mixing different types of brake fluid can lead to performance issues and potential damage. The table below Artikels the common types of brake fluid and their compatibility.

Always consult your vehicle’s owner’s manual or a qualified mechanic to determine the correct brake fluid type for your vehicle. Using the wrong type can lead to brake failure and serious accidents.

Removing the Old Master Cylinder

Now that the preparatory steps are complete, it’s time to remove the old master cylinder. This is a crucial step in the replacement process, and it requires careful attention to detail to avoid damaging brake lines or other components. Taking your time and following the steps meticulously will ensure a successful removal and prepare you for the installation of the new master cylinder.

Disconnecting Brake Lines

Disconnecting the brake lines from the master cylinder is a critical first step. These lines carry brake fluid under pressure, and mishandling them can lead to fluid spills and air entering the system.Before disconnecting any lines, ensure you’ve properly drained the brake fluid, as described earlier. Then, proceed with the following:

• Locate the brake lines connected to the master cylinder. They’ll typically be made of metal and will thread into the master cylinder body.
• Use a flare nut wrench of the correct size to loosen the fittings. A flare nut wrench is specifically designed to grip the fitting on multiple sides, reducing the risk of rounding off the fitting and damaging the brake line. If you don’t have a flare nut wrench, a standard open-end wrench can be used, but be extra cautious.
• Once the fittings are loosened, carefully unscrew them from the master cylinder. Be prepared to catch any remaining brake fluid that might leak out. Have a container ready to collect the fluid.
• As you disconnect each line, immediately plug the open end of the brake line with a suitable plug or cap to prevent fluid loss and contamination. This also minimizes the amount of air that can enter the system. Specialized brake line plugs are available at auto parts stores. Alternatively, you can use clean, appropriately sized bolts.

Removing the Master Cylinder from the Brake Booster

The master cylinder is typically bolted to the brake booster. The booster provides the power assist needed to reduce the force required to apply the brakes. Removing the master cylinder from the booster involves unbolting it and carefully separating the two components.

• Locate the mounting bolts that secure the master cylinder to the brake booster. These bolts are usually located on the face of the master cylinder that mates with the booster.
• Use the appropriate wrench or socket to remove the mounting bolts. Be aware that these bolts might be difficult to access, depending on the vehicle’s design. A socket wrench with an extension might be helpful.
• Once the bolts are removed, the master cylinder should be free from the booster. Gently pull the master cylinder away from the booster.
• If the master cylinder is difficult to separate from the booster, it might be stuck due to corrosion or a tight fit. Try gently wiggling the master cylinder back and forth while pulling. Avoid using excessive force, as this could damage either the master cylinder or the booster.
• If the master cylinder still won’t budge, check for any remaining connections or hidden bolts. Some vehicles might have additional retaining clips or brackets.

Removing the Master Cylinder Mounting Bolts

Removing the mounting bolts requires selecting the right tools and applying the correct technique to avoid damage.

• As mentioned earlier, locate the mounting bolts that secure the master cylinder to the brake booster. These bolts are usually easily visible.
• Select the correct size socket or wrench to fit the bolt heads. Ensure the tool fits snugly to prevent rounding off the bolt heads.
• Apply steady and even pressure to loosen the bolts. Avoid jerking or applying excessive force, which could strip the threads or damage the booster.
• Once the bolts are loosened, carefully unscrew them completely. Keep track of the bolts, as you’ll need them for installing the new master cylinder.
• If any bolts are seized or corroded, apply penetrating oil and allow it to soak for a few minutes before attempting to remove them. You might also need to use a breaker bar for extra leverage.

Bench Bleeding the New Master Cylinder

Bench bleeding is a critical step to ensure that all air is removed from the new master cylinder before installation. Air in the brake lines will cause a spongy brake pedal and reduced braking performance.

• Obtain a bench bleeding kit, which typically includes two short hoses and fittings that screw into the brake line ports on the master cylinder. If a kit isn’t available, you can improvise using clear tubing and fittings that fit the master cylinder ports.
• Mount the new master cylinder securely in a vise. Be careful not to overtighten the vise, which could damage the cylinder body.
• Attach the fittings and hoses to the brake line ports on the master cylinder. Route the other ends of the hoses into the brake fluid reservoir.
• Fill the master cylinder reservoir with fresh, clean brake fluid. Use the type of brake fluid specified in your vehicle’s owner’s manual.
• Slowly push the master cylinder piston in and out. This will force air bubbles out of the cylinder and into the hoses.
• Continue to push and release the piston until no more air bubbles are visible in the hoses. You should see a steady stream of brake fluid flowing into the reservoir.
• Once all the air is purged, tighten the fittings on the master cylinder and remove the hoses.
• Carefully install the master cylinder on the vehicle, being careful not to spill any brake fluid.

Installing the New Master Cylinder

Now that the old master cylinder is removed, the focus shifts to installing the new one. This process requires careful attention to detail to ensure the brake system functions correctly and safely. Proper installation involves securing the master cylinder to the brake booster, connecting the brake lines, and tightening all fittings to the manufacturer’s specifications.

Mounting the Master Cylinder to the Brake Booster

The first step is to mount the new master cylinder onto the brake booster. This typically involves aligning the master cylinder with the booster’s mounting studs or bolts and securing it in place.

• Alignment: Carefully align the new master cylinder with the brake booster. Ensure the mounting studs or bolt holes on the master cylinder match those on the brake booster. Any misalignment can lead to improper sealing and potential brake failure.
• Attachment: Once aligned, install the nuts or bolts provided to secure the master cylinder to the brake booster. Tighten these fasteners to the manufacturer’s specified torque. Over-tightening can damage the master cylinder or brake booster, while under-tightening can lead to leaks.
• Considerations: Some master cylinders may come with a gasket or seal that sits between the master cylinder and the brake booster. Ensure this seal is correctly positioned to prevent vacuum leaks.

Connecting the Brake Lines

Connecting the brake lines to the new master cylinder is a critical step. Correctly attaching these lines ensures that brake fluid can flow throughout the system.

• Line Identification: Identify the correct ports on the master cylinder for each brake line. The ports may be labeled or have different sizes to prevent incorrect connections. Refer to the vehicle’s service manual or the markings on the master cylinder for guidance.
• Line Insertion: Carefully insert the brake line fittings into the corresponding ports on the master cylinder.
• Thread Engagement: Start threading the fittings by hand to ensure they are properly aligned and do not cross-thread. Cross-threading can damage the fittings and the master cylinder, leading to leaks.
• Tightening: Once the fittings are hand-tight, use a flare nut wrench to tighten them to the manufacturer’s specifications. A flare nut wrench is designed to grip the fitting securely without damaging it.

Tightening Mounting Bolts and Brake Line Fittings

Proper tightening of the mounting bolts and brake line fittings is crucial for a leak-free and safe brake system. The correct torque prevents over-tightening or under-tightening.

• Torque Specifications: Always consult the vehicle’s service manual or the master cylinder’s specifications for the correct torque values for both the mounting bolts and the brake line fittings. Using the wrong torque can lead to leaks or damage.
• Mounting Bolt Tightening: Tighten the master cylinder mounting bolts in a crisscross pattern to ensure even pressure distribution. This helps to prevent leaks and ensure the master cylinder sits flush against the brake booster.
• Brake Line Fitting Tightening: Use a flare nut wrench to tighten the brake line fittings. Avoid over-tightening, as this can damage the fittings or the master cylinder. Under-tightening can cause leaks.
• Checking for Leaks: After tightening all fittings, inspect the connections for any signs of leaks. Apply the brakes firmly and hold them for a short period. If any leaks are detected, tighten the fittings slightly more, but do not exceed the specified torque.

Ensuring Proper Alignment of Components

Proper alignment is essential for the master cylinder to function correctly and to prevent damage to other brake components. This ensures all components are correctly seated and operating efficiently.

• Visual Inspection: Before tightening any fittings, visually inspect all components for proper alignment. Ensure that the master cylinder is flush against the brake booster and that the brake lines are correctly routed without any kinks or bends.
• Brake Line Routing: Make sure the brake lines are routed in a way that avoids contact with moving parts or sharp edges. Secure the brake lines with the original clips or brackets to prevent them from vibrating or rubbing against other components.
• Component Interference: Check for any interference between the master cylinder, brake lines, and other components in the engine bay. Ensure that there is adequate clearance to prevent any damage or obstruction.
• Brake Pedal Alignment: After installation, check the brake pedal’s alignment and travel. The pedal should feel firm and should not bottom out before the brakes engage. If there are any issues, they may indicate a problem with the master cylinder installation or other brake system components.

Bleeding the Brake System

After installing the new master cylinder, the brake system must be bled to remove any air that has entered the lines. Air in the brake lines will cause a spongy brake pedal and significantly reduce braking effectiveness, potentially leading to dangerous situations. This process ensures that hydraulic pressure can be properly transmitted from the master cylinder to the brake calipers or wheel cylinders.

Methods of Bleeding Brakes

There are several methods for bleeding brakes, each with its own advantages and disadvantages. Choosing the right method often depends on the tools available and the experience of the mechanic.

• Manual Bleeding: This is the most common and simplest method, requiring only a helper to pump the brake pedal. It’s suitable for most vehicles and requires no special tools, only a wrench, clear tubing, and a container for the brake fluid.
• Pressure Bleeding: This method uses a pressure bleeder that forces brake fluid through the system under pressure. It’s generally faster and more efficient than manual bleeding, especially for systems with a lot of air. A pressure bleeder is a specialized tool.
• Vacuum Bleeding: A vacuum bleeder uses a vacuum pump to draw brake fluid out of the system. This method can be used by a single person, but it can sometimes draw air past the threads of the bleeder screw if not sealed properly. A vacuum bleeder is also a specialized tool.
• Gravity Bleeding: This is the slowest method, relying on gravity to force the air out of the brake lines. It involves opening the bleeder screws and allowing fluid to flow out until all the air is purged. This method is best used as a preliminary step before using another bleeding method.

Manual Bleeding Procedure

Manual bleeding is a straightforward process that requires teamwork. Follow these steps carefully to ensure a successful bleed:

1. Prepare the Vehicle: Ensure the vehicle is parked on a level surface and the parking brake is engaged. Make sure the master cylinder reservoir is full of fresh brake fluid of the correct type.
2. Locate the Bleeder Screws: Identify the bleeder screws on each wheel cylinder or brake caliper. The usual order for bleeding is the wheel farthest from the master cylinder (typically the right rear), then the left rear, right front, and finally the left front. Some vehicles may have a different recommended order, so consult the service manual if in doubt.
3. Attach the Bleeder Tubing: Attach a clear plastic tube to the bleeder screw of the wheel you’re starting with. Submerge the other end of the tube in a container partially filled with brake fluid. This prevents air from being sucked back into the system.
4. The Pumping Sequence:
   • Have your helper pump the brake pedal slowly and steadily several times until they feel resistance, then hold the pedal down firmly.
   • While the pedal is held down, open the bleeder screw with the correct wrench size. You will see brake fluid and possibly air bubbles being expelled into the container.
   • Close the bleeder screw
     -before* the pedal is released. This prevents air from being drawn back into the system.
   • Have your helper release the brake pedal.
   • Repeat this process (pumping, holding, opening, closing, releasing) until no more air bubbles are visible in the tubing.
5. Repeat for All Wheels: Repeat the process at each wheel in the correct order, ensuring that no air bubbles are present in the fluid coming out of each bleeder screw.
6. Top Off the Master Cylinder: Frequently check and top off the brake fluid reservoir in the master cylinder throughout the bleeding process. Never let the fluid level drop below the minimum mark, as this can allow air to be drawn into the system.
7. Final Check: Once all wheels have been bled, check the brake pedal feel. The pedal should be firm and not spongy. If the pedal feels soft, continue bleeding the system.
8. Test Drive: After completing the bleeding process, take the vehicle for a short test drive in a safe area to confirm the brakes are functioning correctly.

Importance of Checking Brake Fluid Levels

Maintaining the brake fluid level in the master cylinder reservoir is crucial throughout the bleeding process. Allowing the fluid level to drop too low can introduce air into the system, which will necessitate starting the bleeding process over again. This is also a good opportunity to visually inspect the brake fluid for any signs of contamination or degradation. Regularly topping off the reservoir prevents air from being sucked back into the system when the bleeder screws are opened and closed.

The brake fluid reservoir should never be allowed to run dry during the bleeding process.

Potential Problems and Solutions During Bleeding

Several problems can arise during the brake bleeding process, but they are usually manageable with careful troubleshooting.

• Spongy Pedal: If the brake pedal feels spongy even after bleeding, there may still be air in the system. Re-bleed the brakes, paying close attention to the procedure. Check for leaks in the brake lines and fittings.
• Bleeder Screw Problems:
  • Bleeder Screw Won’t Open: If the bleeder screw is seized, apply penetrating oil and let it soak. Use the correct wrench size to avoid stripping the screw. If the screw still won’t open, it may need to be replaced.
  • Bleeder Screw Leaks: If the bleeder screw leaks fluid around the threads, tighten it slightly. If the leak persists, the screw may be damaged and need to be replaced. Ensure the correct thread sealant is used, if required by the vehicle.
• Fluid Leaks: Check for leaks around the master cylinder, brake lines, and wheel cylinders/calipers. Tighten any loose fittings. Replace any damaged components.
• Master Cylinder Problems: In rare cases, the master cylinder itself may be faulty. If the brakes still don’t work correctly after bleeding and there are no other apparent issues, the master cylinder may need to be replaced.
• ABS System Issues: Vehicles with anti-lock braking systems (ABS) may require a special bleeding procedure. Consult the vehicle’s service manual for the correct procedure. Some ABS systems require the use of a scan tool to activate the ABS pump during the bleeding process.

Post-Installation Checks and Testing

After the new master cylinder is installed and the brake system has been bled, thorough post-installation checks and testing are crucial to ensure the system functions correctly and safely. This phase helps identify any potential issues that may have been overlooked during the replacement process. It involves checking for leaks, testing brake performance, and adjusting the brake pedal if necessary.

Alright, so you’re tackling the master cylinder replacement – good on you! It’s a key part of your car’s safety. But before you bolt everything back, a crucial step is getting rid of air bubbles. You might be wondering, “Do I really need to bench bleed this thing?” The answer, as you’ll discover by checking out do you have to bench bleed a master cylinder , is often yes.

Doing this beforehand makes the entire replacement process much smoother, ensuring those brakes work like a charm.

Checking for Leaks After Installation and Bleeding

Verifying the absence of leaks is paramount to brake system integrity. A leaking brake system can lead to loss of braking power, which poses a significant safety hazard.The steps for checking for leaks are:

• Visual Inspection: Thoroughly inspect all connections, including the master cylinder to brake line fittings, the proportioning valve (if equipped), and the wheel cylinders or calipers. Look for any signs of brake fluid leakage. Brake fluid is typically clear or slightly amber and can have a slippery feel. A flashlight can be helpful in tight spaces.
• Pressure Test: Apply firm pressure to the brake pedal and hold it for at least a minute. If the pedal slowly sinks towards the floor, it indicates a leak somewhere in the system. Monitor the master cylinder reservoir for any fluid level drop.
• Check Wheel Cylinders/Calipers: Examine the wheel cylinders (drum brakes) or calipers (disc brakes) for leaks. Inspect around the rubber boots for any signs of fluid. A leaking wheel cylinder or caliper can compromise braking performance at that specific wheel.
• Follow-up after Driving: After a short test drive, re-inspect all connections and components for any new leaks that might have appeared under pressure or during movement.

Testing the Brakes After the Master Cylinder Replacement

Once you’ve confirmed that there are no leaks, the next step is to test the brake system’s performance. Proper brake function is critical for vehicle control and safety.The testing process involves:

• Static Test: With the vehicle stationary, apply firm pressure to the brake pedal. The pedal should feel firm and not sink. If the pedal feels spongy or goes to the floor, it indicates air in the system or another problem.
• Low-Speed Test: Drive the vehicle at a low speed (e.g., 10-15 mph) in a safe area. Apply the brakes firmly and observe the stopping distance and feel. The vehicle should stop smoothly and in a straight line. Note any pulling to one side, which could indicate a problem with the brake balance.
• High-Speed Test (Carefully): Gradually increase the speed (e.g., to 30-40 mph) in a safe area and repeat the braking test. The brakes should still function smoothly and effectively. Be prepared to react to any unexpected behavior.
• Emergency Brake Test: Test the brakes in an emergency situation to ensure they can stop the vehicle. Ensure the area is safe and free of obstacles.
• ABS Function (if equipped): If the vehicle has an anti-lock braking system (ABS), ensure it functions correctly during the braking tests. You should feel a pulsing sensation in the brake pedal during hard braking, indicating the ABS is working to prevent wheel lockup.

Adjusting the Brake Pedal if Necessary

Sometimes, after replacing the master cylinder, the brake pedal may feel different than before. It may be too high, too low, or have excessive free play. Pedal adjustments can often be made to improve brake feel and performance.The process of adjusting the brake pedal:

• Check the Pushrod: The pushrod connects the brake pedal to the master cylinder. Ensure the pushrod length is correctly adjusted. If the pushrod is too long, it can cause the brakes to drag. If it’s too short, it can cause excessive pedal travel.
• Adjust the Pedal Height: Some vehicles have adjustable brake pedal stops. These stops limit the pedal’s travel. Adjusting the pedal stop can change the pedal height and feel. Consult the vehicle’s service manual for the location and adjustment procedure.
• Bleed the System Again: If the pedal feels spongy or low after adjustments, re-bleeding the brake system may be necessary to remove any trapped air.
• Seek Professional Help: If the pedal feel cannot be corrected or if you are unsure about making adjustments, consult a qualified mechanic. Incorrect adjustments can compromise braking performance and safety.

Troubleshooting Common Issues

Replacing a master cylinder can significantly improve braking performance, but it can also introduce new problems if not done correctly. This section addresses potential issues that may arise after the replacement, providing diagnostic steps and solutions to ensure optimal brake system functionality.

Identifying Post-Replacement Problems

After replacing the master cylinder, several issues might arise. Recognizing these problems early is crucial for safety and preventing further damage to the braking system. These are some of the most common issues:

• Soft Brake Pedal: This is characterized by a pedal that travels further than usual before engaging the brakes. It often feels spongy or lacks firmness.
• Brake Fade: This occurs when the braking effectiveness decreases after repeated brake applications, especially at higher speeds or under heavy braking conditions. The brakes may feel less responsive or lose stopping power.
• Brake Fluid Leaks: Leaks can occur at the master cylinder itself, the brake lines, or the wheel cylinders. These leaks reduce braking performance and can lead to complete brake failure.
• Pulling to One Side: The vehicle may pull to one side during braking, indicating an imbalance in the braking force applied to the wheels. This can be caused by air in the lines, a faulty caliper, or other issues.

Diagnosing a Soft Brake Pedal

A soft brake pedal is often the most immediate and noticeable problem after a master cylinder replacement. The primary cause of a soft pedal is air trapped within the brake lines. Here’s how to diagnose the issue:

1. Visual Inspection: Check for any brake fluid leaks around the master cylinder, brake lines, and calipers. Leaks can introduce air into the system.
2. Pedal Feel Test: Pump the brake pedal several times and note the pedal feel. A firm pedal indicates a properly functioning system. A soft or spongy pedal suggests air in the lines.
3. Bleeding the Brakes: Bleeding the brake system is the most effective way to remove air. Start at the wheel furthest from the master cylinder (usually the rear right), and work your way to the closest (front left). Follow the bleeding procedure described earlier, ensuring no air bubbles are present in the fluid.
4. Master Cylinder Bench Bleeding (If Applicable): If the master cylinder was not bench bled before installation, it might contain air. Remove the master cylinder, bench bleed it following the manufacturer’s instructions, and reinstall it.

Resolving Brake Fade

Brake fade is a dangerous condition where the brakes lose effectiveness due to overheating. It can be caused by various factors, including air in the brake lines, worn brake pads, or an improperly functioning master cylinder. Here’s how to resolve brake fade:

1. Check Brake Fluid: Ensure the brake fluid is fresh and of the correct type. Old brake fluid absorbs moisture, which can lead to boiling and reduced braking performance. Replace the brake fluid if necessary.
2. Inspect Brake Pads and Rotors: Worn brake pads and rotors can generate excessive heat, contributing to brake fade. Check the pad thickness and rotor condition. Replace worn components.
3. Bleed the Brakes: As with a soft pedal, air in the brake lines can cause brake fade. Bleed the brake system thoroughly to remove any trapped air.
4. Inspect the Master Cylinder: A faulty master cylinder can cause brake fade. Check for internal leaks or a failure to maintain pressure. If the master cylinder is suspected, replace it.
5. Driving Habits: Adjust driving habits to avoid excessive braking, especially on long downhill grades. Use engine braking to reduce the load on the brakes.

Common Mistakes to Avoid During Master Cylinder Replacement:

• Not Bench Bleeding the Master Cylinder: This can trap air in the system and lead to a soft pedal.
• Improper Brake Bleeding: Failure to remove all air from the brake lines results in a spongy pedal and reduced braking performance.
• Using the Wrong Brake Fluid: Using the wrong type of brake fluid can damage the brake system components. Always use the fluid specified by the vehicle manufacturer.
• Cross-Threading Fittings: Damaging brake line fittings can lead to leaks and air entry into the system.
• Over-Tightening Fittings: Over-tightening can damage the fittings and lead to leaks.

Conclusion

Replacing the master cylinder is a challenging but achievable task for the dedicated DIY mechanic. By following the Artikeld steps, paying close attention to safety, and understanding the nuances of the braking system, you can restore your vehicle’s braking performance and ensure your safety on the road. Remember to always double-check your work and test the brakes thoroughly after installation.

With this guide, you are well-prepared to take on this important maintenance procedure, maintaining your vehicle’s safety and your peace of mind.

FAQs

What is the typical lifespan of a master cylinder?

The lifespan of a master cylinder can vary, but generally, they last between 5 to 10 years or 50,000 to 100,000 miles, depending on driving conditions and maintenance.

Can I use any type of brake fluid?

No, it’s crucial to use the correct type of brake fluid specified for your vehicle. Using the wrong fluid can damage the brake system components and compromise braking performance. Refer to your vehicle’s owner’s manual for the correct fluid type.

What should I do if the brake pedal still feels soft after bleeding the brakes?

If the brake pedal remains soft after bleeding, it could indicate air still trapped in the system, a leak, or a faulty master cylinder. Re-bleed the system thoroughly, checking for leaks, and consider a bench bleed for the master cylinder if you haven’t already done so. If the problem persists, the master cylinder may be defective.

How do I dispose of used brake fluid?

Used brake fluid is considered hazardous waste and must be disposed of properly. Contact your local waste management facility or auto parts store to find out where you can safely dispose of it. Do not pour it down the drain or into the environment.

What happens if I overtighten the brake line fittings?

Overtightening brake line fittings can damage the fittings or the master cylinder, leading to leaks and brake failure. Always tighten fittings to the manufacturer’s recommended torque specifications.
