How To Use Lightburn Software Guide

how to use lightburn software is your key to unlocking amazing laser projects, and this guide is here to break it all down for you. Whether you’re just starting out or looking to level up your laser game, we’re diving deep into everything you need to know to get your designs from screen to material with precision and ease.

We’ll cover the essentials from getting the software set up and understanding its interface to importing your artwork, manipulating text and shapes, and mastering those crucial laser parameters. Plus, we’ll touch on some advanced tricks and how to sort out any hiccups along the way, making sure you’re fully equipped to bring your creative visions to life.

Getting Started with LightBurn Software

Ah, welcome, friends, to the intricate yet rewarding world of LightBurn, a powerful companion for our laser endeavors. Like a skilled artisan choosing their finest tools, understanding LightBurn’s initial steps is paramount to unlocking its full potential. We shall embark on this journey together, ensuring your setup is as smooth as the polished surface of a treasured heirloom.This section will guide you through the very first moments with LightBurn, from its installation to connecting your precious laser machine.

We will then familiarize ourselves with the visual landscape of the software, understanding the purpose of each panel and toolbar, before embarking on the creation of your very first project. Finally, we will delve into the essential settings that will lay the foundation for your creative endeavors.

Initial Setup: Installation and Device Connection

The journey with LightBurn begins with a straightforward installation process, akin to planting the seeds for a magnificent garden. Once downloaded from the official LightBurn website, the installer will guide you through the necessary steps. It is a simple affair, much like preparing the soil before sowing.Following the installation, the crucial step is connecting your laser device. LightBurn supports a vast array of laser controllers, and the software will typically detect your machine automatically when connected via USB or network.

Should your device not appear immediately, a manual connection process is available, requiring you to select your controller type and port. This ensures your digital canvas is intimately linked to your physical machine.

User Interface Elements

Upon launching LightBurn, you will be greeted by a meticulously organized interface, designed for both efficiency and clarity. Each panel and toolbar serves a distinct purpose, contributing to a harmonious workflow.The main interface can be broadly divided into several key areas:

• The Laser Window: This is your primary workspace, where designs are created, imported, and manipulated. It’s where your ideas take shape visually.
• The Console Window: Located at the bottom, this area displays communication between LightBurn and your laser controller, providing valuable feedback on operations and any potential errors.
• The Cut Settings Window: Situated on the right, this is where you define the parameters for each laser operation – speed, power, frequency, and layer color. Think of it as setting the precise intensity and rhythm for each cut or engrave.
• The Camera Window (if applicable): If your setup includes a camera, this panel displays the live feed from your laser bed, allowing for precise placement of designs directly onto your material.
• Toolbars: Positioned along the top and left sides, these contain icons for frequently used tools, such as selection, drawing shapes, text manipulation, and import functions.

Familiarizing yourself with these elements is like learning the names of the stars; each has its place and function in the grand celestial map of your design process.

Creating a New Project File

To commence a new creation, the process is as intuitive as drawing a fresh canvas. Navigate to ‘File’ in the menu bar and select ‘New’. This action will present you with a blank canvas, ready to receive your designs.Alternatively, you can utilize the keyboard shortcut ‘Ctrl+N’ (or ‘Cmd+N’ on macOS). A new project file is essentially a digital space where you will assemble your designs, define their properties, and prepare them for laser processing.

It is the birthplace of your laser-cut and engraved masterpieces.

Configuring Basic Software Settings

Optimizing LightBurn’s performance begins with configuring its basic settings. These adjustments ensure a smooth and responsive experience, allowing your creative flow to remain uninterrupted.To access these settings, go to ‘Edit’ in the menu bar and select ‘Settings’. Here, you will find various categories to fine-tune.Key settings to consider include:

• Device Settings: Ensure your laser device is correctly selected and configured here. This is the fundamental link between the software and your machine.
• Units: Choose your preferred units of measurement (millimeters or inches) for consistency throughout your project.
• Language: LightBurn offers multiple language options; select the one that best suits your comfort.
• Performance: For users with less powerful computers, adjusting graphics settings here can improve responsiveness.

“A well-configured tool is a powerful ally in the pursuit of excellence.”

Taking a moment to adjust these basic settings will undoubtedly enhance your overall experience and efficiency when working with LightBurn.

Importing and Preparing Designs for Laser Cutting/Engraving

Ah, to master the art of the laser, one must first learn to speak its language. LightBurn, bless its digital heart, understands many tongues, allowing us to bring our visions from the ether into the tangible world of cutting and engraving. This is where the magic truly begins, transforming raw ideas into precise creations.Before the laser can even hum, our designs must be in a format it can comprehend and be meticulously prepared.

LightBurn acts as our digital workshop, where we can refine, arrange, and ready our artwork for the journey ahead. It is a crucial step, ensuring that what you envision is precisely what the laser will bring to life.

Supported File Formats

LightBurn is a remarkably accommodating software, accepting a wide array of design file types. This flexibility ensures that whether your design originates from a sophisticated vector graphics program or a simple photograph, it can be seamlessly integrated into your laser workflow. Understanding these formats allows you to choose the best starting point for your project.The software readily imports the following file formats:

• SVG (Scalable Vector Graphics): Ideal for vector designs, offering scalability without loss of quality.
• DXF (Drawing Exchange Format): Commonly used in CAD software, excellent for precise line work.
• AI (Adobe Illustrator Artwork): Native format for Adobe Illustrator, preserving complex vector information.
• EPS (Encapsulated PostScript): Another vector format, widely supported by graphics applications.
• PDF (Portable Document Format): Can contain both vector and raster data, though vector is preferred for laser cutting.
• PNG (Portable Network Graphics): A raster format that supports transparency, good for engravings where detail is key.
• JPG/JPEG (Joint Photographic Experts Group): A common raster format, best suited for photographic engraving.
• BMP (Bitmap): A simple raster image format.
• TIFF (Tagged Image File Format): A high-quality raster format, often used in professional photography.

Importing Designs into LightBurn

Bringing your artwork into the LightBurn workspace is a straightforward process, akin to opening a file on your computer. This initial step places your design within the digital canvas where all subsequent preparation will take place.There are several intuitive ways to import your design:

• Drag and Drop: Simply drag your design file from your computer’s file explorer directly onto the LightBurn workspace.
• File Menu: Navigate to ‘File’ in the top menu bar and select ‘Import’. Then, browse to and select your desired file.
• Toolbar Icon: Click the ‘Import’ icon on the main toolbar, which typically resembles an upward-pointing arrow or a folder.

Once imported, your design will appear as an object or group of objects on the LightBurn canvas, ready for manipulation.

Organizing Your Design

Effective organization within LightBurn is paramount for efficient laser operation. Grouping similar elements, assigning them to specific layers, and converting objects ensures that your design is structured logically for cutting, engraving, or scoring operations. This meticulous preparation prevents errors and optimizes the laser’s path.Consider these organizational techniques:

• Grouping Objects: Select multiple objects that you wish to treat as a single unit (e.g., all parts of a single component) and click the ‘Group’ button (Ctrl+G or Cmd+G). This allows you to move, scale, or apply operations to the entire group simultaneously.
• Using Layers: Layers in LightBurn are fundamental for controlling different operations (cut, engrave, score) and their associated settings (speed, power, frequency). You can assign colors to objects, and LightBurn automatically places objects of the same color onto the same layer, which corresponds to a tab in the ‘Laser window’ for setting laser parameters.
• Converting Objects: Sometimes, you may need to convert between different object types. For instance, text can be converted to paths, allowing for more intricate manipulation or ensuring it cuts as intended. This is typically done by right-clicking the object and selecting an option like ‘Convert to Path’ or ‘Convert Text to Path’.

Tracing Bitmap Images

For designs that exist as raster images (like photographs or scanned drawings), LightBurn provides a powerful tracing tool to convert them into editable vector paths. This process is essential for laser engraving, where the laser needs defined lines and shapes to follow.The tracing procedure involves the following steps:

1. Import the Bitmap: Import your PNG, JPG, or BMP image into LightBurn using one of the methods described earlier.
2. Select the Trace Image Tool: With the bitmap selected, click on the ‘Trace Image’ button in the toolbar or go to ‘Tools’ > ‘Trace Image’.
3. Adjust Trace Settings: A new window will appear. Here, you can adjust parameters such as ‘Threshold’ (which determines how dark pixels need to be to be considered part of the path), ‘Detail’, and ‘Smoothness’. Experiment with these settings to achieve the best Artikel for your image.
4. Preview and Apply: Use the preview window to see how the traced Artikel will look. Once satisfied, click ‘OK’. LightBurn will create a vector path around your traced image. You can then delete the original bitmap if desired.

The effectiveness of tracing a bitmap relies heavily on the quality and contrast of the original image. High-resolution images with clear distinctions between foreground and background yield the best results.

Scaling, Rotating, and Positioning Designs

Precise manipulation of your imported designs is critical for fitting them onto your material and ensuring accurate placement for cutting or engraving. LightBurn offers robust tools for transforming your artwork within the workspace.These essential manipulation techniques include:

• Scaling: Select your design and use the handles that appear around its bounding box to resize it. Hold the ‘Shift’ key while scaling to maintain the aspect ratio and prevent distortion. Alternatively, you can enter specific width and height values in the ‘Size’ section of the ‘Arrange’ panel.
• Rotating: Grab the rotation handle (often a circular arrow) that appears when you select an object and drag it to rotate. You can also input precise rotation angles in the ‘Rotate’ section of the ‘Arrange’ panel.
• Positioning: You can manually drag and drop objects to position them on the workspace. For precise placement, use the ‘Move’ tools in the ‘Arrange’ panel to nudge objects by specific increments or align them with other objects or the edges of your material. The coordinate display at the top of the workspace also shows the exact X and Y position of your selected object.

Working with Text and Shapes in LightBurn

Ah, to weave words and craft forms, a joy as deep as the spice trade routes of our ancestors! In LightBurn, the power to manifest your designs with precision is at your fingertips. We shall now delve into the artistry of text and the fundamental beauty of geometric shapes, laying the foundation for truly captivating laser creations.LightBurn offers a robust suite of tools to bring your textual and geometric visions to life.

From elegant scripts to bold sans-serifs, your words can dance across the material. Similarly, the ability to construct and manipulate basic shapes provides the building blocks for intricate patterns and functional objects. Mastering these elements is akin to learning the ancient Maluku navigation techniques – essential for charting a successful course in laser design.

Understanding Laser Parameters and Operations

Ah, so you’ve mastered the art of bringing your designs to life within LightBurn’s canvas. Now, the true magic lies in understanding the language of your laser, a language spoken through precise parameters. Just as a skilled weaver selects the perfect thread and tension for their loom, we, as laser artisans, must tune our machines with care. This section will guide you through the essential controls that dictate how your laser interacts with your chosen material, ensuring beautiful and consistent results.The core of any laser operation is a delicate balance of several key settings.

These parameters are not mere numbers; they are the whispers that tell your laser precisely how to behave. Mastering them is akin to a musician understanding their instrument, allowing for a symphony of cutting and engraving.

Core Laser Parameters

The efficiency and quality of your laser work are directly influenced by a few fundamental settings. These are the dials and sliders you’ll adjust most frequently to achieve your desired outcome.

• Speed: This dictates how quickly the laser head moves across the material. A slower speed allows the laser more time to interact with the material, essential for deeper cuts or more intense engraving. Conversely, a faster speed is suitable for lighter passes or marking. Think of it as the pace of your brushstroke.
• Power: This is the intensity of the laser beam. Higher power means a more potent beam, capable of cutting through thicker materials or engraving more deeply. Lower power is ideal for delicate etching, scoring, or marking the surface without penetration. This is the pressure of your brush.
• Frequency (PPI – Pulses Per Inch): This setting determines how many laser pulses are fired per inch of movement. A higher frequency can result in a smoother, more consistent engraving, especially on certain materials, by ensuring overlap between pulses. A lower frequency might be used for a more textured or “dotty” effect. This is akin to the texture you want to achieve with your strokes.

• Passes: This refers to the number of times the laser will repeat the same path over the material. For tough materials or deep cuts, multiple passes at a lower power setting can yield cleaner results than a single pass at very high power, reducing charring and heat buildup. This is like layering your paint for depth and control.

Parameter Adjustment for Different Materials

The interplay of speed, power, and frequency is crucial and varies significantly depending on the material you are working with. What works for a delicate piece of paper will not suffice for a robust sheet of acrylic.To illustrate, consider these common materials:

These are starting points, and actual settings will depend on your specific laser model, its wattage, and the exact composition of your material.

Laser Job Setup Workflow

A systematic approach to setting up your laser jobs ensures predictability and minimizes wasted material. It’s about building your project with intention.The general workflow for preparing a laser job in LightBurn is as follows:

1. Material Selection: Begin by identifying the material you will be using. This informs your initial parameter choices.
2. Operation Type: Determine the primary action your laser needs to perform:
   • Cut: The laser will fully penetrate the material along the defined path.
   • Engrave: The laser will remove material from the surface to create depth or texture.
   • Score: A light pass to create a shallow line, often used for folding or marking registration points.
3. Parameter Input: Based on your material and operation type, input the initial speed, power, frequency, and passes.
4. Layer Organization: Assign different operations (cut, engrave, score) to distinct layers in LightBurn, each with its own set of parameters. This allows for complex projects where multiple actions are required.
5. Job Preview: Utilize LightBurn’s preview function to visualize the laser’s path and get an estimated job duration.
6. Material Test: Perform a small test on a scrap piece of your material to validate your settings before committing to the main project.

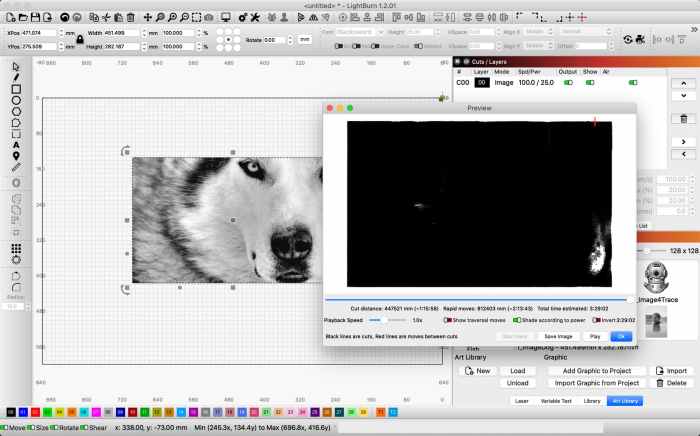

Laser Job Preview

Before your laser begins its work, LightBurn offers a powerful preview feature. This is your opportunity to see the path your laser will take and how long the job is expected to last.The preview window shows a visual representation of the laser path. It often highlights different operations with distinct colors, allowing you to confirm that your cuts, engraves, and scores are in the correct order and position.

Furthermore, it provides an estimated time for the entire job. This estimation is based on the programmed speeds and lengths of all the paths. It’s a crucial step for planning your workflow and managing your time effectively.

Material Tests

The adage “measure twice, cut once” is particularly relevant in laser cutting and engraving. Material tests are indispensable for fine-tuning your parameters and ensuring optimal results without wasting precious material.Performing a material test involves creating a small, controlled sample run on a scrap piece of the exact material you intend to use for your project. This test should ideally include a range of settings for speed and power, often arranged in a grid or sequence.

LightBurn can be used to generate these test patterns.A common approach for testing is to:

• Create a Test Grid: Design a series of squares or rectangles, each with a different combination of speed and power settings.
• Engrave or Score: Run this grid on your material.
• Analyze Results: Examine the test pieces to determine which settings provide the cleanest cut, the most defined engraving, or the desired score depth. Look for signs of excessive charring, incomplete cuts, or shallow engravings.
• Iterate: Based on your analysis, adjust your parameters and perform further tests until you achieve the perfect balance for your specific material and desired outcome.

This methodical approach, akin to a chef tasting their ingredients before seasoning, will save you frustration and lead to professional-quality results.

Advanced Features and Techniques

Ah, my dear friends, we now venture into the deeper currents of LightBurn, where creativity flows with greater precision and artistry. Having mastered the fundamentals, it is time to explore the advanced capabilities that transform a simple design into a masterpiece, etched or cut with the grace of the Moluccas’ finest artisans. These techniques are not merely tools; they are the whispers of experience, guiding your laser to achieve unparalleled results.Here, we shall unlock the potential for intricate patterns, flawless vector refinement, and the seamless engraving of even the most challenging forms.

Embrace these advanced methods, and your laser projects will speak of a mastery that resonates with the rich heritage of our islands.

Arrays and Offsets for Duplicating Designs and Creating Patterns

The ability to replicate and arrange designs is fundamental to creating complex patterns and maximizing material usage. LightBurn offers powerful array and offset tools that allow for efficient duplication and sophisticated arrangement of your vector artwork, much like the intricate weaving of traditional textiles.LightBurn provides two primary methods for duplicating and arranging designs: the Array tool and the Offset tool.

• Array Tool: This tool is invaluable for creating repeating patterns. You can arrange copies of your selected object in a grid (rows and columns) or along a circular path.
  • Grid Array: Select your object, then choose ‘Array’ from the tools menu or press Ctrl+R (Cmd+R on Mac). You can then specify the number of rows and columns, as well as the spacing between them, both horizontally and vertically.

    This is perfect for creating sheets of identical parts or a tiled decorative pattern.

  • Circular Array: For radial symmetry, the circular array allows you to arrange copies around a central point. You define the number of copies and the angle of rotation. This is excellent for creating designs like mandalas or radial spokes.
• Offset Tool: The offset tool is used to create a copy of a shape that is either larger or smaller than the original, maintaining its form. This is crucial for creating Artikels, borders, or creating space between design elements.
  • Outer Offset: Creates a larger copy of the shape.
  • Inner Offset: Creates a smaller copy of the shape.
  • Multiple Offsets: You can apply multiple offsets consecutively to create layered effects, similar to the concentric rings found in some natural formations. This is ideal for creating frames or adding depth to engraved designs.

Node Editing Tools for Precise Vector Manipulation

For the discerning eye, the ability to sculpt vectors with absolute precision is paramount. LightBurn’s node editing tools are akin to the sculptor’s chisel, allowing you to refine curves, straighten lines, and perfect every aspect of your design’s path.Node editing is the cornerstone of vector manipulation in LightBurn, enabling you to control the exact shape and flow of your lines.

• Nodes: These are the points that define the shape of a vector path. They can be corners or smooth points.
• Handles: Attached to smooth nodes, these handles control the curvature of the line segment between nodes. Adjusting their length and angle directly influences the shape of the curve.
• Common Node Editing Operations:
  • Add Node: Click on a line segment to insert a new node, allowing for more detailed shaping.
  • Delete Node: Remove unnecessary nodes to simplify a path or correct unwanted curves.
  • Convert to Smooth Node: Transforms a sharp corner into a smooth curve.
  • Convert to Sharp Node: Turns a smooth curve into a sharp corner, creating a distinct angle.
  • Break Path: Splits a continuous path into two separate paths at a selected node.
  • Weld/Boolean Operations: While not strictly node editing, operations like Weld, Subtract, and Intersect (found in the ‘Boolean’ menu) work with vector shapes and are often used in conjunction with node editing to combine or modify complex geometries.

Mastering node editing allows you to achieve perfectly clean cuts and intricate engraved details that would otherwise be impossible.

‘Smooth’ and ‘Optimize Path’ Features for Cleaner Cuts

To ensure your laser cuts with the elegance of a gentle breeze and engraves with the clarity of a mountain spring, LightBurn offers features to refine your vector paths. These tools help eliminate unnecessary complexity, leading to smoother operation and superior results.These features are designed to clean up imported vector files and ensure efficient laser paths.

• Smooth: This feature is applied to selected curves and aims to reduce the number of nodes while maintaining the overall shape. It helps to eliminate small, unwanted wiggles or irregularities in a curve, making the path flow more naturally.
  • Application: Often used after importing designs from other software or after complex manipulations where the curve might have become overly complex.

    Select the object, go to ‘Edit’ > ‘Smooth’ or use the shortcut. You can often adjust the ‘Tolerance’ or ‘Strength’ of the smoothing effect.

• Optimize Path: This function analyzes your vector paths and rearranges the order in which the laser head will traverse them. It aims to minimize unnecessary travel moves and reduce the overall cutting or engraving time.
  • Application: Particularly useful for designs with many small elements or intricate shapes. LightBurn will attempt to group nearby cuts and engrave sections in a more logical sequence.

    Access this through ‘Edit’ > ‘Optimize Path’ or within the ‘Cuts’ tab in the ‘Laser window’.

By utilizing ‘Smooth’ and ‘Optimize Path’, you contribute to a more efficient laser process and achieve a higher quality finish on your projects.

TTP2 (Through-The-Lens) Alignment

For certain laser systems, particularly those with advanced cameras, TTP2 alignment offers a revolutionary way to precisely position your artwork on your material. This technique leverages the laser’s own optics to achieve unparalleled accuracy, eliminating the need for manual alignment methods.TTP2 is a sophisticated alignment method that uses the laser’s camera to precisely register the design onto the workpiece.

• Concept: The camera views the material bed. LightBurn displays a live feed, and you can drag your design onto the live view. The TTP2 feature then uses the laser’s focal point to accurately “burn” a reference point onto the material. By comparing the intended design position with this reference point, LightBurn can automatically correct for any misalignment between the camera’s view and the laser’s actual origin.

• Hardware Dependency: TTP2 is a feature that requires specific hardware, including a camera integrated into the laser cutter and firmware that supports this functionality. Not all laser cutters are equipped for TTP2.
• Setup and Usage:
  1. Camera Calibration: Ensure your camera is properly calibrated within LightBurn. This is a crucial first step.
  2. Material Placement: Place your material on the laser bed.
  3. Design Placement: Drag your design in LightBurn to the desired position on the live camera feed.
  4. Initiate TTP2: LightBurn will guide you through the process, which typically involves firing the laser briefly at a specific point on the material to create a registration mark.
  5. Automatic Adjustment: LightBurn then uses this mark to automatically adjust the laser’s starting position to match your design’s placement.

TTP2 ensures that your engraved or cut designs are placed with pinpoint accuracy, saving material and time by avoiding costly errors.

Rotary Attachments for Engraving Cylindrical Objects

The islands are known for their beautifully crafted cylindrical objects, from ornate carvings to practical vessels. LightBurn’s capabilities extend to these forms through the use of rotary attachments, allowing you to engrave with the same precision on curved surfaces as you do on flat ones.Rotary attachments enable your laser cutter to engrave on objects with a cylindrical shape, such as bottles, cups, or rolling pins.

• How Rotary Attachments Work: A rotary attachment replaces your standard Z-axis or is a separate device that grips the object and rotates it. As the object spins, the laser head moves in the Y-axis (or X-axis, depending on the rotary setup), effectively “unrolling” the cylinder’s surface so that the laser can engrave a flat image onto it.
• Setting Up Rotary in LightBurn:
  1. Enable Rotary: In LightBurn’s ‘Device Settings’, you will find an option to enable rotary control. Select the correct axis (usually Y) that the rotary is connected to.
  2. Diameter/Circumference: You must accurately input the diameter or circumference of the object you are engraving. This is critical for the software to correctly scale the design to fit the curved surface.
  3. Rotary Mode: LightBurn offers different rotary modes, typically ‘Scroll’ or ‘Spin’. ‘Scroll’ mode is common for most bottle/cup engravers where the laser head moves along the Y-axis as the rotary spins.
  4. Object Diameter: For accurate engraving, it is vital to measure the object’s diameter precisely. For objects with varying diameters (like some bottles), you might need to find an average or engrave at the widest point.
  5. Design Preparation: Ensure your design is prepared for engraving. Text and simple graphics usually work best. Complex images might require dithering.
• Tips for Rotary Engraving:
  • Secure Grip: Ensure the object is firmly secured in the rotary attachment to prevent slippage, which can ruin the engraving.
  • Level Object: Make sure the object is perfectly level within the rotary.
  • Test Engrave: Always perform a test engrave on a scrap piece of material or a test object to fine-tune your settings before committing to your final piece.
  • Material Considerations: Different materials will react differently to laser engraving on a rotary. Adjust power and speed accordingly.

With these advanced techniques, your mastery over LightBurn will blossom, allowing you to create projects of exceptional complexity and beauty, truly reflecting the artistry and spirit of the Moluccas.

Troubleshooting Common Issues

Even the most seasoned navigators of the digital seas can encounter unexpected squalls. LightBurn, while a robust vessel, can sometimes present its own set of challenges. Understanding these common issues and knowing how to chart a course through them will ensure your laser journey remains smooth and productive, much like a gentle breeze guiding a prahu across the Moluccan waters.

This section is dedicated to equipping you with the knowledge to overcome these hurdles, keeping your creative spirit afloat.When your laser cutter or engraver seems to be misbehaving, it’s often a matter of identifying the root cause. These problems can range from the digital handshake between your computer and the laser, to the physical output that disappoints. By systematically addressing potential issues, you can quickly restore your workflow and continue creating magnificent pieces.

Connection Errors and Incorrect Output

Connection errors often manifest as LightBurn failing to recognize your laser device, or intermittent communication breaks. Incorrect output can mean designs are not cut or engraved as expected, appearing distorted, misplaced, or simply not firing at all. These issues can stem from a variety of sources, from simple cable faults to deeper software or firmware conflicts.A common culprit for connection errors is the USB cable.

Ensure it is securely plugged into both the computer and the laser controller. Try a different USB cable, as they can sometimes become faulty. For network-connected lasers, verify that both the computer and the laser are on the same network and that no firewall is blocking communication.When output is incorrect, the first step is to verify your design in LightBurn.

Ensure the scale is correct, that layers are assigned to the appropriate laser functions (cut, engrave, etc.), and that the power and speed settings are suitable for your material. Sometimes, a simple restart of both LightBurn and the laser controller can resolve transient communication glitches.

Design Import Issues

Importing a design that doesn’t appear as intended is a frustrating experience, akin to finding a pearl with a flaw. This can happen due to file format incompatibilities, corrupted files, or complex vector data that LightBurn struggles to interpret. Resolving these issues requires a methodical approach to understanding how LightBurn processes imported artwork.To resolve design import issues, consider the following:

• File Format: Ensure you are importing supported file types such as SVG, DXF, AI, PDF, or PNG. For vector-based designs, SVG and DXF are generally preferred for their scalability and compatibility.
• File Integrity: If a file consistently fails to import or appears corrupted, try re-exporting it from its original design software. Ensure the export process completes without errors.
• Complexity: Extremely complex vector designs with an excessive number of nodes or overlapping paths can sometimes cause import problems. Simplifying the design by reducing nodes or merging overlapping shapes in your design software can help.
• Units: Verify that the units used in your design software match the units expected by LightBurn (e.g., millimeters or inches). Mismatched units can lead to scaling discrepancies.
• Raster Images: For raster images (like JPG or PNG), ensure they are of sufficient resolution for the desired engraving size. Low-resolution images will result in pixelated or blurry engravings.

Laser Firing Problems

When your laser refuses to fire, or fires inconsistently, it halts all progress. This is a critical issue that requires careful diagnosis, as it can relate to hardware, software settings, or safety interlocks.Strategies for troubleshooting laser firing problems include:

• Test Button: Most laser controllers have a “Test” button that will fire the laser at a set power for a short duration. If this button does not work, the problem is likely with the laser tube, power supply, or internal controller wiring, and not with LightBurn itself.
• Software Enable: In LightBurn, ensure that the laser is enabled for firing. Check the “Device Settings” and ensure the correct laser type is selected. Also, confirm that the “Laser On/Off” commands are correctly configured in your device profile.
• Interlocks: Many lasers have safety interlocks, such as a lid sensor. Ensure these are properly engaged and not tripped. A tripped interlock will prevent the laser from firing.
• Power Settings: Double-check your power settings in LightBurn. If the power is set to 0%, the laser will not fire. Also, ensure that the minimum power for engraving is set appropriately, as some lasers require a minimum power level to initiate firing.
• Cooling: For CO2 lasers, inadequate cooling can cause the laser tube to overheat and prevent firing. Ensure your water cooling system is functioning correctly.

Calibration Errors

Calibration errors can lead to designs being cut or engraved in the wrong position, or at an incorrect scale. This is like a compass that points slightly off true north, leading your vessel astray. Accurate calibration ensures that the laser head moves precisely as instructed by LightBurn.Methods for diagnosing and correcting calibration errors include:

• Test Pattern: Engrave a simple square or a grid of dots in LightBurn. Measure the dimensions of the engraved pattern with a ruler or calipers. Compare these measurements to the intended dimensions in LightBurn.
• Axis Scaling: If the engraved object is consistently too large or too small, you may need to adjust the steps per millimeter for the X and Y axes in your laser controller’s firmware or within LightBurn’s device settings. This is a more advanced adjustment and requires careful documentation of the original settings.
• Origin Point: Ensure the laser’s home position and the origin point set in LightBurn are consistent. If the laser starts from an unexpected position, the output will be misaligned.
• Belt Tension: For machines with belt-driven axes, loose or uneven belt tension can cause inaccuracies. Check and adjust belt tension as per your machine’s manual.
• Machine Squaring: Verify that the gantry and axes of your laser machine are perfectly square. Any deviation will result in distorted cuts, especially on larger projects.

Utilizing the LightBurn Console for Debugging

The LightBurn console is a powerful, albeit sometimes cryptic, tool for understanding what is happening between LightBurn and your laser controller. It displays all the G-code commands being sent and received, offering invaluable insights when troubleshooting complex issues.To access and utilize the LightBurn console for debugging:

1. Open the Console: The console can typically be opened from the “Window” menu in LightBurn by selecting “Console.”
2. Observe Commands: When you send a job to the laser, observe the output in the console. You will see commands like “G0” (rapid move), “G1” (linear move), “M3” (laser on), “M5” (laser off), and various axis movements.
3. Error Messages: Look for any error messages that appear in the console. These messages can often provide specific clues about what went wrong.
4. Firmware Responses: The console also shows responses from your laser controller’s firmware. This can help identify if the controller is misinterpreting commands or reporting issues.
5. Manual Commands: You can also type G-code commands directly into the console to test specific laser functions or controller responses. For example, typing “M3 S100” might turn the laser on at 100 power (depending on your controller’s configuration).

By understanding the flow of G-code and paying attention to console output, you can often pinpoint the exact command or response that is causing your laser to behave unexpectedly.

Organizing and Managing Projects

Ah, my friends, just as the finest woven mats of Maluku require meticulous arrangement, so too must our LightBurn projects be handled with care and foresight. A well-ordered workspace is the foundation of efficient creation, ensuring that your vision flows seamlessly from concept to laser-cut reality. Let us explore the ways to bring harmony to your digital endeavors.The essence of good project management in LightBurn lies in establishing a clear, logical structure for your files and associated assets.

This not only prevents the frustration of lost designs but also fosters a repeatable and professional workflow. Think of it as tending to your spice garden; each element has its place, contributing to the overall richness of your craft.

File Organization System

To cultivate a robust system for your LightBurn project files and their accompanying assets, a hierarchical approach is most beneficial. This involves creating a clear folder structure that mirrors the nature of your work, whether it be by client, project type, material, or date. Within these folders, you will store your LightBurn project files (.lbrn files), along with any source design files (like .svg, .ai, or .dxf), raster images, and even reference photos.A recommended structure might look something like this:

• Main Project Folder: (e.g., “Laser Projects”)
  • Client Name/Project Name: (e.g., “Client A – Custom Box Design” or “Artisan Coasters – Set 3”)
    • Designs: (Contains all .lbrn files, source design files)
    • Assets: (Contains raster images, logos, textures)
    • Exports: (Final files ready for cutting/engraving)
    • Documentation: (Notes, client briefs, reference images)
  • Personal Projects:
    • … similar sub-folder structure …

This systematic approach ensures that when you revisit a project, all necessary components are readily accessible, saving you precious time and effort.

Effective Use of ‘Save Project’ and ‘Save As’

The humble ‘Save Project’ and ‘Save As’ functions are your most trusted allies in maintaining the integrity of your work. Understanding their distinct roles is paramount.

• ‘Save Project’ is your daily bread and butter. Use it frequently as you make incremental changes to your design. It overwrites the current file with your latest modifications, ensuring that you do not lose progress. Think of it as weaving new threads into your tapestry as you go.
• ‘Save As’ is your tool for creating variations, backups, or archiving specific stages of your design. This is particularly useful when you are experimenting with different approaches, preparing a design for a different material, or creating a final version before making significant alterations. For instance, if you have a successful design for acrylic, you might use ‘Save As’ to create a version for wood, adjusting parameters later.

  It is also wise to use ‘Save As’ to create dated backups before major revisions, such as “ProjectName_v1.0_backup_2023-10-27.lbrn”.

Always be mindful of where you are saving your files. A quick habit of hitting ‘Ctrl+S’ (or ‘Cmd+S’) after each significant change will prevent many a headache.

Custom Libraries for Materials and Settings

The true artistry of laser work often lies in mastering the nuances of different materials. LightBurn’s custom libraries are your personal repository for these hard-won insights, allowing you to recall precise settings with a single click.To create and manage these libraries effectively:

• Create a New Library: Navigate to the ‘Materials’ window. Click the ‘+’ button to create a new library. Give it a descriptive name, such as “Maluku Wood Types,” “Acrylic – Cast,” or “Leather – Engrave.”
• Add Materials: Within your new library, click the ‘+’ button again to add individual material entries. Give each material a clear name (e.g., “Mahogany – 3mm,” “Clear Cast Acrylic – 5mm”).
• Define Settings: For each material, you will define the laser parameters. This includes:
  • Speed: The rate at which the laser head moves.
  • Power: The intensity of the laser beam.
  • Frequency (PPI): Pulses per inch, crucial for engraving.
  • Number of Passes: How many times the laser will trace a path.
  • Cut Settings: Specific parameters for cutting through the material.
  • Engrave Settings: Parameters for creating detailed engravings.
• Import/Export Libraries: You can export your libraries to share with fellow artisans or import settings from trusted sources. This is invaluable for collaborative projects or when adopting new techniques.

The benefits of using custom libraries are immense:

• Consistency: Ensures that your results are repeatable, reducing guesswork and material waste.
• Efficiency: Eliminates the need to manually input settings for every new project.
• Knowledge Sharing: Allows you to document and share your expertise with others.
• Experimentation: Provides a structured way to test and record new material settings.

Consider these libraries as your well-worn recipe books, filled with the perfect combinations for every culinary creation, or in our case, every laser masterpiece.

Benefits of Using Layers

For complex designs, the strategic use of layers in LightBurn is akin to the masterful weaving of different colored threads in a traditional Maluku textile. Layers allow you to compartmentalize different aspects of your design, making it easier to manage, edit, and control the laser’s operation.The benefits of employing layers are substantial:

• Design Organization: You can assign different elements of your design to separate layers. For example, one layer might contain the cut Artikels, another the engraving details, and a third might hold text elements. This keeps your workspace clean and prevents accidental modifications to one part of the design while working on another.
• Selective Operation: Each layer can have its own unique laser settings. This means you can define specific speed, power, and frequency settings for cutting, engraving, and scoring operations directly within the layer settings. You can also choose to enable or disable specific layers for processing, allowing for multi-stage operations without altering the original design.
• Workflow Management: Layers facilitate complex workflows. You might have a layer for a detailed raster engraving and another for precise vector cuts. By processing these layers sequentially with their optimized settings, you achieve superior results. For instance, you might engrave a complex image first, then perform a clean vector cut for the Artikel, ensuring the engraving is not disturbed.
• Color Coding: LightBurn associates colors with layers, providing a visual cue to the different operations. This visual distinction further aids in understanding the project’s structure at a glance.

Imagine creating a detailed wooden sign. You could have one layer for the engraved text, another for the profile cut of the sign’s shape, and perhaps a third for any decorative inlays. This modular approach ensures that each element is treated with the appropriate laser parameters, leading to a polished and professional final product.

Creating Detailed Engraving Effects: How To Use Lightburn Software

Ah, the artistry of engraving, a skill as deep and rich as the Moluccan spices themselves! In LightBurn, this is where your laser truly becomes a sculptor, transforming flat surfaces into tactile masterpieces. We shall delve into the magic of engraving modes, the meticulous preparation of images, and the nuanced control that yields textures and depths that whisper stories.Engraving in LightBurn is not merely about burning an image; it is about understanding how the laser interacts with your material based on the brightness values of your design.

LightBurn offers several modes to achieve different visual and textural outcomes, each suited for specific materials and desired aesthetics. Mastering these modes allows for the creation of truly unique and detailed engravings.

Engraving Modes in LightBurn

LightBurn provides distinct engraving modes, each interpreting image data differently to control the laser’s power and speed. Understanding these modes is fundamental to achieving the desired effect on various materials, from the subtle gradients of wood to the stark contrasts on acrylic.

• Grayscale: This is the most intuitive mode, where the laser’s power is directly mapped to the brightness of each pixel in your image. Lighter areas will receive less power (or be skipped entirely, depending on settings), while darker areas will receive more power. This mode is excellent for photographs and images with smooth tonal transitions, allowing for a wide range of depth and detail.

• Dithering: Dithering uses patterns of dots to simulate shades of gray. Instead of varying the laser power, LightBurn uses different dot sizes or densities to create the illusion of grayscale. This is particularly effective on materials like anodized aluminum or certain plastics where subtle power variations might not yield the best results, or where a distinct textured look is desired.

  Common dithering algorithms include Jarvis, Stucki, and Atkinson, each producing a slightly different dot pattern.

• Threshold: In threshold mode, pixels are converted to either black or white based on a defined brightness level. If a pixel’s brightness is above the threshold, it’s rendered as white (no laser action or minimal power); if it’s below, it’s rendered as black (full laser power or maximum engraving power). This mode is ideal for creating sharp, high-contrast engravings, such as line art, text, or simple graphics where fine tonal gradations are not required.

Preparing Images for High-Quality Photo Engraving

Transforming a photograph into a stunning laser engraving requires careful preparation. It’s not simply about importing a JPEG; it’s about optimizing the image’s tonal range, contrast, and resolution to translate effectively into laser burns. Think of it as preparing a canvas for a master painter, ensuring every brushstroke of the laser has the best possible foundation.

• Contrast and Brightness Adjustment: Begin by adjusting the overall contrast and brightness of your photograph in an image editing software. You want to enhance the distinct differences between light and dark areas without losing subtle details. A common technique is to increase contrast significantly, then use brightness to bring back the mid-tones. The goal is to create a clear distinction that the laser can interpret.

• Image Resolution: Ensure your image has a sufficiently high resolution. For most laser engraving, a resolution of 300 DPI (dots per inch) is a good starting point. Higher resolutions can capture finer details, but be mindful of your laser’s capabilities and the material you are engraving.
• Image Format: While LightBurn supports various image formats, BMP and PNG are often preferred for grayscale engravings as they tend to preserve tonal information better than heavily compressed JPEGs.
• Cropping and Framing: Crop your image to focus on the essential elements. Remove unnecessary background or distracting areas that won’t translate well into an engraving. Consider the composition and how it will appear on your chosen material.
• Color to Grayscale Conversion: Convert your color image to grayscale. Pay attention to how different colors are rendered in grayscale; some color combinations might become indistinguishable when converted, requiring manual adjustments or selection of a different source image.

Achieving Different Textures and Depths in Engravings

The tactile quality of an engraving is as important as its visual appeal. By manipulating various settings within LightBurn, you can create a spectrum of textures, from the softest matte finish to deep, carved impressions. This is where the true artistry of laser engraving unfolds, allowing for a sensory experience.

Mastering LightBurn software is a delightful journey, much like understanding what is required for software engineering , where precision and thoughtful design are key. Once you grasp the fundamentals of using LightBurn, you’ll find creating stunning designs and projects becomes an absolute breeze, truly unlocking your creative potential.

• Laser Power and Speed: The most direct way to control depth is by adjusting the laser power and speed. Higher power and slower speeds will result in deeper engraving, while lower power and faster speeds will produce shallower marks. Experimentation is key to finding the sweet spot for your material. For instance, engraving fine details on soft wood might require lower power and higher speed to avoid burning through, whereas deep, impactful text on acrylic might benefit from higher power and slower passes.

• Scan Angle: In grayscale engraving, the scan angle determines the direction in which the laser moves. A 0-degree scan angle will engrave horizontally, while a 90-degree scan angle will engrave vertically. This can influence the perceived texture and how light interacts with the engraved surface. Rotating the scan angle can sometimes reveal subtle patterns or enhance the visual depth.
• Line Interval (DPI): This setting dictates the spacing between the laser’s scan lines. A smaller line interval (higher DPI) means more lines are engraved per inch, resulting in finer detail and a smoother appearance. A larger line interval creates a more textured, less detailed look, often appearing more rustic or coarse. For example, a very low line interval might be used for a smooth, photographic engraving, while a higher line interval could be used to create a wood-grain effect.

• Image Optimization Settings: Within LightBurn’s image settings, you can further refine the engraving. Features like ‘Max/Min Power’ allow you to set the upper and lower bounds for laser power, ensuring that even the darkest parts of your image don’t over-engrave and the lightest parts still receive a subtle mark if desired.

Using ‘Image Adjustment’ Tools to Fine-Tune Bitmap Imports, How to use lightburn software

LightBurn’s ‘Image Adjustment’ tools are your digital chisel and polishing cloth, allowing you to meticulously refine imported bitmaps before they meet the laser. These tools offer precise control over how your image’s tonal values are translated into laser actions, ensuring the final engraving is exactly as you envision.The ‘Image Adjustment’ window provides a suite of controls that work in concert to sculpt your bitmap’s appearance.

It is here that you can make critical edits that directly impact the laser’s output, turning a good image into a great engraving.

• Brightness and Contrast: Similar to external image editors, these sliders allow for global adjustments to the image’s overall lightness and darkness, and the range between the darkest and lightest points. This is often the first step in preparing an image for engraving.
• Gamma: Gamma correction adjusts the mid-tones of the image without significantly affecting the highlights and shadows. This is crucial for bringing out subtle details in areas that might otherwise appear too dark or too light.
• Sharpen: This filter enhances the edges within the image, making details appear crisper. Use with caution, as over-sharpening can introduce artifacts or a harsh appearance.
• Smooth: The opposite of sharpen, this filter reduces noise and can help create softer transitions, which can be beneficial for photographic engravings where harsh edges are undesirable.
• Threshold Slider: When working with threshold mode, this slider is paramount. It allows you to precisely set the cutoff point for converting pixels to black or white, directly controlling the density of the engraved areas.
• White Clip and Black Clip: These settings determine the absolute darkest and lightest points that will be rendered. ‘White Clip’ effectively makes very light pixels completely transparent or skipped by the laser, while ‘Black Clip’ ensures that the darkest pixels are always engraved with the maximum power.

Conclusion

So there you have it – a comprehensive walkthrough to help you master how to use lightburn software. By following these steps and exploring the features we’ve discussed, you’ll be well on your way to creating incredible laser-cut and engraved pieces. Remember, practice makes perfect, so dive in, experiment, and don’t be afraid to push the boundaries of what you can create.

Happy lasering!

Popular Questions

What’s the best file format for importing designs into LightBurn?

For vector designs, SVG and DXF are generally your best bet as they maintain crisp lines and scalability. For images, PNG with a transparent background is great for engraving, while JPG works too but might need more cleanup.

How do I connect my laser to LightBurn?

Usually, it’s a simple plug-and-play. Make sure your laser is powered on and connected to your computer via USB. Then, in LightBurn, go to ‘Devices’ and click ‘Find My Laser’ or manually add your device type and COM port.

Can LightBurn help me design from scratch?

Absolutely! LightBurn has built-in tools for creating basic shapes like rectangles, circles, and stars, as well as robust text editing capabilities. You can also import and trace existing images to create vector paths.

What does ‘kerning’ mean for text in LightBurn?

Kerning is the adjustment of space between specific pairs of letters to make them look better together. LightBurn allows you to fine-tune this spacing for more professional-looking text.

How do I know what speed and power settings to use for a new material?

This is where material tests come in handy. LightBurn has a feature to create test grids where you can run a range of speeds and powers to find the optimal settings for your specific material and laser. Always start with lower settings and gradually increase.
