What is a Cylinder Head? Understanding Its Engine Role.

What is a cylinder head? It’s a critical component in the internal combustion engine, often overlooked but essential for the engine’s operation. This intricate part, typically made of metal, sits atop the engine block and houses many of the vital elements that facilitate the combustion process. Its design and function directly influence an engine’s performance, efficiency, and longevity.

The cylinder head’s primary role is to seal the top of the cylinders, creating a combustion chamber where the air-fuel mixture ignites, generating power. It contains crucial components like valves, spark plugs, and ports that control the intake and exhaust of gases. The cylinder head also plays a vital role in managing heat and ensuring the efficient flow of gases, contributing significantly to the engine’s overall performance.

Its design varies widely, impacting the engine’s power delivery, fuel economy, and emissions profile.

Definition and Basic Function of a Cylinder Head

Ah, the heart of the engine! Just as a village headman guides his people, the cylinder head orchestrates the fiery dance within the engine’s cylinders. It’s a vital component, a guardian, and a maestro of the internal combustion engine. Without it, the whole mechanical village would fall into disarray. Let’s delve into its essence, shall we?

Fundamental Role of a Cylinder Head

The cylinder head’s primary role is to seal the top of the engine cylinders, forming a combustion chamber where the magic of burning fuel and air takes place. It’s the roof, the protector, the very boundary where the controlled explosion happens, transforming potential energy into the motion that drives us forward. It manages the flow of gases, controls the temperature, and ensures the efficient conversion of energy.

Concise Definition of a Cylinder Head

Simply put, a cylinder head is a detachable component that sits atop the engine’s cylinders. It houses critical elements like valves, spark plugs (in gasoline engines), and sometimes fuel injectors. It provides a structural foundation for these components and helps to contain the pressure generated by the combustion process. It’s the capstone of the cylinder, the final piece of the puzzle.

Primary Functions the Cylinder Head Performs

The cylinder head is a multi-tasker, a true champion of efficiency. Its duties are many, each crucial to the engine’s performance.

• Sealing the Combustion Chamber: It forms a tight seal to prevent the escape of combustion gases, ensuring that the energy from the explosion is directed to the pistons, turning the crankshaft and providing the power. This is achieved through careful design and the use of gaskets.
• Managing Intake and Exhaust: It houses the intake and exhaust valves, controlling the flow of air-fuel mixture into the cylinder and exhaust gases out. The timing of these valves is critical for optimal engine performance.
• Accommodating Spark Plugs (Gasoline Engines): It provides the location for spark plugs, which ignite the air-fuel mixture. The precise placement and design of the spark plug hole are important for efficient combustion.
• Cooling the Engine: The cylinder head often incorporates coolant passages to dissipate heat generated during combustion. This prevents overheating and ensures the engine operates within its optimal temperature range.
• Supporting Engine Components: It provides a mounting surface for various engine components, such as rocker arms, camshafts (in some designs), and sensors.

Materials Commonly Used in the Construction of Cylinder Heads

The materials used in cylinder head construction are chosen for their ability to withstand extreme temperatures, pressures, and stresses. They must also be durable and resistant to corrosion.

• Cast Iron: Traditionally, cast iron was the dominant material due to its cost-effectiveness, strength, and ability to handle high temperatures. It’s still used in some engines, especially older designs or those requiring robust construction.
• Aluminum Alloys: Aluminum alloys are increasingly popular because they are lighter than cast iron, improving engine performance and fuel efficiency. They also dissipate heat more effectively, which is beneficial for engine cooling.
• Specialty Alloys: In high-performance engines, more exotic alloys may be used to provide superior strength and heat resistance. These might include nickel-based alloys or other materials designed to withstand extreme conditions.

Components of a Cylinder Head

The cylinder head, a critical component of an internal combustion engine, houses numerous parts working in concert to facilitate the combustion process. These components are meticulously designed to withstand extreme temperatures and pressures while ensuring efficient engine operation. Understanding these individual elements and their functions is essential for comprehending the overall role of the cylinder head.

Valves, Springs, and Retainers

Valves, typically made of steel alloys, are essential for controlling the flow of intake air and exhaust gases. These valves, precisely timed by the camshaft, open and close to allow the air-fuel mixture into the cylinder and expel the burnt gases. Valve springs, made of strong spring steel, exert a force that closes the valves, ensuring a tight seal against the valve seats when closed.

Valve retainers, often made of steel, secure the valve springs in place, preventing them from dislodging during engine operation.

Spark Plugs

Spark plugs, a vital part of the cylinder head, provide the spark needed to ignite the air-fuel mixture within the combustion chamber of gasoline engines. They are strategically positioned to deliver the spark at the precise moment required for optimal combustion. The spark plug consists of a central electrode, an insulator, and a ground electrode. The high voltage from the ignition system jumps the gap between the electrodes, creating the spark that initiates combustion.

Intake and Exhaust Ports

Intake and exhaust ports are strategically designed passages within the cylinder head. The intake ports channel the air-fuel mixture into the combustion chamber. The exhaust ports direct the burnt gases away from the cylinder and into the exhaust system. The shape and size of these ports significantly influence the engine’s breathing efficiency, impacting its power output and fuel economy. The smoother and larger the ports, the better the engine can “breathe,” leading to improved performance.

Valve Comparison

Valves are categorized based on their function and location. Intake valves allow the air-fuel mixture into the cylinder, while exhaust valves release the burnt gases. The following table provides a comparison of the different types of valves:

Cylinder Head Operation and Processes

Ah, the cylinder head, the tireless guardian of the engine’s fiery heart! Imagine it as the conductor of a complex symphony, orchestrating the controlled explosions that bring your car to life. It’s not just a lid; it’s a vital participant in the four-stroke cycle, a cycle so fundamental to internal combustion engines. This intricate dance of intake, compression, combustion, and exhaust wouldn’t be possible without the cylinder head’s precise timing and unwavering dedication.

Let’s delve into the magic, shall we?

The Four-Stroke Cycle and the Cylinder Head

The cylinder head is the stage manager for the four-stroke cycle: intake, compression, combustion, and exhaust. Each stroke is a precisely timed event, and the cylinder head, with its valves, ports, and combustion chamber design, dictates the timing and efficiency of each step.Here’s how it all unfolds:* Intake: The intake valve opens, allowing the air-fuel mixture (or just air in a direct-injection engine) to be drawn into the cylinder as the piston moves downward.

The cylinder head’s intake ports are designed to maximize airflow, ensuring a full charge.* Compression: Both valves close, and the piston moves upward, compressing the air-fuel mixture. The cylinder head’s combustion chamber shape influences the compression ratio, which affects engine power and efficiency. A higher compression ratio means more power, but it also increases the risk of engine knock.* Combustion: At the peak of compression, the spark plug (in a gasoline engine) ignites the air-fuel mixture, causing a rapid expansion of gases.

This is the power stroke. The cylinder head contains the combustion chamber where this explosion happens, with its shape impacting the efficiency of the combustion process. The cylinder head’s design must withstand the immense pressures and temperatures generated during this phase.* Exhaust: After the combustion, the exhaust valve opens, and the piston moves upward, pushing the burnt gases out of the cylinder.

The exhaust ports in the cylinder head are designed to efficiently remove these gases, allowing for the next cycle to begin.

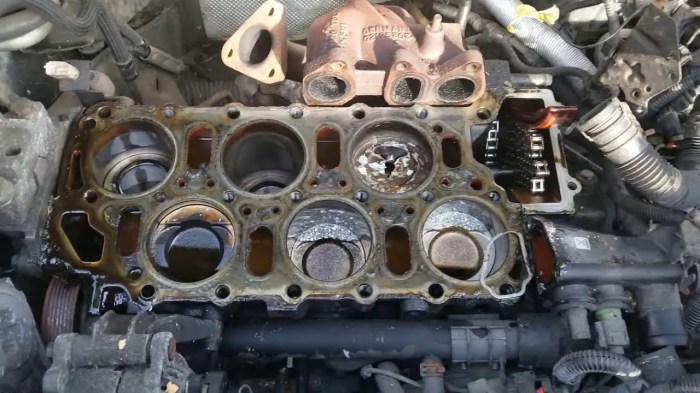

Sealing the Combustion Chamber

The cylinder head plays a crucial role in sealing the combustion chamber, preventing leaks that would rob the engine of power and efficiency. This seal is achieved through several key elements:* The Cylinder Head Gasket: This gasket sits between the cylinder head and the engine block. It’s a critical component, designed to withstand extreme temperatures and pressures. It creates a tight seal around the cylinders, water jackets, and oil passages.

A blown head gasket is a common and serious problem, leading to coolant leaks, loss of compression, and engine damage.* Valve Seating: The valves must seal tightly against their seats in the cylinder head. The valve seats are precisely machined surfaces, and the valves are designed to fit snugly against them. This seal prevents combustion gases from escaping into the intake or exhaust manifolds, and prevents compression loss.* Proper Torque: The cylinder head is bolted to the engine block with specific torque values, which ensures that the head is properly clamped down and the gasket is compressed evenly.

The correct torque is essential for maintaining the seal. Over-torquing can damage the head or block, while under-torquing can lead to leaks.

Heat Dissipation in the Cylinder Head

Engines generate a tremendous amount of heat, and the cylinder head is at the forefront of this thermal battle. Efficient heat dissipation is crucial to prevent overheating, which can lead to engine damage. The cylinder head employs several strategies to manage heat:* Coolant Passages: The cylinder head contains a network of coolant passages that circulate coolant (typically a mixture of water and antifreeze) around the combustion chambers, valves, and spark plugs.

This coolant absorbs heat and carries it away to the radiator, where it is dissipated into the atmosphere. The design and flow of these passages are critical for effective cooling.* Material Selection: Cylinder heads are typically made from aluminum alloy or cast iron. Aluminum alloys offer better heat conductivity, allowing for more efficient heat transfer. Cast iron is more durable but less efficient at heat dissipation.

The choice of material depends on the engine’s design and intended use.* Combustion Chamber Design: The shape of the combustion chamber can influence heat transfer. Designs that promote turbulent airflow can help distribute heat more evenly.* Valve Stem Seals: Valve stem seals prevent oil from entering the combustion chamber and burning, which would increase heat and reduce efficiency.

Valve Timing Process

Valve timing is the precise choreography of the opening and closing of the intake and exhaust valves, and the cylinder head is the central player in this process. Here’s a breakdown of the steps:* Crankshaft Rotation: The crankshaft, driven by the pistons, rotates. This rotation provides the fundamental timing signal for the entire process.* Camshaft Drive: The crankshaft drives the camshaft (or camshafts) through a timing belt, chain, or gears.

The cylinder head, a lonely guardian atop the engine’s heart, seals the combustion chambers. It is a world apart from the digital realm, yet, the word “cylinder” echoes, unexpectedly, in the cold lists of contacts, where what does cylinder mean in contacts remains a mystery to some. But back to the iron, the cylinder head, a silent sentinel, endures, its purpose unchanged, a testament to enduring mechanics.

The camshaft’s lobes are designed to push on the valves, opening them at the correct times.* Camshaft Lobe Profile: The shape of the camshaft lobes determines the duration and lift of the valves. Duration is the amount of time a valve is open, and lift is how far the valve opens. Different lobe profiles can be used to optimize engine performance for different applications (e.g., more lift and duration for high-performance engines).* Valve Opening and Closing: As the camshaft rotates, its lobes push on the valve stems, opening the valves.

Springs close the valves when the lobes are not pushing on them.* Valve Overlap: There is a period, called valve overlap, where both the intake and exhaust valves are open simultaneously. This overlap helps to scavenge the exhaust gases and draw in fresh air-fuel mixture, improving engine efficiency and performance.* Variable Valve Timing (VVT): Modern engines often employ VVT systems, which allow the valve timing to be adjusted dynamically based on engine speed and load.

This optimizes engine performance across a wider range of operating conditions. Systems like Toyota’s VVT-i or Honda’s VTEC use sophisticated mechanisms to alter the camshaft’s timing. For example, VTEC engines can switch between different cam profiles to provide both low-end torque and high-end power.

Types of Cylinder Heads

The cylinder head design is a critical factor in engine performance, directly influencing efficiency, power output, and emissions. Various types of cylinder heads exist, each with distinct designs and operational characteristics. Understanding these variations is essential for appreciating the complexities of internal combustion engines and their evolution.

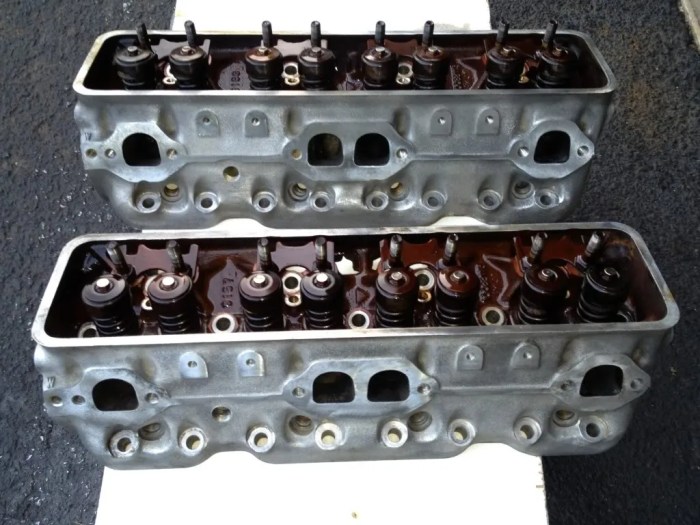

Overhead Valve (OHV) Cylinder Heads

Overhead valve (OHV) cylinder heads represent a classic engine design, characterized by the placement of the valves within the cylinder head and the camshaft located within the engine block. This configuration is often simpler and less expensive to manufacture compared to more modern designs.

• Advantages of OHV: The OHV design often leads to a more compact engine design, which can be beneficial in terms of overall engine size and packaging. The engine’s simplicity makes it generally less expensive to manufacture and maintain. Pushrods are typically shorter, allowing for potentially higher engine speeds compared to some older designs.
• Disadvantages of OHV: The pushrod mechanism, while simple, can introduce limitations. The pushrods can flex at high engine speeds, limiting the engine’s ability to rev freely. The valve angle is often less optimal, which can hinder airflow into and out of the cylinders, potentially reducing engine efficiency. The camshaft’s position in the engine block can also result in a less direct valve actuation.

• Examples of OHV Engines: The Chevrolet small-block V8 engines are a prime example of OHV engines, widely used in various General Motors vehicles for decades. The Ford Windsor V8 engine is another well-known example. Many older American V8 engines and some modern truck engines continue to use the OHV design due to its simplicity and cost-effectiveness.

Overhead Cam (OHC) Cylinder Heads

Overhead cam (OHC) cylinder heads represent a more advanced design, with the camshaft located within the cylinder head itself, directly actuating the valves or via short rocker arms. This configuration generally allows for improved airflow and engine performance.

• Advantages of OHC: The direct valve actuation (or through short rocker arms) allows for more precise valve timing and control. This leads to better airflow and higher engine speeds. The design often allows for more optimal valve angles, improving combustion efficiency. OHC engines generally produce more power and are more efficient than comparable OHV engines.
• Disadvantages of OHC: OHC designs are typically more complex and expensive to manufacture than OHV engines. They also require a more intricate valve train design, which can increase the overall engine cost. Maintenance can sometimes be more involved.
• Examples of OHC Engines: Most modern engines utilize an OHC design. Examples include the Honda Civic’s engines, which have been using OHC technology for decades. BMW’s inline-six engines are another well-known example of OHC engines.

Single Overhead Cam (SOHC) vs. Dual Overhead Cam (DOHC)

Both SOHC and DOHC configurations are variations of the OHC design. The primary difference lies in the number of camshafts used. SOHC engines have one camshaft per cylinder head, while DOHC engines have two (one for intake valves and one for exhaust valves).

• SOHC (Single Overhead Cam): This design features a single camshaft operating both the intake and exhaust valves.
• DOHC (Dual Overhead Cam): This design features two camshafts, one dedicated to the intake valves and the other to the exhaust valves, allowing for more precise valve control.

The following table illustrates the key differences between SOHC and DOHC configurations:

Cylinder Head Issues and Maintenance

The cylinder head, despite its robust construction, is susceptible to various problems due to the extreme conditions it operates under. Regular maintenance is crucial to prevent these issues and ensure the engine’s longevity and performance. Understanding common problems, how to diagnose them, and the necessary maintenance procedures are vital for any vehicle owner or mechanic.

Common Cylinder Head Problems

Cylinder heads can fail in several ways, often due to heat, pressure, and wear. These issues can range from minor annoyances to catastrophic engine failures.

• Cracks: Cracks can develop in the cylinder head due to overheating, stress, or manufacturing defects. They can occur in various locations, including between the valve seats, around the spark plug threads, or in the water jackets. Cracks compromise the head’s structural integrity, leading to coolant or oil leaks and compression loss. Imagine a hairline fracture appearing after an extreme temperature change; this is a simplified visual.

• Warping: Warping, or distortion, occurs when the cylinder head’s surface bends out of shape. This is typically caused by overheating or uneven tightening of the head bolts. A warped head doesn’t seal properly against the engine block, leading to compression loss, coolant leaks, and oil contamination. Consider a sheet of metal that has been subjected to uneven heating; the same principle applies here.

• Valve Issues: Valves can wear, stick, or burn. Wear and tear on the valve seats and valve stems can cause leaks and reduced compression. Valves can stick due to carbon buildup or lack of lubrication. Burning occurs when valves don’t seal properly, allowing hot exhaust gases to escape and damage the valve and seat. Think of a valve as a gate that controls the flow of gases; if the gate doesn’t seal properly, it leads to problems.

• Thread Damage: Spark plug and head bolt threads can strip or become damaged due to improper installation or over-tightening. Damaged threads compromise the seal and clamping force, leading to leaks and engine performance issues. Picture threads like tiny screws; if they’re damaged, they can’t hold things together effectively.
• Coolant Leaks: Coolant leaks can occur from various points in the cylinder head, including the head gasket, freeze plugs, or cracked water jackets. These leaks can lead to overheating and engine damage. Think of a leaky faucet; if not addressed, it can cause significant water damage over time.

Diagnosing Cylinder Head Issues

Accurate diagnosis is crucial to determine the extent of the problem and the necessary repairs. Several methods can be employed to identify cylinder head issues.

• Compression Test: A compression test measures the pressure in each cylinder. Low compression in one or more cylinders can indicate valve problems, head gasket failure, or a cracked head. The compression test uses a gauge to measure the pressure; low readings indicate a problem with the sealing of the cylinder.
• Leak-Down Test: A leak-down test is similar to a compression test but more precise. It involves introducing compressed air into each cylinder and listening for leaks. This test can pinpoint the source of the leak, such as the valves, piston rings, or head gasket. This is a more detailed test than the compression test, using the sound of air escaping to locate leaks.

• Coolant Pressure Test: This test pressurizes the cooling system to check for leaks. Leaks in the cylinder head or head gasket can be identified by observing pressure drops or coolant loss. This test helps identify leaks that might not be visible during normal operation.
• Visual Inspection: A thorough visual inspection can reveal obvious signs of damage, such as cracks, leaks, or corrosion. Inspecting the spark plugs can provide clues about the combustion process and potential issues. For example, if the spark plugs are covered in oil, it suggests oil is leaking into the combustion chamber.
• Head Gasket Inspection: The head gasket is a critical component that seals the cylinder head to the engine block. A blown head gasket can cause compression loss, coolant leaks, and oil contamination. Signs of a failing head gasket include coolant in the oil, oil in the coolant, or white smoke from the exhaust.

Cylinder Head Maintenance Procedures, What is a cylinder head

Regular maintenance can prevent many cylinder head problems and extend the engine’s lifespan. These procedures should be performed at the intervals recommended by the vehicle manufacturer.

• Valve Adjustment: Valve adjustments ensure that the valves open and close at the correct times and with the proper clearance. Incorrect valve clearances can lead to reduced engine performance, increased noise, and valve damage. This involves measuring the gap between the valve stem and the rocker arm or cam follower and adjusting it to the manufacturer’s specifications.
• Head Bolt Torque: Proper head bolt torque is crucial for ensuring a good seal between the cylinder head and the engine block. Over-tightening or under-tightening the head bolts can lead to warping, leaks, and head gasket failure. Head bolts should be tightened in a specific sequence and to the specified torque values using a torque wrench.
• Coolant Flush: Regularly flushing the cooling system removes contaminants and prevents corrosion. This helps maintain the proper operating temperature and prevents damage to the cylinder head and other engine components. Replacing the coolant at the recommended intervals helps keep the cooling system clean and efficient.
• Spark Plug Replacement: Replacing spark plugs at the recommended intervals ensures proper ignition and combustion. Worn spark plugs can lead to misfires, reduced fuel efficiency, and increased emissions. Replacing the spark plugs with the correct type and gap is crucial for optimal engine performance.

Important Maintenance Tips

Here are some crucial maintenance tips to keep your cylinder head in top condition.

• Follow the manufacturer’s maintenance schedule. This includes valve adjustments, coolant flushes, and spark plug replacements. Adhering to the schedule helps prevent problems.
• Use the correct coolant and oil. Using the right fluids ensures proper lubrication and cooling, protecting the cylinder head.
• Address overheating issues immediately. Overheating is a major cause of cylinder head damage. Identify and fix any cooling system problems promptly.
• Use a torque wrench to tighten head bolts. Accurate torque ensures a proper seal and prevents warping.
• Inspect the cylinder head regularly for leaks or damage. Early detection can prevent more significant problems.

Cylinder Head Upgrades and Performance

The cylinder head, often a bottleneck in engine performance, presents significant opportunities for improvement. Upgrading this component can unlock substantial gains in horsepower and torque, transforming a vehicle’s responsiveness and overall driving experience. These enhancements are achieved by optimizing airflow, combustion efficiency, and heat dissipation within the engine.

Improving Engine Performance with Cylinder Head Upgrades

Upgrading the cylinder head is a crucial step for maximizing engine power. These upgrades primarily focus on improving airflow into and out of the combustion chamber, which directly impacts the engine’s ability to “breathe” efficiently. Increased airflow allows for more fuel and air to enter the cylinders, leading to a more powerful combustion event and, ultimately, more power at the wheels.

Upgrades also address the thermal management aspects, reducing the chances of detonation or pre-ignition, and extending engine life.

Benefits of Porting and Polishing

Porting and polishing are common cylinder head modifications aimed at improving airflow. Porting involves reshaping the intake and exhaust ports to remove obstructions and create smoother pathways for air and exhaust gases. Polishing further refines these surfaces, reducing friction and turbulence.

Porting and polishing can increase horsepower by 10-20% depending on the extent of the work and the engine’s original design.

These modifications contribute to several benefits:

• Increased Airflow: Smoother port shapes and reduced friction allow for a greater volume of air to enter and exit the cylinders.
• Improved Combustion Efficiency: Enhanced airflow promotes more complete combustion, leading to more efficient fuel burning and reduced emissions.
• Reduced Pumping Losses: Less restriction in the ports reduces the effort the engine needs to “breathe,” improving overall efficiency.

Aftermarket Cylinder Heads and Performance Gains

Aftermarket cylinder heads are designed to offer significant performance improvements over stock components. They often feature larger ports, improved valve designs, and optimized combustion chambers. These features work together to maximize airflow and combustion efficiency.Examples of aftermarket cylinder heads and their intended performance gains:

• High-Performance Street Heads: These heads, designed for daily drivers and occasional track use, typically offer gains of 30-50 horsepower, along with improved torque. They often feature upgraded valve springs, valves, and combustion chamber designs.
• Race-Specific Heads: These are engineered for maximum performance in racing applications. They may offer gains exceeding 100 horsepower, depending on the engine’s configuration and supporting modifications. These heads often incorporate larger ports, specialized valve angles, and custom combustion chamber designs.
• Aluminum Cylinder Heads: Aluminum cylinder heads, because of their superior heat dissipation, can handle higher compression ratios and more aggressive cam profiles, resulting in higher power output. They are also lighter than cast iron heads, contributing to improved vehicle handling.

Comparison of Cylinder Head Modifications on Engine Power

The following table illustrates the effects of various cylinder head modifications on engine power. The data presented is based on typical results and may vary depending on the specific engine and modifications performed.

Cylinder Head Design and Manufacturing: What Is A Cylinder Head

The journey of a cylinder head from concept to a crucial engine component is a complex process, blending engineering expertise with advanced manufacturing techniques. Precision and attention to detail are paramount, as the cylinder head’s performance directly impacts the engine’s efficiency, power, and longevity. This section delves into the intricate world of cylinder head design and manufacturing, providing a comprehensive understanding of the processes involved.

Design Process

Designing a cylinder head is a multifaceted undertaking, requiring engineers to consider numerous factors to optimize engine performance. The process typically begins with establishing the engine’s specifications and performance goals.

• Engine Specifications and Performance Goals: This involves defining the engine’s intended use, such as its power output, fuel efficiency targets, and operational characteristics. These goals shape the initial design parameters.
• Computational Fluid Dynamics (CFD) Analysis: CFD simulations are extensively used to model airflow through the intake and exhaust ports, ensuring optimal combustion efficiency. This analysis helps determine port shapes, sizes, and valve angles.
• Finite Element Analysis (FEA): FEA is employed to assess the cylinder head’s structural integrity, identifying potential stress points and ensuring it can withstand the extreme temperatures and pressures within the engine.
• Material Selection: The choice of material is crucial. Aluminum alloys are commonly favored for their lightweight properties and excellent heat dissipation characteristics. Cast iron is sometimes used for its durability, particularly in heavy-duty applications.
• Valve Train Design: The valve train design, including valve size, lift, and timing, is meticulously planned to optimize airflow and combustion. This involves selecting appropriate valve springs, retainers, and other related components.
• Prototyping and Testing: Prototypes are created and subjected to rigorous testing on engine dynos and in real-world driving conditions. This iterative process allows engineers to refine the design and address any performance deficiencies.

Manufacturing Processes

Producing a cylinder head involves a series of complex manufacturing processes, each contributing to the final product’s quality and performance. The specific methods used can vary depending on the manufacturer and the type of cylinder head.

• Casting: Casting is the primary method for forming the cylinder head’s basic shape. Molten metal, typically aluminum or cast iron, is poured into a mold, allowed to solidify, and then extracted.
• Machining: Machining processes, such as milling, drilling, and boring, are used to create precise dimensions, features, and surfaces. This includes machining the valve seats, spark plug threads, and mounting surfaces.
• Heat Treatment: Heat treatment processes are often employed to enhance the material’s mechanical properties, such as its strength and durability. This can involve processes like solution heat treatment and aging.
• Surface Finishing: Surface finishing techniques, such as shot peening or polishing, are applied to improve the cylinder head’s surface finish and reduce friction.
• Assembly: The cylinder head is assembled with various components, including valves, valve springs, retainers, and seals. This assembly process requires precision and attention to detail.
• Quality Control: Throughout the manufacturing process, rigorous quality control measures are implemented to ensure the cylinder head meets the required specifications and performance standards. This includes dimensional checks, pressure testing, and visual inspections.

Importance of Precision

Precision is paramount in cylinder head manufacturing, as even minor deviations can significantly impact engine performance and reliability. Tight tolerances are essential to ensure proper valve sealing, efficient airflow, and overall engine efficiency.

• Valve Seat Accuracy: Precise valve seat machining is crucial for creating a perfect seal between the valves and the cylinder head, preventing leakage and ensuring optimal combustion.
• Port Dimensions: Accurate port dimensions are essential for controlling airflow into and out of the cylinders, influencing engine power and fuel efficiency.
• Dimensional Consistency: Consistent dimensions across all cylinder heads are necessary for ensuring uniform engine performance and preventing imbalances.
• Surface Finish: A smooth surface finish in the intake and exhaust ports minimizes friction, improving airflow and reducing pumping losses.
• Thread Accuracy: Precise thread machining for spark plugs and other components is essential for secure connections and preventing leaks.

Manufacturing Process Details

The manufacturing of a cylinder head, specifically using aluminum casting, typically unfolds as follows: Initially, a mold is created, often using sand casting, where a pattern of the cylinder head is used to create a cavity in the sand. Molten aluminum alloy, carefully selected for its strength and heat resistance (such as an alloy with silicon for improved castability and strength), is then poured into the mold. Once the metal solidifies, the sand mold is broken away, revealing the rough casting. This casting undergoes several machining operations, including milling the deck surface, drilling and reaming the bolt holes, and machining the valve seats and guide bores. The valve seats are typically cut using specialized cutting tools to achieve precise angles and ensure a tight seal with the valves. The ports are also machined to precise dimensions, often using computer numerically controlled (CNC) machines for accuracy. After machining, the cylinder head may undergo heat treatment to enhance its strength and durability. Finally, it’s inspected for dimensional accuracy and surface finish before assembly, where valves, springs, and other components are installed. This entire process, from mold creation to final assembly, is meticulously controlled to ensure that the finished cylinder head meets stringent quality standards.

Cylinder Head and Engine Efficiency

The cylinder head plays a pivotal role in determining an engine’s overall efficiency. Its design directly influences combustion, airflow, and heat transfer, all of which contribute significantly to fuel economy, emissions, and power output. A well-designed cylinder head optimizes these factors, leading to improved engine performance and reduced environmental impact.

Impact of Cylinder Head Design on Engine Efficiency

The design of a cylinder head profoundly affects how efficiently an engine operates. The shape of the combustion chamber, the size and placement of the intake and exhaust ports, and the design of the valves all contribute to the engine’s ability to burn fuel efficiently and minimize wasted energy.

Role of the Cylinder Head in Fuel Economy and Emissions

The cylinder head is critical for both fuel economy and emission control. By optimizing the combustion process, a well-designed cylinder head ensures that more of the fuel’s energy is converted into useful work, reducing fuel consumption. Simultaneously, efficient combustion minimizes the production of harmful pollutants.

Factors Contributing to Efficient Combustion Within the Cylinder Head

Several factors within the cylinder head contribute to efficient combustion. These include the shape of the combustion chamber, which influences how the air-fuel mixture is compressed and ignited; the design of the intake and exhaust ports, which affect the flow of air and exhaust gases; and the size and shape of the valves, which control the timing and duration of the intake and exhaust strokes.

Benefits of a Well-Designed Cylinder Head on Overall Engine Efficiency

A well-designed cylinder head offers several advantages for engine efficiency. These benefits collectively contribute to a more powerful, fuel-efficient, and environmentally friendly engine.

• Improved Volumetric Efficiency: A cylinder head with optimized port designs and valve arrangements allows for increased airflow into and out of the cylinders. This leads to better filling of the cylinders with air-fuel mixture during the intake stroke and more complete scavenging of exhaust gases during the exhaust stroke. This enhancement directly translates to improved engine performance and power output.

  Consider, for example, the evolution of cylinder head design in Formula 1 engines, where advancements in port geometry and valve angles have consistently resulted in significant gains in horsepower and overall engine efficiency.

• Enhanced Combustion: The combustion chamber’s shape and the placement of the spark plug are critical for efficient combustion. A well-designed combustion chamber promotes rapid and complete burning of the air-fuel mixture. This results in more power being generated from the fuel and reduces the amount of unburnt fuel in the exhaust gases. For instance, modern engine designs often incorporate pent-roof combustion chambers with centrally located spark plugs to optimize flame propagation and improve combustion efficiency.

• Reduced Fuel Consumption: By maximizing the efficiency of the combustion process, a well-designed cylinder head reduces the amount of fuel needed to produce a given amount of power. This translates directly into improved fuel economy. Modern engines with advanced cylinder head designs often achieve significantly higher miles per gallon (MPG) compared to older engines with less efficient cylinder heads.
• Lower Emissions: Efficient combustion minimizes the formation of harmful pollutants such as hydrocarbons (HC), carbon monoxide (CO), and nitrogen oxides (NOx). A well-designed cylinder head helps reduce these emissions, contributing to cleaner air. For example, the adoption of catalytic converters in conjunction with improved cylinder head designs has dramatically reduced vehicle emissions over the past few decades.
• Increased Power Output: Efficient combustion and optimized airflow result in higher power output. The engine can generate more power for the same amount of fuel, leading to improved acceleration and overall performance. The continuous advancements in cylinder head technology, particularly in high-performance engines, are aimed at extracting more power from the same engine displacement.

Final Review

In conclusion, the cylinder head is far more than just a cover; it’s a carefully engineered component that orchestrates the complex processes within an engine. From controlling the flow of gases to facilitating combustion and managing heat, its design and maintenance are paramount to engine performance. Understanding the cylinder head’s role provides a deeper appreciation for the mechanics of internal combustion engines and the importance of each component in the system.

The choices in its design, materials, and maintenance profoundly affect how an engine performs and the driving experience.

Query Resolution

What happens if the cylinder head fails?

A failed cylinder head can lead to various issues, including engine misfires, loss of power, overheating, and coolant leaks. Severe damage can result in engine failure, requiring extensive repairs or even engine replacement.

How often should a cylinder head be inspected?

Regular inspections are essential. At a minimum, the cylinder head should be inspected during routine maintenance, such as when changing spark plugs or performing a valve adjustment. However, any signs of unusual engine behavior, such as overheating or performance loss, warrant an immediate inspection.

Can a cylinder head be repaired, or does it always need to be replaced?

Whether a cylinder head can be repaired depends on the nature and severity of the damage. Minor issues, such as valve seat damage or small cracks, may be repairable through machining or welding. However, significant damage, such as extensive cracking or warping, often necessitates replacement.

What are the benefits of upgrading a cylinder head?

Upgrading a cylinder head can enhance engine performance by improving airflow, increasing compression, and optimizing combustion. This can result in increased horsepower, torque, and fuel efficiency. Upgrades also allow for better engine response and a smoother driving experience.
