What is Cylinder Head Porting Unleashing Engine Performance.

What is cylinder head porting, you ask? Imagine the heart of your engine, the cylinder head, as a meticulously crafted pathway. Porting is the art of sculpting these pathways – the intake and exhaust ports – to breathe life into your engine. It’s a journey into the soul of combustion, where subtle changes in shape and surface finish can unlock significant gains in horsepower and efficiency.

Think of it as a form of engine alchemy, transforming the mundane into the magnificent.

From its humble beginnings, cylinder head porting has evolved alongside the internal combustion engine. Originally a practice reserved for the elite, the principles have become accessible to a wider audience. The goal is simple: to maximize airflow into and out of the cylinders. This process directly impacts the engine’s ability to “breathe,” leading to increased power, improved fuel economy, and a more responsive driving experience.

Whether you’re a seasoned mechanic or a curious enthusiast, understanding the nuances of cylinder head porting is key to unlocking an engine’s full potential.

Introduction to Cylinder Head Porting: What Is Cylinder Head Porting

Cylinder head porting is a crucial process in enhancing the performance of an internal combustion engine. It involves modifying the intake and exhaust ports within the cylinder head to improve airflow. This optimization allows for greater engine efficiency and power output.

Fundamental Purpose of Cylinder Head Porting

The primary goal of cylinder head porting is to increase the volumetric efficiency of the engine. Volumetric efficiency is the ratio of the actual volume of air and fuel drawn into the cylinder to the cylinder’s swept volume. By smoothing and enlarging the intake and exhaust ports, porting reduces resistance to airflow. This allows for more air and fuel to enter the cylinder during the intake stroke and more efficient removal of exhaust gases during the exhaust stroke.

Ultimately, this results in a more complete combustion process and, consequently, increased power and torque.

Brief History and Evolution of Cylinder Head Porting

The practice of cylinder head porting dates back to the early days of internal combustion engines. Early engine builders and racers recognized the importance of optimizing airflow. The techniques and tools used have evolved significantly over time.Initially, porting was a manual process, relying heavily on hand tools such as files, grinders, and sandpaper. Skilled individuals, often referred to as “port and polish” specialists, would meticulously reshape the ports.

As technology advanced, so did the methods.

• The introduction of computer-aided design (CAD) and computer-aided manufacturing (CAM) revolutionized the process. These technologies allowed for precise port designs and automated machining processes, leading to greater consistency and accuracy.
• Flow benches became essential tools for measuring airflow and evaluating the effectiveness of porting modifications. These benches measure the volume of air that can pass through a port at a given pressure, providing quantifiable data to guide the porting process.
• Modern porting techniques often involve the use of specialized software to simulate airflow dynamics within the ports. This allows engineers to predict the impact of various modifications before any physical work is done.

Benefits of Porting: Increased Horsepower and Improved Engine Efficiency

Cylinder head porting offers several significant benefits for engine performance. These benefits contribute to both increased power and improved overall engine efficiency.

• Increased Horsepower: One of the most noticeable benefits is a significant increase in horsepower. By improving airflow, more air and fuel can enter the cylinders, allowing for a more complete combustion process. This results in a higher energy release with each combustion cycle, leading to greater power output. The specific increase in horsepower varies depending on the engine, the extent of the porting, and other supporting modifications.

  For example, a well-ported cylinder head on a naturally aspirated engine can often yield a 10-20% increase in horsepower.

• Improved Engine Efficiency: Porting can also enhance engine efficiency. By optimizing airflow, the engine can burn fuel more completely. This results in better fuel economy and reduced emissions. Improved combustion efficiency means less unburnt fuel is exhausted into the environment, contributing to lower emissions.
• Enhanced Torque: While horsepower is a measure of power at a specific engine speed, torque is a measure of the rotational force produced by the engine. Porting can also improve torque, particularly at lower engine speeds. This can result in improved acceleration and overall drivability.
• Reduced Pumping Losses: Porting reduces the resistance to airflow through the ports. This reduces the energy the engine spends on drawing in air and expelling exhaust gases, a phenomenon known as pumping losses. Lower pumping losses free up energy, which can then be used to generate more power.

Understanding Cylinder Head Components

The cylinder head is a critical component of an internal combustion engine, responsible for sealing the cylinders, housing the valves, and facilitating the flow of air and fuel. Understanding the various parts of the cylinder head is essential to comprehending how porting affects its performance. This section will delve into the key components and their respective roles.

Key Components Affected by Porting

Porting primarily focuses on modifying the intake and exhaust ports, but other components also influence airflow and overall engine performance. The following are the major areas affected:

• Intake Ports: These passages channel the air-fuel mixture into the combustion chamber. Porting aims to optimize their shape, size, and surface finish to increase airflow efficiency.
• Exhaust Ports: These passages direct exhaust gases out of the combustion chamber. Porting seeks to improve their flow characteristics to reduce backpressure and enhance engine breathing.
• Combustion Chambers: While not directly part of the port, the combustion chamber shape is often modified during porting to improve flame propagation and combustion efficiency.
• Valve Seats: These are the areas where the valves seal against the cylinder head. Porting often includes reshaping the valve seats to improve valve sealing and airflow around the valve.
• Valve Guides: These guides ensure the valves move smoothly and accurately. Porting might involve modifying the valve guide boss to improve airflow.

Function of Intake and Exhaust Ports

The intake and exhaust ports are the gateways for air/fuel mixture and exhaust gases, respectively. Their design and function are crucial for efficient engine operation.

• Intake Ports: The primary function of the intake ports is to deliver a fresh charge of air and fuel (or just air in direct injection engines) into the combustion chamber. The port’s shape and size influence the velocity and volume of the incoming charge. A well-designed intake port promotes efficient filling of the cylinder, leading to increased power and torque.

  For example, a port with a smooth, streamlined shape minimizes resistance, allowing for higher airflow rates.

• Exhaust Ports: Exhaust ports are responsible for removing spent combustion gases from the cylinder. Their design impacts the engine’s ability to “breathe” – efficiently expelling exhaust gases. Reducing backpressure in the exhaust system is a key goal. Efficient exhaust ports facilitate faster scavenging, improving cylinder filling during the intake stroke. A port with a larger cross-sectional area and a smooth finish can significantly reduce backpressure.

Role of Valve Seats and Valve Guides

Valve seats and valve guides are critical for the proper functioning of the valves, which in turn are essential for engine performance. Their condition and design have a direct impact on airflow and engine efficiency.

• Valve Seats: Valve seats provide a sealing surface for the valves to close against, preventing leakage of combustion gases. Properly machined valve seats ensure a tight seal, maintaining compression and preventing loss of power. The angle of the valve seat, typically a multi-angle design, is often modified during porting to optimize airflow around the valve. For example, a narrower seat angle can improve flow at low valve lifts, while a wider angle can benefit higher lifts.

• Valve Guides: Valve guides maintain the valve’s alignment as it moves within the cylinder head. They ensure the valve opens and closes precisely, preventing it from contacting the cylinder head or piston. Valve guides also help dissipate heat from the valve. The material and design of the valve guides affect their durability and their impact on airflow. Modifying the valve guide boss (the area surrounding the guide) is a common practice in porting to reduce airflow obstruction.

Principles of Airflow Dynamics

Airflow dynamics are fundamental to understanding cylinder head porting. The goal is to optimize the flow of air and fuel mixture into and out of the engine cylinders. This directly impacts engine power and efficiency. Understanding the principles of how air behaves within the confines of a cylinder head is critical for successful porting.

Airflow and Cylinder Head Porting

Airflow in a cylinder head is governed by several key principles. These principles determine how effectively the engine breathes. The porting process manipulates these principles to improve airflow.The primary principle is the Bernoulli’s principle. This principle states that as the speed of a fluid (in this case, air) increases, its pressure decreases, and vice versa. In a cylinder head, this means that a well-designed port will accelerate the airflow, reducing pressure and allowing more air to enter the cylinder during the intake stroke.

The shape of the port is critical in achieving this. A smooth, gradual transition is better than sharp bends, which can cause turbulence and restrict flow.Another crucial concept is fluid dynamics. The behavior of air within the ports is determined by factors like viscosity, density, and turbulence. Laminar flow, where air moves in smooth, parallel layers, is ideal. Turbulent flow, characterized by chaotic movement, reduces efficiency.

Port design aims to minimize turbulence. This is achieved by:

• Smoothing the port surfaces to reduce friction.
• Avoiding sharp changes in direction that can create eddies and disrupt flow.
• Maintaining a consistent port cross-sectional area where possible.

Importance of Port Shape, Size, and Surface Finish

The shape, size, and surface finish of the ports are paramount in achieving optimal airflow. These elements work in concert to influence how air moves through the cylinder head.The port shape has a significant effect on flow characteristics. Ideally, the port should have a shape that promotes smooth, efficient airflow. This often involves:

• A gradual, flowing curve on the intake side to guide the air/fuel mixture.
• A slightly larger cross-sectional area near the valve seat to accommodate the air as it enters the cylinder.
• Avoiding sharp turns or abrupt changes in direction.

The port size impacts the overall airflow capacity. A larger port generally allows for more airflow, but it is not always better.

• Too large a port can reduce air velocity, especially at low engine speeds, negatively affecting throttle response.
• The port size must be matched to the engine’s displacement, camshaft specifications, and intended operating range.
• Careful consideration is required to ensure that the port size is appropriate for the engine’s specific application.

The surface finish of the ports is another crucial factor. A rough surface creates friction, slowing down the airflow and causing turbulence.

• A smooth, polished surface reduces friction and encourages laminar flow.
• Polishing should be done carefully, avoiding excessive material removal that could alter the port shape.
• The goal is to create a smooth surface, not necessarily a mirror finish, as some surface roughness can help atomize the fuel in certain intake systems.

Measuring Airflow Through a Ported Cylinder Head

Measuring airflow is essential to assess the effectiveness of porting modifications. This is done using a flow bench. A flow bench measures the volume of air (typically in cubic feet per minute, CFM) that can pass through the cylinder head at a specific pressure drop (typically measured in inches of water). This data helps determine the efficiency of the porting work.The process involves:

1. Mounting the cylinder head on the flow bench.
2. Sealing the head to the bench to prevent air leaks.
3. Applying a specific pressure drop across the head.
4. Measuring the airflow in CFM.
5. Repeating the measurement at various valve lift heights to map the flow characteristics.

Here is an example of a table showing the data obtained from a flow bench test:

This table illustrates how airflow measurements can be compared between stock and ported cylinder heads. The higher CFM values in the ported examples indicate improved airflow, demonstrating the effectiveness of the porting process. The pressure drop remains constant to allow for direct comparison. The test would be repeated at multiple valve lift points (e.g., 0.100″, 0.200″, 0.300″, etc.) to create a complete flow map.

This data is critical for evaluating and refining porting techniques.

Porting Techniques and Methods

Now that we’ve covered the fundamentals, let’s dive into the practical aspects of cylinder head porting. This involves various techniques and methods used to modify the intake and exhaust ports, aiming to improve airflow and engine performance. Understanding these techniques is crucial for achieving the desired results.

Porting Techniques

Several porting techniques are employed to enhance airflow within a cylinder head. These techniques often work in concert to achieve the best possible results. Each technique addresses a specific area of the port and contributes to the overall efficiency.* Bowl Blending: This technique focuses on smoothing the transition between the valve seat and the port itself. The “bowl” is the area directly beneath the valve seat.

The goal is to remove casting imperfections and create a smooth, radiused entry for the incoming air/fuel mixture or exiting exhaust gases. This reduces turbulence and improves flow.* Throat Work: The throat is the narrowest part of the port, located just below the valve seat. Modifying the throat involves reshaping and enlarging this area to optimize airflow. The goal is to maximize the throat’s cross-sectional area without significantly reducing valve seat contact area.

Careful consideration is needed to ensure the valve still seals properly. This is where the majority of flow gains are often achieved.* Port Matching: Port matching involves aligning the intake or exhaust ports in the cylinder head with the corresponding ports in the intake manifold or exhaust header. This eliminates any abrupt steps or mismatches that can disrupt airflow.

The objective is to create a smooth transition for the air/fuel mixture or exhaust gases, minimizing flow resistance. This can be achieved by using gaskets as templates and carefully grinding or machining the ports to match.* Port Shaping: This technique involves modifying the overall shape of the port to improve airflow characteristics. This can involve widening, raising, or otherwise altering the port’s profile.

Port shaping requires a deep understanding of airflow dynamics and the specific requirements of the engine.

Hand Porting Procedure

Hand porting a cylinder head is a detailed process that requires patience, precision, and the right tools. This procedure describes the general steps involved, but specific details may vary depending on the cylinder head design and the desired performance goals.* Step 1: Preparation and Inspection: Begin by thoroughly cleaning the cylinder head to remove any oil, grease, or debris. Inspect the head for any cracks, damage, or existing modifications.

Note the valve seat angles and the overall port shape.* Step 2: Masking: Protect critical areas, such as the valve seats and the combustion chambers, using masking tape. This prevents accidental damage during the porting process.* Step 3: Porting:

Begin with bowl blending, using a carbide burr to smooth the transition from the valve seat to the port.

Carefully shape the throat area, increasing its size while maintaining proper valve seat contact.

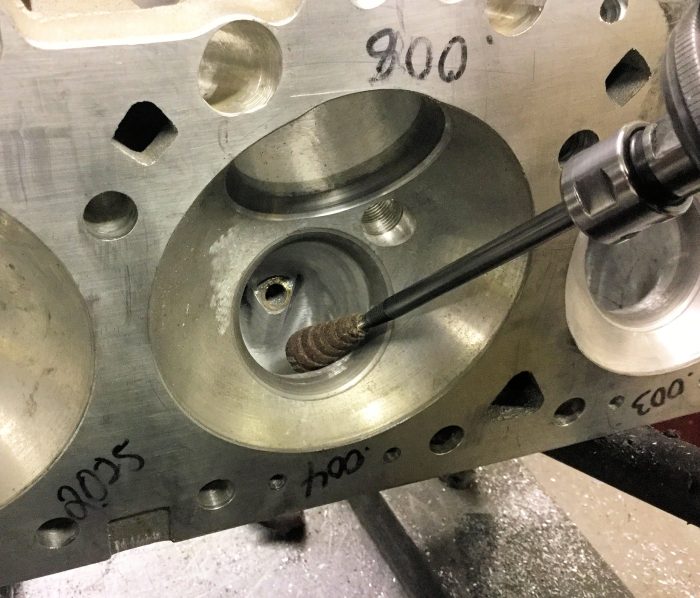

Use a porting tool (like a die grinder) and various abrasive tools (carbide burrs, sanding rolls, flap wheels) to remove material and reshape the ports.

Work in stages, checking your progress frequently.

Aim for smooth, consistent port shapes.

* Step 4: Port Matching: Use the intake manifold or exhaust header gasket as a template to match the ports. Ensure a smooth transition between the head and the intake or exhaust components.* Step 5: Polishing (Optional): After porting, polishing the ports can further improve airflow, especially in the intake ports. This is typically done with progressively finer abrasives. However, some engine builders prefer a slightly rougher finish in the intake ports to help atomize the fuel.* Step 6: Cleaning and Final Inspection: Thoroughly clean the cylinder head to remove all debris and abrasive particles.

Inspect the ports for any remaining imperfections.* Step 7: Reassembly: Install new valve seals and reassemble the cylinder head with new valves, springs, and retainers. Tools and Safety Precautions:The following tools are essential for hand porting:* Die Grinder: A high-speed rotary tool used to drive various abrasive tools.

Carbide Burrs

Used for aggressive material removal.

Sanding Rolls and Cartridge Rolls

For smoothing and shaping the ports.

Flap Wheels

For polishing and final finishing.

Porting Lights

These can illuminate the port and help identify any imperfections.

Angle Grinder

A larger, more powerful grinder for initial material removal (use with caution and experience).

Safety Glasses

Essential to protect your eyes from flying debris.

Dust Mask or Respirator

To avoid inhaling dust particles.

Gloves

To protect your hands.

Ear Protection

To protect your hearing from the noise of the grinders.

Work Bench

A stable and well-lit workspace is crucial.Always wear appropriate safety gear, including eye protection, a dust mask or respirator, and gloves. Work in a well-ventilated area. Use the correct speed and pressure for each tool and abrasive. Be careful not to remove too much material, as this can damage the cylinder head.

Common Mistakes to Avoid

Several common mistakes can hinder the effectiveness of porting. Being aware of these errors helps avoid them and ensures a successful porting project.* Removing Too Much Material: Over-porting, especially in critical areas like the valve seat or throat, can negatively impact airflow.

Creating Sharp Edges

Sharp edges can create turbulence and reduce airflow.

Neglecting Port Matching

Mismatched ports between the cylinder head and the intake/exhaust components create restrictions.

Ignoring Valve Guide Interference

Failing to address valve guide interference can significantly restrict airflow.

Using the Wrong Tools

Using inappropriate tools for the task can damage the cylinder head or result in poor results.

Lack of Patience

Rushing the process can lead to mistakes and a less-than-optimal outcome.

Poor Surface Finish

A rough surface finish can impede airflow, particularly in intake ports.

Not Protecting Critical Areas

Damage to valve seats or combustion chambers due to carelessness during porting.

Failing to Blend Properly

Poorly blended transitions between the valve seat and the port can create flow restrictions.

Ignoring the Intake and Exhaust Valve Size

Ignoring the valve size and not adapting the port work accordingly.

Valve Job and Seat Cutting

The valve job is a critical process that works in tandem with porting to maximize airflow through the cylinder head. While porting focuses on the passages, the valve job ensures that the valves seal properly and that airflow is optimized as it enters and exits the combustion chamber. Neglecting the valve job after porting can severely limit the gains achieved through porting, highlighting the importance of a comprehensive approach.

Importance of a Proper Valve Job, What is cylinder head porting

A valve job directly impacts the efficiency of the engine. A poorly executed valve job can create restrictions, leading to reduced horsepower and torque. Conversely, a well-executed valve job, working in conjunction with porting, can significantly improve engine performance. This improvement comes from several factors.

• Improved Sealing: The valve job ensures a perfect seal between the valve and its seat. This prevents leakage of combustion gases, maximizing compression and power output.
• Optimized Airflow: The angles and surfaces of the valve seats are precisely cut to guide airflow into and out of the combustion chamber. This optimization is crucial for achieving the benefits of porting.
• Enhanced Engine Efficiency: By improving both sealing and airflow, a proper valve job contributes to more efficient combustion, leading to better fuel economy and reduced emissions.

Cutting Valve Seats and Matching Valves

The process of cutting valve seats and matching them to the valves is a meticulous process. It involves specialized tools and a high degree of precision to ensure optimal sealing and airflow characteristics.The process typically involves the following steps:

1. Inspection and Preparation: The cylinder head is thoroughly cleaned and inspected for any damage or wear. The valve guides are checked for proper fit and alignment.
2. Seat Cutting: Using specialized cutting tools, the valve seats are cut to the correct angles. This is usually done with a multi-angle cutter, which allows for precise control over the angles and widths of the seat surfaces.
3. Valve Lapping (Optional but Recommended): After cutting, the valves are often lapped into the seats using a lapping compound. This ensures a perfect seal between the valve and the seat.
4. Valve Measurement: The valve’s contact area on the seat is measured and adjusted to achieve optimal contact width.
5. Valve and Seat Matching: The valve is matched to the newly cut seat, ensuring a concentric and airtight seal.

The selection of cutting angles is a crucial decision, directly influencing airflow characteristics. A common example involves a three-angle valve job, where the seat is cut at three different angles.

Valve Seat Angles and Airflow

The angles of the valve seats play a significant role in directing and controlling airflow. Different angles affect the way air flows into and out of the combustion chamber.

• Top Angle: The top angle, often at 30-45 degrees, helps to transition the airflow from the port into the combustion chamber. This angle aids in directing the airflow around the valve head.
• Middle Angle: The middle angle, often around 45 degrees, is the primary sealing surface. This is where the valve makes contact with the seat.
• Bottom Angle: The bottom angle, often at 60-75 degrees, helps to improve airflow as the air exits the combustion chamber, preventing flow separation.

The relationship between these angles and airflow is complex, but the basic principle is that the angles must work together to create a smooth, unrestricted flow path. For example:

A narrower seat width (the contact area between the valve and seat) can improve airflow at higher valve lifts, while a wider seat width can improve sealing at lower valve lifts.

The optimal angles and seat widths depend on several factors, including the valve size, port design, and intended engine application.

Surface Finish and Polishing

The surface finish of a cylinder head port plays a critical role in its overall performance. While the shape and size of the port are fundamental, the texture of the surface directly impacts airflow characteristics, influencing both volumetric efficiency and power output. Understanding how to manage surface finish is, therefore, a crucial aspect of successful cylinder head porting. This section will delve into the effects of surface finish, explore methods for achieving desired textures, and weigh the benefits and drawbacks of different approaches.

Impact of Surface Finish on Airflow

The surface finish within a cylinder head port significantly affects airflow dynamics. A rough surface creates turbulence and friction, impeding airflow and reducing the efficiency of the port. Conversely, a smoother surface minimizes these disruptions, allowing for more laminar (smooth) flow. The ideal surface finish is a balance, as excessively smooth surfaces can also create issues.

• Rough Surfaces: These surfaces generate significant friction, causing the air to slow down. The increased turbulence also disrupts the smooth flow, increasing the resistance to airflow. This is particularly detrimental in areas where the airflow needs to remain consistent, such as the short-side radius.
• Smooth Surfaces: A very smooth finish can reduce friction and promote laminar flow. However, extremely smooth surfaces can also lead to boundary layer separation, where the air detaches from the port walls, creating dead spots and reducing overall flow efficiency.
• Optimal Surface Finish: The goal is to achieve a surface that minimizes friction without encouraging boundary layer separation. This often involves a slightly textured surface that helps to maintain a stable boundary layer, preventing flow separation and promoting efficient airflow. The optimal texture depends on the specific port design, airflow velocity, and the intended application of the engine.

Methods for Achieving the Desired Surface Finish

Achieving the desired surface finish involves a variety of techniques, ranging from abrasive grinding to polishing. The choice of method depends on the initial condition of the port, the desired level of smoothness, and the materials involved.

• Abrasive Grinding: This is the initial step for many porting projects. It involves using grinding stones or burrs to remove material and shape the port. The grit size of the abrasive determines the initial surface finish. Coarser grits remove material quickly but leave a rougher finish, while finer grits provide a smoother finish but require more time.
• Sanding: After grinding, sanding is used to refine the surface finish. Various grades of sandpaper, from coarse to fine, are used to progressively smooth the surface. This process removes the scratches left by the grinding stones and prepares the surface for polishing.
• Polishing: Polishing involves using abrasive compounds and polishing tools to achieve a mirror-like finish. Polishing compounds come in various grades, from coarse to fine, and are applied using buffing wheels or polishing pads. This process reduces friction and enhances airflow.
• Bead Blasting: Bead blasting is another method used to achieve a consistent surface finish. It involves using compressed air to propel small glass beads against the port surfaces. This process can be used to remove surface imperfections and create a uniform texture.

Polishing versus Textured Surfaces

The debate between polishing and creating textured surfaces within the ports is ongoing. Both approaches have their advantages and disadvantages, and the best choice depends on the specific application and goals.

• Polishing Pros: Polishing significantly reduces friction, promoting smoother airflow and potentially increasing horsepower. A highly polished surface is also easier to clean and maintain.
• Polishing Cons: As mentioned earlier, overly polished surfaces can lead to boundary layer separation, reducing airflow efficiency. Polishing can also be time-consuming and labor-intensive. Additionally, the highly polished surface may not be ideal for all applications, particularly those where fuel atomization is important.
• Textured Surfaces Pros: A slightly textured surface can help to maintain a stable boundary layer, preventing flow separation and promoting better airflow, especially at lower velocities. Texturing can also improve fuel atomization by providing more surface area for the fuel to mix with the air.
• Textured Surfaces Cons: Textured surfaces increase friction compared to polished surfaces, which can reduce airflow efficiency, especially at higher velocities. Achieving the correct texture can be challenging and may require specialized tools or techniques.
• Example: Consider a high-performance race engine versus a street engine. In a race engine, where high airflow velocities are the norm, a highly polished surface may be preferred to minimize friction. In a street engine, a slightly textured surface might be more beneficial, providing good airflow characteristics at lower speeds and potentially improving fuel economy and drivability.

Testing and Evaluation

The ultimate goal of cylinder head porting is to improve engine performance. This improvement is achieved by enhancing airflow through the cylinder head. However, the effectiveness of porting work cannot be judged solely by visual inspection. Rigorous testing and evaluation are essential to quantify the gains made and ensure the porting work aligns with the intended engine application. This section delves into the critical aspects of testing and evaluating ported cylinder heads.

Testing the Effectiveness of Porting

Evaluating the effectiveness of porting involves a multi-faceted approach. Several methods are employed to assess the impact of porting on airflow and overall engine performance.

• Flow Bench Testing: This is the most common and crucial method. A flow bench measures the volume of air a cylinder head can flow at a specific pressure drop (typically measured in inches of water). This data provides a direct comparison of airflow before and after porting.
• Dyno Testing: After porting, the cylinder head is installed on an engine, and the engine is run on a dynamometer. This measures the engine’s power output (horsepower and torque) across the engine’s RPM range. Dyno testing provides real-world performance data.
• Volumetric Efficiency Testing: Volumetric efficiency (VE) is a measure of how effectively an engine fills its cylinders with air. Improved airflow from porting will increase VE. VE can be calculated using various methods, including measuring the mass of air entering the engine and comparing it to the theoretical maximum.
• Track Testing: In some cases, particularly for racing applications, the ultimate test is on the track. Lap times and acceleration figures can be used to assess the impact of porting on overall vehicle performance.

Methods for Measuring Airflow Using a Flow Bench

A flow bench is a specialized piece of equipment designed to measure the airflow capacity of cylinder heads. It works by creating a controlled pressure drop across the cylinder head and measuring the airflow rate.

The basic components of a flow bench include:

• Air Source: A powerful blower or vacuum pump provides a consistent airflow.
• Flow Meter: This measures the volume of air flowing through the cylinder head, typically in cubic feet per minute (CFM).
• Pressure Measurement Devices: Manometers or pressure transducers measure the pressure drop across the cylinder head. This is usually measured in inches of water.
• Cylinder Head Mounting Fixture: This holds the cylinder head securely and allows for precise positioning.
• Software/Data Acquisition System: Modern flow benches often use computer software to control the testing process, record data, and generate reports.

The testing procedure typically involves the following steps:

1. Preparation: The cylinder head is cleaned and mounted on the flow bench. The valve springs and valves are installed.
2. Pressure Setting: A specific pressure drop (e.g., 28 inches of water) is set. This pressure is chosen as a standard benchmark for comparison.
3. Flow Measurement: Airflow is measured through the intake and exhaust ports at various valve lift heights. The valve lift is typically increased in small increments (e.g., 0.100 inch) to create a flow curve.
4. Data Recording: The airflow data (CFM) at each valve lift height is recorded.
5. Analysis: The collected data is analyzed to create flow charts, comparing the flow rates of different ports or different cylinder heads.

Interpreting Flow Bench Data and Its Impact on Engine Performance

Flow bench data is presented in the form of flow curves, which graphically represent the airflow (CFM) at various valve lift heights. Analyzing this data is crucial for understanding the impact of porting on engine performance. The flow bench data provides key insights into how the porting work has improved or altered the airflow characteristics.

The interpretation of flow bench data focuses on several key parameters:

• Peak Flow: This is the maximum CFM value achieved by the port. Higher peak flow generally indicates a greater potential for power output.
• Flow at Low Lift: This is the airflow at low valve lift heights (e.g., 0.100 – 0.300 inch). This is critical for engine performance at low to mid-range RPMs. Improving flow in this area can enhance throttle response and drivability.
• Flow Curve Shape: The shape of the flow curve reveals the airflow characteristics across the valve lift range. A smooth, consistent curve is desirable, indicating efficient airflow. Any abrupt changes or dips in the curve can signal restrictions or turbulence.
• Flow Balance: This refers to the consistency of airflow between all intake or exhaust ports. Ensuring that all ports flow similarly is important for even cylinder filling and optimal engine performance.

Data Analysis Summary:

• Increased Peak Flow: Generally leads to higher horsepower at the engine’s peak power RPM.
• Improved Low-Lift Flow: Results in improved throttle response, increased torque at lower RPMs, and better drivability.
• Smoother Flow Curve: Indicates efficient airflow and reduces the potential for turbulence and power losses.
• Balanced Port Flow: Ensures even cylinder filling, leading to more consistent combustion and improved overall engine performance.

For example, a port that exhibits significantly higher peak flow compared to the original port would be expected to generate more power at higher engine speeds. Conversely, a port with improved flow at low valve lifts will translate to better throttle response and increased torque in the lower RPM ranges. In a real-world scenario, a racer might observe that after porting and flow bench testing, the engine pulls harder out of corners, which would be a direct consequence of the improved low-lift flow.

The dyno charts will then confirm these results.

Cost and Budgeting

Cylinder head porting can significantly enhance engine performance, but it’s an investment that requires careful financial planning. Understanding the costs involved and how to budget effectively is crucial to achieving your performance goals without breaking the bank. This section will delve into the various cost components, budgeting strategies, and tips for finding reputable services to ensure a successful porting project.

Cost Breakdown for Cylinder Head Porting

The cost of cylinder head porting is not a fixed number and can vary widely based on several factors. A comprehensive understanding of these cost components allows for a more realistic budget.The main components that influence the total cost of porting include:

• Labor: This is typically the most significant cost. Labor rates vary based on the experience and reputation of the porter, the complexity of the porting job, and the region. Hourly rates can range from $75 to $200+ per hour. A typical street port can take anywhere from 8 to 20 hours of labor, depending on the cylinder head and the desired level of modification.

  A race port can require even more time.

• Materials: These costs are relatively minor compared to labor but should be factored in. Materials include:
  • Grinding stones and bits: Used to remove material.
  • Polishing compounds and abrasive pads: Used to smooth the surfaces.
  • Valve seat cutters and tooling: Used for valve seat work.
  • Gaskets and seals: These are often replaced during the porting process.
• Valve Job: This involves cutting the valve seats and lapping the valves to ensure a perfect seal. It’s often included in the porting service, but if not, it will be an additional cost. Valve jobs typically range from $100 to $500 depending on the number of valves and the complexity.
• Flow Bench Testing: This allows the porter to measure the airflow before and after porting. It helps to quantify the improvements. Flow bench testing can add $50 to $200 per head, but it is highly recommended.
• Cylinder Head Purchase (If Applicable): If you are providing a used cylinder head for porting, the price will depend on the head’s condition and type. The purchase of a new cylinder head can cost anywhere from a few hundred dollars to several thousand, depending on the engine type and features.
• Shipping: The cost to ship the cylinder head to and from the porting shop needs to be factored into the overall budget. This depends on the weight, dimensions, and distance.

Budgeting for Porting Based on Desired Performance

The level of porting directly impacts the cost and the performance gains. Budgeting should be aligned with the intended use of the engine and the performance goals.

• Street Port: This is a moderate porting job that focuses on improving airflow for street driving and occasional performance use. The cost typically ranges from $500 to $1500, including labor, materials, and a valve job. It often provides a noticeable increase in horsepower and torque.
• Performance Port: This is a more aggressive porting job aimed at higher performance applications, such as autocross or track days. The cost can range from $1000 to $3000 or more, depending on the complexity and the extent of modifications. This level of porting usually involves more extensive material removal and reshaping.
• Race Port: This is the most extensive porting, designed for maximum airflow and horsepower in racing applications. The cost can be $2000 to $5000+ or more, often including custom valve seat profiles, and extensive work on the combustion chambers.

Consider these examples to illustrate the relationship between the level of porting and the performance gains. A street port on a Honda Civic’s cylinder head might yield a 10-15 horsepower gain, while a race port on the same head could result in a 25-35 horsepower increase, but at a significantly higher cost. This reinforces the need to align the budget with the performance goals.

Tips on Finding Reputable Porting Services

Choosing the right porting service is critical for achieving the desired results. Due diligence is essential to avoid costly mistakes and ensure quality workmanship.

• Research and Reviews: Search online forums, social media groups, and review websites for recommendations and feedback on porting services. Look for shops with a proven track record and positive customer reviews.
• Portfolio and Examples: Ask to see examples of their work. A reputable shop should be able to provide photos or videos of ported cylinder heads, demonstrating their craftsmanship and the results they have achieved.
• Communication and Consultation: Contact the shop and discuss your specific needs and goals. A good porter will be willing to answer your questions, explain their process, and offer advice. They should also understand your engine’s application and provide realistic expectations.
• Flow Bench Data: Confirm that the shop uses a flow bench and provides flow data before and after porting. This data is essential for quantifying the improvements and ensuring that the work meets your expectations.
• References: Ask for references from previous customers. Contacting these references can provide valuable insights into the shop’s quality of work, customer service, and overall professionalism.
• Warranty: Inquire about the shop’s warranty on their work. A warranty demonstrates the shop’s confidence in their craftsmanship and provides peace of mind.

Final Conclusion

In essence, cylinder head porting is a fascinating blend of art and science, demanding both precision and an understanding of airflow dynamics. From the careful selection of tools and materials to the intricate techniques employed, each step contributes to the ultimate goal: a more powerful and efficient engine. The journey from a raw casting to a finely tuned cylinder head is a testament to human ingenuity and a passion for performance.

By mastering the principles and techniques of porting, enthusiasts can truly breathe new life into their engines, transforming the ordinary into the extraordinary.

Frequently Asked Questions

What is the primary benefit of cylinder head porting?

The primary benefit is increased engine horsepower and torque by improving the engine’s ability to breathe, allowing more air and fuel into the cylinders and exhaust gases out.

Does porting always increase engine power?

Yes, in most cases. However, the gains depend on the quality of the porting job and the overall engine setup. Poorly executed porting can actually reduce performance.

Is cylinder head porting expensive?

The cost varies depending on the type of porting (hand vs. CNC), the complexity of the cylinder head, and the shop’s labor rates. However, the cost is often justifiable due to the performance gains.

Can I port my own cylinder head?

Yes, with the right tools, knowledge, and patience. However, it’s a skill that takes practice. Beginners should start with simple techniques and gradually advance.

What tools do I absolutely need to port a cylinder head?

Essential tools include a die grinder, various grinding stones, a porting kit, safety glasses, and a good light source. Experience and proper training are also key.

Will porting affect my engine’s reliability?

Properly executed porting should not negatively impact reliability. In fact, by improving airflow and reducing stress, it can sometimes improve longevity.
