What is Cisco IOS Software Your Networks Soul

What is Cisco IOS software, the very essence that breathes life into the veins of modern networking. It is not merely code, but the guiding spirit, the consciousness that orchestrates the intricate dance of data across vast digital landscapes. Embark on a journey of profound understanding as we unveil the secrets of this vital operating system, revealing its profound impact and transformative power.

At its core, Cisco IOS software is the foundational operating system that empowers a wide array of Cisco networking hardware, from the smallest routers to the most complex switches. Its primary role is to enable these devices to perform their critical functions, acting as the central nervous system that directs traffic, enforces policies, and ensures the seamless flow of information.

The main objectives and functions of this powerful OS revolve around facilitating connectivity, maintaining network integrity, and providing the intelligence necessary for sophisticated network operations.

Core Definition and Purpose: What Is Cisco Ios Software

At its heart, Cisco IOS software is the sophisticated operating system that powers a vast array of Cisco networking hardware. Think of it as the brain and nervous system of your routers, switches, and other critical network devices, enabling them to perform their essential functions with remarkable efficiency and reliability. It’s the invisible hand that orchestrates the flow of data across your network, ensuring seamless communication and connectivity.The primary role of Cisco IOS software is to provide a robust and flexible platform for network device operation.

It’s designed to manage the intricate processes involved in routing, switching, security, and management, making complex network tasks accessible and controllable. Its main objectives revolve around delivering high performance, enabling advanced network services, and ensuring the security and stability of the entire network infrastructure.

The Foundation of Network Intelligence

Cisco IOS software is fundamentally a network operating system. It’s not just a piece of software; it’s the intelligent core that allows network devices to understand and process network traffic. This operating system provides the essential command-line interface (CLI) and other management interfaces that network administrators use to configure, monitor, and troubleshoot their devices. Without this intelligent layer, even the most advanced hardware would be inert, incapable of directing a single packet of data.

Key Functions and Objectives

The core purpose of Cisco IOS software is to facilitate efficient and secure data transmission across networks. This overarching goal is achieved through a multitude of specific functions and objectives that are critical for modern network operations.The main objectives of Cisco IOS software include:

• Enabling Connectivity: Providing the protocols and processes necessary for devices to connect and communicate with each other, forming the backbone of any network.
• Facilitating Data Flow: Managing the intricate pathways and decisions required to route and switch data packets from their source to their destination with speed and accuracy.
• Ensuring Network Services: Supporting a wide range of advanced services like quality of service (QoS) for prioritizing critical traffic, virtual private networks (VPNs) for secure remote access, and wireless networking capabilities.
• Maintaining Security: Implementing robust security features to protect the network from unauthorized access, threats, and data breaches.
• Providing Manageability: Offering comprehensive tools and interfaces for network administrators to configure, monitor, and maintain network devices effectively.

The operational objectives can be further understood by examining the core functions it performs:

Cisco IOS software is responsible for a broad spectrum of tasks that are indispensable for network functionality. These include:

• Routing: Determining the best paths for data packets to travel across interconnected networks. This involves complex algorithms and routing protocols like OSPF and BGP.
• Switching: Directing data frames within a local area network (LAN) based on MAC addresses, ensuring efficient communication between devices on the same network segment.
• Network Address Translation (NAT): Allowing multiple devices on a private network to share a single public IP address, conserving IP addresses and enhancing security.
• Quality of Service (QoS): Prioritizing different types of network traffic to ensure that critical applications, such as voice and video, receive the necessary bandwidth and low latency.
• Security Services: Implementing features like access control lists (ACLs), firewall capabilities, and encryption to safeguard network resources.

“Cisco IOS software is the indispensable operating system that transforms raw hardware into intelligent network infrastructure, enabling seamless and secure communication.”

Key Features and Capabilities

Cisco IOS software is the backbone of countless networks, a sophisticated operating system that empowers network devices with intelligence and agility. It’s more than just code; it’s the orchestrator of your network’s performance, security, and manageability, designed to keep your operations running seamlessly and securely. Its comprehensive feature set ensures that from the smallest branch office to the largest enterprise data center, your network can adapt and thrive.At its heart, Cisco IOS is engineered to provide a robust and versatile platform for network operations.

It’s this very versatility that makes it an indispensable tool for network professionals, offering a rich tapestry of functionalities that address the complex demands of modern networking environments.

Routing and Switching Excellence

Cisco IOS software is renowned for its advanced routing and switching capabilities, forming the bedrock of efficient and reliable network connectivity. These functionalities are meticulously crafted to ensure data flows swiftly and intelligently across your network infrastructure.The software supports a wide array of routing protocols, enabling dynamic path selection and optimal data forwarding. This includes:

• Interior Gateway Protocols (IGPs): Such as OSPF (Open Shortest Path First) and EIGRP (Enhanced Interior Gateway Routing Protocol), which efficiently manage routing within an autonomous system.
• Exterior Gateway Protocols (EGPs): Primarily BGP (Border Gateway Protocol), crucial for inter-domain routing and enabling global internet connectivity.
• Policy-Based Routing (PBR): Allowing administrators to influence routing decisions based on specific traffic characteristics, offering granular control over data paths.

In the realm of switching, Cisco IOS provides comprehensive Layer 2 functionalities. This includes:

• VLANs (Virtual Local Area Networks): Enabling network segmentation for improved security, performance, and broadcast domain control.
• Spanning Tree Protocol (STP) and its variants (RSTP, MSTP): Preventing network loops and ensuring redundant path availability without causing network instability.
• Link Aggregation Control Protocol (LACP): Bundling multiple physical links into a single logical link to increase bandwidth and provide link redundancy.

Inherent Security Functionalities

Security is not an afterthought with Cisco IOS; it’s woven into the very fabric of the software. These built-in security features are designed to protect your network from a myriad of threats, ensuring the integrity and confidentiality of your data.Key security functionalities include:

• Access Control Lists (ACLs): Powerful tools for filtering network traffic based on IP addresses, protocols, and ports, allowing administrators to define precisely what traffic is permitted or denied.
• Network Address Translation (NAT): Conserving public IP addresses and enhancing security by translating private IP addresses to public ones.
• Firewall Capabilities: Including stateful inspection and zone-based firewalls, providing robust defense against unauthorized access and malicious attacks.
• VPN (Virtual Private Network) Support: Enabling secure, encrypted connections over public networks, safeguarding sensitive data during transmission.
• Secure Shell (SSH) and Secure File Transfer Protocol (SFTP): Providing encrypted management access and file transfer capabilities, protecting credentials and data from eavesdropping.

The integrated security mechanisms work in concert to create a multi-layered defense, safeguarding your network’s critical assets.

Network Management and Monitoring Mechanisms

Effective management and vigilant monitoring are paramount for a healthy and efficient network. Cisco IOS software offers a suite of tools and protocols to provide deep visibility and granular control over your network infrastructure.These mechanisms are designed to simplify complex network operations and enable proactive problem-solving:

• SNMP (Simple Network Management Protocol): A ubiquitous standard for collecting information about managed network devices and for modifying that information. This allows for centralized monitoring and management of network health and performance.
• Syslog: A protocol that enables network devices to send log messages to a central server, providing a historical record of events and aiding in troubleshooting.
• NetFlow: A powerful technology for collecting IP traffic information as it enters or exits an interface. NetFlow data provides insights into network traffic patterns, enabling capacity planning, security analysis, and troubleshooting.
• Configuration Management: Cisco IOS allows for straightforward configuration management through command-line interface (CLI) commands, as well as more advanced methods like configuration rollback and automated configuration deployment.
• Troubleshooting Tools: Built-in commands like `ping`, `traceroute`, and `show` commands provide essential diagnostics for identifying and resolving network issues quickly.

These capabilities empower network administrators to maintain optimal network performance, identify potential issues before they impact users, and ensure the overall stability and security of the network.

Versions and Evolution

The journey of Cisco IOS software is a fascinating narrative of continuous innovation, mirroring the ever-accelerating demands of network infrastructure. From its humble beginnings, it has blossomed into the sophisticated operating system that powers a vast array of Cisco devices, enabling the very fabric of modern connectivity. This evolution is not merely about adding new features; it’s about refining performance, enhancing security, and adapting to the dynamic landscape of networking technologies.Delving into the versions and their evolutionary path reveals a strategic approach to meeting diverse customer needs and technological advancements.

Cisco has consistently provided pathways for users to leverage new capabilities while maintaining backward compatibility where possible, ensuring a smooth transition and maximizing the value of existing investments.

A Brief History of Cisco IOS Software Development

The genesis of Cisco IOS software can be traced back to the early days of networking, where basic routing and switching functionalities were paramount. Initially, the focus was on creating a stable and reliable operating system to manage Cisco’s pioneering router hardware. As the internet grew and networking became more complex, the software had to keep pace, evolving from a relatively simple command-line interface (CLI) driven system to a feature-rich platform supporting advanced protocols, security measures, and management capabilities.

This historical trajectory showcases Cisco’s commitment to leading the networking industry through consistent software development and adaptation.

Major Cisco IOS Software Version Comparisons and Key Advancements

Over the years, Cisco IOS has seen significant releases, each building upon the strengths of its predecessors and introducing groundbreaking features. These versions are not just incremental updates; they represent pivotal moments in networking technology.Here’s a look at some key advancements across major IOS versions:

• Early Versions (e.g., IOS 10.x, 11.x): These laid the foundational elements of network device management, introducing core routing protocols like RIP and OSPF, basic security features, and essential CLI commands.
• IOS 12.x Family: This was a monumental era for Cisco IOS, characterized by extensive feature development and broad device support. It introduced advancements in QoS (Quality of Service), enhanced security protocols like IPsec, support for MPLS (Multiprotocol Label Switching), and robust IPv6 capabilities, making it the workhorse for a generation of network engineers.
• IOS XE: Representing a significant architectural shift, IOS XE introduced a modular, service-oriented architecture. This allows for more flexible software deployment, independent process operation, and easier upgrades without requiring a full system reboot. Key advancements include improved stability, better resource management, and the ability to run applications and services more dynamically on network devices.
• IOS XR: Designed for carrier-grade, high-availability environments, IOS XR is built on a microkernel architecture for maximum uptime and scalability. Its focus is on programmability, automation, and fault isolation, crucial for large-scale service provider networks. Features like non-stop forwarding and hitless software upgrades are hallmarks of this version.
• IOS 15.x: This generation continued to refine and integrate features from previous versions, offering a comprehensive suite of networking capabilities for enterprise and service provider deployments, with a strong emphasis on security and performance optimization.

The Significance of Different IOS Feature Sets

Cisco offers various IOS feature sets tailored to different network requirements and device capabilities. These sets determine the range of functionalities available on a particular device, allowing customers to purchase the exact level of performance and features they need.

Understanding these feature sets is crucial for selecting the right hardware and software for your network:

• IP Base: This is a foundational feature set, providing essential IP routing and switching functionalities. It’s ideal for smaller networks or devices that primarily handle basic connectivity and routing. It typically includes support for static routing, RIP, OSPF, EIGRP, and basic ACLs (Access Control Lists).
• IP Services: This advanced feature set builds upon IP Base, offering a more comprehensive range of capabilities. It includes all features of IP Base, plus advanced routing protocols like BGP (Border Gateway Protocol), enhanced QoS features, multicast routing, and more sophisticated security options. This is suitable for more complex enterprise networks and service provider edge devices.
• Enterprise Services: This feature set is designed for demanding enterprise environments, often including advanced features for WAN connectivity, VoIP support, and comprehensive security services.
• Advanced IP Services: This is often the most feature-rich set, catering to complex service provider requirements, including advanced MPLS VPNs, traffic engineering, and highly scalable routing capabilities.

The right IOS feature set ensures optimal performance, security, and cost-effectiveness for your network infrastructure.

Timeline of Significant Cisco IOS Software Releases

Charting the evolution of Cisco IOS through a timeline provides a clear perspective on its development and the technological shifts it has accompanied.

1. Late 1980s: Initial development and release of Cisco IOS, focusing on core routing functions for early Cisco routers.
2. 1990s: The IOS 11.x and 12.x families emerge, introducing widespread support for advanced routing protocols, ISDN, and early security features. IOS 12.0, released in 1998, became a cornerstone for many years, supporting a vast array of hardware.
3. Early 2000s: Continued enhancements to the IOS 12.x train, with a strong focus on security (e.g., zone-based firewalls, VPNs) and Quality of Service (QoS) for the burgeoning internet traffic. IPv6 support begins to mature.
4. Mid-2000s: Introduction of IOS XE, marking a significant architectural evolution towards modularity and improved stability for enterprise-class devices.
5. Late 2000s/Early 2010s: IOS XR gains prominence for its carrier-grade reliability and scalability in service provider networks. IOS 15.x is released, consolidating and enhancing features.
6. 2010s Onwards: Continued development of IOS XE and IOS XR, with increasing emphasis on programmability, automation, NETCONF/YANG, and integration with cloud and SDN (Software-Defined Networking) solutions. Cisco also introduces newer platforms and software paradigms to address the evolving needs of data centers, campus networks, and the edge.

Line Interface (CLI) Interaction

Embarking on the journey of network management with Cisco IOS is akin to learning a powerful new language, and the Command Line Interface (CLI) is your gateway to mastering it. It’s where raw power meets elegant simplicity, allowing seasoned engineers and budding enthusiasts alike to sculpt the behavior of sophisticated network devices with precision and efficiency. Forget the mouse; in the world of Cisco IOS, your keyboard is your wand, and the CLI is your incantation.The Cisco IOS CLI is a text-based interface that provides direct access to the device’s operating system and its extensive feature set.

It’s designed for speed, flexibility, and the ability to automate complex tasks. Through a series of commands, you can configure interfaces, manage routing protocols, monitor network traffic, and troubleshoot issues, all in real-time. Understanding the structure and syntax of these commands is fundamental to unlocking the full potential of your Cisco network infrastructure.

Command Structure and Syntax

The elegance of the Cisco IOS CLI lies in its structured approach to command entry. Each command is a carefully crafted instruction, composed of s, arguments, and options that, when combined, instruct the device to perform a specific action. Mastering this structure is key to navigating the system effectively.The general syntax of a Cisco IOS command follows a pattern:

[mode] command [options] [arguments]

Understanding the different modes is crucial. Cisco IOS operates in various modes, each with its own set of available commands. The most fundamental modes are User EXEC mode and Privileged EXEC mode.

User EXEC Mode

This is the initial mode you enter when you connect to a Cisco device. It’s a restricted environment, primarily used for basic monitoring and viewing of the device’s status. You’ll typically see a prompt ending with a greater-than sign (>), such as `Router>`.In User EXEC mode, you can perform tasks like:

• Checking the device’s uptime.
• Viewing the running configuration.
• Monitoring interface status.

Privileged EXEC Mode

To unlock the full power of Cisco IOS and perform configuration changes, you need to enter Privileged EXEC mode. This mode grants you access to a much wider range of commands, including those for configuration, saving settings, and troubleshooting. You can enter this mode from User EXEC mode by typing the `enable` command. The prompt typically changes to end with a hash sign (#), for example, `Router#`.Privileged EXEC mode allows for:

• Entering configuration modes.
• Saving the running configuration to startup configuration.
• Reloading the device.
• Performing advanced troubleshooting commands.

Common Cisco IOS CLI Commands for Basic Configuration

Let’s explore some essential CLI commands that form the building blocks of network configuration. These commands, when used in the correct sequence and within the appropriate modes, allow you to bring a network device to life.To begin configuring, you typically enter global configuration mode from Privileged EXEC mode. This is done by typing `configure terminal` (or its abbreviation `conf t`).

The prompt will change to indicate you are in global configuration mode, often appearing as `Router(config)#`.Here are some fundamental commands you’ll frequently use:

• `interface `: This command is used to enter interface configuration mode, allowing you to configure specific network interfaces. For example, `interface GigabitEthernet0/1`.
• `ip address `: Assigns an IP address and subnet mask to an interface. For instance, `ip address 192.168.1.1 255.255.255.0`.
• `no shutdown`: This command enables a disabled interface. Interfaces are often shut down by default for security or during initial setup.
• `description `: Adds a descriptive label to an interface, making it easier to identify its purpose. For example, `description Link to Server Farm`.
• `hostname `: Sets the hostname of the device. This is crucial for identifying devices in a network.
• `exit`: Used to exit the current configuration mode and return to the previous one.
• `end`: Exits all configuration modes and returns directly to Privileged EXEC mode.
• `copy running-config startup-config` (or `write memory` or `wr`): Saves the current running configuration to the startup configuration, ensuring your changes persist after a reboot.

Sample Configuration Snippet for a Simple Network Setup

Imagine you have a small office network with a Cisco router and you want to configure its main interface to connect to your local network. Here’s how you might do it using the CLI:First, access the router and enter Privileged EXEC mode:

Router> enable
Router#


Next, enter global configuration mode:

Router# configure terminal
Enter configuration commands, one per line. End with CNTL/Z.
Router(config)#


Now, let’s configure the GigabitEthernet0/0 interface:

Router(config)# interface GigabitEthernet0/0
Router(config-if)# description LAN Connection
Router(config-if)# ip address 192.168.10.1 255.255.255.0
Router(config-if)# no shutdown
Router(config-if)# exit


Finally, exit configuration mode and save your changes:

Router(config)# end
Router# copy running-config startup-config
Destination filename [startup-config]?
Building configuration...
[OK]
Router#


This simple snippet demonstrates how you can quickly and effectively configure a network interface, making it ready to serve your local network.

Structure of Cisco IOS Commands and Their Syntax

The power and flexibility of Cisco IOS commands are rooted in their logical structure and consistent syntax. This design allows for both intuitive command entry and the ability to build complex configurations by combining basic elements.

Cisco IOS commands can be broadly categorized into:

• s: These are fixed words that define the command’s action, such as `interface`, `ip`, `address`, `enable`, `configure`.
• Arguments: These are variable values that provide specific information to the command, such as an IP address (`192.168.1.1`), a subnet mask (`255.255.255.0`), or an interface name (`GigabitEthernet0/1`).
• Options/Parameters: These are optional modifiers that further refine a command’s behavior. They often start with a hyphen or are specific s that alter the default action. For example, in `copy running-config startup-config`, `running-config` and `startup-config` act as parameters.

The hierarchy of modes is fundamental to understanding command syntax. You cannot execute an interface-specific command, like `ip address`, while in global configuration mode. You must first enter the interface configuration mode using the `interface` command. This hierarchical structure ensures that commands are applied in the correct context, preventing unintended configurations.

The IOS CLI also offers powerful help features. Typing a question mark (`?`) after a command or at a prompt will display a list of available commands or s, and typing a question mark after a partial command will show possible completions. This is an invaluable tool for learning and for quickly recalling command syntax.

Hardware Compatibility and Support

Cisco IOS software is the lifeblood of countless Cisco networking devices, but its magic truly unfolds when it harmoniously integrates with the underlying hardware. This symbiotic relationship ensures that your network infrastructure performs at its peak, offering reliability and robust functionality. Let’s delve into how this crucial compatibility is achieved and maintained.

The breadth of Cisco’s hardware portfolio is truly impressive, and Cisco IOS software is designed to be the universal language spoken across this diverse ecosystem. From the compact routers gracing small businesses to the colossal chassis powering global enterprises and data centers, Cisco IOS is engineered to adapt and thrive. This adaptability is a testament to Cisco’s commitment to providing a consistent and powerful operating system experience, regardless of the specific device.

Hardware Architectures and IOS Adaptation

Cisco IOS software isn’t a monolithic entity; it’s a sophisticated system meticulously crafted to perform optimally on a wide array of hardware architectures. This adaptation is achieved through a combination of modular design principles and platform-specific drivers. Think of it like a master conductor leading a symphony – the core musical score (IOS) remains the same, but the instruments (hardware) and their unique characteristics are expertly managed to produce a harmonious performance.

The IOS kernel is designed to be hardware-agnostic at its core, interacting with the underlying hardware through well-defined interfaces. For each specific hardware platform, Cisco develops specialized components, often referred to as Hardware Abstraction Layers (HALs) or platform-specific code. These components act as translators, allowing the generic IOS features to leverage the unique capabilities of the particular CPU, memory, ASIC (Application-Specific Integrated Circuit), and I/O interfaces of the device.

This meticulous tailoring ensures that every feature, from basic packet forwarding to advanced security services, is executed with maximum efficiency and performance tailored to the hardware’s strengths.

Checking Cisco IOS Software Compatibility

Ensuring that you have the right Cisco IOS software version for your specific device is paramount for optimal performance and security. Cisco provides comprehensive resources to make this process straightforward and transparent. Navigating these resources empowers you to make informed decisions and avoid potential pitfalls.

To verify compatibility, the primary and most reliable method is to consult the official Cisco documentation. This typically involves:

• Cisco Feature Navigator: This powerful online tool allows you to select a specific Cisco hardware model and then view which IOS software versions support a particular set of features. It’s an indispensable resource for planning upgrades or deployments.
• Product Data Sheets: Each Cisco hardware product has a detailed data sheet that specifies the recommended and supported IOS software versions. These are readily available on the Cisco website.
• Release Notes: The release notes for each IOS software version provide detailed information about the hardware platforms it supports, along with any known issues or limitations.

It’s always recommended to cross-reference information from multiple sources to ensure accuracy, especially when dealing with complex network designs or critical infrastructure.

Implications of Using Unsupported Cisco IOS Software

Venturing into the realm of unsupported Cisco IOS software on your hardware is akin to driving a high-performance vehicle with outdated and unverified parts – the risks can be substantial and the consequences far-reaching. While a device might technically boot with an incompatible IOS version, the operational integrity and security of your network are severely compromised.

The implications are multifaceted and can lead to significant disruptions:

• Security Vulnerabilities: Unsupported IOS versions often contain known security flaws that have been patched in later releases. Running these versions leaves your network exposed to exploits and cyber threats, potentially leading to data breaches and service outages.
• Performance Degradation: The software may not be optimized for the specific hardware architecture, leading to inefficient resource utilization, packet drops, and reduced throughput. This can cripple the performance of critical network services.
• Lack of Feature Support: Advanced functionalities and new features that you might require for network evolution will simply not be available or will not function correctly on unsupported versions.
• No Vendor Support: Perhaps the most critical implication is the complete absence of technical support from Cisco. If you encounter issues, you’ll be on your own, facing prolonged downtime and costly troubleshooting.
• Instability and Unpredictability: Unsupported IOS versions are prone to unexpected behavior, crashes, and unpredictable network performance. This instability can be a constant source of frustration and can impact business operations.

In essence, using unsupported IOS software is a gamble that no responsible network administrator should take. It undermines the reliability, security, and longevity of your network investment. Cisco’s commitment to supporting its hardware with robust and evolving IOS versions is a cornerstone of its value proposition, and adhering to compatibility guidelines is key to unlocking that value.

Network Services and Protocols

Cisco IOS software is the intelligent heart of Cisco’s networking devices, orchestrating a symphony of services and protocols that make our digital world hum. It’s not just about moving data; it’s about moving it intelligently, efficiently, and securely. This section dives into the sophisticated mechanisms Cisco IOS employs to manage the complex landscape of network services and protocols, ensuring seamless communication and optimal performance.

At its core, Cisco IOS is designed to be the ultimate conductor of network traffic, supporting a vast array of protocols that enable devices to speak the same language and route information effectively. From the intricate dance of routing protocols to the essential functions of Layer 2, the software provides a robust platform for building and managing resilient networks.

Routing Protocols Supported by Cisco IOS Software, What is cisco ios software

Routing protocols are the navigational charts of the internet, guiding data packets to their intended destinations across complex networks. Cisco IOS software boasts comprehensive support for a wide spectrum of these critical protocols, ensuring that your network can efficiently and dynamically adapt to changing conditions.

Cisco IOS provides robust implementations of both interior gateway protocols (IGPs) and exterior gateway protocols (EGPs):

• Open Shortest Path First (OSPF): A highly efficient link-state routing protocol, OSPF is favored for its fast convergence and scalability within enterprise networks. It calculates the shortest path to each destination based on link costs, making it ideal for dynamic environments.
• Border Gateway Protocol (BGP): The de facto standard for inter-domain routing on the internet, BGP is crucial for connecting different autonomous systems. Cisco IOS supports BGP for path-vector routing, enabling sophisticated policy-based routing decisions and large-scale internet connectivity.
• Enhanced Interior Gateway Routing Protocol (EIGRP): A Cisco proprietary hybrid routing protocol, EIGRP combines the advantages of distance-vector and link-state routing. It offers rapid convergence, efficient bandwidth usage, and is well-suited for Cisco-centric networks.
• Routing Information Protocol (RIP): While less common in modern large-scale deployments due to its limitations, RIP (versions 1 and 2) is still supported for simpler or legacy network environments. It uses a distance-vector algorithm and hop count to determine the best path.

Function of Layer 2 Protocols Managed by Cisco IOS Software

While routing protocols handle the “where,” Layer 2 protocols manage the “how” of data delivery across a local network segment. Cisco IOS software is instrumental in managing these fundamental protocols, ensuring reliable and efficient communication at the data link layer.

The software meticulously manages several key Layer 2 protocols:

• VLANs (Virtual Local Area Networks): Cisco IOS enables the segmentation of a physical network into multiple logical broadcast domains. This enhances security, performance, and manageability by isolating traffic and reducing broadcast overhead.
• Spanning Tree Protocol (STP) and its variants (RSTP, MSTP): These protocols are vital for preventing network loops in switched Ethernet networks. Cisco IOS ensures that STP variants are correctly implemented to provide a loop-free topology, guaranteeing network stability.
• EtherChannel (Link Aggregation): This technology bundles multiple physical links into a single logical link, increasing bandwidth and providing redundancy. Cisco IOS configures and manages EtherChannels for improved performance and resilience.
• Port Security: To enhance network security, Cisco IOS allows administrators to control which MAC addresses are allowed to connect to a specific switch port, mitigating unauthorized access.

Implementation of Quality of Service (QoS) Features within Cisco IOS Software

In today’s network environments, where diverse applications compete for bandwidth, ensuring a superior user experience is paramount. Cisco IOS software provides a comprehensive suite of Quality of Service (QoS) features that allow administrators to prioritize, manage, and guarantee network performance for critical traffic.

Cisco IOS implements QoS through a layered approach:

• Classification: Identifying and categorizing network traffic based on various criteria such as IP address, port number, protocol type, or DSCP values.
• Marking: Assigning a priority or class of service to identified traffic, often using fields like DSCP (Differentiated Services Code Point) or IP Precedence.
• Queuing: Arranging traffic into different queues based on their priority, ensuring that high-priority traffic is processed before lower-priority traffic. Cisco IOS supports various queuing algorithms like Weighted Fair Queuing (WFQ), Class-Based Weighted Fair Queuing (CBWFQ), and Low Latency Queuing (LLQ).
• Congestion Avoidance: Employing mechanisms like Weighted Random Early Detection (WRED) to proactively drop packets during periods of congestion, preventing buffer exhaustion and improving overall network stability.
• Shaping and Policing: Controlling the rate of traffic. Shaping smooths out traffic bursts to conform to a defined rate, while policing drops or re-marks traffic that exceeds a defined rate.

A crucial aspect of QoS is the ability to prioritize voice and video traffic, ensuring low latency and jitter for real-time applications. For example, in a Voice over IP (VoIP) deployment, Cisco IOS can be configured to give voice packets the highest priority, ensuring clear conversations even under heavy network load.

“QoS is not about guaranteeing bandwidth; it’s about guaranteeing performance.”

Cisco IOS Software Facilitates Network Address Translation (NAT)

Network Address Translation (NAT) is a fundamental technology that enables private IP addresses within a local network to communicate with the public internet. Cisco IOS software provides flexible and powerful NAT capabilities, allowing for efficient IP address management and enhanced network security.

Cisco IOS supports various NAT configurations:

• Static NAT: A one-to-one mapping between a private IP address and a public IP address. This is often used for servers that need to be accessible from the internet.
• Dynamic NAT: A pool of public IP addresses is available to be assigned dynamically to private IP addresses as needed. This conserves public IP addresses by allowing multiple private devices to share a smaller pool of public addresses.
• Port Address Translation (PAT), also known as NAT Overload: This is the most common form of NAT, where multiple private IP addresses are translated to a single public IP address, using different port numbers to distinguish between sessions. This is incredibly effective for conserving public IP addresses.

The implementation of NAT within Cisco IOS allows organizations to effectively manage their IP address space, enhance security by hiding internal network structures, and seamlessly connect private networks to the global internet. For instance, a small business can use PAT on its Cisco router to allow all its employees to access the internet using a single public IP address, a common and highly effective practice.

Management and Configuration Methods

Mastering Cisco IOS software is akin to wielding a powerful conductor’s baton for your network. It’s not just about setting up devices; it’s about orchestrating their performance, ensuring seamless communication, and safeguarding your digital infrastructure. This section unveils the art and science behind managing and configuring this pivotal software, empowering you to sculpt your network with precision and confidence.

Cisco IOS software offers a rich tapestry of management and configuration methods, each designed to cater to different needs and expertise levels. From the foundational command-line interface to sophisticated automation tools, understanding these approaches is key to unlocking the full potential of your network devices. We’ll explore how to bring a new device to life, protect your vital settings, keep your software humming with the latest updates, and weigh the strengths of different interface types.

Initial Cisco IOS Software Configuration

Bringing a new Cisco IOS device online for the first time is an exciting moment, a chance to lay the groundwork for robust network performance. This initial configuration sets the stage for all subsequent operations and security measures. A systematic approach ensures that critical settings are established correctly from the outset, preventing potential issues down the line.

Here’s a step-by-step procedure to guide you through the initial configuration of a Cisco IOS device:

1. Connect to the Device: Establish a console connection to the device using a console cable and a terminal emulation program (like PuTTY, Tera Term, or SecureCRT).
2. Access User EXEC Mode: Upon powering on the device and completing its boot sequence, you will typically be presented with a prompt like `Router>` or `Switch>`. This is the User EXEC mode.
3. Enter Privileged EXEC Mode: To access configuration commands, you need to enter Privileged EXEC mode. Type `enable` and press Enter. You might be prompted for a password if one is set. The prompt will change to `Router#` or `Switch#`.
4. Enter Global Configuration Mode: From Privileged EXEC mode, type `configure terminal` and press Enter. This command takes you into Global Configuration mode, indicated by a prompt like `Router(config)#` or `Switch(config)#`.
5. Configure Hostname: Assign a unique and descriptive hostname to your device. This is crucial for identification in a network.


   `hostname MyNetworkRouter`

6. Set a Privileged EXEC Mode Password: Secure your Privileged EXEC mode access.


   `enable secret `

7. Configure Console and VTY Line Passwords: Protect access to the console port and virtual terminal lines (used for Telnet/SSH).


   `line console 0`
   `password `
   `login`
   `line vty 0 4`
   `password `
   `login`

   Note: For enhanced security, consider using SSH instead of Telnet for remote access.

8. Configure Basic IP Addressing (for routing or management): Assign an IP address and subnet mask to an interface.


   `interface GigabitEthernet0/1`
   `ip address 192.168.1.1 255.255.255.0`
   `no shutdown`

9. Save the Configuration: Crucially, save your running configuration to the startup configuration so it persists after a reboot.


   `copy running-config startup-config`

   Or, more concisely:

   `write memory`

Backup and Restoration of Cisco IOS Software Configurations

Safeguarding your network’s configuration is paramount. Unexpected events, hardware failures, or even human error can necessitate a swift restoration to a known good state. Regular backups of your Cisco IOS configurations act as your safety net, ensuring minimal downtime and rapid recovery.

The process of backing up and restoring configurations is straightforward, leveraging the device’s ability to save its current operational state and reload it later. This can be done manually or automated for greater efficiency.

To back up your configuration, you typically use the `copy running-config` command, directing the output to a remote server or a TFTP/FTP host. The inverse process, restoring, involves using the `copy tftp: running-config` or `copy ftp: running-config` command to load a saved configuration file from the remote host into the device’s active memory.

A common method for backup involves these steps:

1. Establish Connectivity: Ensure the Cisco IOS device can reach the TFTP or FTP server where you intend to store the backup.
2. Initiate the Backup: From Privileged EXEC mode, execute the copy command.


   `copy running-config tftp:`

   The device will prompt you for the IP address of the TFTP server and the filename for the backup.

3. Restore a Configuration: For restoration, you’ll need the backup file on a TFTP or FTP server.


   `copy tftp: running-config`

   The device will again prompt for the TFTP server’s IP address and the filename of the configuration to be restored.

It’s highly recommended to automate these backups using scripting or network management tools to ensure they are performed consistently and without manual intervention.

Upgrading Cisco IOS Software on Network Devices

Keeping your Cisco IOS software up-to-date is a critical aspect of network maintenance. Software upgrades bring performance enhancements, crucial security patches, and new features, all contributing to a more stable and secure network. Proactive upgrades can prevent vulnerabilities from being exploited and ensure your network is running at its peak efficiency.

The process of upgrading Cisco IOS software involves transferring a new IOS image file to the device and then configuring the device to boot from this new image. This is a carefully orchestrated procedure to minimize network disruption.

Here’s a detailed breakdown of the upgrade process:

1. Obtain the New IOS Image: Download the desired Cisco IOS software image from the Cisco Software Download site. Ensure you have the appropriate support contract.
2. Transfer the Image to the Device: Use TFTP, FTP, or SCP to copy the new IOS image file from a server to the device’s flash memory.


   `copy tftp: flash:`

   You will be prompted for the TFTP server’s IP address and the filename of the IOS image.

3. Verify the Image: Before proceeding, verify the integrity of the transferred image using a checksum.


   `verify /md5 flash:`

   Compare the calculated MD5 hash with the one provided by Cisco for the image.

4. Configure the Device to Boot the New Image: In global configuration mode, specify the new IOS image as the boot image.


   `boot system flash:`

5. Save the Configuration: Save the running configuration to the startup configuration.


   `write memory`

6. Reload the Device: Reboot the device to load the new IOS image.


   `reload`

7. Verify the Upgrade: After the device reboots, log in and verify that the new IOS version is running.


   `show version`

Always perform upgrades during scheduled maintenance windows to minimize any potential impact on network services. It’s also wise to test the new image in a lab environment before deploying it to production.

Command-Line Interface (CLI) versus Graphical User Interfaces (GUIs) for Managing Cisco IOS Software

The choice between the Command-Line Interface (CLI) and Graphical User Interfaces (GUIs) for managing Cisco IOS software presents a classic dichotomy in network administration. Both offer distinct advantages, and understanding their strengths allows administrators to select the most effective tool for a given task.

The CLI is the native and most powerful way to interact with Cisco IOS. It offers unparalleled flexibility, speed, and direct control over every aspect of the device’s functionality. For experienced network engineers, the CLI is often the preferred method due to its efficiency and the ability to script complex operations.

Graphical User Interfaces, on the other hand, provide a more intuitive and visual approach. They can simplify tasks for beginners and offer a quick overview of device status. While GUIs have improved significantly, they may not always expose the full depth of functionality available through the CLI.

Here’s a comparison of their advantages:

In practice, many network professionals utilize a hybrid approach, leveraging GUIs for quick status checks and initial setup, and resorting to the CLI for advanced configuration, troubleshooting, and automation. The CLI remains the undisputed king for deep control and operational efficiency in complex network environments.

Security Considerations

In the dynamic landscape of networking, safeguarding your infrastructure is paramount. Cisco IOS software, a robust operating system at the heart of countless networks, offers a sophisticated suite of security features designed to protect your valuable data and ensure uninterrupted operations. It’s not just about connecting devices; it’s about connecting them securely, building a fortress around your digital assets.

This section delves into the essential security mechanisms embedded within Cisco IOS, empowering you to implement a layered defense strategy. From granular access control to robust authentication, we’ll explore how to fortify your network against evolving threats and maintain the integrity of your operations.

Access Control Lists (ACLs)

Access Control Lists (ACLs) are the vigilant gatekeepers of your network, meticulously scrutinizing traffic to permit or deny access based on predefined criteria. Think of them as your network’s bouncers, checking IDs and ensuring only authorized individuals (or packets, in this case) get past the velvet rope. By defining specific rules, you can control the flow of traffic between network segments, applications, and even individual hosts, significantly reducing the attack surface.

ACLs operate by examining packet headers, including source and destination IP addresses, port numbers, and protocol types. They are applied to interfaces, dictating what traffic is allowed to enter or exit. This granular control is fundamental to implementing a zero-trust security model, where every access request is validated.

Here’s a glimpse into how ACLs can be structured:

• Standard ACLs: These are simpler and primarily filter traffic based on the source IP address. They are useful for basic segmentation and preventing access from known malicious sources.
• Extended ACLs: Offering much greater flexibility, extended ACLs can filter traffic based on a wider range of criteria, including source and destination IP addresses, source and destination port numbers, and the IP protocol type (TCP, UDP, ICMP, etc.). This allows for much more precise control over application-level access.
• Named ACLs: These provide a more user-friendly way to manage ACLs by assigning descriptive names instead of relying on numerical sequences. This enhances readability and simplifies configuration management, especially in large and complex networks.

Implementing ACLs effectively requires careful planning and a thorough understanding of your network traffic patterns. Misconfigured ACLs can inadvertently block legitimate traffic, causing disruptions, while overly permissive ACLs can leave your network vulnerable.

Secure Password Policies and Authentication Methods

The strength of your network security often begins with the most basic layer: user authentication. In Cisco IOS, implementing robust password policies and utilizing secure authentication methods are non-negotiable steps to prevent unauthorized access. Weak or easily guessable passwords are like leaving your front door wide open, inviting attackers to waltz right in.

A well-defined password policy dictates the characteristics of strong passwords, making them difficult to crack through brute-force attacks or dictionary guessing. This includes specifying minimum length requirements, the inclusion of uppercase and lowercase letters, numbers, and special characters, and enforcing regular password changes.

Beyond local passwords, Cisco IOS supports advanced authentication methods that significantly enhance security:

• Local Authentication: While basic, local authentication can be strengthened with strong password policies.
• RADIUS (Remote Authentication Dial-In User Service): RADIUS centralizes authentication, authorization, and accounting (AAA) services. This means user credentials are not stored locally on each device but are managed by a dedicated RADIUS server. This is crucial for maintaining consistent security policies across multiple devices and simplifies user management.
• TACACS+ (Terminal Access Controller Access-Control System Plus): Similar to RADIUS, TACACS+ also provides AAA services but operates at a lower network layer and offers more granular control over command authorization. It’s often preferred in environments requiring fine-grained access control for network administrators.
• SSH (Secure Shell): For remote management, always opt for SSH over Telnet. SSH encrypts the entire management session, protecting login credentials and transmitted commands from eavesdropping.

“A chain is only as strong as its weakest link.”

This adage is particularly relevant to network security. A single compromised administrator account can have devastating consequences. By enforcing strong password policies and leveraging secure authentication protocols, you create a formidable first line of defense.

Implementing Port Security

Port security is a powerful feature within Cisco IOS that allows you to control which MAC addresses are allowed to connect to a specific switch port. It’s like having a bouncer at the door of a private club, checking the membership card (MAC address) of everyone trying to enter. This is incredibly effective in preventing unauthorized devices from gaining network access, such as someone plugging in their personal laptop into an unused port on a switch.

The core principle of port security is to limit the number of MAC addresses that can be learned on a port and to define actions to be taken if a violation occurs. This provides a crucial layer of defense against MAC spoofing and unauthorized device connections.

The process of implementing port security involves several key steps:

1. Enable Port Security on the Interface: This is done using the `switchport port-security` command under the interface configuration mode.
2. Configure the Maximum Number of MAC Addresses: You can specify the maximum number of MAC addresses that are allowed to learn on the port. The default is usually one, but you can increase it if multiple devices are expected to connect to that port (e.g., a phone and a PC).
3. Define the Violation Action: This is a critical step that determines what happens when a port security violation occurs. Common actions include:
   • Shutdown: The port is administratively shut down, and traffic is blocked until an administrator manually re-enables it. This is the most secure option.
   • Restrict: The port remains active, but traffic from violating MAC addresses is dropped, and a log message is generated. The violation counter is incremented.
   • Protect: Similar to restrict, but no log message is generated, and the violation counter is not incremented. This is less secure as violations go unnoticed.
4. Configure MAC Address Learning: You can choose how MAC addresses are learned:
   • Static: Manually configure the allowed MAC addresses using the `switchport port-security mac-address ` command. This offers the highest level of security but requires significant administrative effort.
   • Dynamic: The switch learns MAC addresses dynamically as devices connect. These learned addresses are lost upon reboot unless saved.
   • Sticky: The switch learns MAC addresses dynamically and then “sticks” them to the configuration. These learned MAC addresses are saved in the running configuration and are retained across reboots.

Implementing port security is a proactive measure that significantly enhances the security posture of your network by ensuring only authorized devices can establish a connection.

Best Practices for Securing Cisco IOS Software Configurations

Securing your Cisco IOS software configurations is an ongoing commitment, not a one-time task. It involves adopting a proactive and diligent approach to minimize vulnerabilities and protect your network from unauthorized access and malicious attacks. Think of it as regular maintenance for your digital castle.

Here are some essential best practices to fortify your Cisco IOS configurations:

• Regularly Update Cisco IOS Software: Cisco continuously releases software updates that include critical security patches. Staying current with these updates is one of the most effective ways to address known vulnerabilities.
• Disable Unused Services and Ports: Every enabled service or open port represents a potential entry point for attackers. Audit your configurations and disable anything that is not essential for the network’s operation. This includes protocols like Telnet, HTTP, and SNMP if they are not being used securely.
• Implement Strong AAA (Authentication, Authorization, and Accounting): As discussed earlier, using RADIUS or TACACS+ for centralized AAA services is crucial. This ensures consistent security policies and provides an audit trail of user activities.
• Enforce Secure Management Access:
  • Always use SSH for remote management.
  • Configure access control lists (ACLs) to restrict management access to specific IP addresses or subnets.
  • Change the default SSH port if possible, although this is more of an obscurity measure than true security.
• Use Passwords with Sufficient Complexity: Implement and enforce strong password policies for all user accounts, including console, VTY (virtual terminal lines), and privileged EXEC modes.
• Secure the Console Port: The console port is a direct physical access point. Ensure it is secured with a strong password and consider disabling it if not actively used for troubleshooting.
• Enable Logging and Monitor Logs: Configure your Cisco IOS devices to send log messages to a centralized syslog server. Regularly review these logs for suspicious activity, security alerts, and error messages.
• Implement SNMPv3: If you use SNMP for network monitoring, ensure you are using SNMPv3, which provides authentication and encryption, unlike older versions (v1 and v2c).
• Regularly Back Up Configurations: Maintain regular backups of your device configurations. This allows for quick restoration in case of a security incident or configuration error.
• Understand and Harden Specific Features: Be aware of the security implications of various features you enable, such as routing protocols, VPNs, and wireless configurations. Apply security best practices specific to each feature.

By consistently applying these best practices, you can significantly enhance the security posture of your Cisco IOS devices and create a more resilient and trustworthy network environment.

Advanced Functionalities

Cisco IOS software is a powerhouse, extending far beyond basic routing and switching to offer sophisticated capabilities that elevate network performance, security, and manageability. These advanced functionalities are crucial for modern, dynamic networks, enabling them to adapt to evolving business needs and complex traffic patterns with grace and efficiency.

Let’s delve into some of the truly impressive features that make Cisco IOS the backbone of so many critical infrastructures.

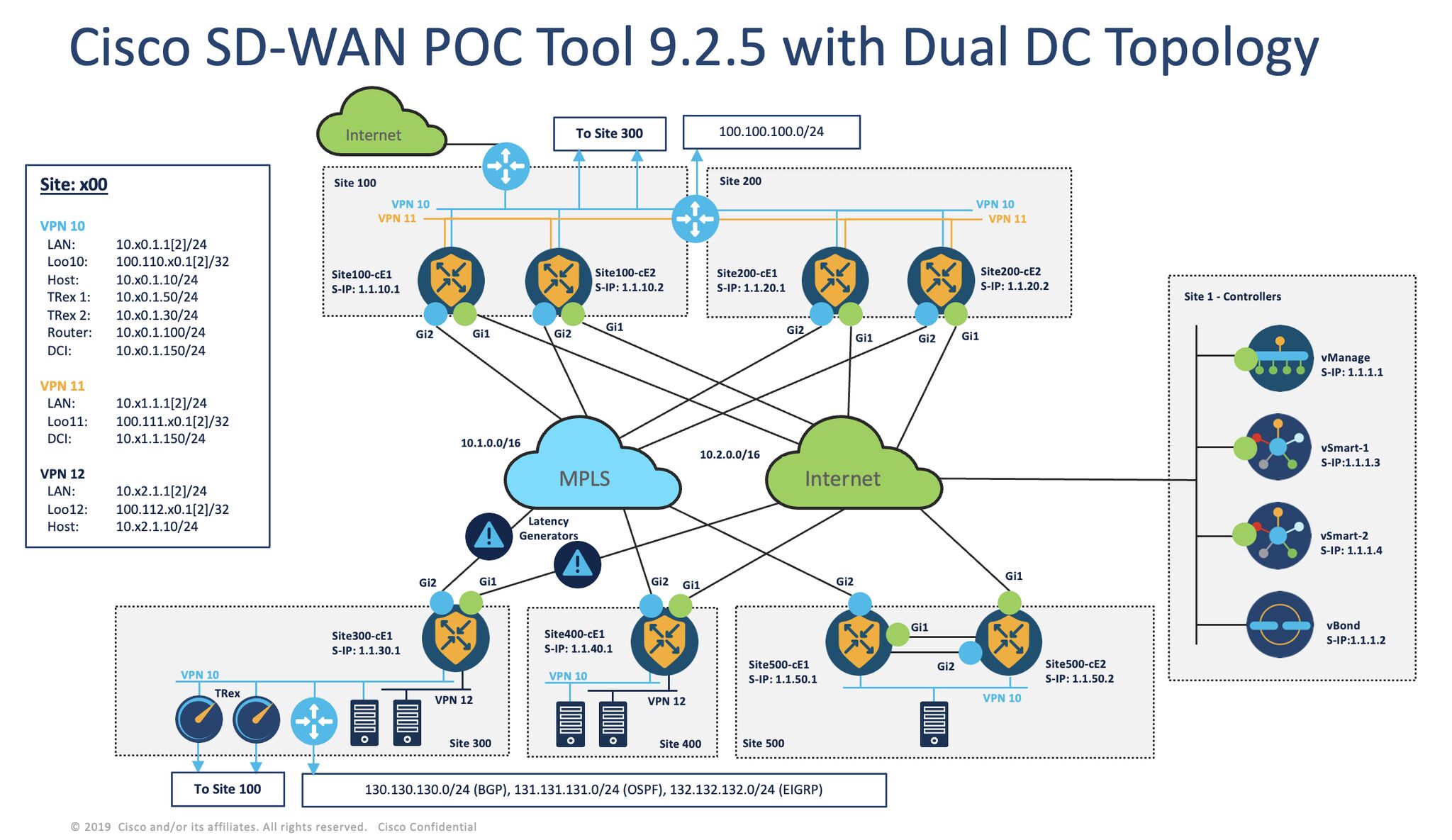

Virtual Routing and Forwarding (VRF)

Virtual Routing and Forwarding (VRF) is a remarkable technology within Cisco IOS that allows a single physical router to maintain multiple, isolated routing tables. This is akin to having several virtual routers residing within one physical device, each operating independently. The implementation of VRF is elegantly simple yet profoundly powerful, enabling network administrators to create distinct routing domains for different applications, departments, or security zones.

This isolation prevents routing information from one VRF from interfering with another, thereby enhancing security and simplifying network design.

VRF is particularly invaluable in scenarios such as:

• Multi-tenancy: Service providers can offer isolated network services to multiple customers on shared infrastructure.
• Security Segmentation: Sensitive traffic can be segregated from less critical traffic, reducing the attack surface.
• Network Overlays: Complex routing policies can be implemented without impacting the core routing infrastructure.

The configuration typically involves associating interfaces with specific VRFs, allowing each interface to participate in the routing decisions of its assigned VRF. This granular control ensures that traffic flows precisely where it’s intended, and nowhere else.

Think of Cisco IOS software as the brain of your network, making sure data packets don’t get lost in the digital ether. It’s a bit like how authors meticulously choose what software do writers use to write books to craft their masterpieces. But unlike novelists, Cisco IOS software’s sole purpose is routing and switching, ensuring your network runs smoother than a well-edited novel.

Voice over IP (VoIP) Services

The seamless integration and robust support for Voice over IP (VoIP) services are a testament to Cisco IOS’s versatility. It’s not just about moving data; it’s about ensuring crystal-clear voice communication across the network. Cisco IOS provides the essential building blocks for deploying and managing VoIP, guaranteeing quality of service (QoS) and efficient call handling.

Cisco IOS plays a pivotal role in VoIP by:

• Quality of Service (QoS): Prioritizing voice traffic over less time-sensitive data is paramount for preventing dropped calls and ensuring call clarity. Cisco IOS offers sophisticated QoS mechanisms like traffic shaping, policing, and queuing to guarantee bandwidth and low latency for voice packets.
• Call Signaling Support: It supports various VoIP signaling protocols, such as Session Initiation Protocol (SIP) and H.323, enabling devices to establish, manage, and terminate voice calls.
• Codec Negotiation: IOS facilitates the negotiation of voice codecs between endpoints, optimizing bandwidth usage while maintaining acceptable voice quality.
• Media Gateway Functionality: Routers can act as media gateways, bridging traditional Public Switched Telephone Network (PSTN) calls with IP-based voice traffic.

The ability to intelligently manage and prioritize voice traffic ensures that businesses can rely on their IP networks for mission-critical voice communications, transforming the way organizations connect and collaborate.

Multicast Traffic Management

Managing multicast traffic efficiently is a complex yet vital aspect of modern networking, especially for applications like video streaming, online gaming, and large-scale software distribution. Cisco IOS software excels in this domain, providing a comprehensive suite of features to control and optimize the delivery of multicast data. Multicast allows a single data stream to be sent to multiple recipients simultaneously, drastically reducing bandwidth consumption compared to unicast or broadcast methods.

Cisco IOS capabilities for managing multicast traffic include:

• Protocol Support: It fully supports key multicast routing protocols like Protocol Independent Multicast (PIM) in its various modes (dense, sparse, and sparse-dense) and IGMP (Internet Group Management Protocol) for host-router communication.
• Multicast Routing: IOS intelligently builds multicast distribution trees, ensuring that multicast packets are forwarded only to interested receivers, thereby conserving network resources.
• Multicast Boundary Configuration: Administrators can define multicast boundaries to control the scope and reach of multicast traffic, preventing it from flooding the network.
• Multicast Source Discovery Protocol (MSDP): This protocol helps discover multicast sources across different Protocol Independent Multicast (PIM) domains, enabling inter-domain multicast routing.

By mastering multicast, Cisco IOS empowers networks to deliver bandwidth-intensive content to many users simultaneously and cost-effectively.

Network Segmentation through VLANs

Virtual Local Area Networks (VLANs) are a cornerstone of modern network design, and Cisco IOS software provides robust support for their implementation, enabling powerful network segmentation. VLANs allow network administrators to logically group devices together, regardless of their physical location on the network. This segmentation enhances security, improves performance by reducing broadcast domains, and simplifies network management.

The implementation of VLANs in Cisco IOS involves:

• VLAN Creation and Assignment: Administrators can create multiple VLANs on a switch and assign specific switch ports to these VLANs. Devices connected to ports within the same VLAN can communicate directly, while communication between different VLANs requires a Layer 3 device (like a router or a Layer 3 switch).
• Trunking: VLANs are extended across multiple switches using trunk links, which carry traffic for multiple VLANs. Cisco IOS supports standard trunking protocols like IEEE 802.1Q, ensuring interoperability.
• Inter-VLAN Routing: Cisco IOS routers and Layer 3 switches can perform routing between different VLANs, allowing devices in separate VLANs to communicate while maintaining their logical separation. This is often achieved using Switched Virtual Interfaces (SVIs) or routed ports.
• VLAN Access Control Lists (VACLs): For enhanced security, VACLs can be applied at the VLAN level to filter traffic flowing within or between VLANs, providing an additional layer of access control.

VLANs are indispensable for creating organized, secure, and efficient networks, from small business environments to large enterprise data centers.

Illustrative Scenarios

Cisco IOS software is the beating heart of countless networks, from cozy home offices to sprawling enterprise data centers. Its power lies not just in its robust feature set, but in its ability to be molded and applied to solve real-world networking challenges. Let’s dive into some practical scenarios that showcase the magic of Cisco IOS in action, proving its indispensable role in keeping our digital world connected and secure.

The true testament to a powerful software lies in its practical application. We’ll explore how Cisco IOS elegantly handles everyday network tasks, assists in diagnosing and resolving common hiccups, and provides a solid foundation for security, all through compelling, easy-to-understand examples.

Traffic Flow Management in a Small Office Network

Imagine a bustling small office where employees seamlessly share files, access cloud applications, and communicate via VoIP. Cisco IOS, running on a router or a multilayer switch, acts as the intelligent traffic director, ensuring every bit of data reaches its intended destination efficiently and without congestion.

Consider a scenario where the marketing team is uploading large campaign videos to a cloud storage service, while the sales team is actively participating in a video conference. Without proper management, these activities could compete for bandwidth, leading to choppy calls and slow uploads. Cisco IOS can be configured with Quality of Service (QoS) policies. These policies prioritize voice traffic for the sales team’s conference calls, ensuring crystal-clear audio and uninterrupted communication.

Simultaneously, it can allocate a dedicated, albeit lower, priority for the video uploads, allowing them to complete without significantly impacting other critical operations. Furthermore, IOS can implement Access Control Lists (ACLs) to segregate network traffic, perhaps placing guest Wi-Fi users on a separate VLAN with limited access to internal resources, thereby enhancing security and preventing potential interference with business-critical operations.

Troubleshooting Connectivity Issues Using Cisco IOS Commands

When the network whispers a complaint, Cisco IOS commands are the diagnostic tools that help us listen and understand. These commands allow us to peer into the router’s inner workings, trace the path of data, and pinpoint the source of a connectivity problem with precision.

Let’s say a user reports they can’t access an important internal server. The network administrator can initiate a systematic troubleshooting process using IOS commands.

1. Ping: The first step is often to verify basic reachability. The `ping ` command sends ICMP echo requests to the server. If replies are received, it confirms Layer 3 connectivity to the server’s IP address. If not, it suggests a problem closer to the source or a routing issue.
2. Traceroute: If ping fails, `traceroute ` becomes invaluable. This command maps the path packets take to reach the destination, showing each hop (router) along the way. It helps identify the exact router where connectivity is breaking down, revealing if a particular link is down or if there’s a routing loop.
3. Show IP Route: To understand how the router is making forwarding decisions, `show ip route` is essential. This command displays the router’s routing table, showing the learned routes and the next hop for each destination network. It helps confirm if the router has a valid route to the server’s network.
4. Show IP Interface Brief: This command provides a quick overview of all interfaces on the router, their IP addresses, and their operational status (up/down). It’s a crucial check to ensure the interface connecting to the server’s network is active and correctly configured.
5. Show CDP Neighbors: If the issue is with a directly connected device, `show cdp neighbors` reveals information about directly connected Cisco devices, including their device ID, local interface, and remote interface. This helps verify physical and logical connections to adjacent network equipment.

By methodically executing these commands, an administrator can efficiently isolate the problem, whether it’s a misconfigured IP address, a downed interface, a routing anomaly, or a problem with an adjacent device.

Configuring a Basic Firewall Using Cisco IOS Software

Securing a network is paramount, and Cisco IOS provides powerful, built-in firewall capabilities that can be configured to protect valuable resources. By defining rules that permit or deny traffic based on various criteria, IOS acts as a vigilant gatekeeper.

To establish a basic firewall on a Cisco router, administrators can leverage Access Control Lists (ACLs). These lists are sets of rules that are applied to interfaces to filter traffic.

1. Define Standard ACL: For simple filtering based on source IP addresses, a standard ACL is sufficient. For example, to permit traffic only from the internal server subnet (192.168.1.0/24) to the internet, you might configure:
   1. `access-list 10 permit 192.168.1.0 0.0.0.255`
   2. `access-list 10 deny any log` (This denies all other traffic and logs it for monitoring)
2. Define Extended ACL: For more granular control, extended ACLs allow filtering based on source and destination IP addresses, protocols, and port numbers. To allow HTTP (port 80) and HTTPS (port 443) traffic from the internal network to any destination, while blocking all other outbound traffic:
   1. `access-list 101 permit tcp 192.168.1.0 0.0.0.255 any eq 80`
   2. `access-list 101 permit tcp 192.168.1.0 0.0.0.255 any eq 443`
   3. `access-list 101 deny ip any any log`
3. Apply ACL to Interface: The configured ACLs are then applied to the router’s interfaces. For instance, to apply the extended ACL to the interface facing the internal network (e.g., GigabitEthernet0/1) for inbound traffic filtering:
   1. `interface GigabitEthernet0/1`
   2. `ip access-group 101 in`

This setup effectively creates a firewall that allows only specified web traffic out to the internet, enhancing the network’s security posture by preventing unauthorized access and potential malicious activity.

Narrative of a Cisco IOS Software Update Process on a Router

Maintaining network resilience and security often necessitates updating the Cisco IOS software on network devices. This process, while seemingly technical, is a vital part of ensuring the router operates with the latest features, bug fixes, and security patches.

Imagine a network administrator tasked with updating the IOS on a critical edge router. The process typically begins with careful planning and preparation. First, the administrator identifies the current IOS version running on the router and researches the latest stable release from Cisco, ensuring it’s compatible with the router’s hardware. They then download the new IOS image file and the corresponding configuration file (if necessary) to a TFTP (Trivial File Transfer Protocol) or FTP server accessible by the router.

The update process itself usually involves connecting to the router via console or SSH. The administrator then initiates a file transfer, copying the new IOS image from the TFTP/FTP server to the router’s flash memory using commands like `copy tftp: flash:` or `copy ftp: flash:`. Once the new image is safely stored, the administrator configures the router to boot from this new image by setting the boot system path, typically using `boot system flash: `.

The most crucial step is the reboot. A simple `reload` command prompts the router to restart. During the boot sequence, the router will load the newly specified IOS image. The administrator monitors the boot process closely, often through the console connection, to ensure no errors occur. Upon successful boot, the administrator verifies the new IOS version is active using `show version` and then carefully checks the router’s functionality, including routing protocols, interface status, and overall network connectivity, to confirm the update has been performed without introducing any new issues. This meticulous approach ensures a smooth transition and a more robust, secure network.

Last Point

As we conclude this exploration, remember that Cisco IOS software is more than just a technical component; it is the silent architect of our connected world. Understanding its intricacies is to grasp the very heartbeat of global communication, a testament to human ingenuity in bridging distances and fostering collaboration. May this knowledge illuminate your path as you navigate the ever-evolving realm of network technology.

FAQ

What distinguishes Cisco IOS XE from Cisco IOS XR?

Cisco IOS XE is designed for enterprise and service provider edge devices, offering a modular architecture with an underlying Linux OS. Cisco IOS XR is built for high-end, carrier-grade routers, prioritizing service provider requirements for massive scale, high availability, and advanced programmability.

Can Cisco IOS software run on non-Cisco hardware?

Generally, no. Cisco IOS software is proprietary and tightly integrated with Cisco’s hardware architecture. While there are some exceptions or specialized OEM agreements, it is primarily designed and licensed for use on Cisco-manufactured network devices.

What is the significance of feature sets like ‘IP Base’ or ‘IP Services’ in Cisco IOS?

These feature sets denote bundled capabilities and licensing tiers within Cisco IOS. ‘IP Base’ typically offers fundamental routing and switching functionalities, while ‘IP Services’ includes more advanced features like advanced QoS, IPv6 routing, and dynamic routing protocols, catering to more demanding network environments.

How does Cisco IOS software handle network security threats?

Cisco IOS software incorporates a robust suite of security features, including Access Control Lists (ACLs) for traffic filtering, port security to limit unauthorized device connections, secure password policies, authentication methods like RADIUS and TACACS+, and support for VPNs to create secure tunnels for data transmission.

What are the benefits of using a Command Line Interface (CLI) for Cisco IOS management?

The CLI offers powerful, granular control over network devices, enabling automation through scripting and providing direct access to all configuration parameters. It is often faster for experienced administrators and provides more comprehensive troubleshooting capabilities compared to graphical interfaces.
