What is COMSOL software demystified

What is COMSOL software, and why should you care? This is where we dive deep into the world of simulation, bringing you the lowdown in a way that’s easy to digest and totally Medan-style cool. Get ready to unlock the secrets of complex engineering challenges with this powerful tool.

COMSOL Multiphysics is basically your go-to for simulating pretty much anything that involves physics. Think of it as a digital sandbox where you can test out ideas and see how they’ll perform in the real world before you even build anything. The core idea is “multiphysics,” meaning it can handle multiple physics phenomena all at once – like how heat affects the stress on a bridge, or how an electric field influences fluid flow.

The main perks? You save time, cut down on costs, and can innovate way faster by getting insights that you’d never get from just staring at blueprints.

Introduction to COMSOL Software

COMSOL Multiphysics is a powerful and versatile software platform designed for simulating and modeling physical phenomena. Its fundamental purpose is to enable engineers, researchers, and scientists to design and optimize products and processes by virtually testing their performance under various conditions. This is achieved through the creation of detailed digital models that accurately represent real-world systems.The core concept of COMSOL Multiphysics lies in its ability to handle “multiphysics” simulations.

This means it can simultaneously solve problems that involve the interaction of multiple physical domains, such as structural mechanics, heat transfer, fluid dynamics, electromagnetics, and chemical reactions. Unlike single-physics simulation tools, COMSOL’s integrated approach allows for the analysis of complex, coupled behaviors that are prevalent in many engineering and scientific applications.The primary benefits of using simulation software like COMSOL are manifold and significantly impact the product development lifecycle and scientific research.

These benefits contribute to reduced costs, accelerated innovation, and improved product quality.

Fundamental Purpose of COMSOL Multiphysics Software

The fundamental purpose of COMSOL Multiphysics software is to provide a unified environment for modeling and simulating virtually any physical phenomenon. It empowers users to create detailed digital replicas of their designs and systems, allowing for comprehensive analysis and prediction of their behavior. This capability extends to a wide array of applications across diverse scientific and engineering disciplines, from the microscale of semiconductor devices to the macroscale of civil engineering structures.

The software facilitates a deeper understanding of how different physical principles interact, leading to more informed design decisions and innovative solutions.

The Core Concept of Multiphysics Simulation

The core concept of multiphysics simulation, as implemented in COMSOL, is the simultaneous consideration and coupling of different physical phenomena within a single model. In the real world, many engineering problems are not governed by a single physical principle but by the interplay of several. For instance, a micro-electro-mechanical system (MEMS) might involve the coupling of electrostatic forces (electromagnetics), mechanical deformation (structural mechanics), and heat generation due to electrical resistance (heat transfer).

COMSOL’s multiphysics approach allows users to define these interdependencies and solve the governing equations collectively, providing a holistic and accurate representation of the system’s behavior. This contrasts with traditional approaches that might analyze each physical domain in isolation, potentially missing critical coupled effects.

Primary Benefits of Using Simulation Software Like COMSOL

The adoption of simulation software such as COMSOL Multiphysics yields significant advantages for both industrial and academic endeavors. These benefits streamline the design process, reduce development risks, and foster innovation.The key advantages include:

• Reduced Prototyping and Testing Costs: Virtual prototyping eliminates the need for numerous physical prototypes, which are expensive and time-consuming to build and test. This leads to substantial cost savings.
• Accelerated Product Development Cycles: By performing simulations, engineers can rapidly iterate on designs, explore design variations, and identify potential issues early in the development process, thereby shortening time-to-market.
• Enhanced Product Performance and Reliability: Simulation allows for thorough analysis of a product’s behavior under a wide range of operating conditions, including extreme scenarios. This helps in optimizing designs for performance, durability, and safety, leading to more reliable products.
• Deeper Understanding of Physical Phenomena: COMSOL’s ability to model complex multiphysics interactions provides researchers and engineers with profound insights into the underlying physical mechanisms governing a system. This understanding can lead to novel discoveries and breakthrough innovations.
• Optimization of Designs: The software facilitates systematic design exploration and optimization. Users can define design parameters and use optimization tools to find the best configuration that meets specific performance criteria, such as minimizing weight, maximizing efficiency, or reducing stress.
• Identification and Mitigation of Design Flaws: Simulations can uncover potential design flaws or failure modes that might not be apparent through physical testing alone. This allows for proactive identification and correction of issues before they manifest in a physical product.

Key Features and Capabilities

COMSOL Multiphysics is a powerful simulation software platform designed to address complex engineering and scientific challenges by enabling users to solve multiphysics problems. Its flexibility and comprehensive capabilities stem from a well-defined modular structure and a vast array of specialized interfaces. This section delves into the core features that make COMSOL a leading tool for simulation-driven design and research.The software’s architecture is built upon a foundation that allows for seamless integration of different physics phenomena, making it exceptionally adept at simulating systems where multiple physical effects interact.

This integrated approach is crucial for accurately modeling real-world scenarios, which are rarely governed by a single physical principle.

Modular Structure of COMSOL Software

COMSOL Multiphysics employs a highly modular structure, which significantly enhances its flexibility and scalability. The core platform provides a robust environment for defining geometry, meshing, solving, and postprocessing simulation models. Superimposed on this core are various Application-Specific Modules, each dedicated to a particular field of physics. This modularity allows users to select and combine only the functionalities they need for their specific problems, leading to a more efficient and cost-effective workflow.

Users can start with the core software and add modules as their simulation needs evolve, ensuring that the software grows with their research or design requirements.

Main Physics Interfaces

The extensive library of physics interfaces is a cornerstone of COMSOL’s power. These interfaces are pre-defined templates that encapsulate the governing equations, boundary conditions, and material properties for a wide range of physical phenomena. This dramatically simplifies the process of setting up complex simulations, as users do not need to manually derive and implement fundamental equations.Key physics interfaces include:

• Structural Mechanics: For analyzing stress, strain, vibration, buckling, and fatigue in solid objects and structures. This interface supports linear elastic, plastic, viscoelastic, and hyperelastic material models, as well as large deformations.
• Heat Transfer: For simulating conduction, convection, and radiation heat transfer in solids, fluids, and gases. It can handle phase changes, thermal stresses, and temperature-dependent material properties.
• Fluid Flow: Encompassing laminar and turbulent flow, non-Newtonian fluids, porous media flow, and multiphase flow. This interface is critical for applications in aerodynamics, hydrodynamics, and microfluidics.
• Electromagnetics: Covering a broad spectrum from electrostatics and magnetostatics to AC/DC currents, wave propagation (RF, microwave, optics), and plasma physics. This is essential for designing antennas, sensors, and electrical devices.
• Acoustics: For simulating sound propagation, vibration, and acoustic-structure interaction. This is used in areas like noise reduction and ultrasonic applications.
• Chemical Species Transport: For modeling diffusion, convection, and reaction kinetics of chemical species in various media. This is vital for chemical engineering, electrochemistry, and biochemical simulations.
• Plasma Physics: Dedicated interfaces for low-temperature plasmas, enabling the simulation of plasma generation, interaction with surfaces, and chemical reactions within the plasma.

Ability to Handle Coupled Physics Phenomena

One of COMSOL’s most significant strengths is its unparalleled ability to handle coupled physics phenomena. In the real world, physical effects are rarely isolated. For instance, a thermal expansion might induce mechanical stress, or fluid flow can be influenced by electromagnetic forces. COMSOL’s architecture is designed from the ground up to facilitate the definition and solving of these multiphysics problems.Users can select multiple physics interfaces and couple them together, allowing the software to solve the governing equations for each physics simultaneously and iteratively.

This means that the results from one physics (e.g., temperature distribution from heat transfer) can directly influence the equations and solutions of another physics (e.g., mechanical stress due to thermal expansion). This capability is crucial for accurately predicting the behavior of complex systems where interactions are significant.

Examples of Different Types of Simulations

The versatility of COMSOL allows for a wide range of simulation types across numerous disciplines. The ability to combine different physics interfaces opens up possibilities for highly specialized and complex analyses.Here are some examples of simulations that can be performed:

• Electromechanical Devices: Simulating the interaction between electrical and mechanical components, such as in piezoelectric actuators, MEMS devices, or electric motors. This involves coupling electromagnetics with structural mechanics and potentially heat transfer.
• Thermo-mechanical Analysis: Analyzing the effects of temperature changes on material structures, including thermal expansion, thermal stress, and fatigue. This is critical in aerospace, automotive, and power generation industries.
• Fluid-Structure Interaction (FSI): Simulating how fluids interact with flexible or deformable structures. Examples include blood flow through arteries, wind loads on bridges, or the behavior of flexible wings. This couples fluid flow and structural mechanics.
• Chemical Reactors: Modeling chemical reactions within a reactor, considering heat transfer, mass transport, and fluid flow. This is fundamental for process design and optimization in the chemical and pharmaceutical industries.
• Photovoltaic Devices: Simulating the performance of solar cells by coupling semiconductor physics with light absorption and heat transfer to predict efficiency and temperature effects.
• Biomedical Applications: Simulating phenomena like drug delivery, blood flow in implants, or the thermal effects of medical devices, often involving coupled heat transfer, fluid flow, and chemical species transport.
• Acoustic Transducers: Designing and analyzing devices that convert between acoustic and electrical energy, such as microphones and loudspeakers, by coupling acoustics with electromagnetics or piezoelectric effects.

Applications Across Industries

COMSOL Multiphysics is a versatile simulation software that empowers engineers and researchers across a wide spectrum of industries to tackle complex multiphysics problems. Its ability to couple different physical phenomena in a single simulation environment makes it an indispensable tool for design, optimization, and analysis. This section details the diverse applications of COMSOL in key engineering disciplines.The software’s strength lies in its ability to model phenomena that are inherently coupled, such as the interaction between fluid flow and heat transfer, or the influence of mechanical stress on electrical properties.

This comprehensive approach allows for a deeper understanding of system behavior and facilitates the development of more robust and efficient designs.

Mechanical Engineering, What is comsol software

In mechanical engineering, COMSOL is extensively used for analyzing the structural integrity, dynamics, and performance of mechanical components and systems. This includes simulating stresses, strains, vibrations, and fatigue under various loading conditions.

• Structural Analysis: Simulating static and dynamic stresses, deformations, and natural frequencies of components like bridges, aircraft wings, and automotive parts. For example, a bridge engineer might use COMSOL to predict how a new bridge design will withstand wind loads and seismic activity, ensuring safety and longevity.
• Vibrations and Acoustics: Analyzing modal analysis to identify resonant frequencies and predict vibrational behavior, crucial for designing quiet machinery or preventing structural failure due to resonance.
• Fatigue Analysis: Predicting the lifespan of components under cyclic loading, essential for designing durable products in automotive, aerospace, and manufacturing sectors.
• Contact Mechanics: Modeling the interaction and forces between solid bodies in contact, vital for designing gears, bearings, and sealing mechanisms.
• Biomechanics: Simulating the mechanical behavior of biological tissues and implants, such as the stress distribution in a prosthetic hip joint or the fluid flow around a heart valve.

Electrical Engineering and Electromagnetics

COMSOL is a powerful tool for electrical engineers and researchers working with electromagnetic fields, circuits, and devices. It enables the simulation of phenomena ranging from low-frequency electromagnetics to high-frequency wave propagation.

• Antenna Design: Optimizing antenna performance by simulating radiation patterns, impedance matching, and gain. This is critical for telecommunications, radar, and satellite applications.
• Electromagnetic Devices: Modeling the behavior of transformers, motors, generators, inductors, and capacitors to understand magnetic fields, eddy currents, and power losses.
• RF and Microwave Engineering: Simulating wave propagation in waveguides, filters, and resonators, as well as analyzing signal integrity in high-speed electronic circuits.
• Semiconductor Devices: Modeling the electrical and thermal behavior of transistors, diodes, and integrated circuits, including carrier transport and device physics.
• Medical Devices: Designing and analyzing devices like MRI coils, pacemakers, and electrosurgical tools, ensuring their safety and efficacy. For instance, simulating the electromagnetic fields generated by an MRI machine to optimize image quality and patient comfort.

Chemical Engineering and Process Design

In chemical engineering, COMSOL is utilized for simulating chemical reactions, mass transport, fluid flow, and heat transfer in reactors, separation processes, and other chemical equipment.

• Chemical Reactors: Modeling reaction kinetics, species transport, and temperature profiles within reactors to optimize conversion, selectivity, and yield. This includes simulating catalytic converters or batch reactors.
• Mass Transfer Operations: Analyzing diffusion, adsorption, and desorption processes in applications like distillation columns, membrane separators, and gas scrubbers.
• Process Optimization: Simulating entire chemical processes to identify bottlenecks, optimize operating conditions, and reduce energy consumption.
• Corrosion and Material Degradation: Modeling electrochemical processes and material degradation phenomena to predict the lifespan of chemical equipment and select appropriate materials.
• Electrochemical Systems: Simulating fuel cells, batteries, and electroplating processes by coupling electrochemical reactions with transport phenomena.

Heat Transfer and Fluid Dynamics

COMSOL excels in simulating complex heat transfer and fluid dynamics phenomena, often in combination with other physics. This is crucial for understanding and optimizing systems where thermal management and fluid behavior are critical.

• Fluid Flow: Simulating laminar and turbulent flow in pipes, channels, and around complex geometries, including external aerodynamics and internal flows in engines or HVAC systems.
• Heat Transfer: Analyzing conduction, convection, and radiation heat transfer in diverse applications, from electronic cooling to building thermal performance.
• Multiphase Flow: Modeling the interaction between different fluid phases, such as liquid-gas or liquid-solid mixtures, in applications like boiling, condensation, and bubble dynamics.
• Coupled Phenomena: Simulating the interplay between fluid flow and heat transfer, such as in heat exchangers, cooling systems, and weather forecasting models. For example, modeling the cooling of a high-power electronic chip, considering both the heat generated by the components and the fluid dynamics of the cooling system.
• Porous Media Flow: Analyzing fluid flow and transport in porous materials, relevant for groundwater hydrology, filtration, and oil and gas exploration.

Acoustics and Structural Mechanics

COMSOL provides powerful tools for analyzing acoustic phenomena and their interaction with structures, bridging the fields of acoustics, vibration, and structural mechanics.

• Acoustic Wave Propagation: Simulating sound waves in air, water, and other media, including phenomena like diffraction, reflection, and absorption. This is used in designing concert halls, noise cancellation systems, and underwater acoustics.
• Structural Acoustics: Modeling the interaction between acoustic fields and vibrating structures, such as the sound generated by a vibrating car door or the noise transmitted through a building wall.
• Ultrasonics: Simulating the behavior of ultrasonic waves for applications in medical imaging, non-destructive testing, and industrial cleaning.
• Vibroacoustics: Analyzing the coupled behavior of structural vibrations and acoustic fields, essential for minimizing noise and vibration in vehicles, aircraft, and machinery.
• Architectural Acoustics: Designing spaces for optimal sound quality, considering factors like reverberation time, sound insulation, and speech intelligibility.

User Interface and Workflow

COMSOL Multiphysics is designed with a user-centric approach, facilitating a structured and intuitive simulation workflow. This workflow guides users from initial problem definition through to the final analysis of results, ensuring efficiency and accuracy. The software’s interface is a key component in achieving this, offering a comprehensive environment for building, solving, and visualizing multiphysics simulations.The typical workflow in COMSOL is a systematic progression through distinct stages, each building upon the previous one.

This structured approach ensures that all necessary aspects of a simulation are addressed, from the fundamental physics governing the problem to the detailed interpretation of the output.

Simulation Setup Workflow

The process of setting up a simulation in COMSOL follows a logical sequence of steps, designed to translate a physical problem into a solvable mathematical model. This structured approach ensures all necessary parameters are defined accurately.The general workflow for setting up a simulation in COMSOL involves the following stages:

• Model Wizard: This is the initial entry point, where users select the physics of interest, the dimension of the study (e.g., 1D, 2D, 3D), and the type of study (e.g., stationary, time-dependent).
• Geometry Definition: Users create or import the geometric representation of the physical domain. This can be done using COMSOL’s built-in CAD tools or by importing designs from external CAD software.
• Material Properties: The material properties relevant to the selected physics are assigned to different parts of the geometry. This involves selecting from COMSOL’s extensive material library or defining custom materials.
• Physics Setup: This crucial step involves defining the governing equations and applying the relevant physical phenomena. This includes setting up boundary conditions, initial values, and source terms.
• Mesh Generation: The computational domain is discretized into smaller elements (a mesh). The quality and density of the mesh significantly impact the accuracy and computational cost of the simulation.
• Solver Configuration: Users select and configure the appropriate numerical solver based on the type of problem and desired accuracy.
• Study Execution: The simulation is run, and the solver computes the solution based on the defined model and settings.
• Postprocessing and Visualization: The results of the simulation are analyzed, visualized, and interpreted. This involves creating plots, surface plots, animations, and extracting quantitative data.

COMSOL User Interface Components

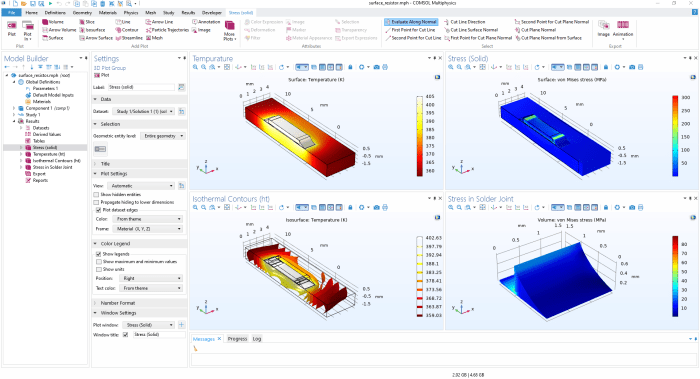

The COMSOL user interface is a unified environment that provides access to all the tools and functionalities required for multiphysics simulation. It is designed for clarity and efficiency, allowing users to navigate through complex models with ease.The primary components of the COMSOL user interface include:

• Model Builder: This is the central tree-like structure that organizes all aspects of the model, including geometry, materials, physics, mesh, study, and results. Users interact with the model by expanding and selecting nodes within the Model Builder.
• Graphics Window: This is where the geometric model, mesh, and simulation results are displayed. It supports interactive manipulation, such as zooming, panning, and rotating, for detailed examination.
• Settings Window: When a node is selected in the Model Builder, its corresponding settings appear in this window. This is where users define parameters, input values, and select options for each component of the model.
• Toolbar: Located at the top of the window, the toolbar provides quick access to frequently used commands and tools, such as saving, opening, meshing, solving, and plotting.
• Ribbon Interface: COMSOL also features a ribbon interface that groups commands and functionalities into logical tabs, offering a more organized and discoverable way to access features.
• Message Window: This window displays information about the simulation process, including solver progress, warnings, and error messages, providing valuable feedback to the user.

Geometry and Material Definition

The accurate representation of the physical domain and its constituent materials is foundational to any simulation. COMSOL offers robust tools for both geometry creation and material property assignment, ensuring that the model faithfully reflects the real-world system being studied.The process of defining geometry and materials in COMSOL involves:

• Geometry Creation: Users can create 2D or 3D geometries using COMSOL’s integrated CAD tools. These tools allow for the construction of basic shapes, extrusion, revolution, sweeping, and Boolean operations. Alternatively, geometries can be imported from various CAD formats (e.g., STEP, IGES, STL) using the built-in import functionalities.
• Material Assignment: Once the geometry is defined, materials are assigned to different domains (parts) of the geometry. COMSOL provides a comprehensive built-in material library containing properties for a wide range of common materials, including metals, polymers, ceramics, fluids, and biological tissues. Users can also define custom materials by manually entering their properties or by importing them from external databases. Key material properties include density, Young’s modulus, thermal conductivity, electrical conductivity, viscosity, and specific heat, depending on the physics being modeled.

Boundary Conditions and Physics Application

Applying the correct physics and boundary conditions is critical for accurately capturing the behavior of the system under investigation. COMSOL provides a wide array of predefined physics interfaces and flexible options for defining how the system interacts with its surroundings.The application of boundary conditions and physics in COMSOL entails:

• Physics Selection: The first step is to select the appropriate physics interface from COMSOL’s extensive library. This library covers a vast range of physical phenomena, including structural mechanics, fluid dynamics, heat transfer, electromagnetics, acoustics, chemical reactions, and their multiphysics couplings.
• Physics Settings: Each physics interface comes with a set of default settings that represent common scenarios. Users then customize these settings to match the specific problem. This may involve defining material properties, selecting governing equations, and specifying model parameters.
• Boundary Condition Application: Boundary conditions define how the physical system interacts with its environment or other parts of the model. COMSOL offers a rich set of boundary conditions for each physics interface. For example, in structural mechanics, boundary conditions can include fixed constraints, applied loads, prescribed displacements, and symmetry conditions. In heat transfer, they can be thermal insulation, prescribed temperature, heat flux, or convection.

  These conditions are applied to the boundaries of the geometry through dedicated nodes in the Model Builder.

• Domain and Edge/Surface Loads: In addition to boundary conditions, users can also apply loads or sources within the domains or on edges/surfaces. This could be, for instance, a heat source within a material or a pressure applied to a surface.

Meshing Process and Importance

Meshing is the process of discretizing the continuous geometric domain into a finite number of small elements. The quality and resolution of the mesh directly influence the accuracy and computational efficiency of the simulation results. COMSOL offers advanced meshing tools to ensure optimal discretization.The meshing process and its importance are detailed as follows:

• Meshing Strategy: COMSOL provides several meshing methods, including physics-controlled meshing, which automatically generates a mesh based on the selected physics, and user-controlled meshing, which offers greater flexibility. Common element types include triangles and quadrilaterals in 2D, and tetrahedrons, hexahedrons, prisms, and pyramids in 3D.
• Mesh Refinement: Users can refine the mesh in critical areas where high gradients are expected (e.g., near sharp corners, boundaries with significant changes in physical variables) to improve accuracy. This can be achieved through adaptive meshing, where the mesh is automatically refined based on error estimates during the simulation, or through manual mesh refinement techniques.
• Mesh Quality: The quality of the mesh elements (e.g., aspect ratio, skewness) is crucial. Poor quality elements can lead to numerical instability and inaccurate results. COMSOL includes tools to assess mesh quality and allows users to apply mesh smoothing and improvement algorithms.
• Importance of Meshing: An appropriate mesh ensures that the governing equations are solved accurately over the entire domain. A mesh that is too coarse may miss important physical phenomena and lead to inaccurate predictions. Conversely, an excessively fine mesh can significantly increase computational time and memory requirements without a proportional increase in accuracy. Therefore, striking a balance through careful meshing is essential for efficient and reliable simulations.

Solver Settings and Simulation Execution

Once the model is defined and meshed, the next critical step is to configure the solver and execute the simulation. COMSOL offers a range of solvers and control parameters to handle diverse types of problems and achieve desired accuracy and computational performance.The process of solver settings and simulation execution involves:

• Solver Selection: COMSOL automatically suggests appropriate solvers based on the physics and study type. However, users can manually select from a variety of direct and iterative solvers. Direct solvers (e.g., MUMPS, PARDISO) are generally robust but can be memory-intensive, while iterative solvers (e.g., GMRES, BiCGSTAB) are often more memory-efficient for large problems but may require careful tuning.
• Solver Configuration: Users can fine-tune solver settings, such as tolerance, maximum number of iterations, preconditioning techniques, and order of approximation. For time-dependent studies, parameters like time stepping methods and time span are configured.
• Parametric Sweeps and Optimization: COMSOL allows for parametric sweeps, where simulations are run for a range of parameter values (e.g., material properties, dimensions, boundary conditions). This is invaluable for design optimization and sensitivity analysis.
• Simulation Execution: After configuring the solver, the simulation is initiated by clicking the “Compute” button. The software then discretizes the governing equations and solves them numerically. The progress of the simulation, including the computation time and convergence status, is displayed in the Message Window.
• Error Handling: If the solver encounters issues, such as convergence problems, error messages will be displayed, providing clues for troubleshooting. This might involve adjusting solver settings, refining the mesh, or re-examining the physics setup.

Postprocessing and Visualizing Results

The final stage of the simulation workflow is dedicated to interpreting and presenting the computed results. COMSOL provides a powerful suite of tools for visualizing and analyzing simulation data, enabling users to gain deep insights into the physical phenomena.The steps for postprocessing and visualizing results include:

• Data Evaluation: After the simulation is complete, the results are available for analysis. COMSOL automatically generates default plots based on the selected physics and study type.
• Creating Plots: Users can create a variety of plot types to visualize the simulation output. These include:
  • 1D Plot Groups: For plotting scalar quantities against a single variable (e.g., temperature along a line).
  • 2D Plot Groups: For visualizing scalar or vector quantities on surfaces (e.g., surface plots of temperature distribution, arrow plots of velocity fields).
  • 3D Plot Groups: For visualizing results in three dimensions (e.g., volume plots, isosurfaces, slice plots).
• Data Extraction: Beyond graphical representations, users can extract quantitative data from the simulation. This can be done by creating tables of results, evaluating specific quantities at points or along lines, or exporting data to external files for further analysis in other software.
• Animations: For time-dependent simulations, animations can be generated to visualize the evolution of physical quantities over time, providing a dynamic representation of the system’s behavior.
• Derived Values: COMSOL allows for the computation of derived values, such as integrals, averages, maximums, and minimums of physical quantities over specific domains or boundaries. These derived values are often critical for design validation and performance assessment.
• Multiphysics Coupling Visualization: For simulations involving coupled physics, COMSOL facilitates the visualization of how different physical phenomena interact and influence each other, providing a comprehensive understanding of complex behaviors.

COMSOL’s Modeling Approach

COMSOL Multiphysics® is built upon a robust and flexible modeling approach that empowers users to simulate complex physical phenomena. At its core lies the ability to translate real-world problems into mathematical formulations that can be solved numerically. This section delves into the fundamental techniques and concepts that define COMSOL’s modeling capabilities, from its foundational numerical methods to the user’s ability to define and implement custom physics.

The Finite Element Method (FEM)

The Finite Element Method (FEM) serves as the cornerstone of COMSOL’s simulation engine. FEM is a powerful numerical technique used to find approximate solutions to boundary value problems for partial differential equations (PDEs). The fundamental idea behind FEM is to discretize a complex continuous domain into a finite number of smaller, simpler subdomains called finite elements. These elements are typically triangles or quadrilaterals in 2D, and tetrahedrons or hexahedrons in 3D.

Within each element, the unknown solution is approximated by a simple function, usually a polynomial. By assembling the equations governing the behavior of each element and enforcing continuity conditions at the element boundaries, a system of algebraic equations is generated for the entire domain. Solving this system yields an approximate solution to the original PDE over the entire domain. This method is particularly well-suited for problems with complex geometries and boundary conditions, which are common in engineering and scientific simulations.

Defining and Implementing Equations

COMSOL provides a highly integrated environment for defining and implementing the mathematical equations that govern a physical system. Users can leverage pre-defined physics interfaces, which encapsulate the governing equations for a wide range of physical phenomena such as heat transfer, fluid dynamics, electromagnetics, and structural mechanics. These interfaces come with built-in equation forms and boundary conditions, significantly streamlining the modeling process.

For example, in a heat transfer simulation, the pre-defined interface automatically includes the heat conduction equation and allows users to specify thermal properties, heat sources, and boundary temperatures. The software then handles the meshing, assembly, and solution of these equations.

Custom Equation Formulation

A key strength of COMSOL lies in its ability to go beyond pre-defined physics and allow users to formulate and implement their own custom equations. This is crucial for simulating novel phenomena or coupling different physics in ways not covered by standard interfaces. COMSOL offers several ways to achieve this:

• General Form PDE: This interface allows users to directly enter their PDEs in a standard mathematical format, defining coefficients for diffusion, reaction, and source terms.
• General Weak Form PDE: For more advanced users, this interface provides access to the weak form of the PDEs, offering greater flexibility in defining variational formulations and boundary conditions.
• Algebraic Equations: Users can also define and solve algebraic equations, which are often used to couple different physical models or to represent constraints within a system.

This capability ensures that COMSOL can adapt to virtually any simulation requirement, from highly specialized research problems to complex industrial applications.

Pre-defined Physics Interfaces vs. Custom Modeling

COMSOL offers a dichotomy in its modeling approach: the use of pre-defined physics interfaces and the creation of entirely custom models.

• Pre-defined Physics Interfaces: These are the primary entry point for most users and are designed for common physical phenomena. They offer a structured and intuitive way to set up simulations by providing ready-made governing equations, material properties, and boundary conditions. Examples include Solid Mechanics, Laminar Flow, Electric Currents, and Heat Transfer. Using these interfaces significantly reduces the time and effort required to build a model, as the underlying mathematical complexities are abstracted away.

  They are ideal for standard engineering problems where the physics is well-understood and documented.

• Custom Modeling: When a simulation involves physics not covered by the standard interfaces, or when unique couplings between different physics are required, custom modeling becomes essential. This involves using the PDE interfaces (General Form or Weak Form) or creating user-defined equations to represent the specific physics. Custom modeling provides unparalleled flexibility but requires a deeper understanding of the underlying mathematical principles and numerical methods.

  It is particularly valuable in research and development settings where new scientific frontiers are being explored.

The choice between using pre-defined interfaces and custom modeling depends on the complexity of the problem, the user’s familiarity with the physics, and the desired level of control over the simulation setup. COMSOL’s architecture seamlessly integrates both approaches, allowing users to start with standard interfaces and progressively introduce custom elements as needed.

Learning and Support Resources

COMSOL Multiphysics is a powerful and versatile simulation software, and to ensure users can effectively leverage its capabilities, a comprehensive suite of learning and support resources is readily available. These resources are designed to cater to users of all experience levels, from beginners seeking foundational knowledge to advanced users looking to delve into specialized applications.The accessibility and depth of these resources are crucial for fostering user proficiency and enabling successful implementation of complex simulations.

COMSOL has invested significantly in creating a robust ecosystem of documentation, training, and community engagement to support its global user base.

Imagine COMSOL Multiphysics as a powerful digital playground for scientists and engineers. It’s a place where complex simulations come to life, and understanding what does a software engineering do helps us appreciate the intricate design behind such tools. Ultimately, COMSOL empowers users to solve real-world challenges through advanced modeling.

Official Documentation and User Guides

COMSOL provides extensive and meticulously crafted official documentation that serves as the primary reference for understanding and utilizing the software. This documentation is continuously updated to reflect the latest features and functionalities.

• User’s Guide: This is the foundational document, offering a thorough overview of the COMSOL Multiphysics environment, including its core principles, interface elements, and general workflow. It covers essential concepts for building and solving models.
• Application-Specific Manuals: For each module and physics interface within COMSOL (e.g., Heat Transfer, Fluid Dynamics, Structural Mechanics, Electromagnetics), dedicated manuals provide in-depth theoretical background, equation formulations, and practical usage guidelines specific to that domain.
• Getting Started Guides: These guides are designed for new users, offering a step-by-step introduction to the software and basic modeling techniques, enabling a quick and effective onboarding process.
• Function Reference Manual: This manual details all built-in functions, operators, and variables available within COMSOL, which is essential for advanced customization and scripting.
• Model Analysis Guide: This resource focuses on understanding and interpreting simulation results, including techniques for mesh analysis, convergence studies, and error estimation.

Online Tutorials and Example Models

Complementing the written documentation, COMSOL offers a rich collection of online tutorials and a vast library of pre-built example models that are invaluable for practical learning. These resources allow users to see how theoretical concepts are applied in real-world simulation scenarios.The online tutorials often take the form of video demonstrations or interactive step-by-step guides, illustrating specific modeling techniques or the application of particular physics.

The example models serve as excellent starting points for new projects, allowing users to deconstruct successful simulations and adapt them to their own needs.

• Video Tutorials: These visual guides walk users through specific features, workflows, and problem-solving techniques, making complex concepts easier to grasp.
• Example Model Library: This extensive collection features thousands of models covering a wide spectrum of physics and engineering disciplines. Each model typically includes the model file, a detailed description, and analysis of the results, facilitating learning through exploration and adaptation.
• Application Gallery: Showcasing successful applications of COMSOL across various industries, this gallery provides insights into how the software is used to solve cutting-edge engineering challenges.

COMSOL Community Forums and User Groups

Engaging with the COMSOL community is a vital component of the learning and support ecosystem. The official forums and user groups provide a platform for users to connect, share knowledge, and seek assistance from peers and COMSOL experts.These platforms are particularly useful for troubleshooting specific issues, discussing advanced modeling strategies, and staying updated on the latest developments and best practices within the COMSOL user base.

• Official COMSOL Forums: This online forum allows users to post questions, share solutions, and engage in discussions on a wide range of topics related to COMSOL Multiphysics. It is actively monitored by COMSOL staff and experienced users.
• Regional User Groups: COMSOL supports user groups in various geographical regions, facilitating face-to-face meetings, presentations, and networking opportunities. These groups foster a sense of community and allow for localized knowledge exchange.

Training Courses and Workshops

For users seeking structured and in-depth training, COMSOL offers a comprehensive program of official training courses and workshops. These courses are led by experienced instructors and cover fundamental to advanced topics, ensuring users can master the software and its specialized modules.The training curriculum is designed to provide hands-on experience and practical guidance, enabling participants to build and analyze their own models effectively.

• Introduction to COMSOL Multiphysics: A foundational course covering the basics of the software interface, modeling workflow, and fundamental simulation principles.
• Module-Specific Courses: Specialized courses dedicated to individual COMSOL modules (e.g., CFD Module, AC/DC Module, Structural Mechanics Module), focusing on the theoretical underpinnings and practical application of those physics.
• Advanced Topics and Application-Specific Workshops: These courses delve into more complex modeling techniques, optimization, multiphysics coupling, and industry-specific applications.
• Online Training Options: In addition to in-person courses, COMSOL also provides online training sessions, offering flexibility for users worldwide.

Software Components and Add-on Modules: What Is Comsol Software

COMSOL Multiphysics is a powerful simulation platform designed to solve complex multiphysics problems. Its core strength lies in its ability to couple different physical phenomena. However, to address the vast array of engineering and scientific challenges, COMSOL offers a comprehensive suite of specialized add-on modules, each dedicated to specific physics domains or application areas. These modules extend the capabilities of the core software, providing tailored interfaces, pre-defined physics interfaces, solvers, and post-processing tools.The foundation of COMSOL Multiphysics is its integrated environment for modeling, solving, and visualizing simulation results.

It allows users to define geometries, assign material properties, set up physics, solve the governing equations, and analyze the outcomes. The true power of COMSOL is unleashed when its specialized modules are utilized, enabling users to tackle increasingly complex and domain-specific simulations.

Core COMSOL Multiphysics Product

The core COMSOL Multiphysics product provides the fundamental framework for multiphysics simulation. It includes the essential tools for creating and managing simulation projects, defining geometries, assigning materials, and setting up physics. The core product features a robust meshing engine, a variety of solvers for different types of partial differential equations (PDEs), and comprehensive post-processing capabilities for visualizing and analyzing simulation results.

It forms the bedrock upon which all specialized modules are built, enabling the coupling of different physics through a unified interface.

Add-on Application Modules

COMSOL offers a wide range of add-on application modules that extend its functionality to specific fields of physics and engineering. These modules are designed to streamline the simulation process for particular applications by providing ready-to-use physics interfaces, specialized solvers, and material libraries. The selection of modules allows users to tailor the software to their specific research or development needs, ensuring efficiency and accuracy in their simulations.The following is a list and explanation of common add-on application modules:

• AC/DC Module: This module is dedicated to the simulation of electromagnetic phenomena in static and time-dependent scenarios. It is used for analyzing electric and magnetic fields, current distributions, and their interactions with materials. Applications include the design of electric motors, transformers, sensors, and electromagnetic compatibility (EMC) studies.
• Acoustics Module: This module enables the simulation of acoustic waves and their propagation. It is used for analyzing sound fields, vibrations, and their effects in various media. Typical applications involve designing loudspeakers, microphones, ultrasonic devices, and studying room acoustics and noise reduction.
• Battery Design Module: Specifically designed for simulating electrochemical energy storage devices, this module facilitates the design and optimization of batteries. It allows for the modeling of charge and discharge processes, thermal effects, and degradation mechanisms, aiding in the development of more efficient and longer-lasting batteries.
• CFD Module: The Computational Fluid Dynamics (CFD) Module is used for simulating fluid flow and heat transfer. It allows for the analysis of laminar and turbulent flows, multiphase flows, and conjugate heat transfer. Applications range from aerodynamics and hydrodynamics to microfluidics and HVAC system design.
• Chemical Reaction Engineering Module: This module focuses on the simulation of chemical reactions and transport phenomena in chemical reactors. It is used for optimizing reactor design, studying reaction kinetics, and analyzing mass transfer effects. Applications include catalysis, process intensification, and environmental engineering.
• Corrosion Module: This module is used to simulate electrochemical corrosion processes. It enables the prediction of corrosion rates, the analysis of protective coatings, and the design of corrosion prevention strategies. Applications are found in material science, civil engineering, and the oil and gas industry.
• cửa sổ Heat Transfer Module: This module provides comprehensive tools for simulating heat transfer phenomena, including conduction, convection, and radiation. It is used for analyzing thermal stresses, temperature distributions, and heat management in various systems. Applications include electronics cooling, building thermal analysis, and process engineering.
• Particle Tracing Module: This module is used to simulate the motion of particles in fluids or electromagnetic fields. It is useful for analyzing trajectories, collisions, and interactions of particles. Applications include aerosol dynamics, fluidization, and microparticle manipulation.
• Plasma Module: This module enables the simulation of plasmas, which are ionized gases. It is used for studying plasma generation, transport phenomena, and chemical reactions in plasmas. Applications include semiconductor manufacturing, lighting, and fusion energy research.
• RF Module: The Radio Frequency (RF) Module is used for simulating electromagnetic wave propagation and interaction in the high-frequency range. It is essential for designing antennas, waveguides, microwave circuits, and analyzing electromagnetic interference (EMI).
• Semiconductor Module: This module is designed for simulating semiconductor devices, including transistors, diodes, and solar cells. It allows for the analysis of charge transport, carrier generation and recombination, and device performance under various operating conditions.
• Structural Mechanics Module: This module is used for simulating the mechanical behavior of solid objects under various loads and boundary conditions. It enables the analysis of stress, strain, deformation, vibration, and fatigue. Applications include structural analysis, biomechanics, and automotive engineering.
• Wave Optics Module: This module is used for simulating the propagation and interaction of light waves. It is applied in the design of optical components, waveguides, and analyzing phenomena like diffraction and interference.

Module Comparison: CFD Module vs. Structural Mechanics Module

The CFD Module and the Structural Mechanics Module represent distinct but often coupled physics domains within the COMSOL Multiphysics environment. The fundamental difference lies in the physical phenomena they are designed to simulate.The CFD Module is concerned with the behavior of fluids and their motion. It solves the Navier-Stokes equations and related conservation laws to predict velocity fields, pressure distributions, temperature changes due to convection, and the transport of species within fluid domains.

Simulations in the CFD Module typically involve analyzing flow patterns, pressure drops, mixing processes, and heat transfer driven by fluid motion. For instance, one might use the CFD Module to simulate airflow over an airplane wing to determine lift and drag forces, or to model blood flow in an artery to assess the risk of aneurysm formation.In contrast, the Structural Mechanics Module focuses on the mechanical response of solid materials.

It solves equations of elasticity, plasticity, and other constitutive models to predict stress, strain, displacement, and vibration modes within solid structures. This module is crucial for assessing the integrity and performance of components under mechanical loads, such as tension, compression, bending, and torsion. Examples include simulating the stress distribution in a bridge under traffic load, analyzing the deformation of a car chassis during a crash, or predicting the natural frequencies of a turbine blade to avoid resonance.While distinct, these modules are frequently used in conjunction to solve multiphysics problems.

For example, a common application is fluid-structure interaction (FSI), where the forces exerted by a fluid (simulated with the CFD Module) on a solid structure cause deformation, which in turn alters the fluid flow. Another example is thermal stress analysis, where temperature distributions calculated by the Heat Transfer Module (or even the CFD Module) lead to mechanical stresses and strains in a solid structure (analyzed with the Structural Mechanics Module).

The ability to seamlessly couple these modules is a hallmark of COMSOL Multiphysics.

Major Module Functionality Overview

Each major module in COMSOL Multiphysics provides a specialized set of tools and physics interfaces to empower users in specific domains.The AC/DC Module enables the simulation of phenomena such as electric fields, magnetic fields, and their interactions. Users can model electrostatic and magnetostatic problems, as well as time-dependent phenomena like eddy currents and induction heating. This module is critical for designing electrical machines, analyzing electromagnetic compatibility, and developing sensors.The Acoustics Module facilitates the simulation of sound propagation, vibration, and their interactions.

Users can model acoustic waves in fluids and solids, analyze acoustic fields, and predict noise levels. Applications include the design of audio devices, architectural acoustics, and non-destructive testing using ultrasound.The CFD Module is dedicated to the simulation of fluid flow and heat transfer. It supports a wide range of fluid dynamics phenomena, including laminar and turbulent flow, multiphase flow, and porous media flow.

Users can analyze pressure drops, velocity profiles, mixing, and thermal management in systems like pumps, heat exchangers, and microfluidic devices.The Heat Transfer Module allows for the simulation of conduction, convection, and radiation heat transfer. It is essential for analyzing thermal management in electronics, building energy efficiency, and industrial heating and cooling processes. Users can predict temperature distributions, thermal stresses, and heat flux.The Structural Mechanics Module provides tools for analyzing the mechanical behavior of solid structures.

Users can perform static and dynamic structural analysis, including stress, strain, deformation, vibration, and buckling analysis. This module is vital for ensuring the safety and performance of mechanical components and structures.The RF Module is designed for simulating electromagnetic phenomena at radio frequencies and microwaves. It enables the analysis of antennas, waveguides, resonators, and electromagnetic interference. Applications include wireless communication systems, radar, and microwave heating.The Wave Optics Module allows for the simulation of light propagation and interaction with matter at the optical frequencies.

Users can model phenomena such as diffraction, interference, and polarization. This module is used in the design of optical devices, integrated photonics, and metamaterials.

Illustrative Examples of Simulation Setup

COMSOL Multiphysics excels in its ability to translate complex physical phenomena into tangible simulation models. This section provides a practical demonstration of how to set up simulations for various fundamental physics, illustrating the software’s intuitive workflow and powerful capabilities. By walking through these examples, users can gain a foundational understanding of the steps involved in creating accurate and insightful virtual experiments.The process of setting up a simulation in COMSOL generally involves defining the geometry, selecting the appropriate physics interfaces, defining materials, meshing the geometry, and setting up boundary conditions and solvers.

Each step is crucial for achieving reliable simulation results.

Heat Conduction in a Solid

Simulating heat conduction is a fundamental task in many engineering disciplines. The following steps Artikel the procedure for setting up such a simulation in COMSOL Multiphysics.

1. Geometry Definition: Begin by creating or importing the 2D or 3D geometry of the solid object. This could be a simple cube, a more complex heat sink, or any other relevant shape.
2. Physics Interface Selection: Navigate to the ‘Add Physics’ section and select ‘Heat Transfer in Solids (ht)’. This interface provides the necessary equations and settings for simulating heat conduction.
3. Material Properties: Assign material properties to the geometric domains. For heat conduction, the key properties are thermal conductivity, density, and specific heat capacity. COMSOL offers a comprehensive material library, or users can define custom materials.
4. Initial Conditions: Specify the initial temperature distribution within the solid at the start of the simulation. This can be a uniform temperature or a spatially varying temperature profile.
5. Boundary Conditions: Define how heat interacts with the boundaries of the solid. Common boundary conditions include:
   • Temperature: Prescribing a fixed temperature on a boundary.
   • Heat Flux: Specifying the rate of heat flow across a boundary. This can be a constant value or a function of position or time.
   • Convective Heat Flux: Simulating heat transfer to or from a surrounding fluid, requiring the convective heat transfer coefficient and the ambient fluid temperature.
   • Thermal Insulation: Representing a boundary where no heat transfer occurs.
6. Meshing: Discretize the geometry into a mesh of elements. The mesh density and element type significantly impact the accuracy and computational cost of the simulation. COMSOL’s automatic meshing tools can be used, or manual refinement can be applied.
7. Study Setup: Choose the type of study to perform. For transient heat conduction, a ‘Time Dependent’ study is selected. For steady-state analysis, a ‘Stationary’ study is appropriate.
8. Solver Configuration: COMSOL automatically configures the solver, but advanced users can customize solver settings for performance optimization.
9. Compute: Run the simulation to obtain results, which can include temperature distribution, heat flux, and thermal gradients.

Basic Fluid Flow Simulation

Setting up a fluid flow simulation allows for the analysis of velocity fields, pressure distributions, and other critical flow characteristics. The following guide Artikels the essential steps for a basic fluid flow simulation in COMSOL.

1. Geometry Creation: Define the computational domain representing the fluid region. This could be a pipe, a channel, or a more intricate flow path.
2. Physics Interface Selection: Under ‘Add Physics’, select ‘Laminar Flow’ (for low Reynolds numbers) or ‘Turbulent Flow’ (for higher Reynolds numbers). The choice depends on the flow regime.
3. Material Properties: Assign fluid properties such as density and dynamic viscosity. For turbulent flow, additional parameters like turbulent viscosity models are required.
4. Inlet and Outlet Conditions:
   • Inlet: Specify the flow entering the domain. This can be defined by a constant velocity, a flow rate, or a pressure.
   • Outlet: Define how the fluid exits the domain. Typically, a pressure outlet condition is used, often set to atmospheric pressure.
5. Wall Conditions: For solid boundaries where the fluid is in contact, a ‘No-slip’ boundary condition is standard, meaning the fluid velocity at the wall is zero.
6. Meshing: Generate a suitable mesh for the fluid domain. Finer meshes are often required near walls and in regions of high gradients to capture flow behavior accurately.
7. Study Type: For steady-state flow, select a ‘Stationary’ study. For time-varying flow phenomena, a ‘Time Dependent’ study is necessary.
8. Solver Execution: Initiate the computation. The solver will iteratively solve the Navier-Stokes equations to determine the flow field.
9. Postprocessing: Visualize and analyze the results, such as velocity streamlines, pressure contours, and velocity profiles.

Electrostatic Problem Modeling

Modeling electrostatic phenomena is crucial for designing electronic components, sensors, and high-voltage equipment. The process for setting up an electrostatic simulation in COMSOL is as follows.

1. Geometry Definition: Create the 2D or 3D geometry of the conductive and dielectric objects involved in the electrostatic system.
2. Physics Interface Selection: Add the ‘Electrostatics’ interface from the ‘Electric Currents’ or ‘AC/DC Module’.
3. Material Properties:
   • Conductors: Assign conductivity or electric potential.
   • Dielectrics: Define the relative permittivity (dielectric constant).
4. Boundary Conditions:
   • Electric Potential: Set a specific voltage on conductive surfaces.
   • Electric Ground: Define a reference potential, typically 0V.
   • Electric Insulation: Represent surfaces where no electric field lines cross.
   • Symmetry: Utilize symmetry planes to reduce computational domain.
5. Initial Conditions: For time-dependent electrostatic problems, define the initial electric potential distribution.
6. Meshing: Create a mesh. Finer meshes are often beneficial around sharp corners or regions with high electric field gradients.
7. Study Type: A ‘Stationary’ study is typically used for static electrostatic problems. If time-varying electric fields are involved (e.g., with moving charges), a ‘Time Dependent’ study is required.
8. Solver and Computation: Configure and run the solver to calculate the electric potential and electric field distribution.
9. Analysis: Examine results such as electric potential contours, electric field vectors, and surface charge densities.

Simple Structural Analysis

Structural analysis in COMSOL enables the prediction of stresses, strains, and displacements under applied loads. The setup for a basic structural analysis is detailed below.

1. Geometry Definition: Create or import the 3D model of the structure to be analyzed.
2. Physics Interface Selection: Add the ‘Solid Mechanics’ interface from the ‘Structural Mechanics Module’.
3. Material Properties: Define the mechanical properties of the material, including Young’s modulus, Poisson’s ratio, and density.
4. Boundary Conditions:
   • Fixed Constraint: Restrain certain boundaries from displacement.
   • Prescribed Displacement: Apply a specific displacement to a boundary.
   • Boundary Load: Apply forces or pressures to surfaces.
   • Edge Load: Apply forces along edges.
   • Point Load: Apply forces at vertices.
5. Body Loads: Apply loads that act on the entire volume of a domain, such as gravity.
6. Meshing: Generate a mesh. For accurate stress analysis, finer meshes are typically needed in areas of stress concentration.
7. Study Type: A ‘Stationary’ study is used for static structural analysis. For dynamic responses, a ‘Time Dependent’ or ‘Modal’ study can be employed.
8. Solver and Computation: Run the simulation to calculate displacements, stresses, and strains.
9. Results Interpretation: Visualize stress contours (e.g., Von Mises stress), displacement vectors, and strain distributions.

Thermal Stress Analysis Simulation Parameters

Thermal stress analysis combines the effects of thermal expansion and mechanical constraints to determine the stresses induced by temperature changes. The following table Artikels key parameters involved in setting up such a simulation.

Last Recap

So, there you have it! COMSOL Multiphysics is more than just software; it’s your partner in innovation, letting you tackle intricate engineering problems with confidence. From its modular design and vast array of physics interfaces to its intuitive workflow and powerful modeling approach, COMSOL empowers you to push boundaries and bring your ideas to life. Whether you’re a seasoned pro or just starting out, the resources available make learning and mastering this tool a journey worth taking.

Keep simulating, keep creating!

Popular Questions

What kind of problems can COMSOL solve?

COMSOL can tackle a massive range of problems involving heat transfer, fluid flow, structural mechanics, electromagnetics, acoustics, and even chemical reactions, often combining these physics to simulate real-world complexity.

Is COMSOL difficult to learn?

Like any powerful software, it has a learning curve, but COMSOL offers extensive documentation, tutorials, and community support to help users get up to speed. The interface is designed to be user-friendly, especially with its pre-defined physics interfaces.

Do I need to be a coding expert to use COMSOL?

Not necessarily. While COMSOL allows for custom equation formulation and scripting for advanced users, its strength lies in its ability to handle complex simulations through its graphical user interface and pre-built physics modules, making it accessible to engineers without extensive programming backgrounds.

Can I use COMSOL for product design and optimization?

Absolutely! COMSOL is widely used for product design, allowing engineers to test different designs, optimize parameters, and predict performance before physical prototyping, saving significant time and resources.

What are the system requirements for COMSOL?

System requirements vary depending on the complexity of the models you intend to run, but generally, COMSOL benefits from a powerful multi-core processor, ample RAM (32GB or more is recommended for complex simulations), and a good graphics card.
