What is Cura software A 3D printing essential

What is Cura software, and it stands as an indispensable component within the intricate ecosystem of 3D printing. This powerful application serves as the crucial intermediary, translating digital 3D models into the precise instructions that a 3D printer can understand and execute. Its primary function lies in the sophisticated process of “slicing,” where a three-dimensional object is meticulously divided into numerous horizontal layers, each representing a single pass of the printer’s nozzle.

The core purpose of Cura software revolves around preparing digital designs for additive manufacturing, effectively bridging the gap between imagination and tangible creation. It meticulously analyzes imported 3D models, often in standard formats like STL or OBJ, and through a complex algorithmic process, converts them into a series of machine-readable commands, commonly referred to as G-code. This transformation is not merely a conversion; it involves a deep understanding of the printing process, allowing users to fine-tune numerous parameters to optimize print quality, speed, and material efficiency.

Core Functionality of Cura Software: What Is Cura Software

Welcome back, 3D printing enthusiasts! Now that we’ve set the stage with our introduction and outro, let’s dive deep into the beating heart of the 3D printing preparation process: the core functionality of Cura software. Think of Cura as your master translator, taking your digital dreams and turning them into a physical reality, layer by painstaking layer. It’s the indispensable bridge between your 3D model and the printer that will bring it to life.At its essence, Cura’s primary purpose is to slice your 3D model into hundreds or thousands of thin, horizontal layers and then generate the precise instructions, known as G-code, that your 3D printer understands.

This intricate process ensures that your printer can accurately deposit material, layer by layer, to construct your object. Without this crucial step, your printer would be staring at a complex 3D shape with no idea how to build it.

3D Model Preparation for Printing

Cura handles a fundamental set of processes to transform a raw 3D model into a print-ready file. This involves more than just dividing the model; it’s about optimizing it for successful fabrication.The fundamental processes Cura manages include:

• Slicing: This is the core function, where the software divides the 3D model into thin, horizontal layers. The thickness of these layers directly impacts print resolution and time.
• Support Generation: For models with overhangs or bridges, Cura can automatically generate support structures. These temporary structures prevent the printed material from collapsing during the printing process and are removed after the print is complete.
• Infill: Cura determines how to fill the internal volume of your model. You can choose various infill patterns (like grid, cubic, or gyroid) and densities, balancing strength, weight, and material usage.
• Shell/Wall Thickness: This setting controls the thickness of the outer layers of your print, crucial for structural integrity and appearance.
• Print Speed and Temperature: Cura allows you to fine-tune print speeds for different parts of the model (e.g., walls, infill, top layers) and set the optimal nozzle and bed temperatures based on your filament type.
• Retraction Settings: To prevent stringing or oozing between different parts of a print, Cura manages retraction settings, which pull the filament back slightly when the nozzle moves without printing.

Accepted Input File Types

To cater to a wide range of 3D modeling software and workflows, Cura is designed to be highly compatible with various common 3D file formats. This flexibility ensures that most users can seamlessly integrate Cura into their existing design processes.The main types of input files Cura can accept for slicing are:

• STL (Stereolithography): This is by far the most common file format for 3D printing. It represents a 3D model as a mesh of triangles.
• 3MF (3D Manufacturing Format): A more modern format that can store more information than STL, including color, materials, and unit information, leading to more efficient and accurate prints.
• OBJ (Object File): Another widely used 3D model format that can also store color and texture information.

Cura User Interface Components

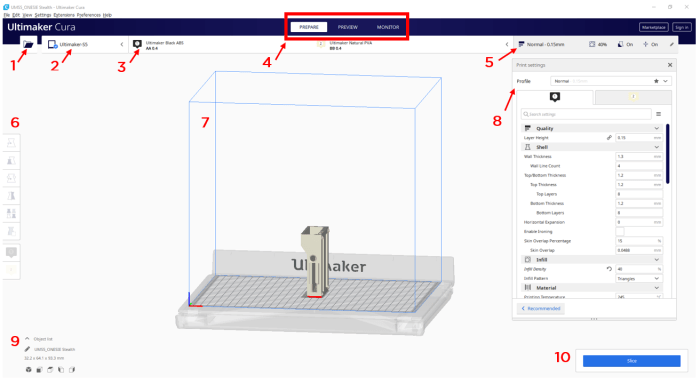

Navigating Cura is an intuitive experience, thanks to its well-organized user interface. Each section is designed to provide quick access to the settings and tools you need to prepare your prints effectively.The core components of the Cura user interface include:

• The 3D Viewport: This is the central area where your 3D model is displayed. You can rotate, pan, and zoom to inspect your model from all angles.
• The Print Settings Panel: Located on the right side of the screen, this is where you’ll find the vast majority of customization options. These are categorized into basic, recommended, and custom settings for different levels of user expertise.
• The Machine Settings Panel: This panel, often found on the left, allows you to select your 3D printer, the material you’re using, and other machine-specific configurations.
• The Toolbar: Typically at the top, this provides quick access to common functions like opening files, saving, undo/redo, and switching between different view modes.
• The Layer View: After slicing, this view allows you to visualize your print layer by layer, showing the path the nozzle will take and the internal structure.
• The G-code Preview: This provides a detailed visualization of the generated G-code, highlighting travel moves, extrusions, and potential issues.

Slicing Process and Settings

Alright, buckle up, 3D printing enthusiasts! We’ve conquered the intro and the core functionalities of Cura, but now we’re diving into the nitty-gritty that truly transforms your digital models into tangible objects. This is where the magic, and sometimes the mayhem, happens – the slicing process. Think of it as the chef preparing your ingredients before they hit the pan; Cura takes your 3D model and breaks it down into tiny, manageable layers, each with its own set of instructions for the printer.At its heart, “slicing” in 3D printing is the process of converting a 3D model (usually an STL or 3MF file) into a series of thin, horizontal layers.

Cura acts as the master chef here, meticulously chopping up your digital creation and generating the G-code – the language your 3D printer understands. This G-code contains all the instructions, from where to move the print head to how much material to extrude, all layer by layer. It’s a complex ballet of commands, ensuring your print comes to life with precision.

Critical Settings Influencing Print Quality and Speed

The settings you choose in Cura are the secret sauce that dictates whether your print emerges as a masterpiece or a magnificent mess. These aren’t just random knobs to twiddle; they directly impact the strength, detail, and how quickly your object materializes. Mastering these settings is key to achieving the desired outcome and avoiding frustrating print failures.Here’s a look at some of the most impactful settings:

• Layer Height: This is arguably the most significant setting. It determines the thickness of each individual layer deposited by the printer. Lower layer heights result in finer details and smoother surfaces, but at the cost of longer print times. Conversely, higher layer heights print faster but can lead to visible layer lines and less detail.
• Print Speed: How fast the print head moves and extrudes material. Faster speeds mean quicker prints but can compromise surface quality and accuracy, especially on intricate details or overhangs. Slower speeds allow for more precise extrusion and better adhesion, leading to higher quality but significantly longer print durations.
• Infill Density and Pattern: This controls how much material is used inside the model to provide structural support. Higher infill density means a stronger, heavier, and more material-intensive print. The pattern chosen also plays a role in strength and weight.
• Print Temperature: The temperature of the nozzle and the heated bed (if applicable). This is crucial for proper material flow and adhesion. Incorrect temperatures can lead to under-extrusion, stringing, warping, or poor layer bonding.
• Retraction Settings: These settings control how the filament is pulled back into the nozzle when the print head moves between different parts of a layer. Properly tuned retraction prevents “stringing” – those annoying wisps of plastic that can mar the surface of your print.

Infill Patterns and Their Effects

The internal structure of your 3D print, known as infill, is like the skeleton of your object. It provides support and strength without needing to fill the entire object with solid plastic. Cura offers a variety of infill patterns, each with its own advantages and disadvantages in terms of strength, material usage, and print time.Let’s explore some common infill patterns:

• Grid: A criss-cross pattern that offers good strength in multiple directions. It’s a reliable all-rounder but can use a moderate amount of material.
• Lines: Simple parallel lines. It’s very fast to print and uses minimal material, but its strength is primarily directional.
• Cubic: A 3D grid pattern that provides excellent strength in all directions. It’s denser and uses more material than Grid or Lines but results in a very robust print.
• Gyroid: A smooth, undulating pattern that offers good strength and is also efficient in material usage. It’s known for its aesthetic appeal and good support properties.
• Honeycomb: A tessellating hexagonal pattern. It’s lightweight and offers good strength-to-weight ratio, making it suitable for prototypes where weight is a concern.

Choosing the right infill pattern depends on the intended use of your printed object. For functional parts that need to withstand stress, Cubic or Gyroid might be ideal. For decorative items where strength isn’t paramount, Lines or Grid could suffice, saving time and material.

Adjusting Layer Height for Print Resolution

Layer height is a fundamental setting that directly impacts the visual quality and detail of your 3D prints. It’s a trade-off: finer layers mean more detail, but more time. Let’s walk through how to adjust it and what to expect.Here’s a step-by-step procedure for adjusting layer height:

1. Locate the “Quality” Section: In Cura’s print settings, navigate to the “Quality” category.
2. Identify “Layer Height”: You will find a setting labeled “Layer Height.” It’s typically measured in millimeters (mm).
3. Select a Value: Common values range from 0.1mm (for high detail) to 0.3mm (for faster prints). For standard prints, 0.2mm is often a good balance.
4. Consider Your Model: For models with intricate details, small features, or smooth curves, a lower layer height (e.g., 0.1mm or 0.15mm) will capture these nuances much better.
5. Consider Your Time Constraints: If you need the print quickly, a higher layer height (e.g., 0.25mm or 0.3mm) will significantly reduce print time, though you’ll likely see more prominent layer lines.
6. Observe the Impact: After slicing with a new layer height, visually inspect the estimated print time and the preview. A lower layer height will increase the estimated print time dramatically. The preview will also show finer details and smoother surfaces.

For example, printing a small, detailed figurine with a layer height of 0.1mm might take 10 hours, while printing the exact same figurine with a layer height of 0.3mm could take as little as 3 hours. The 0.1mm print will have a nearly seamless surface, while the 0.3mm print will have visibly distinct layers.

Print Temperature and Its Effect on Adhesion and Extrusion

Print temperature is a critical parameter that influences how your filament behaves as it’s extruded and how it bonds to the build plate and previous layers. It’s not a one-size-fits-all setting and varies significantly between different filament types.Here’s how print temperature affects your prints:

• Material Adhesion: The correct print temperature ensures that the extruded plastic melts sufficiently to bond effectively with the build plate and the layer below. If the temperature is too low, the plastic may not melt properly, leading to poor adhesion, warping, or the print detaching from the build plate.
• Extrusion Quality: Temperature directly impacts the viscosity of the molten plastic. Too low a temperature can result in under-extrusion, where not enough plastic is pushed out, leading to gaps and weak prints. Too high a temperature can cause over-extrusion, where too much plastic is extruded, leading to blobs, stringing, and dimensional inaccuracies.
• Layer Bonding: The temperature of the nozzle is also responsible for fusing each new layer to the one beneath it. If the temperature is too low, layers may not bond well, resulting in a weak print that can delaminate or break apart easily.
• Surface Finish: Optimal temperature contributes to a smoother surface finish. Too high a temperature can sometimes lead to a glossy or burnt appearance, while too low can result in a duller finish and increased stringing.

For instance, PLA filament typically prints well between 190°C and 220°C. If you try to print PLA at 170°C, you’ll likely experience significant adhesion issues and under-extrusion. Conversely, printing it at 240°C might result in excessive stringing and a burnt smell. ABS, on the other hand, requires higher temperatures, often in the range of 230°C to 260°C, and a heated bed is almost essential for proper adhesion.

“The sweet spot for temperature is where your filament flows smoothly, adheres to the build plate and previous layers, and results in a clean, well-formed print without excessive stringing or blobbing.”

Printer and Material Compatibility

So, you’ve mastered the slicing dance and are ready to bring your digital creations into the physical realm! But hold on a sec, your printer and your chosen filament are like the lead dancers in this 3D printing ballet. They need to be in sync, and that’s where Cura truly shines, acting as your expert choreographer.Cura is designed to be the ultimate bridge between your imagination and your 3D printer’s capabilities.

It understands that the 3D printing world is a vibrant tapestry of different machines and materials, and it’s built to accommodate this diversity. Think of it as a universal translator for your printer’s language, ensuring your digital model gets interpreted perfectly for physical output.

Printer Compatibility and Profile Management

Cura’s superpower lies in its extensive library of pre-configured printer profiles. This means that for a vast majority of popular 3D printers on the market, Cura already knows the specific dimensions, movement capabilities, and unique quirks of your machine. This pre-configuration is crucial because each printer has its own set of G-code commands that tell it exactly how to move, heat up, and extrude filament.The process of adding a new 3D printer profile in Cura is refreshingly straightforward, designed to get you printing with minimal fuss.

If your printer isn’t automatically recognized, or if you have a brand new model, Cura provides a guided setup.Here’s how you typically add and configure a new 3D printer profile:

• Printer Selection: When you first launch Cura or navigate to the printer settings, you’ll be presented with a list of manufacturers and models. Simply search for your printer.
• Manual Configuration: If your specific printer isn’t listed, don’t despair! Cura offers a “Custom” or “Add a printer manually” option. This is where you’ll input key specifications.
• Machine Settings: This is the heart of the printer profile. You’ll be asked for details like:
  • Build Volume: The maximum X, Y, and Z dimensions your printer can create.
  • Nozzle Size: The diameter of the nozzle, which affects print detail and speed.
  • Heated Bed: Whether your printer has a heated bed, which is essential for certain materials.
  • G-code Flavor: This specifies the dialect of G-code your printer understands (e.g., Marlin, RepRap, Ultimaker).
  • Start and End G-code: These are custom scripts that run at the beginning and end of every print. Cura provides sensible defaults, but advanced users can tweak them for specific priming routines or shutdown procedures.
• Profile Saving: Once configured, you save this profile, and Cura will use these settings as the foundation for all your slicing jobs for that specific printer.

This meticulous attention to printer specifics ensures that Cura generates G-code that your machine can execute flawlessly, minimizing errors and maximizing print success.

Material Profile Selection and Settings

Once your printer is dialed in, the next critical step is telling Cura what material you’re feeding into it. Different filaments have vastly different properties, requiring distinct printing temperatures, speeds, and cooling strategies. Cura’s material profiles are like cheat sheets, providing optimized settings for common filament types.Selecting the appropriate material profile is a cornerstone of successful 3D printing. It’s not just about color; it’s about the inherent characteristics of the plastic itself.Consider these factors when choosing your material profile:

• Filament Type: The most common types are PLA, ABS, PETG, TPU, and Nylon. Each has unique melting points, adhesion properties, and flexibility.
• Manufacturer Recommendations: Filament manufacturers often provide recommended print temperatures and bed temperatures for their specific products. These are excellent starting points.
• Print Quality vs. Speed: Some profiles prioritize fine detail and smooth surfaces, while others are optimized for faster prints.
• Enclosure Needs: Materials like ABS benefit greatly from an enclosed printer to prevent warping, and Cura’s profiles might include settings that account for this.

Cura provides a wide array of pre-defined material profiles, and you can also create and save your own custom profiles. When you select a material, Cura automatically adjusts key slicing parameters.Let’s compare the typical settings for two of the most popular filaments: PLA and ABS. This comparison highlights how Cura adapts its slicing strategies based on material properties.

Typical PLA vs. ABS Settings in Cura

The differences are stark and directly related to the materials’ inherent properties. PLA is known for its ease of printing and low shrinkage, hence the lower temperatures and less stringent bed adhesion requirements. ABS, on the other hand, is a more robust material but is notorious for its tendency to warp due to significant thermal contraction, necessitating higher temperatures and better adhesion strategies.

Printer-Specific G-code Management, What is cura software

Cura’s role as a G-code generator is where the magic truly happens. It translates your 3D model and chosen slicing settings into a sequence of commands that your printer understands. Crucially, Cura manages printer-specific G-code to ensure compatibility and optimal performance.The G-code generated by Cura is not a one-size-fits-all solution. It’s tailored to the printer profile you’ve selected and the material settings you’ve chosen.

This includes:

• Machine Instructions: Cura embeds commands specific to your printer’s firmware, such as homing sequences (G28), setting up the coordinate system, and controlling extruder movements.
• Temperature Control: The G-code will include commands to heat the nozzle and bed to the precise temperatures defined in your printer and material profiles (e.g., M104 S210 for nozzle temperature, M140 S60 for bed temperature).
• Movement Commands: These are the core of the G-code, instructing the printer’s motors on how to move the print head in X, Y, and Z directions to lay down filament layer by layer (e.g., G1 X10 Y20 E0.5 F3000).
• Extrusion Control: The G-code precisely dictates how much filament to extrude at any given moment, ensuring the correct line width and layer height.
• Cooling Fan Control: Commands to turn the part cooling fan on or off, and at what speed, are included based on your material settings.
• Start and End Scripts: As mentioned earlier, custom G-code scripts for the beginning and end of the print are embedded. These can include tasks like priming the nozzle to ensure consistent extrusion from the very first layer or performing a bed leveling routine.

For instance, if you select an Ultimaker printer profile, Cura will generate G-code that utilizes commands and sequences familiar to Ultimaker firmware. Conversely, a profile for a Prusa printer will produce G-code optimized for Prusa’s Marlin-based firmware. This intelligent generation of printer-specific G-code is a fundamental reason why Cura is so effective at bridging the gap between digital design and physical reality, making it an indispensable tool for 3D printing enthusiasts and professionals alike.

Advanced Features and Customization

Now that we’ve conquered the basics of slicing, let’s dive into the really cool stuff! Cura isn’t just a one-trick pony; it’s packed with advanced features that let you fine-tune your prints to perfection, overcome common printing challenges, and even automate some of your workflow. Think of these as your secret weapons for achieving those jaw-droppingly successful prints.Ready to level up your 3D printing game?

We’re about to explore how to tackle tricky geometries, ensure your prints stick to the build plate like glue, and even make Cura do some of the heavy lifting for you. Let’s get our hands dirty with some powerful customization!

Support Structures: The Print’s Best Friend

Sometimes, your 3D models have parts that float in mid-air, and your printer can’t magically create plastic out of thin air. That’s where support structures come in! They act as temporary scaffolding, giving those overhanging or bridging sections something to build upon. Without them, you’d likely end up with a droopy, stringy mess. Cura offers robust tools to generate and manage these essential supports, making the impossible, possible.Cura offers several ways to generate support structures, allowing for a balance between printability and ease of removal.

Understanding these options is key to a successful print.

• Generate Support: This is the most straightforward option. When enabled, Cura automatically calculates and places support structures wherever it deems necessary based on the overhang angle setting.
• Support Placement: You can choose where supports are generated. ‘Touching Buildplate’ is ideal for models with overhangs that don’t extend far out from the base, while ‘Everywhere’ provides support for all overhangs, even those that are not touching the build plate. This is crucial for complex geometries.
• Overhang Angle: This setting dictates how much of an overhang will trigger support generation. A lower angle (e.g., 45 degrees) will generate supports for steeper overhangs, while a higher angle (e.g., 70 degrees) will only generate supports for very extreme overhangs.
• Support Density: This controls how dense the support material is. A lower density means less material used and easier removal, but it might be less stable. A higher density offers more stability but is harder to remove and uses more filament.
• Support Interface: This advanced option allows you to create a denser, more defined surface at the top and bottom of your support structures. This significantly improves the surface finish of the parts that the support touches, making them much cleaner and easier to clean up.

Adhesion Helpers: Sticking the Landing

A print detaching from the build plate mid-print is a printer’s worst nightmare. Adhesion helpers are your first line of defense against this catastrophic event. They provide a larger surface area for the first layer to grip onto, ensuring your masterpiece stays firmly in place from start to finish.Choosing the right adhesion helper depends on your model’s geometry and your printer’s build surface.

Each has its strengths and weaknesses.

• Skirt: A skirt is a single line or a few lines printed around the perimeter of your model, but not touching it. Its primary purpose is to prime the nozzle and ensure a consistent flow of filament before the actual print begins. It’s a great way to check if your bed leveling and initial extrusion are on point without wasting material on the model itself.

• Brim: A brim is a single layer of material printed outwards from the base of your model, creating a flat, circular, or polygonal area that is connected to the first layer of your print. This significantly increases the contact area with the build plate, providing excellent adhesion for models with small footprints or those prone to warping, like flat objects or those with sharp corners.

• Raft: A raft is a thicker, multi-layer base printed beneath your entire model. It’s essentially a disposable platform that your model is printed on top of. Rafts are particularly useful for models with very small contact points, those made from materials known for significant warping (like ABS), or when printing on a less-than-perfect build surface. While they offer superior adhesion, they consume more material and can leave a rougher surface on the bottom of your print.

Custom Supports: Precision Where It Matters

While Cura’s automatic support generation is powerful, sometimes you need more control. Custom supports allow you to manually add, remove, or modify support structures at specific points. This is incredibly useful for delicate features, complex internal structures, or when you want to minimize the amount of support material used.Leveraging custom supports gives you granular control over where and how your model is supported, leading to cleaner prints and less post-processing.

• Manual Support Placement: You can use Cura’s tools to paint support blockers onto areas where you
  -don’t* want supports, or to add custom support structures to specific overhangs or bridges that Cura might have missed or over-supported.
• Tree Supports: Cura’s tree support option, often available as a plugin or advanced setting, generates supports that branch out like trees. These supports are generally more material-efficient, easier to remove, and can provide better surface quality on the supported areas compared to traditional linear supports.
• Support Painting: This feature allows you to directly paint support material onto your model where you need it, offering unparalleled precision. You can also paint areas to be excluded from supports, giving you complete command over the support generation process.

Optimizing Print Settings for Specific Model Geometries

Every 3D model is unique, and a one-size-fits-all approach to print settings rarely yields the best results. Understanding how your model’s geometry interacts with the printing process is key to optimization.By tailoring settings to the specific demands of your model’s features, you can drastically improve print quality, speed, and success rates.

• Overhangs and Bridges: For models with significant overhangs, reducing the layer height or increasing the cooling fan speed can help the plastic solidify faster before gravity takes its toll. For bridges (horizontal spans between two points), adjusting retraction settings and print speed can improve the quality of the span.
• Fine Details: If your model has intricate details, consider using a smaller nozzle diameter (e.g., 0.2mm or 0.4mm) and a slower print speed to allow for more precise extrusion. Increasing the travel speed can also help prevent stringing between these fine features.
• Thin Walls: Models with very thin walls can be challenging. Ensure your ‘Wall Line Width’ is set appropriately, and consider using more wall loops or increasing the infill percentage if structural integrity is paramount. Sometimes, a slight increase in temperature can help with the fusion of thin walls.
• Sharp Corners: Sharp corners can sometimes lead to blobbing or rounding. Experimenting with ‘Combing Mode’ (e.g., ‘Within Infill’) can help the nozzle avoid traveling over printed areas, reducing the chance of these artifacts.

Workflow Automation with Cura Scripting

For those who love efficiency and repeatability, Cura’s scripting capabilities open up a world of advanced automation. You can write simple scripts to automatically adjust settings, rename files, or even trigger external processes based on specific print conditions. This is where you can truly make Cura work for you, especially if you’re printing batches of similar items or need to enforce specific print parameters.Scripting in Cura allows you to automate repetitive tasks and create custom workflows, saving you time and ensuring consistency across your prints.

The power of scripting lies in its ability to take manual, repetitive tasks and transform them into automated, reliable processes.

To leverage Cura’s scripting capabilities, you’ll typically interact with its Python API. This allows you to:

• Automate Setting Changes: Write scripts that automatically adjust print settings based on the model being sliced. For instance, a script could detect if a model has a large flat base and automatically enable a brim, or if it has many fine details, it could reduce the print speed.
• Conditional Slicing: Create scripts that analyze the model’s geometry and make decisions about which settings to apply. This is incredibly powerful for complex print farms or when dealing with a wide variety of models.
• File Naming Conventions: Automate the naming of your sliced files based on the model, printer, material, and specific settings used. This is invaluable for organization.
• Post-Processing Integration: Scripts can be used to trigger external programs or commands after slicing is complete, such as sending a notification, preparing a print job for a specific printer, or even running automated quality checks.

The Cura scripting interface is accessed through the “Machine Settings” or “Preferences” menu, where you can add and manage Python scripts. This requires a basic understanding of Python programming, but the potential for streamlining your 3D printing workflow is immense.

Visualization and G-code Interpretation

Ever wondered what magic happens after you hit that “slice” button? Cura doesn’t just churn out code; it gives you a visual peek into the printer’s future. Understanding this visual dance is key to mastering your 3D prints and catching potential hiccups before they even start. Let’s dive into how Cura translates your digital model into a printable reality.Cura’s visualization engine is your window into the mind of the 3D printer.

It takes the complex 3D model you’ve prepared and breaks it down into a series of layers, then meticulously plans the exact path the print head will take for each layer. This isn’t just a pretty picture; it’s a detailed blueprint that ensures every extrusion is precisely where it needs to be.

Visualizing the Sliced Model and Toolpath

When you slice a model in Cura, you’re presented with a dynamic representation of the printing process. This visualization allows you to see the model broken down into individual layers, stacked vertically. More importantly, Cura overlays the “toolpath” – the precise route the nozzle will follow to deposit material for each layer. This path is typically shown as a series of colored lines, each color often representing a different type of movement or extrusion.

You can scrub through these layers, from the first layer on the build plate to the very last, observing how the print is built up. This interactive exploration is invaluable for spotting any anomalies or unexpected movements that might lead to print failures.

G-code Representation in 3D Printing

G-code is the universal language of 3D printers. Think of it as a highly detailed set of instructions that tells the printer exactly what to do, step by step. Each line of G-code is a command, specifying actions like moving the print head to a specific X, Y, and Z coordinate, controlling the extruder’s temperature, regulating the flow of filament, and setting fan speeds.

It’s the digital DNA of your 3D print, meticulously crafted to bring your design to life.

G-code is a machine language that dictates the precise movements and actions of a 3D printer.

Interpreting the Visual Print Path

Cura’s visual toolpath interpretation goes beyond simply seeing lines. Different colors can signify various actions:

• Extrusion: Typically shown in a solid color (often red or orange), indicating where the nozzle is actively depositing filament.
• Travel Moves: These are movements between extrusion points where the nozzle is lifted off the build plate or moving without extruding, usually depicted in a different color (like blue or gray).
• Retraction: The act of pulling filament back slightly to prevent oozing during travel moves, sometimes visually indicated.
• Support Structures: If enabled, the paths for generating support material will also be displayed, often in a distinct color.

By examining these colored paths, you can visually confirm that the printer will move as expected, extrude material where intended, and avoid collisions or unnecessary travel.

Understanding Common G-code Generated by Cura

While you don’t need to be a G-code expert to use Cura, understanding a few common commands can be incredibly insightful. Cura generates thousands of these commands for even a simple print. Here’s a glimpse into some key ones:

• G0/G1 (Linear Move): The workhorse of G-code. `G0` is often used for rapid, non-extruding travel moves, while `G1` is for controlled, extruding moves. The command `G1 X10 Y20 E0.5 F3000` means “move to X=10, Y=20, extrude 0.5mm of filament, at a speed of 3000mm/minute.”
• G28 (Homing): This command tells the printer to move its axes to their home (zero) positions, typically the corners of the build volume.
• M104/M109 (Set Hotend Temperature): `M104 S210` sets the hotend temperature to 210°C without waiting. `M109 S210` does the same but waits until the target temperature is reached before proceeding.
• M140/M190 (Set Bed Temperature): Similar to hotend commands, these control the heated bed temperature. `M140 S60` sets the bed to 60°C, and `M190 S60` waits for it to reach that temperature.
• M106/M107 (Fan Control): `M106 S255` turns the part cooling fan to full speed (255 is the maximum value). `M107` turns the fan off.

Scenario: Identifying Potential Print Issues with Visualized G-code

Imagine you’re printing a complex model, and you’ve noticed some stringing or gaps in previous prints. You slice your new model in Cura and decide to meticulously examine the toolpath for the first few layers.As you scrub through the layers, you notice a long, rapid travel move (a thin blue line) across an open area of the print. This move is significantly longer than necessary between two extrusion points.

You then zoom in and see that the nozzle isn’t lifted very high during this travel. This could be a recipe for stringing, as the filament has a long distance to potentially sag and create wisps.Furthermore, you might observe that the path for the first layer shows a very thin extrusion line in a critical area, or perhaps the travel move over an unsupported section is too close to the model.

By visually tracing these paths, you can preemptively identify that the printer might struggle with over-extrusion during that long travel, or that the first layer adhesion in that specific spot might be weak due to insufficient material deposition. This allows you to go back into Cura’s settings, perhaps by adjusting retraction distance, travel speed, or even wall thickness, before committing to a potentially failed print.

Plugins and Extensibility

Think of Cura as a fantastic, fully-equipped workshop. Now, imagine you need a super-specialized tool for a very particular job – maybe a laser cutter attachment or a robotic arm for intricate assembly. That’s where plugins come in! They are like add-ons, extensions, or little helper programs that you can install into Cura to give it extra powers and tailor it to your unique printing adventures.

They’re the secret sauce that lets you go from a great 3D printing experience to an absolutely mind-blowing one.The beauty of plugins is that they unlock a universe of possibilities, transforming Cura from a general-purpose slicer into a highly specialized powerhouse. Whether you’re a hobbyist experimenting with exotic materials, a professional pushing the boundaries of complex designs, or an educator looking for interactive tools, there’s likely a plugin out there waiting to streamline your workflow or introduce exciting new capabilities.

They’re the key to unlocking your printer’s full potential and making your 3D printing journey even more rewarding and efficient.

The Purpose of Plugins in Cura

Plugins serve as modular enhancements for the Cura software, designed to extend its native functionality without requiring modifications to the core program itself. Their primary purpose is to offer specialized tools, workflows, and integrations that cater to a diverse range of user needs and printing scenarios. By allowing third-party developers and the community to contribute, plugins foster innovation and ensure Cura remains adaptable to the ever-evolving landscape of 3D printing technology and user demands.

This extensibility is crucial for keeping the software relevant and powerful for both beginners and advanced users alike.

Popular Plugin Categories

The plugin ecosystem for Cura is vibrant and diverse, offering solutions for a multitude of printing challenges and desires. These add-ons can dramatically improve your efficiency, accuracy, and creative output.Here are some of the most sought-after plugin categories that significantly boost Cura’s capabilities:

• Calibration Tools: Plugins that automate or simplify the process of calibrating your 3D printer. This includes tools for bed leveling assistance, temperature tower generation, retraction calibration, and dimensional accuracy testing, all leading to more reliable prints.
• Model Preparation and Repair: These plugins offer advanced features for fixing common mesh errors, optimizing models for printing, and even automatically generating supports in more sophisticated ways than the default options.
• Material Management: For users working with a wide array of filaments, these plugins help manage material profiles, track filament usage, and even suggest optimal print settings based on specific material properties.
• Workflow Automation: Plugins that automate repetitive tasks, such as batch processing of multiple models, applying specific settings across a series of prints, or integrating with external project management tools.
• Advanced Visualization: While Cura has excellent built-in visualization, some plugins offer enhanced ways to preview prints, analyze layer by layer, or even simulate material flow for more insightful G-code interpretation.
• Printer-Specific Enhancements: Some plugins are developed to optimize Cura’s output for particular printer models or specific hardware modifications, ensuring the best possible performance.

Installing and Managing Plugins

Cura makes the process of adding and managing these powerful extensions remarkably straightforward, ensuring you can quickly leverage new functionalities. The built-in plugin manager acts as your central hub for all things related to add-ons.The installation and management process typically involves the following steps:

1. Accessing the Plugin Manager: Navigate to the “Extensions” menu in Cura and select “Part Library” or “Settings” (depending on your Cura version). Within this menu, you’ll find an option for “Preferences” or “Plugins.”
2. Browsing and Installing: In the plugin management window, you’ll usually see a list of available plugins, often categorized for easier browsing. You can search for specific plugins by name or . Once you find a plugin you want, simply click the “Install” button. Cura will download and integrate the plugin.
3. Restarting Cura: For most plugins to take effect, you will need to restart Cura after installation. The software will usually prompt you to do this.
4. Managing Installed Plugins: Within the same plugin management window, you can see all your installed plugins. Here, you can enable or disable them, update them if new versions are available, or uninstall them if they are no longer needed.
5. Manual Installation (for downloaded plugins): In some cases, you might download a plugin as a .zip file. Cura has a mechanism for manual installation, often found within the plugin manager by clicking an “Install from file” button, where you can point to your downloaded plugin file.

It’s always a good practice to read the plugin’s description and any accompanying documentation before installation to understand its requirements and potential impact on your workflow.

Extending Capabilities for Specific Printing Needs

Plugins are the secret weapon for users who have very particular printing requirements or want to push their printer’s boundaries. They allow you to transform Cura into a bespoke tool, perfectly suited for niche applications. For instance, a user printing highly detailed miniatures might install a plugin that offers advanced support generation specifically designed for delicate structures, minimizing print failures and post-processing time.Similarly, a professional working with flexible filaments might benefit from a plugin that fine-tunes retraction settings and print speeds to prevent stringing and improve the surface finish of flexible parts.

Cura software, designed for optimizing 3D printing workflows, shares a conceptual kinship with broader logistical tools. Much like how what is supply chain management software orchestrates the movement of goods, Cura meticulously plans the precise deposition of material layer by layer. This intricate digital preparation ensures efficient and accurate replication, mirroring the strategic foresight required in complex manufacturing processes.

For those involved in scientific research or industrial prototyping, plugins that integrate with specialized simulation software or offer advanced slicing strategies for anisotropic materials can be invaluable. Essentially, plugins bridge the gap between general-purpose slicing and the highly specialized demands of advanced or unique 3D printing projects.

Common Tasks Improved with Plugin Integration

The impact of plugins on streamlining and enhancing common 3D printing tasks is profound. They can turn tedious manual processes into automated workflows and introduce functionalities that were previously unavailable.Here’s a look at some common tasks that see significant improvements with plugin integration:

• Optimizing Support Structures: Plugins can generate more intelligent and easily removable supports, especially for complex geometries with overhangs, saving significant post-processing time and reducing the risk of damaging the print.
• Batch Processing and Scaling: For users needing to print multiple identical parts or variations of a design, plugins can automate the process of loading, slicing, and exporting numerous files, drastically reducing setup time.
• Material Profile Management: Keeping track of dozens of filament types and their optimal settings can be a headache. Plugins offer robust systems for organizing, creating, and recalling specific material profiles, ensuring consistent print quality.
• Advanced Model Repair and Preparation: Beyond basic mesh fixing, plugins can automatically identify and correct non-manifold edges, holes, and other geometric issues that might cause slicing errors, leading to more successful prints from the outset.
• Print Time Estimation and Analysis: While Cura provides estimates, some plugins offer more detailed breakdowns of print times, material usage, and even potential failure points, allowing for better project planning and resource allocation.
• Custom G-code Generation: For advanced users, plugins can generate custom G-code snippets for specific printer behaviors, such as advanced cooling fan control, intricate bed adhesion sequences, or synchronized multi-extruder movements, enabling highly customized print outcomes.

Epilogue

In essence, Cura software is the intelligent orchestrator of the 3D printing journey, transforming abstract digital forms into actionable print paths. From its foundational slicing capabilities to its advanced customization options and plugin extensibility, Cura empowers users to achieve remarkable print results. By demystifying the complex G-code and providing intuitive visualization tools, it not only facilitates the creation of intricate models but also offers valuable insights into the printing process itself, making it an indispensable tool for hobbyists and professionals alike seeking to harness the full potential of 3D printing technology.

Expert Answers

What are the main file types Cura can import?

Cura primarily accepts standard 3D model file formats such as STL (STereoLithography) and OBJ (Object), which are widely used for representing 3D geometry. It can also often handle other formats like 3MF (3D Manufacturing Format) and AMF (Additive Manufacturing File Format), offering greater flexibility.

How does Cura’s slicing process work?

The slicing process involves dividing a 3D model into thin horizontal layers. Cura then generates toolpaths for each layer, dictating the exact movements of the printer’s nozzle to deposit material. This creates a set of instructions (G-code) that the printer follows to build the object layer by layer.

What is the significance of infill patterns in Cura?

Infill patterns determine the internal structure of a 3D print. Different patterns like grid, cubic, or gyroid offer varying levels of strength, print time, and material consumption. Choosing the right infill pattern is crucial for balancing structural integrity with efficiency.

How does adjusting layer height affect print quality?

Layer height directly impacts print resolution. Smaller layer heights result in finer detail and smoother surfaces, but increase print time. Larger layer heights print faster but produce more visible layer lines and less intricate detail.

What is the role of printer profiles in Cura?

Printer profiles contain specific settings for a particular 3D printer model, including its build volume, nozzle diameter, and supported temperatures. This ensures that Cura generates G-code tailored to the printer’s capabilities, optimizing compatibility and print success.

Can Cura generate support structures automatically?

Yes, Cura can automatically generate support structures for overhangs and bridges that would otherwise be impossible to print. These temporary structures are designed to be easily removed after printing, ensuring the integrity of delicate parts of the model.

What are skirts, brims, and rafts, and why are they used?

These are adhesion aids printed around the base of the model. Skirts are a single Artikel to prime the nozzle. Brims are a wider, single-layer flat area attached to the base to increase surface area for bed adhesion. Rafts are a thicker, multi-layer platform printed beneath the model, providing a stable foundation for difficult-to-adhere materials.

How do plugins enhance Cura’s functionality?

Plugins extend Cura’s capabilities by adding new features or automating specific tasks. They can range from advanced model repair tools and custom slicing profiles to integrations with other software or hardware, allowing for highly specialized printing workflows.

What does G-code represent in 3D printing?

G-code is a programming language that instructs a 3D printer on how to move and operate. It contains commands for nozzle temperature, bed temperature, fan speed, extruder movement, and precise X, Y, and Z axis coordinates, effectively guiding the entire printing process.

How can I visualize the print path in Cura?

Cura provides a layer-by-layer visualization of the sliced model and the generated toolpath. Users can navigate through each layer to see exactly where the nozzle will travel, the extrusion path, and the order of operations, aiding in the identification of potential issues.
