How Offset Wheels Work A Comprehensive Guide to Wheel Fitment

How offset wheels work is a crucial aspect of automotive design and modification, yet often misunderstood. This exploration delves into the mechanics behind wheel offset, a seemingly simple measurement that significantly impacts a vehicle’s handling, aesthetics, and overall performance. From the subtle differences between positive, negative, and zero offsets to the practical implications on tire clearance and suspension geometry, this guide aims to unravel the complexities and shed light on this fundamental element of vehicle fitment.

We’ll trace the evolution of offset wheels, examining their role in vehicle fitment and the history of their applications. Furthermore, we will dissect the terminology, including how offset relates to wheel width and bolt patterns, while also exploring the manufacturing processes, common problems, and alternative solutions. This will provide a comprehensive understanding of how offset wheels shape the way a vehicle looks, handles, and performs.

Prepare to gain insights into how a seemingly small measurement can make a big difference.

Introduction to Offset Wheels

Wheel offset is a critical specification in automotive design, directly influencing a vehicle’s handling, appearance, and overall performance. It refers to the distance between the wheel’s mounting surface (the part that bolts to the hub) and the centerline of the wheel. This seemingly simple measurement has a profound impact on how a wheel interacts with the vehicle’s suspension and body.Understanding wheel offset is essential for anyone considering aftermarket wheels or modifying their vehicle’s stance.

It’s not just about aesthetics; the correct offset is crucial for ensuring proper clearance, avoiding rubbing, and maintaining the vehicle’s original handling characteristics. A mismatch in offset can lead to a variety of issues, from premature tire wear to compromised safety.

Fundamental Concept of Wheel Offset and its Purpose

Wheel offset is the measurement of how far the wheel’s hub-mounting surface deviates from the wheel’s centerline. The centerline is an imaginary line that runs directly through the center of the wheel’s width. The hub-mounting surface is the flat part of the wheel that bolts directly onto the vehicle’s hub. The offset measurement is typically expressed in millimeters (mm). This measurement determines the wheel’s position relative to the vehicle’s suspension components and body.The primary purpose of wheel offset is to:* Ensure Proper Fitment: Offset ensures that the wheel and tire combination fits within the wheel wells without contacting suspension components or the vehicle’s body.

Maintain Handling Characteristics

Correct offset helps maintain the vehicle’s original scrub radius, which is crucial for steering stability and feel.

Influence Stance and Appearance

Offset significantly affects how far the wheels sit in or out of the wheel wells, influencing the vehicle’s visual stance.

Provide Brake Clearance

Offset contributes to providing enough space for the brake calipers, especially when upgrading to larger or performance brakes.The correct offset is vital for optimal performance and safety. An incorrect offset can cause rubbing against the suspension or body, uneven tire wear, and altered handling characteristics.

Brief History of Offset Wheels

The concept of wheel offset has evolved alongside automotive technology. Early vehicles had relatively simple wheel designs with minimal offset considerations. As vehicles became more sophisticated, with more complex suspension systems and wider tires, the importance of offset grew.Early applications of offset wheels focused primarily on functional requirements, such as providing adequate clearance for brakes and suspension components. As vehicles became faster and more powerful, and tire sizes increased, the need for precise offset specifications became more critical.

The increasing popularity of aftermarket wheels and customization further drove the evolution of offset wheels.Early wheel designs often had zero offset, where the mounting surface was aligned with the wheel’s centerline. As performance demands grew, manufacturers began experimenting with positive and negative offsets to optimize handling and fit wider tires.The history of offset wheels reflects the broader evolution of automotive design.

From the earliest days of simple wheels to the complex, performance-oriented designs of today, offset has played a crucial role in ensuring proper fitment, handling, and aesthetics.

Different Types of Wheel Offset

There are three main types of wheel offset: positive, negative, and zero. Each type has distinct characteristics and affects the wheel’s position relative to the vehicle’s hub and the vehicle’s body.

• Positive Offset: In positive offset wheels, the hub-mounting surface is positioned
  -inward* from the wheel’s centerline. This means the wheel’s mounting surface is closer to the vehicle’s centerline. This design is common on modern vehicles, as it helps tuck the wheel and tire combination further into the wheel well.
• Negative Offset: Negative offset wheels have the hub-mounting surface positioned
  -outward* from the wheel’s centerline. This means the mounting surface is further away from the vehicle’s centerline. Negative offset wheels push the wheel and tire combination further away from the vehicle, resulting in a wider track width and a more aggressive stance.

• Zero Offset: Zero offset wheels have the hub-mounting surface aligned directly with the wheel’s centerline. This means the wheel’s mounting surface is in the exact middle of the wheel’s width. Zero offset is less common in modern vehicles but can be found on some older models or specific applications.

The offset value, measured in millimeters, determines the extent of the offset. For example, a wheel with a positive offset of +40mm has its mounting surface 40mm inward from the centerline. A wheel with a negative offset of -20mm has its mounting surface 20mm outward from the centerline.The selection of the appropriate offset depends on the vehicle’s make and model, the desired wheel size, and the intended use.

Incorrect offset can lead to rubbing issues, altered handling characteristics, and potential damage to the vehicle.

Understanding Wheel Offset Terminology

Wheel offset is a crucial aspect of wheel fitment, influencing a vehicle’s handling, appearance, and overall performance. It refers to the distance between the wheel’s mounting surface (the part that bolts to the hub) and the centerline of the wheel. Understanding offset is fundamental for ensuring that wheels fit correctly and safely on a vehicle.

Defining Wheel Offset

Wheel offset precisely determines how far a wheel sits inward or outward from the vehicle’s hub. It is measured in millimeters (mm) and is categorized into three main types: positive, negative, and zero offset.

• Positive Offset: The mounting surface is positioned towards the front (street-facing side) of the wheel’s centerline. This means the wheel sits further inside the wheel well. Positive offset is common on modern vehicles.
• Negative Offset: The mounting surface is positioned towards the rear (vehicle-facing side) of the wheel’s centerline. This results in the wheel sitting further out, away from the vehicle. Negative offset is often seen on trucks and off-road vehicles.
• Zero Offset: The mounting surface is aligned with the wheel’s centerline. The wheel is centered in relation to the hub.

Relationship Between Offset, Width, and Bolt Pattern

Wheel offset works in conjunction with wheel width and bolt pattern to determine how a wheel fits on a vehicle. These three factors must be compatible for a wheel to mount correctly and safely.

• Wheel Width: This is the distance between the inner flanges of the wheel, measured in inches. Wider wheels generally require different offsets compared to narrower wheels to maintain proper clearance.
• Bolt Pattern: Also known as the bolt circle diameter (BCD), this specifies the number of lug nuts and the diameter of the circle they form. The bolt pattern must match the vehicle’s hub for the wheel to be mounted. For example, a bolt pattern of 5×114.3mm means there are five lug nuts arranged on a circle with a diameter of 114.3 millimeters.

• The Interplay: The offset determines the wheel’s position relative to the hub, while the width provides the overall dimensions of the wheel. The bolt pattern ensures that the wheel can be physically attached to the vehicle. If the offset is incorrect for a given wheel width, the wheel may rub against the suspension components or the fenders. Similarly, an incorrect bolt pattern will prevent the wheel from being mounted at all.

Units of Measurement and Conversion Examples

Wheel offset is universally measured in millimeters (mm). This metric system provides a precise and standardized way to specify wheel fitment. Understanding conversion is not necessary, as the value is already in the correct units.

• Millimeters (mm): The standard unit for measuring wheel offset.
• Examples: A wheel with an offset of +35mm will have its mounting surface 35 millimeters towards the front of the wheel’s centerline. A wheel with an offset of -12mm will have its mounting surface 12 millimeters towards the rear of the wheel’s centerline. A wheel with 0mm offset has the mounting surface at the center of the wheel.

The offset value, in millimeters, directly dictates the wheel’s positioning relative to the vehicle’s hub and other components.

The Mechanics of Offset and its Impact on Vehicle Handling

Understanding wheel offset is crucial for appreciating its profound impact on a vehicle’s handling characteristics. The offset, which defines the distance between the wheel’s mounting surface and its centerline, significantly influences several aspects of vehicle dynamics, including steering feel, suspension geometry, and overall stability. By carefully selecting the appropriate offset, one can fine-tune a vehicle’s performance and optimize its responsiveness.

Offset’s Influence on Scrub Radius and Steering Feel

The scrub radius is a critical geometric parameter directly affected by wheel offset. It’s the distance between the point where the steering axis intersects the ground and the center of the tire’s contact patch. This distance profoundly affects steering feel and the forces experienced by the driver.The relationship between offset and scrub radius is as follows:

• Positive Offset: In this scenario, the mounting surface is positioned closer to the wheel’s outer edge. This typically results in a smaller scrub radius, potentially leading to lighter steering feel and reduced kickback. Kickback refers to the feedback felt through the steering wheel when encountering bumps or imperfections in the road. A smaller scrub radius can diminish these effects.
• Negative Offset: Here, the mounting surface is closer to the wheel’s inner edge. This increases the scrub radius. A larger scrub radius often results in heavier steering feel and potentially more kickback, especially on rough surfaces. This can make the steering feel more direct and connected but also more tiring at low speeds.
• Zero Offset: When the mounting surface is perfectly aligned with the wheel’s centerline, the scrub radius is essentially zero. This configuration can offer a balanced steering feel, but it’s less common than positive or negative offset wheels.

Consider a vehicle with a positive offset. When the front wheel encounters a bump, the force is directed through a point closer to the center of the tire. This reduces the leverage on the steering system, resulting in less kickback. Conversely, a negative offset increases the leverage, potentially amplifying kickback and making the steering feel heavier.

Offset’s Relationship with Suspension Geometry

Wheel offset is intrinsically linked to a vehicle’s suspension geometry, and changes in offset can significantly alter handling characteristics. Modifying the offset can affect the following parameters:

• Roll Center: The roll center is a crucial point around which the vehicle rotates during cornering. Changing the offset can influence the roll center height and its position relative to the vehicle’s center of gravity (CG).
• Camber and Toe: Offset changes can affect camber and toe angles, which are the angles of the wheels relative to the vertical and the vehicle’s direction of travel, respectively. Altering these angles impacts tire contact patch and grip.
• Suspension Travel: In some cases, extreme offset changes can interfere with suspension components, limiting the suspension’s ability to travel through its full range. This can negatively impact ride quality and handling.

The roll center’s height relative to the CG affects the vehicle’s roll behavior. If the roll center is lower than the CG, the vehicle will tend to roll more during cornering. Conversely, a higher roll center reduces roll. Changes in offset can influence this relationship. For instance, increasing the negative offset on a vehicle might lower the roll center, potentially increasing body roll.

Conversely, increasing positive offset might raise the roll center and reduce body roll.

Comparing Handling Differences with Different Offsets

The following table summarizes the handling characteristics associated with positive, negative, and zero offset wheels:

Offset and Wheel Fitment

Wheel offset plays a crucial role in ensuring that your wheels and tires fit your vehicle properly, allowing for optimal performance and safety. Selecting the correct offset is essential to avoid fitment issues and maintain the vehicle’s intended handling characteristics. Incorrect offset can lead to various problems, impacting both the aesthetics and the functionality of the vehicle.

Tire Clearance and Wheel Wells, How offset wheels work

The relationship between wheel offset and tire clearance is fundamental to achieving a proper fit. Understanding how offset affects the position of the wheel and tire within the wheel well is critical to avoiding rubbing and ensuring the tire doesn’t interfere with suspension components.The wheel offset directly determines the wheel’s position relative to the hub. A positive offset moves the wheel’s mounting surface towards the outside of the wheel, pulling the tire inwards.

Conversely, a negative offset pushes the mounting surface towards the inside of the wheel, extending the tire outwards. A zero offset places the mounting surface in the center of the wheel.* Positive Offset: This shifts the wheel and tire further inside the wheel well. This is common on modern vehicles and can improve handling by bringing the tire closer to the vehicle’s center of gravity.

Negative Offset

This pushes the wheel and tire outwards. This is often seen on trucks and off-road vehicles, giving them a wider stance.

Zero Offset

This centers the wheel’s mounting surface.The chosen offset, in conjunction with the wheel’s width and tire size, dictates the space available within the wheel well. If the offset is incorrect, the tire may come into contact with the inner fender, suspension components, or the outer fender lip, leading to damage or reduced performance.

Determining Correct Offset for a Vehicle

Finding the right offset for a specific vehicle model involves several steps, and it is crucial to avoid guesswork. Vehicle manufacturers typically provide offset specifications for their vehicles, and consulting these figures is the starting point.Here’s how to determine the correct offset:

1. Consult Vehicle Specifications

The easiest way is to consult the vehicle’s owner’s manual or a reputable wheel fitment guide. These resources will provide the recommended offset range for the vehicle. This information can also be found on the vehicle’s doorjamb, often on a sticker.

2. Consider Wheel Width

The wheel width plays a significant role in determining the appropriate offset. Wider wheels typically require a different offset than narrower wheels to maintain proper tire clearance.

3. Use Online Wheel Fitment Guides

Several online tools allow you to input your vehicle’s make, model, and year, along with your desired wheel width and tire size. These guides will suggest suitable offset ranges based on their databases of vehicle fitment data.

4. Test Fit (If Possible)

If you’re unsure, it’s always a good idea to test fit a wheel before purchasing a set. This involves mounting a wheel with the desired offset and checking for clearance issues.

5. Measure Existing Wheels

If you are replacing existing wheels, you can measure the offset of the current wheels to get a baseline. This information can be found stamped on the back of the wheel.It is important to understand that the offset is only one factor in the fitment process. The wheel’s width, tire size, and the vehicle’s suspension design also play crucial roles.

Common Fitment Issues Caused by Incorrect Offset

Incorrect wheel offset can lead to several fitment issues that can affect both the vehicle’s performance and appearance. These issues can range from minor rubbing to significant damage.Here are some common problems:* Tire Rubbing on Inner Fenders: A wheel with an offset that is too negative or a wheel that is too wide will often cause the tire to rub against the inner fender during turns or suspension compression.

This can wear down the tire and damage the fender. For example, consider a 2018 Honda Civic. The factory offset is typically around +45mm. If you were to install wheels with a -10mm offset and a wider tire, the tire would likely rub against the inner fender, especially when turning.

Tire Rubbing on Suspension Components

A wheel with an offset that is too positive can cause the tire to rub against the suspension components, such as the struts or control arms. This can lead to tire damage and potentially affect the vehicle’s handling. For instance, on a 2015 Ford F-150, the factory offset is usually around +44mm. If you were to install wheels with a +60mm offset, the tire might rub against the strut, leading to premature tire wear.

Tire Contact with Outer Fender

A wheel with a negative offset or a wider wheel can cause the tire to protrude beyond the fender, potentially contacting the fender lip. This can cause damage to the tire and the fender. Imagine a lifted Jeep Wrangler with wheels featuring a very negative offset. During off-road driving, the tires could easily contact the outer fender, causing damage.

Steering Issues

An extreme change in offset can alter the steering geometry, making the vehicle harder to steer or causing other handling problems. In some extreme cases, the incorrect offset can even cause the tire to rub on the brake calipers, potentially causing brake failure.By carefully considering the offset and its relationship with other wheel and tire specifications, it is possible to achieve a proper fit, improve vehicle aesthetics, and enhance performance.

Offset and Vehicle Aesthetics

Offset plays a crucial role in shaping a vehicle’s visual identity, influencing its stance and overall aesthetic appeal. The choice of offset, often in conjunction with wheel width and tire size, can dramatically alter a car’s appearance, transforming it from a standard factory look to a more aggressive, sporty, or customized stance. Understanding the impact of offset is therefore essential for anyone looking to modify their vehicle’s appearance.

Offset’s Influence on Vehicle Appearance

Offset significantly impacts a vehicle’s stance and visual appeal by altering the wheel’s position relative to the fender. This positioning affects how the wheels fill the wheel wells and how the vehicle’s tires appear from various angles. A well-chosen offset can enhance a vehicle’s design, creating a more cohesive and visually appealing aesthetic. Conversely, an inappropriate offset can detract from the design, leading to an awkward or unbalanced appearance.

• Flush Fitment: A flush fitment, where the wheel’s outer edge is nearly aligned with the fender, is often considered visually appealing. This look is achieved by carefully selecting the wheel width and offset to maximize the tire’s presence without rubbing. It gives the vehicle a wider, more planted appearance.
• Aggressive Stance: A more aggressive stance, often seen in performance cars, involves wheels that extend slightly beyond the fender. This is typically achieved with a lower (more negative) offset. This can give the car a more muscular and purposeful look, emphasizing its performance capabilities. However, extreme offsets can lead to rubbing issues.
• Tucked Wheels: Conversely, wheels that sit further inside the wheel well, often resulting from a higher (more positive) offset, can give the vehicle a more conservative appearance. This look may be preferred for some, but can also make the wheels appear undersized or sunken.

Examples of Offset’s Aesthetic Impact

The choice of offset can dramatically alter a vehicle’s appearance, often with the goal of achieving a specific aesthetic. Consider the following examples:

• Example 1: Sport Compact Cars. Many sport compact cars, such as Honda Civics or Mazda Miatas, benefit from a slightly more aggressive stance. A lower offset, combined with wider wheels, can fill the wheel wells and give the car a more athletic look. This often involves offsets in the range of +20mm to +35mm, depending on wheel width and tire size. This creates a visually wider appearance, enhancing the car’s sporty nature.

  Offset wheels influence vehicle handling by altering the scrub radius, impacting steering feel and stability. This contrasts with features like heated steering wheels, a comfort amenity found in numerous SUVs; for instance, examining what suvs have heated steering wheels reveals the industry’s focus on driver experience. Ultimately, the geometry of offset wheels significantly affects how a vehicle responds to steering inputs and road imperfections.

• Example 2: Luxury Sedans. Luxury sedans, like BMW 5 Series or Mercedes-Benz E-Class, may benefit from a more subtle approach. A flush or near-flush fitment, achieved with a moderate offset, can enhance the car’s elegant lines without appearing overly aggressive. Offsets in the +30mm to +45mm range are common, providing a balanced look.
• Example 3: Off-Road Vehicles. Off-road vehicles, such as Jeep Wranglers or Ford Broncos, often utilize wheels with a negative offset to increase the track width and provide more stability. This extends the wheels outward, enhancing the vehicle’s rugged appearance and improving off-road performance by providing a wider base.

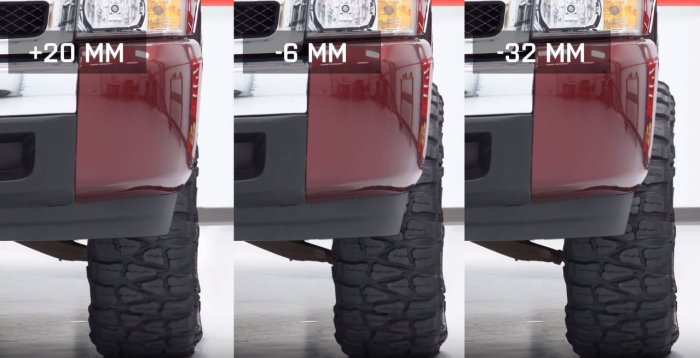

Visual Guide: Impact of Offset on Wheel Position

Here’s a simplified visual guide to illustrate how offset values affect a wheel’s position relative to the fender. Imagine a vehicle’s wheel well as a reference point:

• Positive Offset (+): The wheel’s mounting surface is closer to the vehicle’s centerline. The wheel sits further
  -inside* the wheel well.
• High Positive Offset (+45mm or higher): The wheel is significantly tucked inside the fender.
• Moderate Positive Offset (+30mm to +45mm): The wheel is closer to the fender but still inside.
• Zero Offset (0mm): The wheel’s mounting surface is aligned with the wheel’s centerline. The wheel sits centered in the wheel well.
• Negative Offset (-): The wheel’s mounting surface is further away from the vehicle’s centerline. The wheel extends


  outward* from the wheel well.

• Moderate Negative Offset (-10mm to -20mm): The wheel extends slightly beyond the fender.
• Aggressive Negative Offset (-30mm or lower): The wheel extends significantly beyond the fender, creating a wide stance.

This visual guide helps to understand the impact of different offset values on the final appearance.

The Manufacturing Process of Offset Wheels: How Offset Wheels Work

The creation of offset wheels is a complex process, involving specialized manufacturing techniques and stringent quality control measures. The chosen method significantly influences the wheel’s strength, weight, and, crucially, its offset accuracy. Understanding these manufacturing processes is essential to appreciating how wheel offset is achieved and maintained.

Different Manufacturing Methods

The primary manufacturing methods for wheels, each impacting the achievable offset and overall wheel characteristics, are casting and forging. These methods are chosen based on factors such as cost, desired strength, and design complexity.* Casting: This is the most common and generally the most cost-effective method. Molten aluminum or steel is poured into a mold. The offset is determined by the mold’s design.

Gravity Casting

Simplest method, but often results in less dense materials.

Low-Pressure Casting

Improves material density compared to gravity casting, leading to slightly stronger wheels.

Die Casting

Uses high pressure to force molten metal into the mold, producing denser and stronger wheels, but can be more expensive.* Forging: This process involves shaping a solid piece of metal (usually aluminum) using immense pressure. Forging produces wheels that are significantly stronger and lighter than cast wheels. The offset is precisely controlled during the forging process and subsequent machining.

Monoblock Forging

The wheel is created from a single piece of forged aluminum. This results in maximum strength and minimal weight.

Multi-Piece Forging

The wheel consists of multiple forged components, which can allow for greater design flexibility and the ability to customize offset and width more easily.

Incorporating Offset in Design and Manufacturing

The offset is not simply an afterthought; it is a critical design element integrated throughout the manufacturing process. The chosen manufacturing method dictates how offset is implemented.* Casting: The mold design directly determines the offset. The mold’s geometry, specifically the shape and position of the wheel’s mounting surface relative to the wheel’s centerline, dictates the offset value.

Slight variations can occur during the casting process, requiring careful control of temperature and cooling rates.

Forging

In forging, the offset is initially controlled during the forging process itself, by the precise shaping of the metal under pressure. The final offset is achieved through precision machining. This machining removes material from the wheel’s mounting surface to achieve the desired offset. The use of CNC (Computer Numerical Control) machines allows for extremely precise offset tolerances.

The mounting surface of the wheel is where the wheel bolts to the vehicle’s hub. Its position, relative to the wheel’s centerline, determines the offset.

Quality Control Measures for Offset Accuracy

Ensuring accurate offset is paramount for safety and performance. Rigorous quality control measures are employed throughout the manufacturing process to minimize deviations.* Mold/Die Inspection: For casting, the molds and dies are meticulously inspected to ensure they meet precise specifications. Any imperfections can lead to offset errors.

Material Analysis

The composition of the materials used (aluminum or steel) is rigorously tested to ensure they meet the required standards. This impacts the dimensional stability of the wheel during and after manufacturing.

Dimensional Checks

Wheels undergo numerous dimensional checks at various stages of production. These checks verify the offset, diameter, width, and other critical dimensions.

CNC Machining Verification

For forged wheels, the CNC machines are calibrated and regularly inspected. The accuracy of the machining process is critical for achieving the specified offset.

X-Ray and Radiographic Inspection

Used to detect internal defects such as porosity or cracks in the cast wheels, which can affect the wheel’s structural integrity and potentially the accuracy of the offset over time due to stress.

Runout Testing

Runout testing measures the wheel’s trueness, or its ability to spin without wobbling. Excessive runout can indicate an offset issue or other manufacturing defect.

Load Testing

Wheels are subjected to various load tests to ensure they can withstand the stresses of driving. These tests also help to identify any weaknesses that might affect offset accuracy over time.

Final Inspection

A final inspection is performed before the wheels are packaged and shipped. This inspection confirms that all specifications, including offset, have been met.

Offset Wheel Considerations for Different Vehicle Types

Understanding offset requirements is crucial for ensuring proper wheel fitment, vehicle handling, and overall safety. The ideal offset varies significantly depending on the vehicle type, its drive system, and intended use. Incorrect offset can lead to a variety of issues, from tire rubbing and accelerated wear to compromised suspension performance.

Sports Cars

Sports cars often prioritize performance and handling, dictating specific offset needs. These vehicles typically have wider wheels and tires to enhance grip and cornering capabilities.The offset requirements for sports cars often involve:

• Aggressive Fitment: Many sports car owners seek a flush or slightly outward wheel fitment to fill the wheel wells and enhance aesthetics. This often means using a lower (more negative) offset than what the factory recommends.
• Precise Calculations: Due to the tight tolerances and performance demands, accurate offset calculations are essential. Incorrect offset can lead to rubbing on suspension components or the fenders, especially during hard cornering.
• Consideration of Brake Clearance: Sports cars frequently have larger brake calipers. The offset must provide adequate clearance between the wheel spokes and the calipers.
• Examples: A Porsche 911 might use a relatively high positive offset in the front (e.g., +50mm) and a lower positive offset in the rear (e.g., +40mm) to accommodate wider rear tires and maintain handling balance. A BMW M3 could have a similar setup, potentially with even more aggressive offsets to achieve a desired stance.

Trucks and SUVs

Trucks and SUVs have different offset considerations due to their size, weight, and intended use. These vehicles often prioritize load capacity, off-road capability, and ground clearance.Offset considerations for trucks and SUVs often involve:

• Load Rating: Wheels for trucks and SUVs must have a sufficient load rating to handle the vehicle’s weight, especially when carrying cargo or towing. The offset should not compromise the wheel’s structural integrity.
• Wheel Well Clearance: Larger tires are common on trucks and SUVs, requiring careful consideration of wheel well clearance. The offset affects how far the wheel and tire protrude from the vehicle.
• Suspension Geometry: Altering the offset can affect the suspension geometry and steering feel. Too much negative offset can increase scrub radius, potentially leading to heavy steering and increased tire wear.
• Off-Road Considerations: For off-road vehicles, a more negative offset can provide a wider track width, improving stability and reducing the risk of rollover. However, this can also increase the strain on suspension components.
• Examples: A Ford F-150 might use a positive offset (e.g., +44mm) to maintain a factory-like stance and accommodate larger tires. A Jeep Wrangler, often modified for off-roading, might use a more negative offset (e.g., -12mm) to achieve a wider track width and improve off-road performance.

Classic Cars and Modern Vehicles: Offset Requirements

Offset requirements vary significantly between classic and modern vehicles due to differences in suspension design, wheel well size, and tire technology.Examples of offset requirements for classic cars and modern vehicles:

• Classic Cars: Classic cars often have more limited wheel well space and less sophisticated suspension designs. The offset is generally more conservative to avoid rubbing and maintain proper handling. For example, a classic Ford Mustang might use a positive offset (e.g., +20mm to +30mm) depending on the wheel width and tire size.
• Modern Vehicles: Modern vehicles typically have more complex suspension systems and larger wheel wells, allowing for a wider range of offset options. Manufacturers often optimize the offset to improve handling, braking performance, and fuel efficiency. For example, a modern Honda Civic might use a positive offset (e.g., +45mm to +50mm) to maintain factory handling characteristics.

Offset Requirements of Vehicles with Different Drive Systems

The drive system significantly influences the offset requirements of a vehicle. Different drive systems distribute power to the wheels differently, affecting how the wheels interact with the suspension and chassis.A comparison and contrast of the offset requirements of vehicles with different drive systems:

• Front-Wheel Drive (FWD): FWD vehicles typically have a higher positive offset to minimize the scrub radius. This helps reduce torque steer (the tendency of the steering wheel to pull to one side under acceleration) and maintain stable handling. The offset needs to be carefully chosen to avoid rubbing on the suspension components or the inner fender.
• Rear-Wheel Drive (RWD): RWD vehicles often have a wider range of offset options, as they do not suffer from torque steer. The offset can be used to fine-tune the handling characteristics, with a more negative offset sometimes used to increase the track width and improve stability.
• All-Wheel Drive (AWD): AWD vehicles are often the most sensitive to offset changes. It’s crucial to maintain the same overall diameter for all four wheels to prevent damage to the drivetrain. The offset must be chosen carefully to ensure proper clearance and avoid affecting the AWD system’s functionality.
• Example: A Subaru WRX STI (AWD) will have very specific offset requirements, and even minor deviations can cause issues with the all-wheel-drive system. A BMW 3-Series (RWD) will offer more flexibility in offset selection, allowing for a wider range of wheel and tire combinations.

Common Problems and Solutions Related to Offset Wheels

Incorrect wheel offset can introduce a variety of problems, impacting vehicle performance, safety, and longevity. Understanding these issues and knowing how to address them is crucial for any vehicle owner considering aftermarket wheels or modifications. This section explores common problems, their underlying causes, and practical solutions.

Potential Problems Caused by Incorrect Offset

Incorrect offset can manifest in several ways, often leading to undesirable and potentially dangerous driving characteristics. It’s important to be aware of these potential issues to ensure vehicle safety and optimal performance.

• Accelerated Tire Wear: Incorrect offset can cause uneven tire wear patterns. If the offset is too aggressive (wheels pushed outwards), the outer edges of the tires may wear prematurely. Conversely, if the offset is too conservative (wheels pushed inwards), the inner edges may wear faster. This can lead to decreased tire lifespan and increased replacement costs. For example, a vehicle with a significantly negative offset might experience rapid wear on the outer shoulder of the tire, particularly during cornering.

• Steering Issues: Improper offset can alter the steering geometry, leading to various steering problems. These include:
  • Increased Steering Effort: A wheel with an incorrect offset can increase the effort required to turn the steering wheel.
  • Wander or Instability: The vehicle might feel unstable at higher speeds or prone to wandering on the road.
  • Bump Steer: This occurs when the wheels toe in or out as the suspension travels up and down, causing the vehicle to pull to one side or the other over bumps.
• Suspension Damage: Incorrect offset can put undue stress on suspension components. This can result in premature wear and failure of parts such as ball joints, tie rods, and wheel bearings. For instance, a wheel with a highly negative offset can increase the leverage on the wheel bearing, causing it to wear out more quickly.
• Fender Rubbing: If the offset is too aggressive, the tires can rub against the fenders, especially during turning or suspension compression. This can damage the tires and the fenders, as well as create an unpleasant noise.
• Reduced Fuel Efficiency: While the impact is usually minor, incorrect offset can slightly affect fuel efficiency. Changes in rolling resistance due to altered tire contact with the road can contribute to this.

Solutions for Addressing Offset-Related Problems

Addressing offset-related problems often involves a combination of diagnosis, component adjustments, and careful consideration of the vehicle’s specifications. Several solutions can mitigate the adverse effects of incorrect offset.

• Wheel Spacers: Wheel spacers can be used to effectively change the offset of a wheel. They move the wheel outwards, increasing the track width.
  • Types of Wheel Spacers: There are two main types: slip-on spacers (which fit between the wheel and the hub) and bolt-on spacers (which bolt to the hub and then the wheel bolts to the spacer).
  • Considerations: It’s important to choose high-quality spacers made from durable materials. They must be installed correctly and properly torqued to prevent vibration and potential safety hazards.
• Wheel Modifications: In some cases, modifying the wheels themselves is an option.
  • Wheel Widening: This involves increasing the width of the wheel, which can affect the offset. However, this is typically a more involved process.
  • Professional Help: Wheel modifications should always be performed by a qualified professional to ensure safety and structural integrity.
• Suspension Adjustments: Depending on the issue, suspension adjustments might be necessary.
  • Alignment: A proper wheel alignment is crucial after any offset change to ensure the wheels are correctly aligned with the suspension.
  • Coilover Adjustments: Coilovers offer adjustable ride height and damping, which can help optimize handling and clearance.
• Choosing the Correct Wheels: The most effective solution is to choose wheels with the correct offset from the start. This requires careful research and consideration of the vehicle’s specifications.

The Process of Measuring Wheel Offset and Verifying Its Accuracy

Accurate measurement of wheel offset is crucial for diagnosing problems and selecting the correct wheels. It’s a relatively straightforward process, but precision is important.

• Tools Required: You will need a straight edge (like a long ruler or a level), a measuring tape or ruler, and a flat surface.
• Procedure:
  1. Remove the Wheel: Take the wheel off the vehicle.
  2. Place the Wheel Flat: Lay the wheel flat on a flat surface, with the mounting surface (the part that bolts to the hub) facing up.
  3. Place the Straight Edge: Place the straight edge across the back of the wheel, touching the outer rim.
  4. Measure the Distance: Measure the distance from the mounting surface to the straight edge. This is the “backspacing.”
  5. Measure the Wheel Width: Measure the total width of the wheel from outer edge to outer edge.
  6. Calculate Offset: The offset can be calculated using the formula:

  Offset = (Backspacing – (Wheel Width / 2))

  7. Interpret the Result:
     • Positive Offset: The mounting surface is closer to the front of the wheel.
     • Zero Offset: The mounting surface is in the center of the wheel.
     • Negative Offset: The mounting surface is closer to the back of the wheel.
• Verifying Accuracy: Double-check all measurements and calculations. Compare the measured offset to the wheel’s markings (usually stamped on the inside of the wheel). Consider consulting a professional if you’re unsure.

Choosing the Right Offset for Your Vehicle

Selecting the correct wheel offset is crucial for both the performance and appearance of your vehicle. A poorly chosen offset can lead to a range of issues, from rubbing and poor handling to accelerated wear on suspension components. This guide provides a step-by-step approach to help you navigate the process and choose the ideal offset for your specific needs.

Step-by-Step Guide for Offset Selection

Choosing the right offset involves a methodical approach, combining research, measurement, and consideration of your vehicle’s specific characteristics and your personal preferences. Following these steps ensures a successful outcome.

1. Determine Your Vehicle’s Bolt Pattern and Center Bore: This information is fundamental and can be found in your owner’s manual or by using online wheel fitment guides. Knowing the bolt pattern (e.g., 5×114.3mm) and center bore (the diameter of the hub opening) is essential for ensuring the wheel physically fits onto your vehicle’s hub.
2. Measure Your Vehicle’s Existing Wheel Fitment: If you are replacing existing wheels, measure the current wheel’s width and offset. This provides a baseline. If you are starting from scratch, you will need to determine the maximum and minimum offsets your vehicle can accommodate.
3. Consult Wheel Fitment Guides and Forums: Use online wheel fitment guides, manufacturer websites, and automotive forums to research wheel and tire combinations for your specific vehicle make and model. These resources often provide recommended offsets and wheel widths, as well as real-world examples and potential issues.
4. Consider Your Desired Wheel Width: The width of the wheel significantly impacts offset selection. Wider wheels generally require a different offset than narrower wheels to maintain proper clearance and fitment.
5. Calculate the Theoretical Offset: Once you have an idea of the desired wheel width and have researched examples of wheels fitted on similar vehicles, you can begin to calculate the theoretical offset. The formula to calculate this is:


   (Wheel Width / 2)

   (Distance from Hub Mounting Surface to Wheel Centerline) = Offset

6. Account for Tire Size: The tire size you intend to use also affects offset selection. Wider tires require more space, and the offset must be adjusted accordingly to prevent rubbing.
7. Test Fit (If Possible): Before purchasing a set of wheels, if possible, test-fit a wheel of the desired width and offset to ensure proper clearance and fitment. This is particularly important when deviating significantly from the factory specifications.
8. Consider Suspension Modifications: If your vehicle has aftermarket suspension components, such as coilovers or a wider track width, these can impact offset requirements. Ensure your chosen offset is compatible with any suspension modifications.
9. Check for Brake Clearance: Larger aftermarket brake calipers may require wheels with a specific offset to clear the brakes. Consult with the brake manufacturer for wheel fitment recommendations.
10. Make the Purchase: Once you are confident in your chosen offset, place your order. Remember to factor in any necessary lug nuts or centering rings.

Factors to Consider When Choosing Wheel Offset

Several factors influence the ideal wheel offset for your vehicle. Understanding these factors is crucial for making an informed decision.

• Vehicle Type: Different vehicle types have varying offset requirements. For example, a sports car might have a lower offset for a wider track and enhanced handling, while a truck might require a higher offset to accommodate larger tires and maintain proper load capacity.
• Intended Use: The intended use of the vehicle significantly influences offset selection. If you intend to use your vehicle for track racing, you may prioritize handling characteristics and choose a lower offset. For off-roading, you might prioritize tire clearance and choose a higher offset.
• Aesthetic Preferences: Your desired look is an important consideration. A flush fitment, where the wheel sits nearly even with the fender, is a popular aesthetic choice and often requires a specific offset.
• Suspension Components: Aftermarket suspension components, such as coilovers, control arms, or spacers, can alter the required offset. Make sure the offset is compatible with the suspension.
• Tire Size: Larger tires require more space. Offset must be adjusted to prevent rubbing.
• Brake Caliper Size: Upgraded brake calipers can require specific offsets to provide clearance.
• Load Capacity: Ensure the wheels and tires have a sufficient load rating for your vehicle.

Checklist for Evaluating Wheel Offset Options

Before committing to a wheel purchase, it’s essential to evaluate your options thoroughly. This checklist helps ensure you make an informed decision.

• Vehicle Compatibility: Verify that the wheel’s bolt pattern and center bore are compatible with your vehicle.
• Offset Range: Determine the acceptable offset range for your vehicle, considering your desired wheel width and tire size.
• Tire Clearance: Ensure the chosen offset provides adequate clearance for your tires, considering both the inner and outer wheel wells.
• Suspension Clearance: Verify that the wheels and tires will not rub against any suspension components.
• Brake Clearance: Confirm that the wheels clear your brake calipers, especially if you have upgraded brakes.
• Load Rating: Ensure the wheels have a sufficient load rating for your vehicle’s weight and intended use.
• Aesthetic Preference: Consider how the chosen offset will affect the vehicle’s appearance and desired stance.
• Test Fit (If Possible): If feasible, test-fit a wheel with the desired offset before making a final purchase.
• Review Online Resources: Consult wheel fitment guides and forums to gather information and see examples of similar vehicles.
• Professional Advice: Consult a wheel and tire professional for assistance.

Offset Wheel Alternatives

Offset wheels are not the only method for achieving a desired wheel stance or fitment. Several alternatives exist, each with its own advantages, disadvantages, and impact on vehicle performance and safety. Understanding these alternatives is crucial for making an informed decision that aligns with your specific needs and priorities.

Wheel Spacers and Adapters

Wheel spacers and adapters serve as alternative methods to alter wheel offset and, consequently, the vehicle’s track width. They are essentially add-ons that fit between the wheel hub and the wheel itself, pushing the wheel outwards. While they can achieve similar visual effects as offset wheels, their impact on vehicle dynamics and safety requires careful consideration.Wheel spacers come in various thicknesses, ranging from a few millimeters to several inches, and are typically a single piece.

Adapters, on the other hand, often incorporate a new bolt pattern, allowing the use of wheels with a different bolt pattern than the vehicle’s hub. This functionality provides a wider range of wheel choices but also introduces additional complexity and potential points of failure.The advantages and disadvantages of wheel spacers and adapters are as follows:

• Pros:
  • Cost-Effectiveness: Spacers and adapters can be a more affordable solution than purchasing a new set of wheels, particularly for achieving a minor offset adjustment.
  • Wheel Compatibility: Adapters expand wheel choices by enabling the use of wheels with different bolt patterns.
  • Easy Installation: Generally, installation is straightforward, requiring only basic tools.
• Cons:
  • Reduced Hub Engagement: Thicker spacers can reduce the amount of hub engagement, potentially leading to increased stress on wheel studs and a higher risk of failure. This is particularly concerning with thin spacers, where the wheel studs may not fully engage with the lug nuts.
  • Increased Stress on Suspension Components: Altering the offset increases the leverage on the wheel bearings and other suspension components, potentially leading to premature wear and failure.
  • Potential for Vibration: Improperly installed or low-quality spacers can cause vibrations, affecting ride quality and potentially damaging other vehicle components.
  • Safety Concerns: The use of spacers and adapters raises safety concerns, especially if not installed correctly or if the quality is substandard.

Functionality and Impact: Offset Wheels vs. Wheel Spacers

The functionality and impact on vehicle handling differ significantly between offset wheels and wheel spacers.

• Offset Wheels:
  • Integrated Design: Offset is an integral part of the wheel’s design, ensuring proper load distribution and hub engagement.
  • Optimized Handling: Designed to maintain or improve handling characteristics by positioning the wheel correctly relative to the suspension geometry.
  • Reduced Stress: Less likely to introduce additional stress on suspension components compared to spacers, assuming the offset is within the manufacturer’s recommended range.
• Wheel Spacers/Adapters:
  • Added Component: Spacers are an added component, which can introduce potential points of failure.
  • Altered Handling: Can negatively affect handling by altering scrub radius and increasing leverage on suspension components. This can lead to increased steering effort, reduced responsiveness, and premature wear.
  • Potential for Imbalance: Can introduce imbalances if not perfectly centered or if the installation is not performed with precision.

The key difference lies in the design. Offset wheels are designed from the outset with the desired offset in mind, ensuring structural integrity and proper load distribution. Spacers and adapters, however, are aftermarket additions that can compromise these factors if not selected and installed carefully.

Safety Considerations

The safety implications of using wheel spacers and adapters are significant and cannot be overlooked. Proper installation, quality of materials, and adherence to specific guidelines are critical to minimizing risks.

Safety Recommendations:

• Use High-Quality Components: Always purchase spacers and adapters from reputable manufacturers that use high-quality materials and adhere to strict manufacturing standards. Avoid cheap, unbranded products.
• Ensure Proper Hub Engagement: When using spacers, ensure that the wheel studs fully engage with the lug nuts. If the studs are not long enough, consider replacing them with longer ones designed for use with spacers.
• Torque Lug Nuts Correctly: Always torque lug nuts to the manufacturer’s specifications using a calibrated torque wrench. Recheck the torque after driving a short distance.
• Regularly Inspect Components: Periodically inspect spacers, adapters, wheel studs, and lug nuts for any signs of damage, wear, or loosening.
• Consider Professional Installation: If you are not experienced in wheel and suspension work, consider having a qualified mechanic install the spacers or adapters.
• Choose Appropriate Thickness: Avoid using excessively thick spacers, as they can significantly increase stress on suspension components.
• Understand Legal Implications: Be aware that the use of spacers and adapters may not be legal in all jurisdictions. Check local regulations before installation.

Failure to adhere to these recommendations can result in wheel detachment, loss of control, and serious accidents. The safety of the vehicle and its occupants should always be the top priority.

Wrap-Up

In conclusion, understanding how offset wheels work is paramount for anyone seeking to customize their vehicle or ensure optimal performance. This exploration has illuminated the critical role offset plays in various aspects, from handling dynamics and visual appeal to practical considerations like tire clearance. By grasping the intricacies of wheel offset, enthusiasts and professionals alike can make informed decisions, avoid common pitfalls, and unlock the full potential of their vehicles.

Choosing the right offset is not just about aesthetics; it’s about optimizing the vehicle’s driving experience and ensuring long-term safety and performance.

Clarifying Questions

What is the primary function of wheel offset?

The primary function of wheel offset is to position the wheel relative to the vehicle’s hub, affecting tire clearance, handling characteristics, and overall appearance.

How does offset influence steering feel?

Offset affects the scrub radius, which can alter steering feel. Positive offset generally results in lighter steering, while negative offset can make the steering heavier and more responsive.

What are the risks of using incorrect wheel offset?

Incorrect offset can lead to several problems, including tire rubbing, premature tire wear, compromised handling, and potential damage to suspension components.

Are wheel spacers a good alternative to offset wheels?

Wheel spacers can provide similar results to negative offset wheels, but they can also introduce safety concerns and may negatively impact handling if not used correctly. They should be used with caution and appropriate safety measures.

How do I determine the correct offset for my vehicle?

The correct offset depends on your vehicle’s make, model, and intended use. Consulting the vehicle manufacturer’s specifications, using online wheel fitment guides, and considering the desired wheel style are crucial steps.
