How to Measure Car Wheels Your Guide to a Perfect Fit.

How to measure car wheels, sounds kinda technical, right? But trust me, it’s not rocket science. It’s more like understanding the language of your car, so you can choose the right shoes for it. Think of it this way: your car’s wheels are like your favorite pair of sneakers. You wouldn’t wear a size too small or too big, would you?

Accurate wheel measurements are the key to a smooth ride, proper handling, and keeping you safe on the road. Without knowing the right measurements, you’re rolling the dice on whether your new wheels will even fit, let alone perform well.

This guide is your compass. We’ll dive into the why, the how, and the what-if of measuring car wheels. We’ll cover everything from diameter and width to bolt patterns and offset. We’ll equip you with the knowledge and tools you need to become a wheel-measuring pro, so you can confidently shop for new wheels or tires, or even just understand what those cryptic numbers on your existing wheels mean.

Ready to decode the secrets of your car’s footwear?

Why Measure Car Wheels?

Accurate wheel measurements are fundamental for maintaining vehicle safety, ensuring optimal performance, and preventing potentially costly issues. Properly measured wheels are essential for a smooth and safe driving experience. This information is crucial for any car owner or mechanic working on a vehicle.

Importance of Accurate Measurements for Vehicle Safety and Performance

Precise wheel measurements directly impact several critical aspects of a vehicle’s functionality. This includes handling, braking, and overall stability. Incorrect measurements can lead to dangerous situations and reduced driving pleasure.

Critical Situations for Wheel Measurements

There are several instances where accurate wheel measurements are absolutely crucial. These situations often involve modifications or maintenance that directly affect the wheels and tires.

• Tire Replacement: When replacing tires, knowing the correct wheel diameter, width, and offset is essential. Installing the wrong size tire can lead to rubbing against the car’s body or suspension components, affecting handling and potentially causing tire failure. For instance, if a vehicle requires a 205/55R16 tire, and a 215/60R16 tire is mistakenly installed due to incorrect measurements, the larger tire’s diameter could cause it to rub against the wheel well, particularly during turns or when the suspension is compressed.

• Suspension Modifications: Lowering or raising a vehicle’s suspension requires careful wheel measurements. These modifications change the relationship between the wheel and the car’s body. Without accurate measurements, the tires may rub, or the wheels may not fit at all. Imagine a scenario where a vehicle is lowered by 2 inches. If the wheel offset is not adjusted accordingly, the tires could rub against the fenders, especially during cornering.

• Wheel Replacement: When changing wheels, whether for aesthetic or performance reasons, precise measurements are necessary to ensure the new wheels fit properly. This includes checking the bolt pattern, center bore, and offset. Selecting the wrong wheel can prevent the wheel from mounting or interfere with braking components. For example, if a vehicle’s bolt pattern is 5×114.3mm, and a wheel with a 5x112mm bolt pattern is mistakenly installed, the wheel will not fit correctly, leading to safety hazards.

• Brake Upgrades: Installing larger brake calipers and rotors may require different wheel measurements. The new components might not clear the existing wheels. It’s necessary to measure the wheel’s inner diameter and offset to ensure sufficient clearance. If the new brake calipers are significantly larger, and the wheel’s inner diameter is too small, the wheel will not fit over the brake system.

Consequences of Inaccurate Wheel Measurements

Ignoring the importance of accurate wheel measurements can result in several adverse outcomes, impacting both safety and vehicle performance. These consequences can range from minor inconveniences to serious safety hazards.

• Reduced Handling and Stability: Incorrect wheel and tire sizes can alter the vehicle’s handling characteristics. This can lead to reduced grip, increased body roll, and unpredictable behavior during cornering or braking. If the tire width is too narrow, the vehicle might feel unstable, especially on wet surfaces.
• Tire Rubbing: Tires that rub against the car’s body, suspension components, or other parts can be a frequent problem. This can cause tire damage, reduced fuel efficiency, and a noisy ride. Constant rubbing can also lead to premature tire wear and potential tire failure at high speeds.
• Incorrect Speedometer Readings: Using tires with a different overall diameter than the original tires will affect the speedometer and odometer readings. The vehicle might be traveling faster or slower than indicated, and the odometer will not accurately record the distance traveled. If the tires are larger than the original equipment tires, the speedometer will read slower than the actual speed.
• Premature Wear of Suspension Components: Incorrect wheel offset or tire sizes can place undue stress on suspension components, such as ball joints, tie rod ends, and wheel bearings. This can lead to premature wear and failure of these components, requiring costly repairs. If the wheel offset is too aggressive, it can cause increased stress on the wheel bearings, leading to their early failure.
• Risk of Accidents: In extreme cases, inaccurate wheel measurements can contribute to accidents. Reduced handling, tire failure, or interference with braking systems can increase the risk of losing control of the vehicle. A tire that rubs severely can burst at high speeds, leading to a loss of control.

Essential Tools for Wheel Measurement

To accurately measure your car wheels, you’ll need a few essential tools. Having the right equipment ensures you gather precise data, which is crucial for selecting the correct replacement wheels, tires, or for understanding wheel fitment issues. This section Artikels the necessary tools and their uses.

Tools for Accurate Measurement

Here’s a breakdown of the tools you’ll need for wheel measurement. These tools are readily available and relatively inexpensive, making them accessible to most car enthusiasts and DIY mechanics.A comprehensive list of tools includes:

• Measuring Tape: A flexible measuring tape is indispensable for measuring the wheel diameter and width. It’s a fundamental tool for obtaining basic wheel dimensions.
• Digital Caliper: A digital caliper provides highly accurate measurements, especially for wheel offset and other precise dimensions.
• Wheel Offset Gauge: This specialized tool simplifies the measurement of wheel offset, which is crucial for ensuring proper wheel fitment and avoiding rubbing against suspension components or the car’s body.

To facilitate understanding, here is a table detailing each tool, its function, and a descriptive image.

Purchasing and Cost Information

These tools are readily available at most auto parts stores, hardware stores, and online retailers such as Amazon or eBay.Here’s an approximate cost breakdown:

• Measuring Tape: A standard measuring tape typically costs between $5 and $20.
• Digital Caliper: Digital calipers range from $20 to $100 or more, depending on the brand and features. Higher-end models offer increased accuracy and durability.
• Wheel Offset Gauge: Wheel offset gauges usually cost between $15 and $50.

Prices may vary based on the brand, quality, and where you purchase the tools. However, these are general estimates that should give you an idea of the expected costs.

Measuring Wheel Diameter

Understanding wheel diameter is crucial for various automotive tasks, from selecting the correct replacement tires to ensuring proper fitment and performance. Accurately measuring the wheel diameter allows you to make informed decisions and maintain the integrity of your vehicle’s wheel and tire setup. This section will guide you through the process of measuring wheel diameter, clarifying key distinctions, and demonstrating the use of common measurement tools.

Knowing how to measure your car wheels is essential for proper maintenance! It’s the first step, really. But, even if you get the measurements right, have you considered whether is a wheel alignment necessary ? It’s a crucial question! So, once you’ve checked your wheels and considered alignment, you’re back on track to keeping those wheels rolling smoothly.

Procedure for Measuring Wheel Diameter

The process for measuring wheel diameter is straightforward and requires a few simple steps. Accurate measurements are essential for ensuring compatibility and avoiding potential issues.

• Preparation: Ensure the wheel is removed from the vehicle and is clean. Remove any dirt or debris that might interfere with the measurement. Place the wheel on a flat, stable surface.
• Measuring Point: The wheel diameter is the distance across the wheel, from one edge to the opposite edge, through the center. This measurement excludes the tire.
• Using a Measuring Tape: Extend the measuring tape across the wheel’s face, passing through the center. Ensure the tape is straight and makes contact with the outer edges of the wheel rim.
• Using a Digital Caliper: Position the caliper jaws to touch the inner edges of the wheel rim. Ensure the caliper is perpendicular to the wheel’s surface for accurate readings.
• Record the Measurement: Note the measurement obtained from either the measuring tape or the digital caliper. The measurement will be in inches or millimeters, depending on the tool and your preference.

Overall Wheel Diameter vs. Diameter of the Tire’s Mounting Surface

It’s important to differentiate between the overall wheel diameter and the diameter of the tire’s mounting surface, as these measurements serve different purposes. Understanding these distinctions is crucial for accurate tire selection and wheel fitment.

• Overall Wheel Diameter: This refers to the total distance across the wheel, including the rim’s outer edges. This measurement is used to determine the wheel’s overall size and compatibility with the vehicle’s design and other components. It is the measurement taken in the previous section.
• Diameter of the Tire’s Mounting Surface: This refers to the diameter of the inner lip of the wheel where the tire bead sits. This is the critical measurement for tire selection, as it must match the tire’s size to ensure a proper and secure fit.
• Importance of Distinction: The overall wheel diameter is useful for visual comparisons and general size assessment. The diameter of the tire mounting surface is crucial for selecting the correct tire size, as an incorrect fit can lead to safety hazards and wheel damage.

Measuring Wheel Diameter Using a Measuring Tape and a Digital Caliper

Two common tools used for measuring wheel diameter are a measuring tape and a digital caliper. Both methods provide accurate results, but they have different advantages and disadvantages.

Measuring Tape Method

The measuring tape method is simple and accessible.

• Tools Required: A flexible measuring tape.
• Procedure: Place the measuring tape across the wheel’s face, ensuring it passes through the center. Extend the tape from one outer edge of the rim to the opposite outer edge. Make sure the tape is straight and flush against the wheel.
• Advantages: Easy to use and requires no special skills. Suitable for measuring larger wheel diameters.
• Disadvantages: Can be less precise than a digital caliper. It might be difficult to get an accurate reading on wheels with complex designs.
• Example: For a 17-inch wheel, the measurement should be approximately 17 inches across the outer edges of the rim.

Digital Caliper Method

The digital caliper method offers higher precision.

• Tools Required: A digital caliper.
• Procedure: Open the caliper jaws and position them to touch the inner edges of the wheel rim. Ensure the caliper is perpendicular to the wheel’s surface. Read the measurement displayed on the digital screen.
• Advantages: Provides highly accurate measurements. Easy to read digital display.
• Disadvantages: Requires a digital caliper. May be less convenient for measuring very large wheels.
• Example: If the digital caliper reads 17.0 inches, the wheel diameter is 17 inches. This measurement should match the wheel’s size specification.

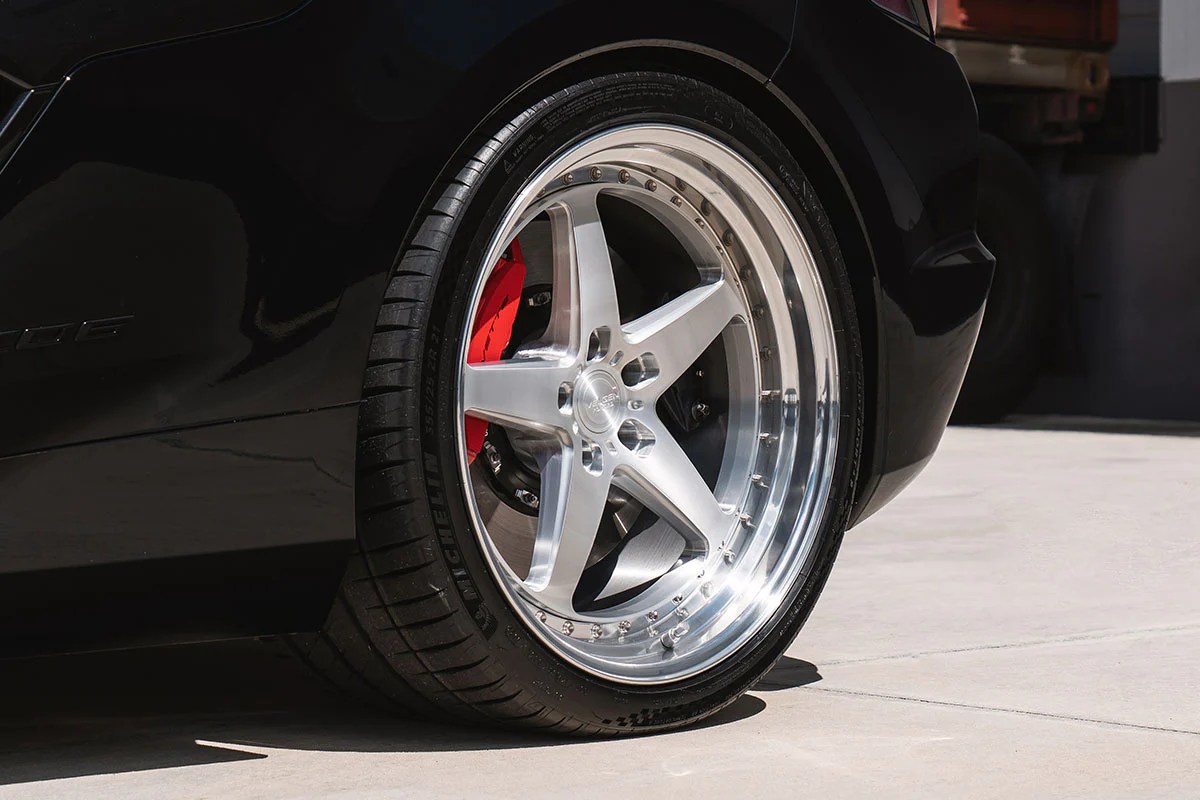

Measuring Wheel Width

Understanding wheel width is crucial for selecting the correct tires and ensuring proper fitment. This measurement affects handling, tire wear, and overall vehicle performance. Accurate width measurement helps avoid issues like tires rubbing against the vehicle’s components or the tire being improperly seated on the wheel.

Overall Wheel Width vs. Mounting Surface Width

It is important to differentiate between overall wheel width and the width of the tire’s mounting surface. These are distinct measurements, and using the wrong one can lead to inaccurate tire selection. The overall width is the total distance across the wheel, while the mounting surface width is the area where the tire bead sits.

Measuring Wheel Width with a Digital Caliper

Using a digital caliper is the most accurate way to measure wheel width. Follow these steps for precise results:

1. Prepare the Wheel: Ensure the wheel is clean and free of debris. Remove any existing tires to access the wheel’s surface.
2. Zero the Caliper: Turn on the digital caliper and zero it. This ensures accurate measurements relative to the starting point.
3. Measure Overall Wheel Width: Extend the caliper’s jaws and place them across the widest points of the wheel, measuring from the outer edge on one side to the outer edge on the opposite side. This is the overall width.
4. Measure Mounting Surface Width: Close the caliper jaws and position them to measure the distance between the inner flanges of the wheel, where the tire bead seats. This is the mounting surface width, also known as the bead seat width.
5. Record the Measurements: Note both the overall wheel width and the mounting surface width. These measurements are typically in inches or millimeters, depending on your caliper’s settings.

Important Note: Always double-check your measurements. Repeat the process to ensure accuracy. If you’re replacing tires, the tire sidewall will indicate the recommended wheel width.

Measuring Bolt Pattern (PCD – Pitch Circle Diameter)

Understanding your car’s bolt pattern is crucial when considering new wheels. This measurement dictates whether a wheel will physically fit onto your vehicle’s hub. Incorrect bolt patterns can lead to dangerous situations, including wheel detachment.The bolt pattern, also known as Pitch Circle Diameter (PCD), refers to the diameter of an imaginary circle that passes through the center of each lug nut or bolt hole on the wheel.

It’s a critical specification because it determines if a wheel will properly mount to your vehicle’s hub. Mismatched bolt patterns prevent the wheel from sitting flush against the hub, creating an unsafe driving condition.

Understanding Bolt Pattern Measurement Methods

There are two primary methods for determining a wheel’s bolt pattern: using a bolt pattern gauge and direct measurement. A bolt pattern gauge is a specialized tool with pre-drilled holes representing common bolt patterns. Direct measurement involves calculating the PCD using the number of lugs and the distance between them. Both methods provide accurate results if performed correctly.

Measuring Bolt Pattern with Specific Lug Configurations

The measurement method varies depending on the number of lug nuts your wheel has. Let’s look at how to measure the bolt pattern for 4, 5, and 6-lug wheels.

• 4-Lug Wheels: Measuring a 4-lug wheel involves a straightforward approach using the distance between opposing lug holes.
  • Measure the distance from the center of one lug hole to the center of the lug hole directly across from it. This measurement is the PCD.
  • For example, if the distance between opposing lug holes is 100mm, the bolt pattern is 4x100mm (4 lugs with a 100mm PCD).
• 5-Lug Wheels: Measuring a 5-lug wheel requires a slightly different approach because there isn’t a lug directly opposite another.
  • Measure from the center of one lug hole to the
    -outside* edge of the lug hole directly across from it.

  • Then, double that measurement. This will give you the PCD.
  • Alternatively, you can use the following formula for direct measurement, where ‘d’ is the distance between adjacent holes:

    PCD = d / cos(36°)

  • For example, if the distance you measured using the previous methods is 114.3mm, the bolt pattern is 5×114.3mm. This is a common pattern, often seen on older Honda and Acura models.
• 6-Lug Wheels: Measuring a 6-lug wheel is similar to a 4-lug wheel, as there are pairs of lugs directly across from each other.
  • Measure the distance from the center of one lug hole to the center of the lug hole directly across from it.

  • This direct measurement is the PCD.
  • For instance, if the distance is 139.7mm, the bolt pattern is 6×139.7mm. This pattern is common on many trucks and SUVs, such as older model Chevrolet Silverados and GMC Sierras.

Measuring Wheel Offset

Understanding wheel offset is crucial for ensuring proper fitment and maintaining optimal vehicle performance. Incorrect offset can lead to a variety of issues, from rubbing against suspension components to altered handling characteristics. Measuring offset accurately is a key step in selecting the right wheels for your vehicle.Wheel offset refers to the distance between the wheel’s mounting surface (the part that bolts to the hub) and the centerline of the wheel.

This measurement significantly influences how the wheel sits within the wheel well and affects the vehicle’s handling dynamics.

Types of Wheel Offset

There are three main types of wheel offset, each with distinct characteristics and effects on vehicle behavior.The three types of wheel offset are:

Measuring Wheel Offset

Accurately measuring wheel offset requires the correct tools and a methodical approach.To measure wheel offset, you’ll need:

• A wheel offset gauge or a straight edge.
• A ruler or measuring tape.

Here’s how to measure wheel offset:

1. Remove the Wheel: Take the wheel off the vehicle. Ensure it’s clean.
2. Identify the Mounting Surface: Locate the surface of the wheel that bolts to the hub.
3. Using a Wheel Offset Gauge:
   • Place the offset gauge against the wheel’s mounting surface.
   • The gauge will typically have a scale indicating the offset in millimeters.
   • Read the offset value directly from the gauge.
4. Using a Straight Edge:
   • Place a straight edge across the back of the wheel, ensuring it touches the outer rim edge.
   • Measure the distance from the straight edge to the wheel’s mounting surface.
   • Measure the total wheel width.
   • Divide the total wheel width by two to find the wheel’s centerline.
   • Subtract the distance from the straight edge to the mounting surface from the centerline measurement. The result is the offset.


     Offset = (Wheel Centerline)
     -(Distance from Straight Edge to Mounting Surface)

   • If the mounting surface is closer to the outside of the wheel, the offset is positive. If the mounting surface is closer to the inside, the offset is negative. If the mounting surface is centered, the offset is zero.

Measuring Center Bore

Understanding the center bore is crucial for ensuring proper wheel fitment and safety. It’s the diameter of the hole in the center of the wheel that fits over the hub of your car. A correctly sized center bore ensures the wheel is centered on the hub, reducing vibrations and stress on the wheel studs.

Significance of Center Bore and Hub-Centric Wheels

The center bore plays a vital role in how your wheels interact with your vehicle’s hub. Wheels are often categorized as either hub-centric or lug-centric.Hub-centric wheels rely on the center bore to bear the weight of the vehicle and center the wheel. This design is generally considered superior because it reduces the load on the wheel studs, preventing potential shearing and improving the overall stability of the wheel.Lug-centric wheels, on the other hand, rely solely on the lug nuts to center and secure the wheel.

While acceptable, this method can be less precise, making the wheel more susceptible to vibrations if the lug nuts aren’t tightened evenly. A wheel with an incorrect center bore will not sit flush against the hub, regardless of whether it’s lug or hub-centric. This can lead to significant safety hazards, including vibrations, damage to the wheel studs, and ultimately, wheel failure.

Measuring Center Bore Diameter

Accurately measuring the center bore is straightforward using a digital caliper. Here’s how to do it:

1. Prepare the Wheel

Ensure the wheel is clean and free of any debris or obstructions in the center bore.

2. Select the Right Caliper Jaws

Use the inside jaws of the digital caliper for this measurement. These are the smaller jaws located at the top of the caliper.

3. Position the Caliper

Open the caliper jaws and carefully insert them into the center bore of the wheel. Ensure the jaws are parallel and make contact with the inside edges of the center bore.

4. Take the Measurement

Close the jaws until they gently touch the inside diameter of the center bore. Read the measurement on the digital display. The display will show the center bore diameter in millimeters (mm).

5. Record the Measurement

Note the measured diameter. It is essential to measure the center bore on the wheel, not the hub of the car. The hub diameter is only relevant when selecting the correct wheel.The process of using a digital caliper to measure the center bore is illustrated in the following description:The illustration shows a digital caliper with its jaws positioned inside the center bore of a car wheel.

The jaws of the caliper are opened and carefully placed against the inner walls of the center bore. The digital display on the caliper clearly shows the measurement in millimeters. The caliper is held perpendicular to the wheel, ensuring an accurate measurement of the bore’s diameter. The wheel itself is resting on a flat surface, and the entire setup is clean and well-lit.

Implications of an Incorrect Center Bore Size

Using a wheel with an incorrect center bore size can have serious consequences.* Center Bore Too Small: If the center bore is too small, the wheel will not fit over the hub. Forcing the wheel onto the hub can damage the hub, the wheel, or both.

Center Bore Too Large

If the center bore is too large, the wheel will not be centered properly. This can cause vibrations, especially at higher speeds, and put undue stress on the wheel studs. Over time, this can lead to the studs breaking, potentially causing the wheel to detach.

Vibration and Ride Quality

Even if the wheel appears to fit, a slightly off-center wheel can cause noticeable vibrations that affect ride comfort and handling.

Safety Risks

Incorrect center bore sizing can lead to wheel failure, potentially causing accidents and injuries.To address a center bore that is too large, hub-centric rings can be used. These rings, made of plastic or metal, fill the gap between the wheel’s center bore and the vehicle’s hub, ensuring a snug and centered fit. It’s important to note that hub-centric rings are only a solution if the center bore is

• larger* than the hub diameter. They are not a solution if the center bore is
• smaller*.

Understanding Wheel Markings

Once you’ve measured your car wheels, the next crucial step is understanding the markings stamped or cast onto them. These markings provide a wealth of information about your wheel’s specifications, allowing you to accurately identify and replace wheels, ensuring proper fitment and performance. Deciphering these codes can seem daunting at first, but with a little knowledge, you’ll be able to easily interpret the key data.

Common Wheel Markings and Their Meanings

Wheel markings are standardized and typically found on the inner barrel or the back of the wheel’s spokes. They contain critical information about the wheel’s dimensions, construction, and other important characteristics.

• Diameter: This indicates the wheel’s overall diameter, measured in inches. For example, “17” would signify a 17-inch wheel.
• Width: The wheel’s width, also in inches, is the distance between the wheel’s inner flanges. A marking like “7.5” indicates a 7.5-inch wide wheel.
• Bolt Pattern (PCD – Pitch Circle Diameter): This describes the number of bolt holes and the diameter of the circle they are arranged on. It’s expressed as two numbers: the number of bolts, followed by the PCD in millimeters. For instance, “5×114.3” means the wheel has five bolt holes and a PCD of 114.3mm.
• Offset: Wheel offset is the distance between the wheel’s mounting surface (the part that bolts to the hub) and the wheel’s centerline. Offset is measured in millimeters. Positive offset means the mounting surface is towards the outside of the wheel, negative offset means it’s towards the inside, and zero offset means the mounting surface is exactly at the wheel’s centerline.

  Examples include: “ET45” (positive offset of 45mm), “ET-20” (negative offset of 20mm), or “ET0” (zero offset). The “ET” stands for “Einpresstiefe,” a German term for offset.

• Center Bore: The center bore is the diameter of the hole in the center of the wheel that fits over the hub of the car. This ensures the wheel is centered correctly. It is measured in millimeters. Examples include: “CB66.1” indicating a center bore of 66.1mm.
• Load Rating: This indicates the maximum weight the wheel can safely support, usually expressed in kilograms or pounds. This is often represented by a number. For example, “690KG” indicates a load rating of 690 kilograms.
• Manufacturing Date: Often included is a date code indicating when the wheel was manufactured. This is usually a four-digit number, where the first two digits represent the week and the last two represent the year. For instance, “1218” would indicate the wheel was manufactured in the 12th week of 2018.
• Manufacturer’s Name or Logo: The wheel manufacturer’s name or logo is typically present for identification.
• Material and Construction: Some wheels may include information about the material they are made from (e.g., “Alloy,” “Steel”) and the construction method (e.g., “Cast,” “Forged”).

Examples of Wheel Markings

Let’s consider a few examples to illustrate how these markings appear and what they mean:

• Example 1: “17×7.5 ET45 5×114.3 CB66.1”
  • This wheel is 17 inches in diameter and 7.5 inches wide.
  • It has a positive offset of 45mm.
  • The bolt pattern is 5×114.3mm (five bolts on a 114.3mm PCD).
  • The center bore is 66.1mm.
• Example 2: “18×8 ET35 5×120 CB72.6”
  • This wheel is 18 inches in diameter and 8 inches wide.
  • It has a positive offset of 35mm.
  • The bolt pattern is 5x120mm.
  • The center bore is 72.6mm.
• Example 3: “16×7 ET0 4×100 CB57.1”
  • This wheel is 16 inches in diameter and 7 inches wide.
  • It has a zero offset.
  • The bolt pattern is 4x100mm.
  • The center bore is 57.1mm.

Interpreting Wheel Markings, How to measure car wheels

Understanding wheel markings is crucial for several reasons.

• Wheel Replacement: When replacing a wheel, you must match these specifications to ensure the new wheel fits your vehicle correctly. Incorrect specifications can lead to fitment issues, rubbing, and potentially unsafe driving conditions.
• Wheel Upgrades: If you’re considering upgrading your wheels, knowing the markings allows you to choose wheels with different sizes, offsets, or bolt patterns, but always within the safe and recommended parameters for your vehicle.
• Identifying Wheel Compatibility: Knowing the wheel markings allows you to determine if a wheel is compatible with your vehicle’s specifications.

It’s always advisable to consult your vehicle’s owner’s manual or a qualified mechanic for the correct wheel specifications for your car. This is particularly important if you’re unsure about any of the markings or their implications.

Troubleshooting Measurement Issues

Accurate wheel measurements are crucial for ensuring a proper fit and safe operation. However, several common issues can arise during the measurement process. This section will delve into these problems and offer practical solutions to help you achieve reliable results.

Inaccurate Diameter Measurements

Diameter measurement inaccuracies can stem from several factors, leading to incorrect wheel fitment. These inaccuracies may lead to tire rubbing or improper brake clearance.

• Problem: Using an incorrect measuring method or tool.
• Solution: Double-check that you’re measuring from the bead seat to the bead seat, or from the outer edge to outer edge, depending on your preferred method. Use a reliable measuring tool, such as a measuring tape or digital caliper, and ensure it’s calibrated correctly.
• Problem: Difficulty reading the measuring tape or caliper.
• Solution: Ensure the measuring tool is positioned perpendicular to the wheel’s surface. Take multiple measurements and average them to minimize errors. If using a measuring tape, make sure it’s taut and doesn’t sag.

Inaccurate Width Measurements

Incorrect wheel width measurements can cause problems such as tires rubbing against suspension components or fenders.

• Problem: Measuring from the wrong points.
• Solution: Remember to measure from the inner bead seat to the outer bead seat. Make sure the measuring tool is aligned correctly.
• Problem: Misinterpreting the measurement.
• Solution: Take extra care when reading the measurement, and consider using a digital caliper for easier and more precise readings.

Inaccurate Bolt Pattern (PCD) Measurements

Inaccurate bolt pattern measurements can prevent the wheel from mounting correctly, leading to safety hazards.

• Problem: Using an incorrect method for the number of lug nuts.
• Solution: For wheels with an even number of lug nuts (4, 6, 8), measure directly from the center of one stud hole to the center of the hole directly opposite. For wheels with an odd number of lug nuts (3, 5, 7), measure from the center of one stud hole to the center of the second hole away.
• Problem: Inaccurate tool usage.
• Solution: Ensure the measuring tool is aligned correctly. When using a PCD gauge, make sure the pins are securely inserted into the lug nut holes. When measuring with a ruler, ensure that the ruler is parallel to the wheel’s surface and the measurements are taken from the exact center of the holes.
• Problem: Difficulty with the measuring technique.
• Solution: Double-check your measurements by measuring multiple times. You can also compare your measurements with online resources, or the wheel’s specifications.

Inaccurate Offset Measurements

Incorrect offset measurements can cause the wheel to rub against suspension components or the fender.

• Problem: Measuring from the wrong point.
• Solution: Ensure you are measuring from the mounting surface of the wheel to the wheel’s centerline.
• Problem: Incorrectly calculating the offset.
• Solution: Make sure you understand whether you’re dealing with a positive, negative, or zero offset. Double-check your calculations.

Inaccurate Center Bore Measurements

Inaccurate center bore measurements can result in vibrations or improper wheel seating.

• Problem: Using the wrong measuring tool.
• Solution: Use a caliper to accurately measure the center bore diameter.
• Problem: The caliper is not correctly positioned.
• Solution: Ensure the caliper jaws are parallel to the center bore walls and that the measurement is taken at the widest point.

Ensuring Accurate Measurements

To consistently achieve accurate wheel measurements, several best practices should be followed.

• Practice: Practice measuring wheels on various vehicles to become familiar with the process.
• Multiple Measurements: Take multiple measurements and calculate the average.
• Tool Calibration: Regularly calibrate your measuring tools.
• Cleanliness: Ensure the wheel is clean before taking measurements. Dirt or debris can affect the accuracy of the measurements.
• Wheel Specifications: Compare your measurements with the wheel’s specifications if available.

Using Wheel Measurement Data

Now that you’ve diligently measured your wheels, it’s time to put that data to work. This information is crucial for making informed decisions when selecting replacement wheels, choosing new tires, or even just understanding how different wheel configurations will affect your vehicle’s performance and appearance. Accurate measurements are your key to avoiding costly mistakes and ensuring a safe and proper fit.

Selecting Replacement Wheels and Tires

Your wheel measurements serve as a blueprint when shopping for new wheels or tires. Understanding these measurements prevents selecting wheels or tires that won’t fit your vehicle, potentially leading to safety hazards or mechanical issues.

• Wheel Diameter and Width: These dimensions determine the overall size of the wheel and the tire size that can be mounted. Consider the following:
  • Increasing wheel diameter can improve handling and aesthetics, but it may require lower-profile tires, potentially affecting ride comfort.
  • Increasing wheel width allows for wider tires, improving grip and handling, but may lead to rubbing against suspension components or the body.
• Bolt Pattern (PCD): The bolt pattern must precisely match your vehicle’s specifications. A mismatch can prevent the wheel from mounting correctly and is a significant safety risk. For example, a 5x100mm bolt pattern will only fit a vehicle with the same pattern.
• Offset: Offset affects how the wheel sits within the wheel well.
  • A positive offset moves the wheel closer to the suspension.
  • A negative offset moves the wheel further out.
  • Incorrect offset can cause rubbing or affect handling.
• Center Bore: The center bore must be large enough to fit over your vehicle’s hub. If it’s too small, the wheel won’t mount. If it’s too large, you’ll need hub-centric rings to ensure proper centering and reduce vibrations.

How Wheel Measurements Affect Tire Fitment

Wheel measurements directly impact tire fitment. Selecting the wrong wheel size or offset can cause tires to rub against the vehicle’s body, suspension components, or even the brakes.

• Tire Width and Wheel Width: The tire’s width should be compatible with the wheel’s width. Tire manufacturers provide recommended wheel width ranges for each tire size. For instance, a 225/45R17 tire might be recommended for a wheel width of 7-8 inches.
• Tire Diameter and Wheel Diameter: The overall tire diameter (including the tire’s sidewall height) must be considered. Changing the tire diameter significantly can affect speedometer accuracy and gearing.
• Offset and Tire Clearance: Offset plays a crucial role in tire clearance. An incorrect offset can cause the tire to rub against the fender or suspension, especially when turning or under load.

Matching Wheel Measurements to Vehicle Specifications

A systematic process is essential to ensure that your chosen wheels are compatible with your vehicle. This involves cross-referencing your measured data with your vehicle’s specifications and consulting resources.

1. Identify Your Vehicle’s Specifications: Begin by consulting your vehicle’s owner’s manual or a reputable online wheel fitment guide. These resources provide the factory wheel size, bolt pattern, offset range, and center bore size.
2. Compare Measurements: Compare your measured wheel data with your vehicle’s specifications. Ensure the bolt pattern, center bore, and offset are within acceptable ranges.
3. Consider Tire Size: Determine the appropriate tire size for the chosen wheels. Use an online tire size calculator to ensure the overall tire diameter is compatible with your vehicle and won’t affect speedometer accuracy.
4. Check for Clearance: Before purchasing, consider potential clearance issues. Visualize how the new wheels and tires will fit within the wheel wells. Consult online forums or wheel fitment guides specific to your vehicle model for real-world examples and potential problems.
5. Test Fit (If Possible): If possible, test-fit a wheel and tire before making a final purchase. This is the most accurate way to ensure proper fitment and avoid any surprises.

Example: Let’s say you own a Honda Civic with a factory wheel size of 17×7 inches, a bolt pattern of 5×114.3mm, an offset of +45mm, and a center bore of 64.1mm. When shopping for replacement wheels, you find a set that is 17×7.5 inches, with a 5×114.3mm bolt pattern, an offset of +40mm, and a center bore of 73.1mm. You would need to use hub-centric rings to adapt the larger center bore to the Civic’s 64.1mm hub.

The slightly wider wheel and the different offset should be carefully evaluated to ensure they do not cause any rubbing issues.

Final Review

So, there you have it, a journey into the world of measuring car wheels. We’ve explored the essential tools, the crucial measurements, and how they all work together to keep your car rolling smoothly and safely. Remember, taking the time to measure your wheels accurately is an investment in your car’s performance and your own peace of mind. Now, go forth and measure with confidence.

Armed with this knowledge, you’re ready to make informed decisions about your wheels and tires, ensuring your car looks good and drives even better. Don’t be afraid to experiment, and always prioritize safety. Happy measuring!

Question & Answer Hub: How To Measure Car Wheels

Why is it so important to measure my car wheels accurately?

Because incorrect measurements can lead to a whole heap of problems: wheels that don’t fit, tires that rub, and potentially unsafe driving conditions. Accurate measurements ensure everything fits and functions properly.

Can I measure my wheels with the tires still on?

Yep, you can measure most things with the tires on, but it might be a little trickier. Make sure you measure the wheel itself, not just the tire. For some measurements, like offset, you’ll definitely need the tire off.

What if I don’t have the exact tools mentioned?

You can sometimes improvise! A regular ruler can work in a pinch for some basic measurements, but a measuring tape and caliper are essential for accuracy. Don’t cheap out on the tools, it’s worth the investment!

What happens if I get the bolt pattern wrong?

If you get the bolt pattern wrong, the wheel won’t fit on your car. Simple as that. Double-check your measurements, especially for those with multiple lug nuts.

Is it better to measure the wheels myself or have a professional do it?

Doing it yourself is totally fine, especially with this guide! But if you’re unsure or dealing with something complex, a professional can offer peace of mind. However, the more you know, the better you can communicate your needs to the professional.
