What is Beadlock Wheels? Get the Lowdown, Yeah?

Right, so, what is beadlock wheels? Listen up, yeah? These ain’t your nan’s wheels, innit. We’re talkin’ serious off-road gear, built for bashin’ and crashin’ without your tyres poppin’ off the rims. They’re the real deal for mud, rocks, and anythin’ that tries to stop you from havin’ a proper laugh.

This ain’t no Sunday drive; this is about gettin’ dirty and pushin’ your motor to the limit.

Basically, beadlocks clamp the tyre bead to the wheel, so even when you air down for more grip, your tyre stays put. Think of it like a bulldog grip for your rubber. These wheels have come a long way, from the early days of makeshift contraptions to the slick, high-tech designs you see today. They’re a game-changer for anyone serious about takin’ their 4×4 off the beaten track.

They got various designs, single, dual and internal, and you can pick one according to your needs.

Introduction to Beadlock Wheels

The untamed wilderness calls to those who crave adventure, and for off-road enthusiasts, conquering challenging terrains is the ultimate pursuit. This requires specialized equipment, and at the forefront of this gear are beadlock wheels. These wheels are not merely aesthetic upgrades; they are critical components designed to enhance performance and safety in demanding off-road environments. They address a fundamental issue faced by off-road vehicles: tire slippage.Beadlock wheels have a fascinating history, evolving from specialized racing applications to becoming a popular choice for a wide range of off-road vehicles.

They provide a secure method of mounting tires, and the following sections will delve into their function, development, and components.

Fundamental Purpose in Off-Road Applications

The primary purpose of beadlock wheels is to prevent tire bead separation from the wheel rim at low tire pressures. This is crucial for off-road driving, as lowering tire pressure significantly increases the tire’s contact patch, improving traction on loose surfaces like sand, mud, and rocks. However, this also increases the risk of the tire bead breaking the seal with the wheel rim, leading to a flat tire and potential vehicle damage.Beadlock wheels solve this problem by clamping the tire bead between the wheel rim and a retaining ring, securing the tire even at extremely low pressures.

This clamping action prevents the tire from rotating on the wheel, ensuring consistent traction and reducing the likelihood of a flat tire caused by bead separation.

Brief History of Beadlock Wheel Development

The development of beadlock wheels is a testament to the evolution of off-road racing and vehicle modification. Initially, beadlocks were primarily used in high-performance racing applications where extreme stress was placed on tires.The early versions were often simple designs, incorporating a bolted ring that clamped the tire bead to the wheel. As off-road racing evolved, so did beadlock technology. The designs became more refined, with advancements in materials and manufacturing processes leading to stronger, lighter, and more user-friendly beadlock wheels.

Over time, beadlock wheels have expanded from specialized racing to a wider consumer base. The evolution continues with new designs and materials aimed at improving performance, durability, and ease of use.

Basic Components of a Beadlock Wheel

Understanding the components of a beadlock wheel is essential to grasp its functionality. While designs may vary, the core elements remain consistent.The basic components of a beadlock wheel include:

• Wheel Rim: This is the main structural component, providing the basic shape and mounting surface for the tire. It’s typically made from steel or aluminum, with aluminum often preferred for its lighter weight.
• Beadlock Ring: Also known as the retaining ring, this is the component that clamps the tire bead against the wheel rim. It’s usually made from steel or aluminum, and is secured to the wheel rim with bolts. The design of the beadlock ring is crucial, as it must provide sufficient clamping force without damaging the tire bead.
• Bolts: These are used to secure the beadlock ring to the wheel rim. They must be strong enough to withstand the forces generated during off-road driving and are typically high-strength steel. The number and size of bolts vary depending on the wheel design and intended use.
• Wheel Center: This is the central part of the wheel, which includes the hub mounting surface and the bolt pattern for attaching the wheel to the vehicle.

These components work in concert to provide a secure and reliable tire mounting system, allowing off-road enthusiasts to confidently tackle challenging terrains.

How Beadlock Wheels Function

The allure of conquering rugged terrains often lies in the details, in the robust engineering that allows vehicles to push boundaries. Beadlock wheels are a prime example of this, designed to provide superior tire security compared to standard wheels. They achieve this by mechanically clamping the tire bead to the wheel, a crucial difference that dramatically enhances off-road performance.

Securing the Tire Bead

The fundamental principle behind a beadlock wheel is simple, yet its execution is ingenious. Instead of relying solely on tire pressure to keep the tire seated on the wheel rim, a beadlock wheel utilizes a mechanical clamping system. This clamping system physically secures the tire bead against the wheel, preventing the tire from separating from the wheel even at extremely low tire pressures.The primary components that enable this function are:

• The Wheel Itself: The beadlock wheel usually has a two-piece design, or a single piece with a separate beadlock ring. The wheel’s outer edge is specifically designed to accommodate the tire bead and the beadlock ring.
• The Beadlock Ring (or Clamp): This is the key element. It is a ring that bolts onto the wheel, clamping the tire bead between the ring and the wheel’s rim. The ring is typically made of durable materials like steel or aluminum to withstand the stresses of off-road driving.
• Bolts/Fasteners: These secure the beadlock ring to the wheel. The number and type of bolts vary depending on the wheel design and intended use, but they are critical for maintaining the clamping force.

When the tire is inflated, the bead is compressed between the wheel’s rim and the beadlock ring. Even when the tire pressure is significantly reduced, the clamping force exerted by the beadlock ring ensures the tire bead remains firmly seated. This is particularly advantageous when navigating challenging terrains where low tire pressures are required for optimal traction and ride comfort.

Mounting a Tire on a Beadlock Wheel

Mounting a tire on a beadlock wheel is a slightly different process compared to mounting a tire on a standard wheel. The process requires specific steps and attention to detail to ensure the tire is correctly seated and the beadlock ring is properly secured.The general steps involved are:

1. Prepare the Wheel: Ensure the wheel is clean and free of any debris.
2. Mount the Tire: Place one tire bead onto the wheel rim.
3. Position the Tire Bead: Carefully position the second tire bead onto the wheel rim.

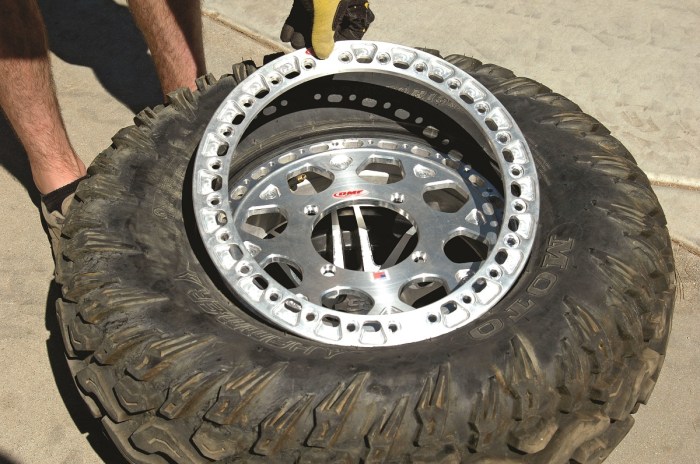

4. Install the Beadlock Ring: Place the beadlock ring over the tire bead and align it with the bolt holes on the wheel.
5. Tighten the Bolts: Insert and tighten the bolts that secure the beadlock ring to the wheel. Tighten the bolts in a star pattern, gradually increasing the torque to ensure even clamping pressure around the tire bead. This is a crucial step; uneven tightening can lead to leaks or damage.
6. Inflate the Tire: Inflate the tire to the recommended pressure.
7. Check for Leaks: Inspect the tire bead for any leaks. Soap and water solution can be applied to the bead area to detect air leaks.

It is essential to follow the manufacturer’s instructions for the specific beadlock wheel model. The torque specifications for the bolts are critical and must be adhered to.

Advantages of Beadlock Wheels

Beadlock wheels offer several significant advantages over standard wheels, making them a popular choice for off-road enthusiasts and professionals.

• Reduced Risk of Tire Separation: The primary advantage is the elimination of tire separation at low tire pressures. This is crucial for maintaining control and preventing damage in challenging terrains.
• Ability to Run Lower Tire Pressures: Beadlock wheels allow drivers to run much lower tire pressures than standard wheels without the risk of the tire coming off the rim. This results in increased traction, improved ride comfort, and better ability to navigate obstacles. For example, a driver might run 10 PSI or lower on a beadlock wheel, whereas a standard wheel might require a minimum of 20 PSI to prevent the tire from unseating.

• Enhanced Off-Road Performance: Lower tire pressures conform the tire to the terrain, increasing the contact patch and improving grip on rocks, sand, and other surfaces. This translates to better climbing ability, improved handling, and reduced risk of getting stuck.
• Protection Against Tire Damage: The beadlock ring also provides some protection to the tire sidewall, as the tire bead is more securely held.
• Increased Confidence: The peace of mind that comes from knowing the tire is securely attached to the wheel allows drivers to push their vehicles further and explore more challenging terrains.

Types of Beadlock Wheel Designs

Beadlock wheels, while sharing a common goal of securing the tire bead, employ various designs to achieve this. These designs differ in their construction, ease of use, and suitability for different applications. Understanding these variations is crucial for selecting the right beadlock wheel for your needs.

Single Beadlock Wheels

Single beadlock wheels are the most common type. They lock only one bead of the tire to the wheel. The other bead remains seated in the standard wheel well. This design strikes a balance between performance and practicality, making it a popular choice for both on- and off-road applications.

Dual Beadlock Wheels

Dual beadlock wheels secure both the inner and outer tire beads to the wheel. This provides the most secure grip, making them ideal for extreme off-roading, rock crawling, and applications where very low tire pressures are required.

Internal Beadlock Wheels

Internal beadlock wheels, also known as inner beadlocks, utilize a system that sits inside the tire. A ring or other mechanism presses the tire bead against the wheel’s inner lip. This design offers a clean, streamlined appearance as the locking mechanism is not visible from the outside.

Comparison of Beadlock Wheel Designs

The different beadlock wheel designs each have their advantages and disadvantages. This table summarizes the key aspects of each type, helping you to make an informed decision:

Materials Used in Beadlock Wheel Construction

The durability and performance of a beadlock wheel depend heavily on the materials used in its construction. Several materials are commonly employed, each with its own set of characteristics:

• Steel: Steel is a popular choice for beadlock wheels due to its strength and affordability. Steel wheels are resistant to impacts and can withstand significant abuse. However, they are generally heavier than aluminum wheels and can be prone to rust if not properly protected. The weight can affect the vehicle’s unsprung mass, potentially impacting handling.
• Aluminum: Aluminum wheels offer a significant advantage in terms of weight reduction compared to steel. They also provide better heat dissipation, which can be beneficial during off-road driving. Aluminum is resistant to corrosion. Aluminum beadlock wheels are often more expensive than steel wheels. They might be more susceptible to damage from impacts than steel, although this depends on the specific aluminum alloy used and the wheel’s design.

• Forged Aluminum: Forged aluminum wheels represent a premium option. The forging process enhances the strength and durability of the aluminum, making these wheels exceptionally robust. Forged aluminum wheels are lighter than cast aluminum wheels and offer superior performance characteristics. The manufacturing process makes them the most expensive type of beadlock wheel.
• Carbon Fiber: Carbon fiber beadlock wheels are a high-performance, lightweight option, and are typically used in racing applications where every ounce counts. They offer exceptional strength-to-weight ratios. Carbon fiber is very expensive and can be susceptible to damage from sharp impacts.

Benefits of Using Beadlock Wheels

Beadlock wheels offer significant advantages for off-road enthusiasts, improving performance, safety, and overall vehicle capability. They provide a crucial edge in challenging terrains where conventional wheels can fail. The following details the primary benefits of using beadlock wheels and illustrates their importance in various off-road scenarios.

Enhanced Tire Grip and Lowered Tire Pressure

One of the most significant advantages of beadlock wheels is the ability to run significantly lower tire pressures. This is achieved because the beadlock mechanism securely clamps the tire bead to the wheel, preventing the tire from detaching, even at extremely low pressures.

• Improved Traction: Lower tire pressures allow the tire to conform to the terrain, increasing the contact patch and providing superior grip. This is particularly beneficial on rocky surfaces, in sand, and in muddy conditions. The increased surface area of the tire effectively “grabs” the ground.
• Reduced Risk of Tire Damage: Running lower pressures also helps the tire to absorb impacts from rocks and obstacles, reducing the risk of punctures and sidewall damage. This is a critical advantage when traversing sharp rocks or other hazards.
• Enhanced Ride Comfort: Lowering tire pressure also enhances ride comfort by absorbing bumps and irregularities in the terrain. This makes for a smoother and more controlled driving experience.

Preventing Tire Detachment

Beadlock wheels eliminate the risk of the tire bead separating from the wheel rim, a common problem with conventional wheels, especially during extreme off-roading. This is the primary safety benefit of using beadlocks.

• Secure Tire Mounting: The beadlock ring clamps the tire bead to the wheel, creating a secure seal that prevents the tire from coming off the wheel, even under severe stress.
• Critical for Low-Pressure Driving: As mentioned earlier, this is especially important when running very low tire pressures. Without beadlocks, low-pressure driving can lead to tire detachment, resulting in loss of control and potential vehicle damage.
• Increased Safety Margin: Beadlocks provide a significant safety margin in challenging off-road conditions, where the risk of tire damage and detachment is high. This gives drivers greater confidence and control.

Improved Vehicle Performance

Beyond enhanced grip and safety, beadlock wheels contribute to overall vehicle performance in several ways. The benefits extend beyond simply avoiding tire separation.

• Enhanced Climbing Ability: The increased grip provided by lower tire pressures, made possible by beadlocks, significantly improves a vehicle’s ability to climb steep inclines and traverse challenging obstacles.
• Improved Maneuverability: The increased grip and control also improve maneuverability, allowing drivers to navigate tight trails and make precise movements.
• Reduced Wheel Spin: Beadlocks minimize wheel spin, transferring more power to the ground. This leads to better acceleration and overall efficiency, especially in loose terrain.

Situations Where Beadlock Wheels Are Particularly Beneficial

There are specific off-road scenarios where the advantages of beadlock wheels become especially apparent.

• Rock Crawling: Rock crawling is the ultimate test for beadlock wheels. The low tire pressures and secure bead retention are essential for navigating jagged rocks and steep inclines. The ability to run extremely low pressures allows the tire to conform to the rocks, maximizing grip and minimizing the risk of punctures.
• Sand Dunes: In sand dunes, the increased surface area provided by lower tire pressures creates superior flotation, preventing the vehicle from sinking and improving forward momentum. The secure beadlock design ensures that the tire stays on the wheel, even during aggressive maneuvers.
• Mud Bogging: Mud bogging often involves deep mud and challenging obstacles. Beadlocks allow for lower tire pressures, maximizing grip and preventing the tire from spinning freely in the mud. The secure bead retention is also critical, as the tire is subjected to extreme forces.
• Competitive Off-Road Racing: In off-road racing, every advantage counts. Beadlocks provide a significant edge by enhancing grip, improving handling, and minimizing the risk of tire damage.

Impact on Vehicle Safety

Beadlock wheels significantly improve vehicle safety in several ways.

• Reduced Risk of Rollovers: By preventing tire detachment, beadlocks help maintain vehicle control, reducing the risk of rollovers, especially in situations where a tire might come off the rim during a sharp turn or side-hill maneuver.
• Enhanced Stability: The increased grip and control provided by lower tire pressures contribute to overall vehicle stability, making it easier to maintain control in challenging conditions.
• Preventing Sudden Loss of Control: A detached tire can cause a sudden and unexpected loss of control, potentially leading to a serious accident. Beadlocks eliminate this risk.

Installation and Maintenance

The allure of beadlock wheels lies not just in their rugged aesthetic but in the tangible benefits they offer on the trail. However, realizing these advantages hinges on proper installation and diligent maintenance. This section Artikels the essential steps and practices required to ensure your beadlock wheels perform optimally and stand the test of time.

Tools and Equipment for Installation

Successfully mounting and maintaining beadlock wheels requires a specific set of tools and equipment. Having these readily available streamlines the process and minimizes the risk of damage to the wheels or tires.

• Tire Mounting Machine: This is crucial for breaking the bead of the old tire and for seating the new tire onto the wheel. Choose one suitable for the size of your tires. For larger off-road tires, a heavy-duty machine is recommended.
• Bead Breaker: Although a tire mounting machine often has a bead breaker, a separate, portable bead breaker can be useful, especially when working in remote locations.
• Torque Wrench: A torque wrench is indispensable for tightening the beadlock bolts to the manufacturer’s specified torque. Over-tightening or under-tightening can compromise the beadlock’s effectiveness and potentially damage the wheel.
• Socket Set and Wrenches: A comprehensive set of sockets and wrenches, including metric and SAE sizes, is necessary for various tasks, such as removing and reinstalling the wheels and tightening the beadlock bolts.
• Impact Wrench (Optional): An impact wrench can speed up the removal and installation of lug nuts and, in some cases, beadlock bolts, but it’s crucial to use it with caution and avoid over-tightening.
• Tire Balancing Machine: Balancing the tire and wheel assembly is essential for a smooth ride and to prevent premature tire wear.
• Air Compressor: An air compressor is needed to inflate the tire after mounting. A high-volume compressor is beneficial for quickly inflating large off-road tires.
• Valve Stem Tool: This tool is necessary for removing and installing valve stems.
• Lubricant (Tire Mounting Paste): This lubricant helps the tire slide onto the wheel during mounting and aids in sealing the bead.
• Safety Glasses and Gloves: Eye protection and gloves are essential for safety during the installation process.

Mounting and Balancing a Tire on a Beadlock Wheel: Step-by-Step Procedure

The process of mounting and balancing a tire on a beadlock wheel differs slightly from a standard wheel. Precision and attention to detail are paramount to ensure a secure and balanced assembly.

1. Remove the Wheel from the Vehicle: Safely raise the vehicle and remove the wheel that needs the tire replaced. Ensure the vehicle is securely supported with jack stands.
2. Remove the Beadlock Ring: Loosen and remove the beadlock bolts. Carefully remove the beadlock ring, taking note of its orientation.
3. Break the Tire Bead: Using a tire machine or a bead breaker, break the bead of the tire from the wheel on both sides.
4. Remove the Tire: Use the tire machine to carefully remove the tire from the wheel.
5. Clean the Wheel: Thoroughly clean the wheel, especially the bead seat and the area where the beadlock ring sits. Remove any dirt, debris, or old sealant.
6. Install the Tire on the Wheel: Apply tire mounting paste to the bead of the new tire. Place the tire onto the wheel, ensuring the bead is seated correctly.
7. Install the Beadlock Ring: Place the beadlock ring onto the tire and wheel assembly. Align the bolt holes.
8. Install and Torque the Beadlock Bolts: Install the beadlock bolts, tightening them in a star pattern to ensure even pressure. Use a torque wrench to tighten the bolts to the manufacturer’s specifications. This is critical for the beadlock’s effectiveness. The torque specifications are usually provided by the wheel manufacturer and are often indicated on the wheel itself. For example, a common specification might be 15-20 ft-lbs.

9. Inflate the Tire: Inflate the tire to the recommended pressure. You may need to use a high-volume air compressor to fully seat the bead against the beadlock ring.
10. Balance the Wheel and Tire Assembly: Place the wheel and tire assembly on a balancing machine. Follow the machine’s instructions to balance the assembly. Add weights as needed to correct any imbalances.
11. Install the Wheel on the Vehicle: Reinstall the wheel on the vehicle, tightening the lug nuts to the manufacturer’s recommended torque specifications.
12. Check for Leaks: After installation, check the tire and beadlock ring for any air leaks. Apply soapy water to the beadlock ring and tire sidewall; any bubbles indicate a leak.

Recommended Maintenance Practices

Regular maintenance is crucial for maximizing the lifespan and performance of your beadlock wheels. Following these practices ensures your wheels remain reliable and safe.

• Regularly Inspect Beadlock Bolts: Periodically check the beadlock bolts for any signs of loosening, corrosion, or damage. Retorque the bolts to the manufacturer’s specifications.
• Inspect the Beadlock Ring: Examine the beadlock ring for any dents, cracks, or damage. Replace the ring if any damage is found.
• Check Tire Pressure: Maintain the correct tire pressure for your driving conditions. Regularly check and adjust the pressure as needed. Low tire pressure can increase the risk of bead separation.
• Clean the Wheels: Regularly clean your beadlock wheels to remove dirt, mud, and debris. This helps prevent corrosion and makes it easier to inspect the wheels. Use mild soap and water. Avoid harsh chemicals.
• Inspect for Corrosion: Check the wheels for any signs of corrosion, especially in areas where the finish may be compromised. Address any corrosion promptly to prevent it from spreading.
• Wheel Balancing: Have your wheels balanced periodically, especially if you experience any vibrations while driving. This ensures a smooth ride and helps prevent premature tire wear.
• Proper Storage: When storing your beadlock wheels, clean them thoroughly and store them in a cool, dry place. If storing mounted tires, ensure they are properly inflated.

Beadlock Wheels and Tire Pressure

Beadlock wheels revolutionize off-roading by fundamentally changing how we approach tire pressure. This capability unlocks significant performance advantages, allowing drivers to conquer challenging terrains with greater confidence and control. The ability to run lower tire pressures, without the risk of the tire detaching from the wheel, is the cornerstone of beadlock’s effectiveness.

Lowering Tire Pressure with Beadlocks

Beadlock wheels’ primary function is to physically clamp the tire bead to the wheel, preventing the tire from separating from the rim at extremely low pressures. This clamping mechanism is what allows for significantly reduced tire pressures compared to standard wheels. Standard wheels rely solely on the tire’s air pressure to hold the bead against the wheel’s lip. When pressures drop too low, the tire can “burp” air or completely detach, leading to a loss of control and potential vehicle damage.

Beadlocks eliminate this concern.

Ideal Tire Pressure Settings for Different Terrains

The appropriate tire pressure varies greatly depending on the terrain. With beadlocks, you can experiment with pressures that would be impossible or highly risky with standard wheels. Consider these examples:* Sand: For soft sand, tire pressures as low as 8-12 PSI are often ideal. This maximizes the tire’s footprint, creating a “floating” effect that prevents the vehicle from sinking.

The wide surface area distributes the vehicle’s weight more evenly.* Rocks: When rock crawling, pressures between 10-15 PSI are common. Lower pressures allow the tire to conform to the irregular shapes of the rocks, improving grip and reducing the risk of punctures. This increased flexibility also helps absorb impacts, protecting the suspension components.* Mud: Mud presents a similar challenge to sand, requiring pressures in the 10-15 PSI range.

The goal is to maximize the tire’s contact patch to gain traction and assist in self-cleaning the tire tread.* Snow: Snow conditions also benefit from lower pressures, typically in the 8-15 PSI range, depending on the snow depth and consistency. This enhances flotation and grip.

Impact of Lower Tire Pressure on Traction and Handling

The advantages of running lower tire pressures with beadlocks are multifaceted, affecting both traction and vehicle handling.* Increased Traction: Lower pressures increase the tire’s contact patch, the area of the tire that touches the ground. This larger contact patch provides significantly improved grip, especially on uneven or loose surfaces. More contact means more friction, which translates directly to enhanced acceleration, braking, and climbing ability.* Improved Ride Comfort: Lower tire pressures absorb bumps and impacts more effectively, leading to a smoother ride.

This is particularly noticeable on rough terrain, where the tires can conform to obstacles, minimizing jarring and reducing stress on the vehicle’s suspension.* Enhanced Stability: A wider contact patch also contributes to improved vehicle stability. The vehicle is less likely to tip or roll over when traversing side slopes or navigating challenging terrain.* Reduced Risk of Punctures: While not a direct result of the beadlock itself, lower pressures can reduce the risk of punctures by allowing the tire to deform around sharp objects rather than being impaled.

This is a secondary benefit, adding to the overall robustness of a beadlock setup.

Beadlock Wheel Considerations

Choosing beadlock wheels isn’t just about grabbing the flashiest set. It’s a decision loaded with practical considerations, from navigating legal hurdles to understanding the impact on your vehicle’s performance and maintenance. This section delves into the critical factors you need to weigh before committing to a set of beadlocks.

Legal Regulations and Restrictions

The legality of using beadlock wheels varies significantly depending on your location. Regulations often stem from concerns about road safety and the potential for these wheels to be misused. Understanding these rules is crucial to avoid fines, vehicle inspections failures, and potential legal issues.For example, in many jurisdictions, “street-legal” beadlocks are those that meet specific safety standards. These often include features like:* DOT Compliance: Wheels must be certified by the Department of Transportation (DOT) or equivalent agencies in other countries, indicating they’ve passed rigorous safety tests.

Wheel Width and Offset

Reg

Beadlock wheels, designed for off-road applications, secure the tire bead to the wheel, preventing slippage at low pressures. Considering the robust nature of these wheels, maintenance is crucial. Should wheel studs require replacement, understanding the associated costs, as detailed at how much to replace wheel studs , is important for overall vehicle upkeep. This is especially true for beadlock wheels where correct torque is essential.

ulations might restrict the overall width of the wheel or the offset (the distance between the wheel’s mounting surface and its centerline), especially if these modifications impact handling or tire clearance.

Protrusion

Some laws prevent the wheels from protruding beyond the fenders, as this could increase the risk of injury to pedestrians or other vehicles.

Off-Road Use Only

In certain areas, the use of beadlocks might be restricted to off-road vehicles only, and their use on public roads is prohibited.Regulations can also differ between states, provinces, or even municipalities. Some areas might require specific inspections or documentation to ensure the wheels are installed correctly and compliant. Before purchasing and installing beadlock wheels, research the specific regulations in your area and consult local authorities or automotive experts.

Factors for Selecting Beadlock Wheels

Choosing the right beadlock wheels for your vehicle involves a careful assessment of several factors, ensuring they align with your driving style, vehicle specifications, and intended use. The selection process should consider the following points:* Vehicle Type and Use:

Off-Road Vehicles

For serious off-road enthusiasts, beadlocks are almost a necessity. Consider the terrain you’ll be tackling. Rock crawling demands robust, double beadlock designs, while trail riding might be fine with a single beadlock.

Street Vehicles

If you primarily drive on the street, carefully evaluate the benefits versus the drawbacks. Consider the potential impact on ride quality and the need for regular maintenance.

Wheel Size and Bolt Pattern

Ensure the wheels match your vehicle’s bolt pattern (the arrangement of the lug nuts) and center bore (the diameter of the hole in the wheel that fits over the hub).

Choose a wheel diameter and width that’s compatible with your vehicle’s brakes, suspension, and the tire size you intend to use.

Beadlock Design

Single Beadlock

Locks one bead of the tire to the wheel. Suitable for less extreme off-roading and generally more street-friendly.

Double Beadlock

Locks both beads of the tire to the wheel. Provides superior performance in extreme off-road conditions, like rock crawling.

Wheel Material and Construction

Aluminum

Lightweight and offers good performance but can be more prone to damage.

Steel

More durable and often more affordable, but heavier. Consider the wheel’s construction method (e.g., cast, forged) as this affects strength and weight.

Offset and Backspacing

These measurements determine the wheel’s position relative to the vehicle’s hub. Proper offset/backspacing is essential for tire clearance and handling. –

Budget

Beadlock wheels can vary significantly in price. Set a budget and research options within that range.

Tire Compatibility

Ensure the beadlock wheels are compatible with the tire sizes and types you plan to use.

Some beadlock wheels may require specific tire profiles for optimal performance.

Potential Drawbacks of Beadlock Wheels

While beadlock wheels offer undeniable benefits, they also come with certain drawbacks that you should be aware of before making a purchase. These potential downsides can impact your vehicle’s overall performance, maintenance requirements, and driving experience.* Increased Cost: Beadlock wheels are generally more expensive than standard wheels. The initial investment can be significant, and the cost may increase depending on the wheel’s material, design, and features.

Increased Weight

Beadlock wheels, especially those made of steel or with robust designs, can add significant weight to your vehicle. This can impact fuel efficiency, acceleration, and handling.

Complexity of Installation and Maintenance

Installing and maintaining beadlock wheels can be more complex than standard wheels. Mounting tires on beadlocks requires specialized tools and techniques. Regular maintenance includes checking and tightening the beadlock bolts to ensure a secure seal.

Ride Quality

The rigid nature of beadlock wheels, especially when combined with lower tire pressures, can affect ride quality on paved roads. This can lead to a harsher ride and increased road noise.

Tire Damage

While beadlocks prevent tire bead separation, they can also make it harder to spot tire damage. If the tire sidewall is damaged, it might not be immediately apparent, potentially leading to further issues.

Legal Restrictions

As previously discussed, the use of beadlock wheels might be restricted in certain areas. This can limit your ability to drive on public roads or require you to comply with specific regulations.

Limited Tire Selection

Some beadlock wheel designs might limit your tire choices. Ensure the wheels are compatible with the tire sizes and types you intend to use.

Risk of Bolt Failure

Beadlock bolts can loosen or break over time, especially under heavy use. Regularly inspecting and tightening the bolts is crucial to prevent tire bead separation and ensure safe operation.

Beadlock Wheels and Wheel Offset

Understanding wheel offset is crucial when selecting beadlock wheels. It directly impacts a vehicle’s handling, appearance, and, most importantly, its ability to accommodate larger tires and navigate challenging terrains. Incorrect offset can lead to rubbing issues, compromising the vehicle’s performance and potentially damaging components.

Wheel Offset: Definition and Significance

Wheel offset is the distance between the wheel’s mounting surface (the part that bolts to the hub) and the centerline of the wheel. It’s measured in millimeters and can be positive, negative, or zero. A wheel’s offset significantly influences how far the wheel sits in or out of the wheel well. This affects the vehicle’s scrub radius, which is the distance between the point where the tire’s vertical axis intersects the ground and the point where the steering axis intersects the ground.

Selecting the Correct Wheel Offset for Beadlock Wheels

Choosing the right offset is vital to ensure proper fitment and avoid potential problems. The goal is to position the wheel and tire combination within the wheel well without causing interference with suspension components, the frame, or the body.

• Measuring Existing Clearance: Before purchasing beadlock wheels, measure the existing clearance between your current tires and the vehicle’s components, such as the suspension arms, brake calipers, and inner fender wells. This measurement provides a baseline for determining the maximum wheel and tire width that can be accommodated.
• Considering Tire Size: The size of the tires you intend to use with the beadlock wheels will significantly impact the offset requirements. Larger tires typically necessitate a more negative offset to maintain sufficient clearance.
• Understanding Scrub Radius: A more negative offset generally increases the scrub radius, which can affect steering feel and potentially increase steering effort. While a negative offset can provide the necessary clearance for larger tires, it’s essential to consider its impact on the vehicle’s handling characteristics.
• Consulting with Professionals: If you’re unsure about the correct offset, consult with a wheel and tire specialist. They can provide expert advice based on your vehicle’s specifications, desired tire size, and intended use.

Visual Representation of Wheel Offset Scenarios

To illustrate the impact of wheel offset, consider these scenarios:

In these scenarios, the illustration would show the wheel and tire assembly mounted on a vehicle’s hub. The offset would be visually represented by the position of the wheel relative to the vehicle’s body and suspension components.

Common Issues and Troubleshooting: What Is Beadlock Wheels

Beadlock wheels, while offering significant performance advantages, are not immune to problems. Understanding the potential issues and knowing how to troubleshoot them is crucial for ensuring the longevity and effectiveness of your beadlock setup. Regular inspection and proactive maintenance are key to minimizing downtime and maximizing the benefits of beadlock wheels.

Loose Beadlock Rings, What is beadlock wheels

A common problem is a loose beadlock ring. This can lead to air leaks, tire slippage, and potential wheel damage.To address a loose beadlock ring, follow these troubleshooting steps:

• Check Bolt Torque: The primary cause of a loose ring is often under-torqued bolts. Use a torque wrench to verify that all bolts are tightened to the manufacturer’s specified torque. If any bolts are loose, tighten them in a star pattern (opposite bolts first) to ensure even pressure distribution.
• Inspect Bolts and Hardware: Examine the bolts and washers for any signs of damage, such as stripped threads, corrosion, or deformation. Replace any damaged hardware with new, high-quality replacements. Consider using thread locker on the bolts to prevent them from loosening over time, but be cautious as it can complicate future disassembly.
• Inspect the Ring and Wheel: Inspect the beadlock ring and the wheel’s bead seat for any damage or wear. Ensure the ring sits flush against the wheel and the tire bead. If the ring is warped or damaged, it will need to be replaced.
• Re-torque After Use: After initial installation, re-torque the bolts after a short period of use (e.g., after the first off-road trip or a few hundred miles of on-road driving). This helps to account for any initial settling of the components.

Air Leaks

Air leaks can occur at the bead interface or through the bolt holes. They reduce tire pressure, impacting performance and potentially damaging the tire and wheel.Here’s how to address air leaks:

• Identify the Leak Source: Use soapy water (a mixture of water and dish soap) sprayed around the beadlock ring, valve stem, and bolt holes to pinpoint the leak. Bubbles will indicate the source of the leak.
• Address Bead Leaks: If the leak is at the bead interface, deflate the tire, break the bead (if possible without dismounting the tire completely), clean the bead and the wheel’s bead seat thoroughly, and re-seat the tire bead. Ensure the bead is properly seated by inflating the tire to a higher pressure than usual (e.g., 40-50 PSI) for a short period, then reducing it to the desired operating pressure.

• Address Bolt Hole Leaks: If air is leaking around the bolts, check the bolt torque. If the bolts are properly torqued, consider using sealant on the bolt threads or around the bolt heads to seal any gaps.
• Inspect Valve Stem: Check the valve stem for damage or leaks. Replace the valve stem if necessary. Ensure the valve stem cap is securely in place.

Bolt Issues

Beadlock bolts are subjected to significant stress and can fail due to over-tightening, corrosion, or fatigue.To manage bolt issues:

• Use Proper Torque: Always tighten the bolts to the manufacturer’s recommended torque specification. Over-tightening can strip the threads or damage the bolts, while under-tightening can lead to loosening.
• Regular Inspection: Inspect the bolts regularly for signs of corrosion, damage, or stretching. Replace any bolts that appear damaged or worn.
• Material Quality: Use high-quality bolts made from corrosion-resistant materials. Stainless steel or grade 8 bolts are good choices.
• Torque Sequence: Tighten the bolts in a star pattern to ensure even pressure distribution. This helps to prevent uneven stress on the beadlock ring and wheel.
• Prevent Corrosion: Apply anti-seize compound to the bolt threads to prevent corrosion and make future removal easier.

Tire Slippage

Tire slippage on the wheel is a major concern with beadlock wheels, especially during extreme off-road use.Addressing tire slippage involves:

• Proper Installation: Ensure the tire is properly seated on the wheel and that the beadlock ring is installed correctly.
• Torque Settings: Properly torque the beadlock ring bolts to the manufacturer’s specifications.
• Tire Pressure: Run the lowest possible tire pressure for the terrain and driving style, without causing the tire to come off the bead.
• Wheel and Tire Compatibility: Ensure the wheels and tires are compatible with each other and are designed for beadlock use.
• Consider Tire Grooves: Some off-road tires have grooves or designs on the bead to further enhance the beadlock grip.

Preventing Beadlock Wheel Failures

Preventing beadlock wheel failures requires a proactive approach.Here are some tips to prevent beadlock wheel failures:

• Regular Inspections: Inspect the beadlock wheels regularly for any signs of damage, wear, or loosening. Check the bolts, rings, and wheel surfaces.
• Proper Maintenance: Follow the manufacturer’s recommendations for maintenance, including torque specifications and bolt replacement intervals.
• Use Quality Components: Use high-quality beadlock rings, bolts, and hardware.
• Avoid Over-Tightening: Never over-tighten the bolts. Use a torque wrench and follow the manufacturer’s specifications.
• Off-Road Driving: Adjust your driving style to suit the terrain and conditions. Avoid excessive wheel spin or aggressive maneuvers that can put undue stress on the beadlock wheels.
• Professional Installation: Consider having the beadlock wheels installed by a professional, especially if you are not experienced with this type of wheel.

Future of Beadlock Wheels

The landscape of beadlock wheel technology is constantly evolving, driven by advancements in materials science, manufacturing processes, and the ever-increasing demands of off-road enthusiasts and competitive racers. The future holds exciting possibilities for improved performance, durability, and user experience.

Emerging Trends in Beadlock Wheel Technology

Several key trends are shaping the future of beadlock wheels, focusing on enhanced performance, reduced weight, and increased user convenience.

• Lightweight Materials: The adoption of advanced materials like forged aluminum, carbon fiber, and hybrid composites is on the rise. These materials offer superior strength-to-weight ratios compared to traditional steel wheels, leading to improved handling, fuel efficiency, and reduced unsprung mass. For example, some high-end off-road racing teams are already experimenting with carbon fiber beadlock wheels, although cost remains a significant barrier to widespread adoption.

• Advanced Manufacturing Techniques: 3D printing (additive manufacturing) is poised to revolutionize wheel production. This technology allows for complex designs and customized geometries that were previously impossible to manufacture. It also facilitates rapid prototyping and on-demand production, reducing lead times and enabling greater design flexibility.
• Integrated Technologies: Integration with tire pressure monitoring systems (TPMS) and other sensors is becoming more common. This allows drivers to monitor tire pressure in real-time and receive alerts if pressure drops below a set threshold, enhancing safety and performance. Some manufacturers are exploring integrated beadlock systems that simplify installation and maintenance.
• Enhanced Beadlock Designs: Innovation in beadlock ring designs and clamping mechanisms is ongoing. This includes the development of more robust and user-friendly systems that provide a more secure bead seat and easier installation/removal of tires. Examples include designs that incorporate multiple clamping points or utilize innovative sealing methods to prevent air leaks.
• Smart Wheels: The concept of “smart wheels” is emerging, incorporating sensors and data acquisition capabilities. These wheels could monitor various parameters such as wheel speed, acceleration, and temperature, providing valuable data to drivers and vehicle systems for enhanced performance and safety.

Potential Innovations in Beadlock Wheel Design and Materials

The future of beadlock wheels is likely to see significant advancements in design and materials, pushing the boundaries of performance and durability.

• Carbon Fiber and Composite Materials: Expect to see a wider adoption of carbon fiber and composite materials in beadlock wheel construction. These materials offer exceptional strength-to-weight ratios, allowing for lighter wheels that improve handling and fuel efficiency. Furthermore, the use of advanced composites allows for the creation of wheels with complex geometries and optimized stress distribution. For instance, the use of carbon fiber in Formula 1 racing wheels is a testament to the potential of this material in high-performance applications.

• Forged Aluminum Alloys: Forged aluminum alloys will continue to be a popular choice due to their high strength, durability, and relative affordability. Further advancements in forging techniques and alloy compositions will lead to even stronger and lighter wheels.
• Hybrid Designs: Hybrid wheel designs that combine different materials, such as a forged aluminum center with a carbon fiber rim, could become more prevalent. This approach allows manufacturers to optimize the strengths of each material, resulting in a wheel that is both strong and lightweight.
• Additive Manufacturing (3D Printing): 3D printing will play an increasingly important role in wheel design and manufacturing. This technology allows for the creation of complex and customized wheel designs that are difficult or impossible to produce using traditional manufacturing methods. It also enables rapid prototyping and on-demand production, reducing lead times and enabling greater design flexibility.
• Active Wheel Technology: The integration of active suspension systems and wheel control units into beadlock wheels could lead to the development of “active wheels.” These wheels could dynamically adjust ride height, damping, and other parameters to optimize performance in different off-road conditions.

The evolution of beadlock wheels can be summarized as follows:

• Early Days: Simple bolt-on designs primarily focused on preventing tire slippage at low pressures.
• Mid-Century: Gradual improvements in clamping mechanisms and materials, offering better performance and durability.
• Late 20th Century: Introduction of two-piece and multi-piece designs for easier tire mounting and maintenance.
• Early 21st Century: Increased use of forged aluminum and more sophisticated clamping systems.
• Present: Focus on lightweight materials, advanced manufacturing techniques, and integration with modern vehicle technologies.
• Future: Expect the use of carbon fiber, advanced composites, 3D printing, and smart wheel technologies for enhanced performance and user experience.

Ending Remarks

So, there you have it – the lowdown on what is beadlock wheels. From keepin’ your tyres on to givin’ you maximum grip, these wheels are essential for serious off-roaders. Remember, they’re not just about looks; they’re about performance and safety. Choose wisely, fit ’em right, and get out there and tear it up. Now go forth and conquer the terrain, yeah?

FAQ Resource

Are beadlocks street legal?

Depends, bruv. Some areas are cool with ’em, others, not so much. Gotta check the local laws before you bolt ’em on. Some might say they’re alright, some might say they’re not road legal.

Do beadlocks need special tyres?

Nah, any tyre will do, but you gotta make sure the bead fits the wheel. If you’re going for a really low pressure, you may need a tyre designed for that, but generally, any standard tyre works.

How often do I need to tighten the beadlock bolts?

Check ’em regularly, yeah? After every proper off-road session, at least. Keep an eye out for loose bolts and tighten ’em up to the recommended torque spec. Don’t want those wheels fallin’ apart on ya.

Can I use beadlocks on a daily driver?

You can, but is it worth it? They add weight and might not be the comfiest ride. If you’re just cruisin’ on the tarmac, you probably don’t need ’em. Save ’em for the mud, innit?

What’s the difference between a single and dual beadlock?

Single beadlocks clamp one side of the tyre bead, duals clamp both. Duals are generally stronger and let you air down even more, but they’re usually pricier and might need more faffing around to install.
