What is Backspacing on Wheels? A Comprehensive Guide to Wheel Fitment

What is backspacing on wheels? This fundamental aspect of wheel design often dictates how a wheel interacts with a vehicle’s suspension, brakes, and body. Backspacing, a crucial measurement, defines the distance from the wheel’s mounting surface to the innermost edge of the wheel’s rim. Understanding backspacing is essential for ensuring proper wheel fitment, optimizing vehicle performance, and achieving the desired aesthetic.

It’s a key factor, often overlooked, that significantly impacts everything from tire clearance to handling characteristics.

This comprehensive exploration delves into the intricacies of backspacing. We will define backspacing, contrasting it with other wheel-related parameters like offset, and provide a detailed understanding of its mechanics. The discussion will cover measurement techniques, factors influenced by backspacing, its applications across various vehicle types, and the benefits and drawbacks of different backspacing options. Furthermore, we will address potential wheel fitment challenges and their solutions, alongside the impact of backspacing on vehicle aesthetics and performance, including a look at the evolution of backspacing in wheel design.

Defining “Backspacing on Wheels”

Understanding wheel terminology is crucial for anyone modifying or upgrading their vehicle’s rolling stock. Among the various specifications, “backspacing” plays a vital role in determining how a wheel sits within the wheel well. This definition clarifies the concept, distinguishing it from related terms and providing a clear understanding of its physical characteristics.

The Fundamental Concept of Backspacing

Backspacing is the distance, measured in inches or millimeters, from the mounting surface of the wheel (where it bolts to the hub) to the innermost edge of the wheel’s rim. This measurement is critical because it dictates how far the wheel’s inner surface extends towards the vehicle’s suspension components. The amount of backspacing directly influences the wheel’s overall “fit” and its potential for rubbing against the suspension, brake calipers, or the inner fender.

A wheel with a high backspacing value will sit further inside the wheel well, while a wheel with a low backspacing value will sit further out.

Differentiating Backspacing from Offset and Stance

It’s easy to confuse backspacing with other wheel-related terms, but they represent different aspects of wheel fitment:

• Offset: Offset is the distance between the wheel’s mounting surface and the centerline of the wheel. It’s measured in millimeters and can be positive, negative, or zero. Positive offset means the mounting surface is towards the front of the wheel, negative offset means the mounting surface is towards the back, and zero offset means the mounting surface is on the wheel’s centerline.

  Backspacing and offset are related but not interchangeable. A wheel can have a specific backspacing and a specific offset.

• Stance: Stance refers to the overall look and appearance of a vehicle, particularly how the wheels and tires sit in relation to the fenders. Stance is a subjective term and is influenced by factors like wheel width, tire size, offset, and suspension modifications. Backspacing is a contributing factor to stance, but it’s not the only determinant. A vehicle’s stance can be described as “flush,” “tucked,” or “poke,” each reflecting the wheel’s position relative to the fender.

Physical Characteristics and Measurements of Backspacing

Backspacing is a direct measurement, making it relatively straightforward to determine. Here are the key aspects:

• Measurement Units: Backspacing is typically measured in inches in the United States, but it can also be expressed in millimeters.
• Measurement Points: The measurement is taken from the back of the wheel’s mounting surface (the flat surface that contacts the hub) to the innermost edge of the wheel’s rim. This is the part of the wheel that is furthest away from the vehicle’s outer face.
• Importance of Accuracy: Precise backspacing measurements are essential for ensuring proper wheel fitment. Incorrect measurements can lead to rubbing, reduced steering clearance, and potential damage to the vehicle’s components or tires.
• Relationship to Wheel Width: Backspacing is related to wheel width. Wider wheels typically have a different backspacing to achieve the same offset. Understanding this relationship is important when selecting wheels for a vehicle.

The formula that relates backspacing (BS), offset (O), and wheel width (W) is approximately:
BS = (W/2) + O
Where:
BS is backspacing in inches.
W is wheel width in inches.
O is offset in inches (offset in mm / 25.4).

For example, a wheel that is 8 inches wide with a +25mm offset (approximately 1 inch) would have a backspacing of approximately 5 inches ((8/2) + 1). This formula is a simplified representation, and slight variations can occur based on wheel design and manufacturing.

The Mechanics of Backspacing

Understanding backspacing is crucial for ensuring proper wheel fitment and optimizing a vehicle’s performance and aesthetics. Backspacing, a fundamental aspect of wheel design, dictates how far the wheel’s mounting surface sits from the wheel’s inner edge. This measurement directly impacts where the wheel sits within the wheel well, influencing everything from brake clearance to the vehicle’s stance.

Wheel Fitment and Backspacing

Backspacing significantly influences how a wheel fits within the wheel well. The correct backspacing ensures the wheel clears the suspension components, brake calipers, and the inner fender well. Incorrect backspacing can lead to rubbing, reduced turning radius, and even damage to the vehicle’s components.

• Positive Backspacing: This configuration places the wheel’s mounting surface closer to the wheel’s outer edge. This pushes the wheel further
  -inward* towards the vehicle. It’s often found on newer vehicles with limited space between the wheel and the suspension. A practical example is a modern sedan with large brakes; the wheel needs positive backspacing to clear the calipers.
• Negative Backspacing: The mounting surface is closer to the inner edge of the wheel, pushing the wheel
  -outward*. This gives the vehicle a wider track, which can improve stability and handling. Classic muscle cars frequently use wheels with negative backspacing to achieve a more aggressive stance, filling the wheel wells.
• Zero Backspacing: The mounting surface is centered in the wheel’s width. This positions the wheel evenly within the wheel well.

Backspacing vs. Offset: Comparison

While backspacing and offset both influence wheel fitment, they measure different aspects of the wheel’s geometry. Understanding their differences is key to choosing the right wheels.

• Backspacing: Measures the distance from the wheel’s mounting surface to the
  -inner* edge of the wheel. It’s a direct measurement in inches or millimeters.
• Offset: Measures the distance from the wheel’s mounting surface to the
  -centerline* of the wheel. It’s expressed in millimeters and can be positive, negative, or zero.

The relationship between backspacing and offset can be expressed using the following formula:

Backspacing = (Wheel width / 2) + Offset

For example, a wheel that is 8 inches wide with a +25mm offset has a backspacing of approximately 5.5 inches. This formula highlights how both measurements work together to determine wheel position.

Here’s a table summarizing the impact of backspacing and offset on handling and appearance:

Measuring Backspacing: Tools and Methods

Accurately measuring backspacing is straightforward with the right tools and techniques. This measurement is crucial for selecting the correct wheels and avoiding fitment issues.

• Tools Required:
  • A straight edge (e.g., a steel ruler, a long level, or a straight piece of wood).
  • A measuring tape or ruler (inches or millimeters, depending on preference).
• Measurement Method:

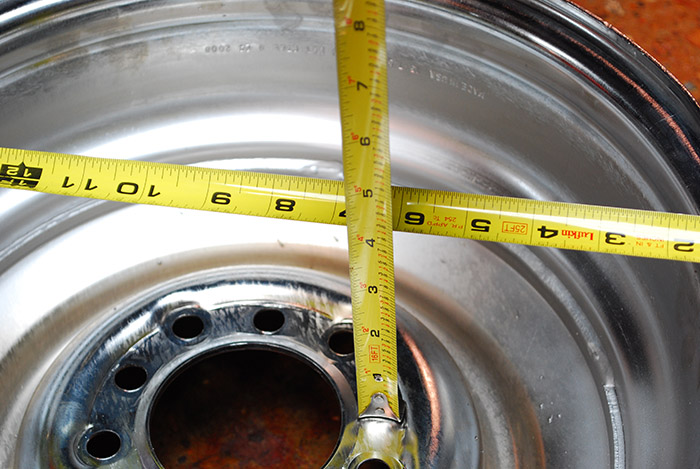

  1. Lay the wheel face down on a flat surface.
  2. Place the straight edge across the back of the wheel, spanning from one outer edge to the other. Make sure the straight edge is flush against the wheel’s outer lip.
  3. Measure the distance from the straight edge to the wheel’s mounting surface (the area where the wheel bolts to the hub).
  4. This measurement is the backspacing.
• Variations:
  • If the wheel is already mounted on the vehicle, measure from the inside of the tire to the fender or suspension components. This provides an idea of the space available. However, this is not a direct backspacing measurement.

Measuring Backspacing

Accurately measuring backspacing is crucial for ensuring proper wheel fitment, preventing tire rubbing, and maintaining vehicle performance. This process, while seemingly straightforward, requires precision and the right tools. Failing to measure correctly can lead to costly mistakes and potential damage to your vehicle.

Measuring Backspacing: Procedures and Techniques

To accurately measure backspacing, follow these steps. Remember to use a straight edge and a reliable measuring tool.

1. Gather Your Tools: You will need a straight edge (a long ruler, a piece of flat metal, or a carpenter’s square works well), a measuring tool (a ruler, tape measure, or calipers), and a stable surface to work on. Ensure your wheel is clean and free of debris.
2. Position the Wheel: Place the wheel face down on a flat, level surface. This provides a stable base for accurate measurements. Ensure the wheel is stable and does not wobble.
3. Place the Straight Edge: Position the straight edge across the back of the wheel, ensuring it touches the wheel’s outer edge (the lip where the tire bead seats). The straight edge must be perfectly flat and perpendicular to the wheel’s hub mounting surface.
4. Measure from the Hub Mounting Surface: Using your measuring tool, measure the distance from the straight edge to the hub mounting surface of the wheel. This is the surface where the wheel bolts to the vehicle’s hub.
5. Record the Measurement: Note down the measurement in inches or millimeters, depending on your preferred unit of measurement. This is your backspacing measurement.

The measurement process varies slightly depending on the wheel type.

Measuring Backspacing for Different Wheel Types

While the general procedure remains the same, specific considerations apply to different wheel materials.

• Steel Wheels: Steel wheels generally have a simple construction, making measurement relatively straightforward. Ensure the straight edge sits flush against the outer lip, as this is the most common point of reference.
• Alloy Wheels: Alloy wheels often have more complex designs, with varying lip profiles. Ensure the straight edge touches the outermost point of the wheel’s outer edge. The measurement is taken from this point to the hub mounting surface, just as with steel wheels.
• Wheels with Decorative Trim or Inserts: For wheels with decorative elements, ensure the straight edge is positioned to account for these elements. The measurement must always be taken from the outermost edge of the wheel, even if it is a decorative element.

Accurate measurement is critical, so double-check your measurements before making any decisions about wheel fitment.

Factors Influenced by Backspacing

Backspacing is a critical wheel specification that significantly affects a vehicle’s performance, appearance, and overall handling characteristics. Understanding its influence is crucial for selecting the correct wheels and tires to achieve the desired results, whether it’s improved off-road capability, enhanced aesthetics, or optimized on-road handling. Improper backspacing can lead to a host of issues, including tire rubbing, compromised turning radius, and potential damage to suspension components.

Tire Clearance Influenced by Backspacing

Backspacing directly dictates the amount of space available between the tire and the vehicle’s inner components, such as the suspension, frame, and body panels. This clearance is paramount to preventing tire rubbing, which can damage the tires, wheels, and vehicle.The amount of tire clearance is determined by the backspacing value. A wheel with a

• lower* backspacing will push the tire further
• outward*, increasing the distance between the tire and the inner wheel well. Conversely, a wheel with a
• higher* backspacing will tuck the tire further
• inward*, bringing it closer to the suspension components.

Consider these scenarios:* Scenario 1: Low Backspacing: Imagine a Jeep Wrangler. Installing wheels with a significantly lower backspacing (e.g., 3.75 inches instead of the stock 6.25 inches) allows for the fitment of wider tires. The tire is pushed outward, creating more space between the tire and the suspension components, preventing rubbing. This setup is common for off-road enthusiasts seeking to maximize tire size for better traction.

Scenario 2

High Backspacing: A sports car might use wheels with higher backspacing to accommodate wider tires without them protruding beyond the fenders. The higher backspacing tucks the tire inward, allowing the use of wider tires while maintaining a flush appearance with the vehicle’s body. However, if the backspacing is too high, the tire may rub against the suspension components.

Scenario 3

Correct Backspacing: A truck owner wants to upgrade their wheels without modifying the suspension. They would choose wheels with backspacing that matches the original specifications, ensuring proper tire clearance and avoiding rubbing issues.

Turning Radius Impacted by Backspacing

Backspacing plays a crucial role in determining a vehicle’s turning radius. Changes in backspacing can alter the scrub radius, which is the distance between the point where the tire contacts the ground and the point where the steering axis intersects the ground. This, in turn, influences how the vehicle turns.* Positive Scrub Radius: A positive scrub radius occurs when the steering axis intersects the groundoutside* of the tire’s contact patch.

Backspacing on wheels refers to the distance from the wheel’s mounting surface to the inside edge of the wheel. Understanding this is crucial, as it impacts tire fitment and vehicle handling. However, before considering modifications, determining the current value of your 4-wheeler is essential, and factors such as condition and model are key when assessing how much is my 4 wheeler worth.

Ultimately, proper backspacing ensures optimal performance and safety on your ATV.

This generally results in a more stable steering feel and can help the vehicle maintain a straight line, especially during braking. However, it can also increase the turning radius.* Negative Scrub Radius: A negative scrub radius occurs when the steering axis intersects the groundinside* of the tire’s contact patch. This can result in a more responsive steering feel and a tighter turning radius.

However, it may also make the vehicle more susceptible to steering pull under braking or uneven road surfaces.* Backspacing and Turning Radius:

• Wheels with
• lower* backspacing generally
• increase* the turning radius because the tire’s contact patch is moved outward, potentially increasing the distance the tire needs to travel to complete a turn. This is particularly noticeable in vehicles with limited turning angles.

• Wheels with
• higher* backspacing can
• decrease* the turning radius, within the limits of the vehicle’s suspension design and tire clearance. However, excessively high backspacing can lead to tire rubbing against the suspension components during turns.

Consider these real-world examples:* Example 1: Lifted Jeep Wrangler: When lifting a Jeep Wrangler and installing wheels with lower backspacing to accommodate larger tires, the turning radius might increase slightly. This is because the larger tires are further away from the steering axis, increasing the sweep of the turn.

Example 2

Sports Car with Wider Tires: A sports car owner installs wider tires with wheels that maintain a similar scrub radius. This can improve grip and handling, but the turning radius might remain largely unchanged. The careful selection of backspacing is crucial to avoid rubbing issues without significantly affecting the turning circle.

Backspacing Effects: Comparative Table

The following table summarizes the effects of different backspacing values on various aspects of vehicle performance and appearance.

Applications of Backspacing

Backspacing is a critical consideration in wheel selection and vehicle modification, impacting both aesthetics and functionality. Its influence extends across various vehicle types and use cases, from daily drivers to purpose-built off-road machines. Understanding how backspacing is applied in different scenarios is essential for achieving the desired performance and appearance.

Vehicle Types and Common Backspacing Configurations

Different vehicle types have varying backspacing requirements due to differences in suspension design, brake components, and fender clearances. These configurations affect how wheels fit within the wheel wells and how they interact with the vehicle’s other systems.

• Cars: Passenger cars generally have moderate backspacing, designed to keep the wheels within the fenders and avoid rubbing. The specific backspacing depends on the car’s make and model, wheel width, and tire size. Wider wheels often require more backspacing to maintain proper fitment.
• SUVs: SUVs typically have more space in their wheel wells compared to cars. They often use wheels with backspacing that balances aesthetics with functional considerations like brake clearance. Larger tires and aftermarket modifications can significantly alter backspacing needs.
• Trucks: Trucks, especially those designed for off-road use, frequently utilize wheels with less backspacing. This pushes the wheels outward, increasing the track width. This configuration enhances stability and provides clearance for larger tires.

Off-Road Modifications and Backspacing, What is backspacing on wheels

Off-road enthusiasts often modify their vehicles with larger tires, suspension lifts, and other components to improve their off-road capabilities. Backspacing plays a crucial role in these modifications, ensuring proper tire clearance and preventing rubbing.

• Suspension Lifts: When a vehicle is lifted, the suspension components and wheel wells move. This change necessitates a review of backspacing to ensure that the tires clear the fenders, control arms, and other parts. Less backspacing is often used to accommodate the larger tires.
• Larger Tires: Fitting larger tires is a common off-road modification. Tires that are wider or have a larger diameter require wheels with less backspacing to prevent rubbing against the frame, suspension, or body panels.
• Wheel Spacers: Wheel spacers are sometimes used to adjust backspacing, pushing the wheels further outward. They can be beneficial for providing clearance for larger tires or improving the vehicle’s stance. However, they must be used carefully, as improper use can negatively impact handling and potentially cause damage.

Specific Vehicle Models and Typical Backspacing Requirements

The backspacing requirements for a specific vehicle model can vary based on the intended use and modifications. The following examples highlight common backspacing considerations for certain vehicles.

• Jeep Wrangler (JL/JK): A stock Jeep Wrangler typically has a moderate backspacing. When fitting larger tires and/or a suspension lift, aftermarket wheels with less backspacing (e.g., 4.5 inches or less for a 35-inch tire) are often required to clear the fenders and suspension components. This moves the tire outward for more clearance.
• Ford F-150: Ford F-150s also benefit from wheels with less backspacing when fitted with larger tires. For instance, a 3-inch lift and 35-inch tires might require wheels with 0 to +12mm offset, which correlates to a reduced backspacing compared to the stock wheels.
• Toyota Tacoma: Toyota Tacomas frequently use wheels with less backspacing when upgrading to larger tires and suspension lifts. For instance, a common upgrade involves using wheels with an offset of -12mm to +12mm.

Benefits and Drawbacks of Different Backspacing Options

Understanding the advantages and disadvantages of different backspacing options is crucial for making informed decisions about wheel selection. Choosing the right backspacing not only impacts the aesthetics of a vehicle but also directly affects its handling, performance, and overall safety. This section explores the benefits and drawbacks associated with varying backspacing values.

Advantages of Increased Backspacing

Increased backspacing pushes the wheel and tire further inward toward the vehicle’s suspension. This can provide several benefits, especially in specific applications.

• Improved Wheel Well Clearance: Higher backspacing can prevent tire rubbing against the inner fender wells, suspension components, or other chassis elements. This is particularly beneficial when using larger tires. For instance, a lifted Jeep Wrangler with larger tires might require wheels with increased backspacing to avoid rubbing during articulation.
• Enhanced Steering Geometry (in some cases): While not always the primary goal, increased backspacing, when combined with the correct offset, can sometimes help maintain or improve steering geometry, leading to better handling and steering feel. This is more relevant in performance applications.
• Reduced Stress on Wheel Bearings: By keeping the tire closer to the vehicle’s center of gravity, increased backspacing can potentially reduce the leverage exerted on the wheel bearings, extending their lifespan.

Disadvantages of Reduced Backspacing

Reduced backspacing, which moves the wheel and tire further outward, can present several challenges.

• Increased Scrub Radius: Reduced backspacing often increases the scrub radius. This can lead to heavier steering, increased turning effort, and a tendency for the vehicle to follow road imperfections or “tramline.”
• Potential for Tire Rubbing: While increased backspacing aims to prevent it, reduced backspacing increases the likelihood of tire rubbing against the outer fender, especially during turns or when encountering bumps.
• Exacerbated Stress on Suspension Components: Moving the wheel and tire further from the vehicle’s center of gravity can increase the leverage on suspension components, potentially leading to premature wear and tear.
• Aesthetic Concerns: Reduced backspacing, while sometimes desired for a specific “stance,” can, in some cases, lead to a less desirable appearance, particularly if the tires protrude excessively from the fenders.

Pros and Cons of Varying Backspacing Values for Towing Trucks

For trucks used for towing, the backspacing of the wheels plays a significant role in both performance and safety. The following points highlight the advantages and disadvantages associated with different backspacing choices.

• Increased Backspacing:
  • Pros:
    • Improved stability and reduced sway, particularly when towing heavy loads.
    • Reduced risk of tire rubbing against suspension components, crucial for maintaining control during towing.
    • Potential for increased load capacity due to better distribution of forces.
  • Cons:
    • May limit the size of tires that can be used.
    • Could potentially reduce turning radius.
• Reduced Backspacing:
  • Pros:
    • May allow for wider tires, potentially improving traction.
    • Can provide a more aggressive and visually appealing stance.
  • Cons:
    • Increased scrub radius, leading to heavier steering and potential instability while towing.
    • Increased risk of tire rubbing, which is dangerous when towing.
    • Increased stress on suspension components, potentially leading to premature wear.
    • Increased likelihood of trailer sway, particularly in crosswinds or on uneven roads.

Backspacing and Wheel Fitment Challenges

Incorrect backspacing is a common culprit behind a myriad of wheel fitment issues. Understanding these challenges and knowing how to address them is crucial for ensuring a safe and aesthetically pleasing wheel setup. This section explores the potential pitfalls of improper backspacing and provides practical solutions for a smoother installation.

Potential Issues from Incorrect Backspacing

Failing to choose the correct backspacing can lead to several problems, affecting both the vehicle’s performance and appearance. These issues often necessitate modifications or, in severe cases, render the wheel and tire combination unusable.

• Rubbing Against Suspension Components: Wheels with insufficient backspacing can contact the suspension arms, struts, or springs. This rubbing can damage both the tire and the suspension components, leading to premature wear and potentially affecting handling.
• Rubbing Against the Body/Fenders: Conversely, excessive backspacing can cause the tire to rub against the inner fender wells or the outer fender lips, particularly during turning or suspension compression. This can result in tire damage and paint scratches.
• Difficulty with Steering and Handling: Improper backspacing can alter the scrub radius, which is the distance between the point where the tire contacts the ground and the steering axis. A significantly altered scrub radius can make the steering heavier, less responsive, and potentially increase the turning radius.
• Interference with Brake Calipers: In some cases, the wheel’s design and backspacing might not provide sufficient clearance for the brake calipers, especially with larger or aftermarket brake systems. This can prevent the wheel from being properly mounted.
• Damage to the Tire: Persistent rubbing against any component will eventually damage the tire. This can range from minor scuffing to significant sidewall damage, leading to tire failure.
• Aesthetic Issues: Incorrect backspacing can result in the wheels either sitting too far inside the wheel wells (sunken appearance) or protruding excessively (poke). These issues negatively impact the vehicle’s appearance.

Solutions to Common Wheel Fitment Problems

Several methods can be employed to rectify fitment problems caused by incorrect backspacing. These solutions range from simple adjustments to more involved modifications.

• Wheel Spacers: Wheel spacers are often used to increase the effective backspacing, pushing the wheel further away from the vehicle’s hub. They are available in various thicknesses and can be used to clear suspension components or adjust the wheel’s position within the fender. However, using spacers requires careful consideration of wheel stud length and proper installation to ensure safety.
• Wheel Adapters: Wheel adapters serve a similar purpose to spacers but also allow for the use of wheels with a different bolt pattern. This is particularly useful when adapting wheels from another vehicle. Like spacers, they require careful installation and consideration of wheel stud length.
• Fender Rolling/Pulling: If the tire rubs against the fender lip, the fender can be rolled or pulled to create more clearance. Fender rolling involves using a specialized tool to bend the fender lip inward, while fender pulling involves widening the fender itself. These methods can provide extra space for the tire without requiring significant modifications.
• Suspension Modifications: In some cases, suspension modifications, such as different springs, shocks, or control arms, may be necessary to gain more clearance. These modifications can raise the vehicle, improve suspension travel, or alter the wheel’s position within the wheel well.
• Choosing Different Wheels: The most direct solution is often to select wheels with the correct backspacing. This may involve researching different wheel options and comparing their specifications to ensure proper fitment.
• Tire Size Adjustments: Reducing the tire size can sometimes resolve rubbing issues, particularly if the rubbing is minor. This is a simple solution, but it may affect the vehicle’s appearance and performance.

Troubleshooting Rubbing or Contact Issues

Identifying the source of rubbing or contact issues is crucial for effective troubleshooting. The following steps can help diagnose and resolve these problems.

1. Visual Inspection: Thoroughly inspect the wheel and tire for signs of rubbing. Look for scuff marks on the tire sidewalls, inner fender wells, suspension components, and fender lips.
2. Driving Tests: Drive the vehicle under various conditions, including turning, accelerating, and braking, to identify when and where the rubbing occurs. Pay attention to any unusual noises or vibrations.
3. Measurement: Measure the distance between the tire and potential contact points. This will help determine the amount of clearance available and whether modifications are necessary.
4. Test Fitment: If possible, test-fit a wheel and tire combination known to fit correctly to identify the source of the problem. This can help isolate the issue and determine if it is related to the wheel’s backspacing or other factors.
5. Consider the Scrub Radius: A significant alteration of the scrub radius can cause problems. In extreme cases, this can lead to steering issues.
6. Consult a Professional: If the problem is complex or if you are unsure how to proceed, consult a professional mechanic or wheel specialist. They can provide expert advice and recommend the appropriate solutions.

Backspacing and Vehicle Aesthetics

Backspacing, beyond its functional impact on wheel fitment and handling, profoundly shapes a vehicle’s visual identity. The stance, the perceived aggression, and the overall aesthetic appeal are all heavily influenced by the backspacing of the wheels. This seemingly small detail significantly alters how a vehicle presents itself to the world.

Visual Effects of Different Backspacing Configurations

The visual effects of backspacing configurations vary dramatically, creating distinct stylistic statements. The distance between the wheel’s mounting surface and the inner edge of the wheel rim determines how far the wheel sits within or outside the wheel well. This positioning, in turn, dictates the vehicle’s stance.A flush fitment, achieved with precise backspacing, places the wheel’s outer edge nearly even with the fender.

This creates a clean, streamlined look, often favored for its understated elegance.* A tucked fitment, characterized by more backspacing, pulls the wheels further inward. This can create a more conservative appearance, with the wheels appearing to be recessed within the wheel wells. This setup is common on classic cars or vehicles aiming for a refined look. An aggressive stance, achieved with less backspacing, pushes the wheels outward, often beyond the fenders.

This creates a wider track and a more assertive, performance-oriented aesthetic. This is commonly seen on modified trucks, off-road vehicles, and performance cars.Here’s a descriptive paragraph comparing the visual effects of different backspacing configurations, along with illustrative examples:Imagine three identical vehicles, all the same make and model, but each fitted with wheels featuring different backspacing. The first vehicle, showcasing a flush fitment, has its wheel’s outer edges perfectly aligned with the fenders.

The visual effect is one of seamless integration; the wheels appear to be an intrinsic part of the vehicle’s design. Think of a meticulously restored classic car, where every detail contributes to a cohesive and elegant appearance. The second vehicle, employing a tucked fitment, has its wheels recessed within the wheel wells. This gives the impression of a more reserved, classic look.

Picture a vintage sedan, where the wheels are intentionally set back to emphasize the flowing lines of the body. The third vehicle, sporting an aggressive stance, features wheels that extend outwards, beyond the fenders. This creates a bold, performance-oriented look, common in lifted trucks or vehicles with wide-body kits. Visualize a heavily modified off-road vehicle with massive tires and wheels that push the boundaries of the vehicle’s design, ready to conquer any terrain.

Backspacing and Vehicle Performance

Backspacing significantly influences a vehicle’s handling characteristics, steering feel, and overall stability. Understanding this relationship is crucial for optimizing a vehicle’s performance and ensuring safe operation. Incorrect backspacing can lead to unpredictable handling, accelerated tire wear, and even damage to suspension components.

Handling Characteristics Influenced by Backspacing

The positioning of the wheel relative to the vehicle’s suspension geometry directly impacts how the vehicle handles. Changes in backspacing alter the wheel’s offset, which, in turn, modifies the leverage the tire exerts on the suspension.

• Roll Center Migration: Changing backspacing can alter the vehicle’s roll center, the point around which the vehicle pivots during cornering. A roll center that is too high or too low can lead to excessive body roll, reducing grip and making the vehicle feel unstable. This is particularly noticeable in vehicles with independent suspension systems.
• Weight Transfer: Backspacing affects how weight transfers during acceleration, braking, and cornering. Proper backspacing helps maintain a balanced weight distribution, optimizing traction and minimizing unwanted movements. For example, wider wheels with a backspacing that moves the tire further out can increase track width, potentially improving stability during cornering.
• Steering Response: The angle at which the tires contact the road affects steering responsiveness. Altering backspacing can affect this angle, potentially making the steering feel heavier or lighter. This effect is most apparent during initial steering inputs.

Impact of Backspacing on Steering Feel and Stability

Backspacing’s effect on steering is a crucial aspect of vehicle dynamics, influencing both the effort required to steer and the vehicle’s overall stability.

• Steering Effort: Changing backspacing can alter the steering effort required. Wheels with excessive backspacing (pushing the wheel outwards) may increase steering effort due to the change in the lever arm between the tire’s contact patch and the steering axis.
• Stability During Braking: Backspacing impacts braking stability. Improper backspacing can contribute to brake steer, where the vehicle pulls to one side during braking. This occurs when the braking force is unevenly distributed across the front wheels, often exacerbated by changes in scrub radius.
• High-Speed Stability: At higher speeds, the effects of backspacing on stability become more pronounced. Incorrect backspacing can lead to instability, making the vehicle more susceptible to crosswinds and road imperfections. This is due to the altered forces acting on the suspension and steering components.

Relationship Between Backspacing and Scrub Radius

Scrub radius is the distance between the point where the steering axis intersects the ground and the center of the tire’s contact patch. Backspacing directly affects scrub radius, which is a critical factor in steering feel and stability.

• Positive Scrub Radius: When the steering axis intersects the ground
  -outside* the tire’s contact patch, the scrub radius is positive. Positive scrub radius can increase steering effort and make the vehicle more susceptible to road imperfections, such as potholes.
• Negative Scrub Radius: When the steering axis intersects the ground
  -inside* the tire’s contact patch, the scrub radius is negative. Negative scrub radius can improve steering feel and reduce the impact of road imperfections. However, excessive negative scrub radius can lead to other handling issues.
• Impact on Steering Feedback: The scrub radius significantly influences steering feedback. For example, a vehicle with a large positive scrub radius will often exhibit more kickback (felt through the steering wheel) when hitting bumps or uneven surfaces.
• Formula for Scrub Radius Calculation: While complex calculations exist, the basic concept relates to the wheel’s offset (determined by backspacing), the vehicle’s steering axis inclination (SAI), and the wheel’s diameter.

Scrub Radius = (Offset
– 25.4)
-(SAI
– Tire Radius)

• Real-World Example: Consider two identical vehicles, one with the original wheels and another with wheels that increase backspacing. The vehicle with increased backspacing will likely have a larger scrub radius (either more positive or less negative), leading to potentially heavier steering and more pronounced reactions to road imperfections.

The Evolution of Backspacing in Wheel Design: What Is Backspacing On Wheels

Backspacing, a critical dimension in wheel design, hasn’t remained static. It has undergone a significant transformation, evolving alongside advancements in vehicle technology, design aesthetics, and performance demands. Understanding this evolution provides valuable insight into how wheels have adapted to meet changing needs.

Backspacing Standards in Older and Modern Vehicles

The backspacing standards employed in older vehicles often differ considerably from those found in modern cars and trucks. These differences are largely driven by changes in suspension designs, braking systems, and overall vehicle architecture.Modern vehicles, for instance, frequently incorporate larger brake calipers and rotors, requiring wheels with greater backspacing to provide sufficient clearance. Older vehicles, on the other hand, often had smaller brakes and less complex suspension systems, allowing for less backspacing.

The offset also plays a role. Older vehicles typically featured less aggressive offsets, while modern vehicles can have more aggressive offsets to accommodate wider tires and enhance handling characteristics.

Historical Evolution of Backspacing: Milestones and Innovations

The evolution of backspacing reflects a continuous effort to optimize wheel fitment, performance, and aesthetics.

Early Days: In the early days of automotive wheel design, backspacing was less of a precisely defined parameter. Wheels were relatively simple, often with minimal backspacing, dictated by the drum brake designs and suspension components of the time. Wheel fitment was often more forgiving due to the generally less demanding performance characteristics of early vehicles.

Mid-20th Century: As vehicle performance increased, and disc brakes became more common, the need for more precise wheel fitment became apparent. Backspacing started to be considered more carefully to ensure proper brake clearance and avoid interference with suspension components. This era saw the introduction of more standardized wheel sizes and offsets, although variations remained.

Late 20th Century and Beyond: The advent of computer-aided design (CAD) and manufacturing technologies revolutionized wheel design. This enabled manufacturers to create wheels with more complex geometries and precise backspacing measurements. Furthermore, the rise of aftermarket wheel manufacturers offered a wider variety of backspacing options, catering to diverse vehicle models and performance requirements. Modern vehicles feature more complex suspension systems, larger brake calipers, and a greater emphasis on handling, leading to a wider range of backspacing requirements.

The use of alloys and composite materials further expanded design possibilities, enabling wheels that are both stronger and lighter, with precisely controlled backspacing.

Closing Summary

In conclusion, backspacing is a critical consideration in wheel selection and vehicle modification. From its influence on tire clearance and handling to its contribution to the overall appearance of a vehicle, understanding backspacing empowers vehicle owners to make informed decisions. This exploration has highlighted the significance of backspacing, emphasizing its role in achieving optimal fitment, performance, and visual appeal. By considering backspacing alongside other wheel parameters, enthusiasts and professionals alike can ensure their vehicles function and look their best.

FAQs

What is the difference between backspacing and offset?

Backspacing measures the distance from the wheel’s mounting surface to the inner edge of the wheel, while offset measures the distance from the wheel’s mounting surface to the wheel’s centerline. Offset can be positive, negative, or zero, whereas backspacing is always a positive value.

How do I measure backspacing?

To measure backspacing, place the wheel face down. Use a straightedge across the wheel’s mounting surface. Measure the distance from the straightedge to the innermost edge of the wheel’s rim. This measurement is the backspacing.

What happens if I use wheels with incorrect backspacing?

Incorrect backspacing can lead to various issues, including tire rubbing against the suspension or body, reduced turning radius, premature tire wear, and even damage to suspension components. It can also negatively affect handling and stability.

Can I change the backspacing of my existing wheels?

No, the backspacing is fixed during the manufacturing process. Modifying the backspacing of an existing wheel is generally not possible or advisable, as it would compromise the wheel’s structural integrity.

How does backspacing affect tire clearance?

Backspacing directly impacts tire clearance. Wheels with more backspacing move the tire inward, potentially increasing clearance from the fender but decreasing clearance from suspension components. Conversely, less backspacing pushes the tire outward, increasing clearance from suspension but potentially causing rubbing against the fender.
