How to measure wheel backspacing is more than just a technical task; it’s the key to unlocking the perfect stance and performance for your vehicle. Understanding this critical measurement is essential for ensuring your wheels and tires fit correctly, avoiding costly issues like rubbing or premature wear. This guide will transform you from a novice to a backspacing aficionado, empowering you to make informed decisions about your vehicle’s appearance and handling.
We’ll delve into the intricacies of backspacing, exploring its relationship with offset and wheel width. We’ll equip you with the knowledge and tools needed to accurately measure backspacing, whether the wheel is on or off your vehicle. Prepare to become a wheel fitment expert, ready to conquer the challenges of achieving the ideal look and performance for your ride.
Understanding Wheel Backspacing
Wheel backspacing is a critical measurement in vehicle fitment, directly impacting how a wheel sits within the wheel well and affecting factors like brake clearance, suspension component interference, and overall vehicle aesthetics. Proper backspacing ensures optimal performance and prevents potential issues.
Definition of Backspacing, How to measure wheel backspacing
Backspacing is the distance from the mounting surface of the wheel (the part that bolts to the hub) to the innermost edge of the wheel’s rim. In simpler terms, it’s how far the wheel’s mounting surface is recessed towards the inside of the wheel. This measurement is crucial because it dictates where the wheel’s outer edge (the lip) sits relative to the vehicle’s fender and suspension components.

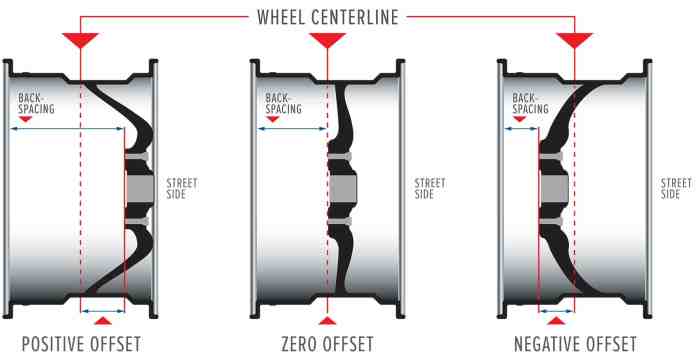

Relationship Between Backspacing, Offset, and Wheel Width
Backspacing is intrinsically linked to wheel offset and wheel width. These three measurements work together to determine the wheel’s position on the vehicle. Understanding their relationships is essential for selecting the correct wheel fitment.The following points clarify the interconnections:
- Wheel Width: Wheel width is the distance between the inside edges of the wheel’s rim, measured in inches. This is a fixed dimension. A wider wheel generally increases the potential for tire contact with suspension components or fenders, thus requiring careful consideration of backspacing and offset. For instance, a 10-inch wide wheel will have a different backspacing requirement than a 7-inch wide wheel to achieve the same overall fitment.
- Wheel Offset: Wheel offset is the distance between the wheel’s mounting surface and the wheel’s centerline (the exact middle of the wheel’s width). Offset is measured in millimeters and can be positive, negative, or zero.
- Positive Offset: The mounting surface is closer to the front (road-facing side) of the wheel. This typically tucks the wheel further inside the wheel well.
- Negative Offset: The mounting surface is closer to the rear (vehicle-facing side) of the wheel. This typically pushes the wheel further out, towards the fender.
- Zero Offset: The mounting surface is exactly at the wheel’s centerline.
- Relationship Formula: Backspacing, offset, and wheel width are related through the following formula:
Backspacing = (Wheel Width / 2) + Offset + Mounting Surface Thickness
Where wheel width is in inches and offset is converted to inches (millimeters / 25.4). Mounting surface thickness is typically negligible and often ignored for practical purposes, but should be accounted for in precise measurements.
An example: Consider a wheel that is 8 inches wide with a +25mm offset. First, convert the offset to inches: 25 mm / 25.4 mm/inch = approximately 0.98 inches. The backspacing calculation would be: (8 inches / 2) + 0.98 inches = 4.98 inches. This means the mounting surface is approximately 4.98 inches from the inside edge of the wheel.
The specific backspacing required depends on the vehicle and desired fitment.
Tools Needed for Measurement
Accurate wheel backspacing measurement necessitates the utilization of specific tools to ensure precision and reliability. The correct tools minimize the potential for errors, leading to accurate fitment assessment and preventing costly mistakes. This section details the essential tools, their characteristics, and alternative options for measuring wheel backspacing.
Essential Measuring Tools
The primary tools for measuring wheel backspacing are designed to provide precise linear measurements. The selection of the appropriate tool significantly impacts the accuracy of the measurement.
- Measuring Ruler or Tape Measure: A rigid measuring tool is crucial. It must be long enough to span the distance from the wheel’s mounting surface to the back edge of the wheel’s rim. A steel or fiberglass measuring tape is preferred for its durability and resistance to stretching. The ruler or tape should have clear, easily readable markings, preferably in both inches and millimeters for versatility.
- Straightedge: A straightedge is used to establish a precise reference point across the wheel’s mounting surface. This is particularly useful if the wheel’s hub area is recessed. A straightedge can be a rigid metal ruler, a flat piece of metal, or even a precisely cut piece of wood. The straightedge must be long enough to span the wheel’s mounting surface.
- Calipers (Optional): While not strictly essential, calipers, both digital and dial, can improve accuracy, especially when measuring in tight spaces or when dealing with wheels that have complex designs. Calipers provide precise measurements of the distance from the mounting surface to the back of the wheel. They are especially useful for measuring wheel offsets that are not flat and are recessed.
Characteristics of a Suitable Measuring Ruler or Tool
The measuring ruler or tape measure used for wheel backspacing must possess specific characteristics to ensure accurate readings.
- Material and Durability: The ruler or tape measure should be constructed from a durable material like steel or fiberglass to prevent stretching or distortion during use. This ensures the measurement remains accurate over time.
- Clear Markings: The markings on the ruler or tape measure must be clear, precise, and easy to read. Graduations should be fine enough to allow for accurate measurement, typically in 1/16-inch increments or millimeters.
- Sufficient Length: The measuring tool must be long enough to span the entire distance from the wheel’s mounting surface to the back edge of the wheel’s rim. A length of at least 12 inches is generally sufficient for most passenger vehicle wheels, but longer tapes might be needed for larger wheels or wheels with deep backspacing.
- Accuracy Certification (Optional): While not always necessary, a ruler or tape measure with accuracy certification provides added assurance of its precision. Tools certified by organizations like the National Institute of Standards and Technology (NIST) have been tested against established standards.
Alternative Methods and Tools
If a standard measuring tool is unavailable, alternative methods and tools can be employed, although they might compromise the ultimate precision. These alternatives can be useful in a pinch, but they require careful execution to minimize errors.
- Using a Combination of Tools: A combination of readily available tools can be used to approximate backspacing. This might involve using a straightedge to establish a reference point and then using a smaller ruler or tape measure to measure from that point to the back of the wheel. This method requires careful alignment and attention to detail.
- Digital Measuring Devices: Some digital measuring devices, such as ultrasonic distance meters, could theoretically be used to measure backspacing. However, the accuracy of these devices can be affected by factors like the shape and material of the wheel, so this method should be approached with caution.
- Online Calculators: Online calculators can be used to determine backspacing if the wheel’s offset and width are known. These calculators rely on the formula:
Backspacing = (Wheel Width / 2) + Offset + Mounting Surface Thickness
It is important to input accurate values for the wheel width and offset to obtain a reliable backspacing value.
Preparing the Wheel for Measurement
Accurate backspacing measurements necessitate a meticulously prepared wheel. This involves removing any impediments to precise measurements, ensuring a clean surface, and taking precautions against measurement errors. The following steps Artikel the procedure for preparing a wheel for accurate backspacing determination.
Cleaning the Wheel
A clean wheel is crucial for precise backspacing measurements. Debris, such as dirt, grease, and rust, can interfere with the accurate placement of measuring tools, leading to measurement inaccuracies.To ensure the wheel is clean and ready for measurement, follow these steps:
- Visual Inspection: Begin by visually inspecting the wheel for any visible contaminants. This includes dirt, grease, brake dust, and any other debris that might be present.
- Cleaning Agent Selection: Choose an appropriate cleaning agent based on the type of contamination. For general dirt and grime, a mild soap and water solution is often sufficient. For tougher contaminants like grease or brake dust, a dedicated wheel cleaner is recommended. Always follow the manufacturer’s instructions for the cleaning agent.
- Application and Scrubbing: Apply the cleaning agent to the wheel surface, ensuring complete coverage. Use a soft-bristled brush to scrub the wheel, paying particular attention to areas where contaminants tend to accumulate, such as the wheel face, barrel, and the mounting surface.
- Rinsing: Thoroughly rinse the wheel with clean water to remove all traces of the cleaning agent and loosened debris. Ensure all soap residue is removed to prevent it from affecting measurements.
- Drying: Dry the wheel completely using a clean, lint-free cloth. This prevents any water droplets from affecting the measurements. Ensure all surfaces, including the back of the wheel, are completely dry.
Removing Obstructions
Obstructions such as tires, wheel accessories, or other components can hinder the accurate measurement of backspacing. The wheel must be stripped of these components to allow for direct access to the mounting surface and the wheel’s inner edge.The following steps should be followed to remove any obstructions:
- Tire Removal: If the wheel is mounted with a tire, the tire must be removed. This typically requires specialized equipment and should be performed by a tire shop or a professional with the necessary tools and expertise. Improper tire removal can damage the wheel.
- Valve Stem Removal (If Necessary): If the valve stem protrudes significantly from the wheel, it might obstruct the measurement. In such cases, the valve stem should be removed or recessed. This can often be accomplished by unscrewing the valve stem core.
- Wheel Accessory Removal: Any wheel accessories, such as center caps, trim rings, or decorative bolts, that may interfere with the measurement process, must be removed. Carefully remove these components, taking note of their orientation and securing hardware for later reassembly.
- Inspection of the Mounting Surface: After removing any obstructions, inspect the wheel’s mounting surface for any remaining debris or damage. Ensure the mounting surface is clean and free of any obstructions that could affect the accuracy of the backspacing measurement. A clean mounting surface is critical for accurate results.
Measuring Backspacing – Method 1: On the Wheel: How To Measure Wheel Backspacing
Measuring wheel backspacing directly on the wheel is a straightforward method for determining this critical dimension. This method is often preferred for its simplicity and the ability to obtain measurements without removing the wheel from the vehicle, although it is more practical when the wheel is off the vehicle. Accurate backspacing measurements are essential for ensuring proper wheel fitment, avoiding interference with suspension components, and maintaining correct vehicle handling characteristics.
Procedure for Measuring Backspacing Directly on the Wheel
This procedure Artikels the steps for accurately measuring wheel backspacing using readily available tools. Careful adherence to these steps will ensure precise measurements, contributing to safe and effective wheel selection.
- Prepare the Wheel: Ensure the wheel is clean and free of debris on both the mounting surface and the back of the wheel. This will provide a clear surface for accurate measurements.
- Position the Wheel: Place the wheel on a flat, stable surface, such as a workbench or the floor, with the mounting surface facing upwards. This provides a stable base for the measurement process.
- Locate the Mounting Surface: Identify the mounting surface, the area where the wheel contacts the hub of the vehicle. This is usually the flat area around the bolt holes or lug studs.
- Place the Straightedge: Position a straightedge, such as a steel ruler or a long, straight piece of metal, across the back of the wheel. The straightedge should be long enough to span the entire diameter of the wheel. Ensure the straightedge is perpendicular to the wheel’s axis.
- Measure the Distance: Using a measuring tape or ruler, measure the distance from the mounting surface to the straightedge. This measurement represents the backspacing.
- Record the Measurement: Note the backspacing measurement in inches or millimeters, depending on the units of measurement used. This measurement is crucial for wheel fitment calculations.
Backspacing = Distance from mounting surface to the back of the wheel (where the straightedge touches)
Visual Aid: Imagine a diagram. The diagram depicts a wheel lying flat. A straightedge spans the wheel’s diameter, touching the outermost edge of the wheel’s backside. A measuring tape is positioned perpendicularly from the wheel’s mounting surface (the area where it bolts to the vehicle) to the straightedge. The measurement indicated on the tape is the backspacing.
Common Mistakes to Avoid During the Measurement Process
Accuracy in measuring wheel backspacing is paramount for successful wheel fitment. Several common errors can lead to inaccurate measurements, potentially causing fitment issues or even safety hazards. The following points highlight common pitfalls to avoid.
- Using an Inaccurate Straightedge: Employing a warped or bent straightedge will yield incorrect measurements. Always use a straightedge that is verified to be true.
- Incorrect Straightedge Placement: Ensure the straightedge is placed squarely across the back of the wheel. Any angle will introduce measurement errors.
- Measuring to the Wrong Point: Be certain to measure from the
-mounting surface* of the wheel, not the outer edge of the wheel or any other point. - Using the Wrong Units: Record the measurement in the correct units (inches or millimeters) and be consistent throughout the process. Mixing units can lead to significant errors.
- Failing to Account for Wheel Variations: Some wheels may have slight variations in their design. Take multiple measurements around the wheel to ensure accuracy.
- Ignoring Debris: Debris on the wheel’s mounting surface or back can alter measurements. Always clean the wheel thoroughly before measuring.
Measuring Backspacing – Method 2: On the Vehicle (Without Wheel)
Measuring backspacing directly on the vehicle, without the wheel mounted, offers a practical approach to determining the maximum permissible backspacing for optimal fitment and clearance. This method is particularly useful when selecting new wheels or when addressing clearance issues with existing wheels. It involves assessing the available space between the wheel mounting surface and the various components within the wheel well.
Procedure for Determining Ideal Backspacing Based on Vehicle Clearances
The process of determining ideal backspacing on the vehicle involves a series of measurements and assessments to ensure proper fitment and avoid interference with suspension components, brake calipers, and the body of the vehicle. This method requires careful attention to detail and accurate measurements.
The procedure is as follows:
- Prepare the Vehicle:
Safely raise and support the vehicle using jack stands. Remove the existing wheel and tire from the hub. Ensure the vehicle is stable and level.
- Identify Potential Interference Points:
Carefully inspect the wheel well for potential interference points. These may include:
- Suspension components (e.g., control arms, struts, shocks, springs).
- Brake calipers and rotors.
- Inner fender walls and outer fender lips.
- Any other components that might come into contact with the wheel or tire.
- Measure the Distance to Potential Interference Points:
Using a straight edge (such as a long ruler or a piece of metal) and a measuring tape, determine the distance from the wheel mounting surface (the hub) to each potential interference point. Hold the straight edge across the hub face to simulate the wheel mounting surface. Measure from this straight edge to each potential obstruction.
For example, to measure clearance to the suspension arm, place the straight edge across the hub face and measure the distance from the straight edge to the closest point on the suspension arm. Repeat this for all potential interference points.
Measuring wheel backspacing can be a tricky business, requiring precision and a steady hand. One might even feel like they’re navigating a labyrinth! However, understanding this measurement is crucial, unlike the rather philosophical concept of a wheel in a wheel , which, while intriguing, doesn’t directly help with tire fitment. So, grab your ruler and let’s get back to ensuring those wheels clear the fenders properly!
- Calculate the Maximum Permissible Backspacing:
The maximum permissible backspacing is determined by the smallest distance measured in the previous step, minus a safety margin to allow for tire flex and vehicle movement. This margin is crucial for preventing contact during turns, bumps, and other driving conditions.
Maximum Backspacing = (Smallest Measured Distance – Safety Margin)
The safety margin typically ranges from 1/4 inch (6.35 mm) to 1/2 inch (12.7 mm), depending on the vehicle, the intended use, and the tire size. A larger safety margin is generally recommended for vehicles that experience significant suspension travel or that will be used for off-road driving.
- Consider Tire Width and Offset:
The backspacing measurement is only one part of the equation. The overall wheel offset and tire width will also affect fitment. The chosen wheel’s offset must be compatible with the calculated backspacing and the vehicle’s wheel well dimensions. Wider tires will require more careful consideration of backspacing and offset to avoid rubbing.
- Test Fit (Recommended):
If possible, test-fit a wheel with the calculated backspacing and the intended tire size before purchasing a complete set. This will confirm the measurements and ensure there are no unforeseen clearance issues. A test fit involves temporarily mounting a wheel and tire to the hub and checking for any contact with suspension components, the body, or other parts of the vehicle.
Potential Challenges and Their Solutions When Measuring Backspacing on the Vehicle
Measuring backspacing on the vehicle can present several challenges. However, with careful planning and the use of appropriate techniques, these challenges can be overcome.
- Inaccurate Measurements:
Challenge: Inaccurate measurements can lead to incorrect backspacing calculations and wheel fitment issues. This can result from using imprecise tools or misinterpreting the measurement points.
Solution: Use high-quality measuring tools, such as a precision ruler or digital caliper. Take multiple measurements and verify them to ensure accuracy. When measuring to curved surfaces or irregular shapes, use a straight edge to create a reference plane and measure from there.
- Difficulty Accessing Measurement Points:
Challenge: Some measurement points, such as those close to suspension components or within the wheel well, can be difficult to access.
Solution: Use flexible measuring tools, such as a flexible tape measure or a bendable ruler. Consider using a mirror and flashlight to visualize hard-to-reach areas. In extreme cases, partially disassembling components (e.g., removing a sway bar link) might be necessary to improve access, but always ensure proper reassembly and safety precautions.
- Accounting for Tire Flex and Suspension Travel:
Challenge: The vehicle’s suspension will compress and extend during driving, and tires will flex. Measurements taken with the vehicle stationary may not accurately reflect clearances during dynamic conditions.
Solution: Incorporate a safety margin into the backspacing calculation to account for tire flex and suspension travel. Consider the maximum suspension travel of the vehicle and the potential for tire contact during extreme maneuvers. The use of bump stops and limiting straps can also help control suspension travel and reduce the risk of contact.
- Variations in Vehicle Production:
Challenge: Minor variations in vehicle manufacturing can affect clearances. This is especially true for older vehicles or those that have undergone repairs.
Solution: Measure both sides of the vehicle to check for any discrepancies. If significant differences are found, use the tighter side for determining backspacing. Be prepared to make adjustments to wheel selection or fitment if necessary.
- Incorrect Wheel Offset:
Challenge: Focusing solely on backspacing without considering wheel offset can lead to fitment issues. Offset determines how far the wheel’s mounting surface is from the wheel’s centerline.
Solution: Calculate both backspacing and the appropriate offset for the vehicle. Use online wheel fitment guides or consult with a wheel specialist to determine the recommended offset range for the vehicle and tire size. Ensure the chosen wheel’s offset is compatible with the calculated backspacing and the vehicle’s wheel well dimensions.
Interpreting the Measurement
The backspacing measurement is a critical factor in determining wheel fitment and its impact on vehicle performance. Understanding how to interpret this measurement allows for informed decisions regarding wheel selection, ensuring proper tire clearance and optimizing handling characteristics. This section details the significance of backspacing and its influence on various aspects of vehicle operation.
Comparing Backspacing Measurements and Vehicle Fitment
The backspacing measurement directly affects how a wheel sits within the wheel well. Differences in backspacing, even by small increments, can have significant implications for vehicle fitment. Understanding these variations is essential for avoiding rubbing issues and ensuring compatibility with suspension components.
- Higher Backspacing: A wheel with higher backspacing positions the mounting surface closer to the vehicle’s suspension and brake components. This results in the outer edge of the wheel being tucked further inward.
- Lower Backspacing: Conversely, a wheel with lower backspacing moves the mounting surface away from the vehicle’s components, causing the outer edge of the wheel to extend further outward.
- Zero Backspacing: A wheel with zero backspacing places the mounting surface directly in the center of the wheel’s width. This means the wheel’s outer and inner edges are equidistant from the mounting surface.
- Impact on Fitment: A wheel’s backspacing must be carefully selected to avoid tire-to-fender or tire-to-suspension contact. Improper backspacing can lead to rubbing, reduced steering clearance, and potential damage to the vehicle. For example, installing wheels with significantly lower backspacing on a vehicle designed for higher backspacing might cause the tires to protrude beyond the fenders, making the vehicle non-compliant with certain road regulations.
Backspacing Effects on Tire Clearance and Vehicle Handling
Backspacing profoundly influences both tire clearance and vehicle handling characteristics. The correct backspacing ensures that the tire has sufficient space to rotate freely without obstruction, while also contributing to the vehicle’s stability and steering response.
- Tire Clearance: Proper backspacing is crucial for preventing tire-to-fender or tire-to-suspension contact. Selecting the wrong backspacing can lead to rubbing, especially during turns or when the suspension is compressed. This can damage the tires and the vehicle’s body.
- Vehicle Handling: Backspacing influences the wheel’s offset, which affects the scrub radius. The scrub radius is the distance between the point where the tire’s vertical axis intersects the ground and the point where the steering axis intersects the ground. A positive scrub radius (common in many vehicles) can improve stability and steering feel.
- Examples:
- If a vehicle is designed with a specific backspacing, changing it drastically can alter the scrub radius, potentially leading to instability, especially during braking.
- Increasing backspacing can sometimes allow for wider tires, improving grip, but also potentially leading to rubbing issues if clearance isn’t carefully considered.
Backspacing and Vehicle Fitment
Backspacing is a critical factor in determining whether a wheel and tire combination will fit a vehicle without causing interference or rubbing. It directly impacts the position of the wheel and tire relative to the vehicle’s suspension, brakes, and body. Understanding how backspacing affects fitment is crucial for selecting the correct wheels and tires to ensure both performance and aesthetics.
Influence of Backspacing on Tire and Wheel Fitment
The backspacing measurement significantly influences how a wheel and tire will sit within a vehicle’s wheel well. Changes in backspacing directly alter the wheel’s offset, which in turn affects the tire’s position relative to the suspension components and the vehicle’s body. A wheel with excessive backspacing will move the tire inward, potentially causing it to contact the suspension, while a wheel with insufficient backspacing will push the tire outward, increasing the likelihood of rubbing against the fender.
Effects of Backspacing on Suspension Components and Fender Clearance
Backspacing directly influences the clearance between the tire and various vehicle components. A wheel with too much backspacing can cause the tire to rub against the suspension arms, struts, or other internal components. Conversely, insufficient backspacing can lead to the tire contacting the fenders, especially during turning or suspension compression. This can result in tire damage and compromised handling.
Relationship Between Backspacing and Common Fitment Issues
The relationship between backspacing and common fitment issues can be summarized as follows.
The following table illustrates the relationship between backspacing and common fitment issues.
| Backspacing | Effect on Wheel Position | Potential Fitment Issues | Vehicle Types Most Affected |
|---|---|---|---|
| High Backspacing | Moves the wheel and tire inward, closer to the vehicle’s suspension. | Tire rubbing against suspension components (e.g., control arms, struts, shocks); reduced turning radius. | Vehicles with limited wheel well space, such as trucks, SUVs, and some compact cars; vehicles with independent rear suspension. |
| Low Backspacing | Moves the wheel and tire outward, closer to the vehicle’s fenders. | Tire rubbing against fenders during turning or suspension compression; tire extending beyond the fender line. | Vehicles with wide wheel wells; trucks, SUVs, and sports cars; vehicles with modified suspension or wider tires. |
| Correct Backspacing | Positions the wheel and tire within the wheel well, providing adequate clearance. | Optimal fitment; no rubbing or interference; proper handling and steering characteristics. | All vehicle types; dependent on the wheel’s width, tire size, and vehicle’s suspension design. |
| Excessive Backspacing | Positions the wheel and tire too far inward. | Tire rubbing against suspension components. | Vehicles with limited wheel well space. |
Backspacing and Wheel Offset: A Comparison
Understanding both backspacing and wheel offset is crucial for selecting wheels that fit a vehicle properly and maintain optimal handling characteristics. While both measurements relate to the wheel’s position relative to the vehicle, they are distinct concepts with different measurement methods. Choosing the right wheels involves considering both these specifications to avoid issues such as tire rubbing, poor steering feel, and potential damage to suspension components.
Comparing Backspacing and Offset
Backspacing and offset, though related, describe different aspects of wheel positioning. Backspacing is the distance from the wheel’s mounting surface to the innermost edge of the wheel (the part facing the vehicle). Offset, on the other hand, is the distance from the wheel’s mounting surface to the wheel’s centerline.Backspacing is measured in inches or millimeters, as is offset. However, the reference points are different.
Backspacing is concerned with how far the wheel’s inner edge sits inside the wheel well, whereas offset is concerned with how the wheel’s mounting surface is positioned in relation to the wheel’s center. Both measurements affect how a wheel sits within the wheel well and, consequently, the vehicle’s stance and handling.
Converting Between Backspacing and Offset Measurements
Conversion between backspacing and offset requires knowing the wheel’s width. The wheel width is measured from bead seat to bead seat, which is the inside width of the tire mounting area. The following formulas are used for conversion:
Offset (mm) = [(Backspacing (mm)
(Wheel Width (mm) / 2)]
Backspacing (mm) = (Offset (mm) + (Wheel Width (mm) / 2)
Where:
- Wheel Width is measured in millimeters, and must be converted from inches. For example, a 10-inch wide wheel is 254mm wide (10 inches
– 25.4 mm/inch). - Offset is positive if the mounting surface is towards the outside of the wheel, and negative if it is towards the inside.
For example, consider a 10-inch wide wheel with 6-inch backspacing.
- Convert wheel width to millimeters: 10 inches
25.4 mm/inch = 254 mm
- Calculate offset: 6 inches25.4 mm/inch = 152.4 mm (backspacing in mm). Offset = 152.4 mm – (254 mm / 2) = 0.4 mm.
The offset is nearly zero, meaning the mounting surface is very close to the wheel’s centerline.
Backspacing and Offset: Advantages and Disadvantages
The choice between backspacing and offset often depends on the vehicle’s design and the desired aesthetic or performance goals. The following table summarizes the advantages and disadvantages of each measurement:
| Feature | Backspacing | Offset |
|---|---|---|
| Definition | Distance from the wheel’s mounting surface to the innermost edge of the wheel. | Distance from the wheel’s mounting surface to the wheel’s centerline. |
| Measurement Units | Inches or millimeters. | Millimeters. |
| Ease of Measurement | Relatively easy to measure directly on the wheel or vehicle. | Can be calculated from backspacing and wheel width or found on the wheel’s specifications. |
| Advantages |
|
|
| Disadvantages |
|
|
| Impact on Vehicle Fitment |
|
|
Common Issues and Solutions
Accurate measurement of wheel backspacing is crucial for ensuring proper fitment and preventing potential issues with a vehicle’s suspension, steering, and overall performance. Several challenges can arise during the measurement process, potentially leading to inaccurate results. This section addresses common problems and provides solutions to ensure precise backspacing measurements.
Inaccuracies and Measurement Errors
Several factors can contribute to inaccuracies when measuring wheel backspacing. These include the use of imprecise tools, improper measurement techniques, and the presence of obstructions. These inaccuracies can lead to selecting wheels that do not fit the vehicle correctly, resulting in rubbing, decreased handling, and potential damage to components.
Troubleshooting Backspacing Measurement Problems
In order to minimize errors and ensure accurate backspacing measurements, the following troubleshooting steps should be considered:
- Incorrect Tool Usage: Ensure that the measuring tools are used correctly. Using a ruler or tape measure that is not perpendicular to the wheel’s mounting surface will lead to inaccurate measurements. The measuring device must be held straight and parallel to the wheel’s axis.
- Obstructions During Measurement: Obstructions, such as brake calipers or dust shields, can interfere with accurate measurements, especially when measuring backspacing on the vehicle.
- Improper Wheel Preparation: Ensure the wheel is clean and free of debris, such as dirt or rust, which can affect the accuracy of the measurements. A clean wheel provides a reliable surface for measurement.
- Inconsistent Measuring Points: When using Method 1 (measuring on the wheel), ensure the measurement is taken from the correct points: the wheel’s mounting surface to the inside edge of the wheel. When measuring on the vehicle, be sure to use the same reference points for each measurement.
- Measurement Tool Calibration: Verify that the measuring tools, such as the ruler or tape measure, are calibrated correctly. Using a tool with inaccurate markings will lead to errors in the final backspacing measurement.
- Wheel Offset Misinterpretation: Do not confuse backspacing with wheel offset. Backspacing is the distance from the mounting surface to the inside edge of the wheel, while offset is the distance from the mounting surface to the wheel’s centerline. Misinterpreting these values can result in incorrect wheel selection.
- Vehicle-Specific Considerations: Some vehicles have unique suspension or brake configurations that can impact wheel fitment. Research the specific vehicle’s requirements before selecting wheels. For example, vehicles with large brake calipers may require wheels with specific backspacing or spoke designs to provide adequate clearance.
- Measurement Consistency: Take multiple measurements and compare the results to ensure consistency. If the measurements vary significantly, repeat the process until consistent results are achieved.
- Wheel Condition: Examine the wheel for any damage, such as dents or bends, that could affect the measurement. Damaged wheels may not provide accurate measurements.
- Consult Professional Advice: If problems persist or if uncertainty exists, consult a professional mechanic or wheel specialist for assistance. They have the experience and tools necessary to accurately measure backspacing and recommend suitable wheel fitments.
Impact on Vehicle Performance
Wheel backspacing significantly influences a vehicle’s handling characteristics, ride quality, and overall performance. The backspacing measurement dictates the wheel’s position relative to the vehicle’s suspension and body, directly impacting factors like scrub radius, steering feel, and the potential for tire-to-fender or suspension component interference. Selecting the appropriate backspacing is crucial for achieving optimal vehicle performance and preventing premature wear.
Steering Geometry Alterations
Changes in wheel backspacing directly alter the vehicle’s steering geometry, particularly the scrub radius. Scrub radius is the distance between the point where the tire’s centerline contacts the road and the point where the steering axis intersects the road surface. This measurement significantly impacts steering feel, stability, and handling characteristics.
- Positive Scrub Radius: When the tire’s contact point is outboard of the steering axis intersection, resulting in a positive scrub radius. This setup can increase steering effort, make the vehicle more susceptible to road imperfections (like tramlining), and potentially improve straight-line stability. A vehicle with a positive scrub radius tends to self-center the steering wheel.
- Negative Scrub Radius: Occurs when the tire’s contact point is inboard of the steering axis intersection, resulting in a negative scrub radius. This configuration generally leads to lighter steering effort, improved responsiveness, and better handling in crosswinds. However, it can make the vehicle more sensitive to braking forces, potentially causing the vehicle to pull to one side under hard braking.
- Zero Scrub Radius: The ideal scenario, where the tire’s contact point and the steering axis intersection align, resulting in neutral steering feel and minimal impact from road imperfections or braking forces. Achieving zero scrub radius can be challenging and is often specific to the vehicle’s design and suspension setup.
Premature Suspension Component Wear
Improper backspacing can induce excessive stress on suspension components, leading to premature wear and potential failure. Selecting wheels with backspacing that places the tire too far inboard or outboard can dramatically alter the leverage on these components, resulting in increased stress.
- Ball Joints: Wheels with excessive backspacing can push the tire further inboard, placing undue stress on the ball joints. This can lead to accelerated wear, play in the suspension, and ultimately, the need for premature replacement.
- Wheel Bearings: Incorrect backspacing can increase the load on wheel bearings, causing them to wear out faster. This can manifest as noise, vibration, and ultimately, bearing failure.
- Tie Rod Ends: Similar to ball joints, tie rod ends can also experience accelerated wear due to improper backspacing. The altered leverage can cause these components to wear out more quickly, affecting steering accuracy and stability.
- Shocks and Struts: While less directly affected than other components, incorrect backspacing can alter the suspension’s overall geometry and load distribution, potentially impacting the performance and lifespan of shocks and struts.
Closing Notes
In conclusion, mastering how to measure wheel backspacing is a cornerstone of responsible vehicle customization. From understanding the basics to interpreting the results and troubleshooting common issues, this guide has equipped you with the knowledge to make confident decisions. Embrace the power of precise measurements, and unlock a world of wheel and tire possibilities. Remember, the perfect fit isn’t just about aesthetics; it’s about optimizing your vehicle’s performance and ensuring a smooth, enjoyable ride.
Now go forth and conquer the world of wheel fitment!
Expert Answers
What’s the difference between backspacing and offset?
Backspacing is the distance from the wheel’s mounting surface to the inside edge of the wheel, while offset is the distance from the mounting surface to the wheel’s centerline. They both affect wheel fitment, but in different ways.
Can I measure backspacing with the tire on the wheel?
Yes, but it’s more challenging. You’ll need a straight edge long enough to span the wheel’s width and a measuring tool to get an accurate reading from the mounting surface to the edge of the wheel’s lip. Removing the tire is always recommended for greater precision.
What happens if my backspacing is incorrect?
Incorrect backspacing can lead to tire rubbing against suspension components or the vehicle’s body, poor handling, and accelerated wear on tires and suspension parts. It can also affect steering geometry.
How do I convert backspacing to offset?
You need to know the wheel’s width. The formula is: Offset = (Backspacing – (Wheel Width / 2))
– 25.4 (to convert from inches to millimeters). Remember to use the correct units!
What tools do I absolutely need to measure backspacing?
You’ll need a straight edge (like a long ruler or a piece of wood) and a measuring tool (a ruler or tape measure) to accurately measure the distance from the mounting surface to the back of the wheel.
