How to Measure Wheel Backspace A Guide for Automotive Enthusiasts

As-salamu alaykum, my friends! Today, we delve into a crucial aspect of wheel fitment: how to measure wheel backspace. Imagine your car, a beautiful horse, and the wheels, its shoes. Just as a poorly fitted shoe can cripple a horse, the wrong wheel backspace can lead to rubbing, handling issues, and a less-than-perfect ride. This knowledge, my dear students, is the key to ensuring your wheels sit just right, enhancing both the look and performance of your beloved machine.

Wheel backspace, simply put, is the distance from the wheel’s mounting surface to the inside edge of the wheel. It dictates how far the wheel sits inside the wheel well. Understanding this, alongside offset and wheel width, is paramount. We’ll explore the tools, the methods – both with the wheel on and off the car – and the important considerations to make sure your wheels fit perfectly.

Let’s begin this enlightening journey together, insha’Allah.

Understanding Wheel Backspace

Understanding wheel backspace is crucial for ensuring your wheels fit properly and your vehicle performs safely and effectively. It’s a key measurement in determining how far a wheel’s mounting surface sits relative to the wheel’s outer edge, directly impacting tire clearance and overall handling characteristics.

Definition of Wheel Backspace

Wheel backspace, in simple terms, is the distance from the wheel’s mounting surface (the part that bolts to the vehicle’s hub) to the innermost edge of the wheel (the part facing the vehicle). It is usually measured in inches or millimeters. This measurement dictates how far the wheel and tire assembly will sit inside the wheel well. A larger backspace means the wheel will sit further inward, while a smaller backspace means it will sit further outward.

Impact of Backspace on Tire Clearance and Handling

The amount of backspace directly influences how much room there is between the tire and the vehicle’s suspension components, such as the shocks, struts, and control arms, as well as the inner fender wells.

• Tire Clearance: Proper backspace is essential to prevent the tire from rubbing against these components during turning, braking, or suspension compression. Rubbing can damage the tire, the vehicle, and affect handling. For instance, if you install wheels with too much backspace, the tire might rub against the suspension components. Conversely, if the backspace is too small, the tire might stick out beyond the fender, leading to potential rubbing against the fender or even the body of the car.

• Handling: Backspace affects the wheel’s scrub radius, which is the distance between the point where the tire contacts the ground and the point where the steering axis intersects the ground. Changing the scrub radius can alter the steering feel, stability, and responsiveness of the vehicle. A vehicle with the incorrect scrub radius might experience increased steering effort, tramlining (where the car follows road imperfections), or even instability under braking.

Relationship Between Backspace, Offset, and Wheel Width

Backspace, offset, and wheel width are interconnected measurements that determine a wheel’s position relative to the vehicle. They are all essential to understanding how a wheel will fit.

• Wheel Width: The width of the wheel is measured from bead seat to bead seat (the inside edges where the tire sits). This measurement is critical because it directly impacts the overall dimensions of the wheel and tire assembly. A wider wheel can accommodate a wider tire, but it also increases the importance of correct backspace and offset to maintain proper clearance.

• Offset: Wheel offset is the distance between the wheel’s mounting surface and the wheel’s centerline. Offset is measured in millimeters. Positive offset means the mounting surface is closer to the front of the wheel, making the wheel sit further inward. Negative offset means the mounting surface is closer to the back of the wheel, making the wheel sit further outward.

  Zero offset means the mounting surface is at the wheel’s centerline.

• Relationship: Backspace and offset are related, and they can be calculated from each other if the wheel width is known. The formula for calculating backspace is:

Backspace = (Wheel Width / 2) + Offset

• For example, if a wheel is 8 inches wide with a 0mm offset, the backspace would be 4 inches. If the same wheel had a +25mm offset (approximately 1 inch), the backspace would be 5 inches.

Tools Needed for Measurement

Accurately measuring wheel backspace is crucial for ensuring proper fitment and avoiding potential issues like tire rubbing or damage to suspension components. The right tools will simplify the process and improve accuracy. Understanding the function of each tool and knowing affordable alternatives empowers you to take on this task confidently, even without access to specialized equipment.

Essential Tools

To measure wheel backspace accurately, several tools are indispensable. Each plays a specific role in achieving precise measurements, and understanding their function is key to success.

• A Wheel Backspace Measuring Tool: This is a specialized tool designed specifically for measuring backspace. It typically consists of a flat plate that rests against the wheel’s mounting surface and a calibrated arm that extends to measure the distance to the wheel’s outer edge. The tool provides a direct reading of the backspace measurement. The importance of this tool is its design, which streamlines the measurement process, ensuring consistent and accurate results.

  A wheel backspace measuring tool can significantly reduce the time and effort required to determine backspace.

• A Straight Edge: A straight edge, such as a metal ruler or a carpenter’s square, is necessary to ensure the measuring tool is positioned correctly. It helps to align the measuring tool with the wheel’s mounting surface and ensures the measurement is taken perpendicular to that surface. Using a straight edge eliminates measurement errors that could arise from tilting or misalignment of the measuring tool.

• A Measuring Tape or Ruler: A measuring tape or ruler is used to verify the readings of the wheel backspace measuring tool. It serves as a secondary measurement to double-check the accuracy of the specialized tool, providing a reference for the final result.
• A Marker: A marker, such as a permanent marker or a grease pencil, is helpful for marking the wheel’s mounting surface. This can aid in aligning the measuring tools and identifying the specific point from which the backspace measurement is taken.

Affordable Alternatives

If you do not have access to professional tools, you can still measure wheel backspace accurately using readily available and affordable alternatives. These alternatives require a bit more care and attention to detail, but they can yield reliable results.

• A Straight Edge and Ruler: Instead of a wheel backspace measuring tool, you can use a straight edge, such as a metal ruler or a piece of wood, combined with a ruler or measuring tape. Place the straight edge across the wheel’s mounting surface and measure the distance from the mounting surface to the wheel’s outer edge using the ruler.
• A Carpenter’s Square: A carpenter’s square provides a built-in right angle, which is essential for ensuring accurate measurements. Use the square to align the measuring tape or ruler with the wheel’s mounting surface.
• A Digital Caliper: A digital caliper can be used to measure the backspace with high precision. Place one jaw of the caliper against the wheel’s mounting surface and extend the other jaw to touch the outer edge of the wheel. Read the measurement directly from the digital display. Digital calipers are relatively inexpensive and offer precise measurements.

Safety Precautions, How to measure wheel backspace

Safety is paramount when measuring wheel backspace. Taking the necessary precautions can prevent injuries and ensure a smooth and successful measurement process.

• Wear Safety Glasses: Protect your eyes from debris that might fall during the measurement process.
• Work in a Well-Lit Area: Adequate lighting ensures that you can see clearly and avoid making mistakes.
• Ensure the Vehicle is Stable: If the wheel is still on the vehicle, ensure the vehicle is securely supported on jack stands. Never work under a vehicle supported only by a jack.
• Avoid Distractions: Focus on the task at hand to prevent errors and accidents.
• Handle Tools Carefully: Use tools as intended and store them safely when not in use.
• Double-Check Measurements: Verify your measurements to minimize the risk of errors. Taking the measurement multiple times can help ensure accuracy.

Measuring Procedures – Method 1: Wheel Off the Vehicle

Understanding how to measure wheel backspace with the wheel removed from the vehicle is a fundamental skill for anyone modifying or replacing wheels. This method offers a controlled environment, allowing for precise measurements and reducing potential errors. It’s the preferred approach for ensuring accurate fitment and preventing issues like tire rubbing against suspension components or fenders.

Step-by-Step Measurement Procedure

The following steps Artikel the process for accurately measuring wheel backspace when the wheel is off the vehicle. This method prioritizes precision and minimizes the likelihood of measurement errors.

1. Prepare the Wheel: Place the wheel on a flat, stable surface, such as a workbench or a clean floor. Ensure the wheel is oriented with the mounting surface (the surface that contacts the hub) facing upwards. This is crucial for consistent and accurate measurements.
2. Position the Measuring Tools: Gather the measuring tools: a straight edge (like a ruler, or a piece of wood), and a measuring tape or ruler.
3. Position the Straight Edge: Place the straight edge across the back of the wheel, ensuring it touches the outer rim lip and spans across the entire wheel width. The straight edge should be perpendicular to the wheel’s mounting surface. This ensures the measurement is taken from the correct point.
4. Measure the Distance: Using the measuring tape or ruler, measure the distance from the mounting surface of the wheel to the straight edge. This measurement represents the backspace. Be sure to measure perpendicular to the mounting surface, ensuring accuracy.
5. Record the Measurement: Accurately record the measurement obtained. Note the units of measurement (inches or millimeters) used.
6. Verify the Measurement: It is advisable to repeat the measurement at least once to ensure accuracy. Minor variations can occur due to tool positioning; averaging multiple measurements helps to identify and mitigate such errors.

Potential Challenges and Solutions

While seemingly straightforward, measuring backspace can present challenges. Addressing these issues ensures accurate results.

One potential challenge is the straight edge not being perfectly perpendicular to the wheel’s mounting surface. This can lead to inaccurate measurements. The solution is to carefully align the straight edge, using a square or another perpendicular tool to ensure proper positioning.

Another challenge is the curvature of the wheel’s inner rim. This can make it difficult to get an accurate measurement with a straight edge. The solution is to ensure the straight edge is making firm contact with the outer rim lip and the measuring tape or ruler is held perpendicular to the mounting surface. It might be helpful to use a more rigid straight edge to avoid flexing.

Additionally, ensuring the measuring tape or ruler is held firmly against the mounting surface is essential. Any angle in the measurement will cause an inaccurate reading. Taking multiple measurements and averaging them helps to mitigate this. Consider using a digital caliper for increased precision if available.

Accurate Measurement Recording

Precise recording of the backspace measurement is as important as the measurement itself. The following steps ensure accurate data documentation.

1. Specify Units: Clearly indicate the units of measurement used (inches or millimeters). This prevents any confusion or misinterpretation later.
2. Record the Measurement Value: Write down the numerical value obtained during the measurement. Include any decimal places for greater precision. For instance, record it as “6.00 inches” or “152.4 mm”.
3. Note the Wheel: Identify the wheel being measured. Note the wheel’s size, bolt pattern, and any other relevant markings. This helps in distinguishing between different wheels.
4. Date and Context: Record the date and any specific details related to the measurement, such as the vehicle it is intended for. This provides context and aids in future reference.
5. Multiple Measurements: If multiple measurements were taken, record all of them and calculate the average. This helps to identify any inconsistencies and increases the reliability of the data.

Measuring Procedures – Method 2: Wheel On the Vehicle

Measuring wheel backspace with the wheel mounted on the vehicle offers a convenient alternative to removing the wheel. This method can be particularly useful when you’re working in a tight space or prefer a less involved approach. It’s important to understand the process and be aware of its limitations to ensure accurate results.

Procedure for Measuring Backspace with the Wheel Mounted

The process involves measuring from the hub mounting surface to the inside edge of the wheel. It’s crucial to use accurate tools and take precise measurements to avoid errors.

1. Prepare the Vehicle: Ensure the vehicle is parked on a level surface and the parking brake is engaged. For safety, it’s advisable to chock the wheels.
2. Gather Tools: You’ll need a straight edge (a long ruler or a metal bar), a measuring tape, and a marker.
3. Position the Straight Edge: Place the straight edge across the back of the wheel, making sure it’s perpendicular to the hub. The straight edge should touch the hub mounting surface.
4. Measure the Distance: Using the measuring tape, measure the distance from the hub mounting surface (where the wheel bolts to the vehicle) to the inside edge of the wheel. This is your backspace measurement. Use the marker to clearly mark the measurement point on the straight edge or wheel for easy reference.
5. Repeat for Accuracy: Take the measurement at several points around the wheel to account for any slight variations. Average the measurements to get the most accurate result.

Benefits and Drawbacks of Measuring with the Wheel On the Vehicle

Measuring backspace with the wheel on the vehicle offers certain advantages, but it also has some drawbacks to consider. Weighing these pros and cons helps determine if this method is suitable for your needs.

• Benefits:
  • Convenience: Saves time and effort as the wheel doesn’t need to be removed.
  • Ease of Use: Requires fewer tools and a simpler setup compared to removing the wheel.
  • Practicality: Useful in situations where removing the wheel is difficult, such as when dealing with rusted lug nuts or limited space.
• Drawbacks:
  • Accuracy: Can be less accurate due to the difficulty in ensuring the straight edge is perfectly aligned.
  • Accessibility: The measurement can be difficult to access in certain vehicle configurations, especially with close-fitting suspension components.
  • Obstructions: Suspension components, brake calipers, and other parts can obstruct the measurement process, making it challenging to get a clear reading.

Specific Adjustments for Different Vehicle Types

Different vehicle types may require slight adjustments to the measuring process. These adjustments are usually minor, but they can be critical for achieving accurate results.

• Trucks and SUVs: Often have more space between the wheel and suspension components, making measurement easier. However, the large size of the wheels might necessitate a longer straight edge.
• Cars with Low-Profile Tires: The smaller sidewall height of low-profile tires can make it easier to position the straight edge.
• Vehicles with Complex Suspension: May require careful maneuvering to avoid obstructions. Ensure the straight edge is truly perpendicular to the hub.

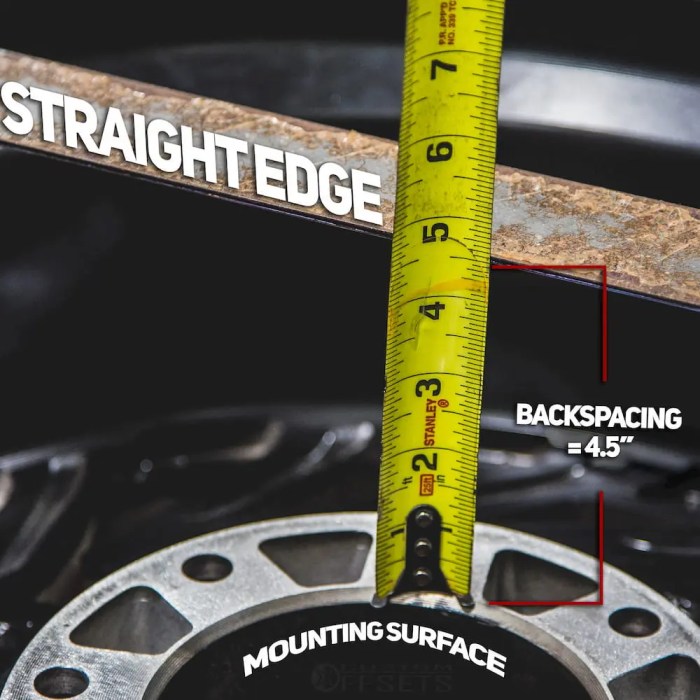

Diagram Illustrating the Measurement Process

The following describes a diagram illustrating the measurement process with the wheel on the car. The diagram will assist in visualizing the procedure.The diagram presents a side view of a car with a wheel mounted on the front. The wheel is depicted with a series of lines to indicate the tire and rim. The hub mounting surface, the area where the wheel bolts to the vehicle, is clearly identified with a bold line.

A straight edge, represented by a solid line, is positioned across the back of the wheel, touching the hub mounting surface. The straight edge extends beyond the inner edge of the wheel. A measuring tape, depicted as a dotted line, is shown extending from the hub mounting surface to the inner edge of the wheel. An arrow indicates the backspace measurement.

The diagram is labeled with key components: “Hub Mounting Surface,” “Straight Edge,” “Measuring Tape,” and “Backspace.” The overall illustration clearly demonstrates how to measure backspace with the wheel on the vehicle, highlighting the essential tools and the point of measurement.

Comparison Table: Measuring On vs. Off the Vehicle

The following table compares the advantages and disadvantages of measuring wheel backspace with the wheel on and off the vehicle. This comparison helps you choose the best method for your specific situation.

Factors Influencing Backspace

Understanding the factors that affect wheel backspace is crucial for ensuring proper fitment and performance. Several elements interact to determine the final backspace measurement, and neglecting these can lead to issues such as tire rubbing, compromised handling, and even damage to vehicle components. This section will explore the key variables that influence backspace, providing insights to help you make informed decisions when selecting wheels.

Wheel Width and Offset

Wheel width and offset are primary determinants of backspace. These two measurements are intrinsically linked, and changing one inevitably impacts the other, and consequently, the backspace.Wheel width, measured from bead seat to bead seat, dictates the overall space available for the tire. A wider wheel generally increases backspace, assuming the offset remains constant. Offset, the distance between the wheel’s mounting surface and the wheel’s centerline, dictates how far the wheel sits inward or outward relative to the vehicle’s hub.

A positive offset pushes the wheel inward, decreasing backspace, while a negative offset pushes the wheel outward, increasing backspace.The relationship between wheel width, offset, and backspace can be expressed mathematically:

Backspace = (Wheel Width / 2) + Offset

Where:

• Wheel Width is in inches.
• Offset is in inches (positive for positive offset, negative for negative offset).

Consider the following examples to illustrate the impact of offset on backspace:

This table clearly demonstrates how a change in offset directly alters the backspace measurement, even with a constant wheel width.

Tire Size and Its Influence

Tire size influences effective backspace by affecting the overall diameter and width of the tire, which in turn impacts the clearance between the tire and the vehicle’s components. A larger tire, whether wider or taller, will occupy more space within the wheel well. This can lead to the tire contacting the suspension components, fender, or other parts of the vehicle, even if the wheel’s backspace itself is within acceptable limits.Consider a scenario where a vehicle is originally equipped with 205/55R16 tires.

If you decide to upgrade to 225/50R17 tires without considering the backspace and overall tire dimensions, you may encounter rubbing issues. The wider tire (225 vs. 205) increases the effective backspace relative to the suspension and other parts of the vehicle. This is not a direct change in the wheel’s backspace, but rather a change in the space the tire occupies, potentially causing contact issues.

Careful consideration of tire dimensions, including section width and overall diameter, is crucial to avoid such problems.

Wheel Design Differences

The material and design of the wheel can influence backspace, although not directly. The manufacturing process and the overall shape of the wheel, including the spoke design and the profile of the rim, can affect the available space within the wheel well.* Steel Wheels: Typically, steel wheels have a simpler design, often with a flat or slightly dished face.

Understanding wheel backspace is crucial, often measured with a straightedge and ruler. However, its importance becomes clearer when considering vehicle handling; proper backspace impacts how a car steers. This directly relates to the principles of what is wheel alignment and balancing , ensuring tires meet the road correctly. Precise backspace measurements, therefore, help prevent alignment issues, which makes the whole driving experience better.

This design can provide more consistent backspace measurements.* Alloy Wheels: Alloy wheels offer greater design flexibility. They can feature intricate spoke patterns, deep dish designs, and varying rim profiles. These design elements can impact backspace by altering the wheel’s overall shape. For example, a wheel with a deep dish design might have a different backspace compared to a wheel with a flat face, even if they have the same width and offset.The manufacturing process itself can also introduce minor variations in backspace, though these are usually minimal and within acceptable tolerances.

When selecting wheels, it’s important to consider not only the width and offset but also the design of the wheel and how it interacts with the vehicle’s components. This includes accounting for brake caliper clearance, suspension component proximity, and the overall aesthetic you desire.

Interpreting Measurements and Fitment Considerations

Understanding how to interpret wheel backspace measurements is crucial for ensuring proper fitment and avoiding potential problems. This section delves into the practical application of your measurements, helping you translate numbers into real-world implications for your vehicle.

Interpreting Backspace Values in Relation to Vehicle Fitment

The backspace measurement directly impacts how a wheel sits within the wheel well. A higher backspace value pushes the wheel further inward towards the suspension and chassis, while a lower backspace value moves the wheel outward, closer to the fender.

Common Fitment Issues Caused by Incorrect Backspace

Incorrect backspace can lead to several fitment issues that can affect your vehicle’s performance and safety. These issues are often preventable by careful measurement and consideration of vehicle specifications.

• Rubbing Against Suspension Components: Wheels with excessive backspace may contact the suspension, brake calipers, or other internal components, restricting movement and causing damage.
• Fender Interference: Wheels with insufficient backspace can protrude beyond the fenders, leading to rubbing, tire damage, and potential body damage.
• Reduced Turning Radius: In some cases, incorrect backspace can cause the tire to contact the wheel well during turns, limiting the turning radius and affecting maneuverability.
• Ride Quality Degradation: Incorrect fitment can affect the ride quality of the vehicle, which is a consequence of the wheel not being centered correctly.

Determining Wheel Backspace Suitability for a Specific Vehicle

Determining if a wheel’s backspace is suitable for a specific vehicle requires considering several factors. This involves comparing the measured backspace with the vehicle’s specifications and accounting for any modifications.

1. Vehicle Specifications: Consult your vehicle’s owner’s manual or a reliable source like a wheel fitment guide to determine the recommended wheel width, offset, and backspace for your vehicle.
2. Wheel Width: Wider wheels typically require more backspace to maintain proper fitment. Consider the wheel width when comparing backspace values.
3. Tire Size: The tire size will influence the fitment. Larger tires will require more clearance and might necessitate adjustments to backspace.
4. Suspension Modifications: If your vehicle has aftermarket suspension components, the fitment requirements might change. Consider how these modifications affect wheel well clearance.
5. Test Fitting: If possible, test-fit the wheel on the vehicle before purchasing to ensure proper fitment and clearance.

Calculating Required Backspace Based on Vehicle Specifications

You can estimate the required backspace based on the vehicle’s existing wheel specifications and desired changes. This calculation provides a starting point for selecting the appropriate wheels.

Required Backspace Calculation Example:

Vehicle: Original wheel is 17×7 with +40mm offset.

Desired Wheel: 17×8 wheel (1 inch wider).

1. Offset Conversion: Calculate the backspace of the original wheel. For a 17×7 wheel with +40mm offset, the backspace is approximately 5.6 inches. This is calculated using the formula: Backspace = (Wheel Width in Inches / 2) + (Offset in Inches).

2. Offset Change: The new wheel is 1 inch wider. Therefore, 0.5 inches is added to each side. To maintain a similar position of the wheel relative to the suspension, you would need to add approximately 0.5 inches to the backspace. This is calculated as: New Backspace = Original Backspace + (Change in Wheel Width / 2).

3. Estimated Backspace: The new wheel would need approximately 6.1 inches of backspace to maintain similar positioning.

Common Mistakes to Avoid: How To Measure Wheel Backspace

Accurately measuring wheel backspace is crucial for ensuring proper fitment and avoiding costly errors. However, several common pitfalls can lead to inaccurate measurements, resulting in problems ranging from minor rubbing to significant safety issues. Recognizing and avoiding these mistakes is essential for a successful wheel installation.

Misinterpreting the Measurement Point

Identifying the correct measuring point on the wheel is fundamental. Inaccurate identification will directly translate to an incorrect backspace reading.The most common error is measuring to the wrong surface. Remember:

• Backspacing is measured from the
  -mounting surface* of the wheel (the part that contacts the hub) to the
  -innermost edge* of the wheel’s barrel.
• Failing to measure from the correct surface can introduce significant errors, especially with wheels that have complex spoke designs or recessed mounting surfaces.

Using the Wrong Tools or Techniques

Selecting and employing appropriate tools and techniques is critical for accurate measurement. The incorrect usage will compromise the precision of the measurement, leading to potential fitment issues.

• Using a bent or inaccurate ruler or measuring tool. Ensure your measuring tools are straight and calibrated.
• Failing to hold the measuring tool perpendicular to the mounting surface. Angled measurements will always be incorrect.
• Not accounting for any wheel lip or protective trim that extends beyond the wheel’s barrel. This trim must be considered when identifying the innermost point.

Neglecting Wheel Condition and Variations

The condition of the wheel and its manufacturing variations can also affect the backspace measurement. Understanding these factors can prevent measurement errors.

• Not accounting for any damage or modifications to the wheel. A bent wheel, for instance, will produce inaccurate measurements.
• Assuming all wheels of the same make and model have identical backspace. Manufacturing tolerances can lead to slight variations. Always measure each wheel individually.

Examples of Inaccurate Measurements Leading to Problems

Inaccurate backspace measurements can manifest in various problems, ranging from minor inconveniences to serious safety hazards. Consider these scenarios:

• Rubbing Against Suspension Components: If the backspace is underestimated, the wheel may rub against the suspension arms, struts, or brake calipers. This can cause damage to the tires, wheels, and suspension components, as well as compromise handling.
• Tire Interference with Body Panels: An incorrect backspace calculation might cause the tire to contact the inner fender wells or the outer edges of the body panels, especially during turning or suspension compression. This can lead to tire damage and paint scratches.
• Incorrect Brake Caliper Clearance: A wheel with insufficient backspace may not clear the brake calipers, preventing the wheel from being properly mounted. This can lead to a dangerous situation and require expensive modifications.
• Wheel and Tire Damage: Incorrect measurements can result in the wheel and tire rubbing against the inner fender, causing damage.

How to Verify Measurements for Accuracy

Verifying the accuracy of your backspace measurements is essential to prevent fitment issues. This can be achieved through a combination of methods.

• Double-Check Measurements: Always measure the backspace at least twice, using the same method, and compare the results. If the measurements differ, re-measure until you achieve consistent results.
• Compare with Manufacturer Specifications: Research the wheel’s specifications, if available. Compare your measurements to the manufacturer’s listed backspace. While not always definitive, significant discrepancies warrant further investigation.
• Use Online Wheel Fitment Calculators: Input your wheel and tire specifications, along with the measured backspace, into an online wheel fitment calculator. These calculators can help predict potential fitment issues based on the measurements.
• Test Fit the Wheel (If Possible): Before mounting the tire, test-fit the wheel on the vehicle. This allows you to visually check for any potential interference with suspension components or body panels. Ensure there is adequate clearance before proceeding.

Backspace in Relation to Other Wheel Specifications

Understanding wheel backspace is only part of the equation when it comes to ensuring proper wheel fitment. It’s crucial to consider backspace in conjunction with other wheel specifications to guarantee the wheel clears the vehicle’s suspension, brakes, and body, and functions safely. This section delves into the critical interplay between backspace and other vital wheel characteristics.

Interactions with Bolt Pattern and Center Bore

The bolt pattern and center bore are fundamental specifications that must align with the vehicle’s hub to allow the wheel to be mounted. Backspace, while determining the wheel’s position relative to the hub, does not directly influence these two specifications, but their proper matching is an absolute prerequisite.The bolt pattern, defined by the number of lug nuts and the diameter of the circle they form, dictates whether the wheel can physically attach to the vehicle.

For example, a wheel with a 5×114.3mm bolt pattern will only fit vehicles with the same bolt pattern. If the bolt pattern does not match, the wheel cannot be mounted, regardless of the backspace.The center bore is the diameter of the hole in the center of the wheel that fits over the vehicle’s hub. It is important to match the center bore of the wheel to the hub’s diameter.

If the center bore is too small, the wheel will not fit. If it’s too large, the wheel may not center correctly, potentially causing vibration and uneven load distribution, leading to premature wear and tear or, in extreme cases, safety issues.

Relationship Between Backspace, Offset, and Wheel Width

The offset of a wheel is the distance between the wheel’s mounting surface (the surface that contacts the hub) and the wheel’s centerline. Backspace and offset are intrinsically linked and can be converted from one to the other. Wheel width also plays a crucial role in understanding this relationship. The wider the wheel, the more the offset and backspace measurements will be affected.The following table illustrates the relationship between backspace and offset for different wheel widths.

Note that the values are approximate and based on standard wheel widths.

The table above demonstrates that for a given offset, the backspace increases with increasing wheel width. The table also provides examples of vehicles where these wheel specifications are commonly used.

Importance of Considering All Specifications Together

Considering wheel specifications in isolation can lead to incorrect fitment. Proper wheel fitment requires a holistic approach, examining all relevant specifications: backspace, offset, wheel width, bolt pattern, and center bore.Failing to consider these specifications together can result in:

• Wheel rubbing: The wheel or tire may rub against the suspension components, brake calipers, or the vehicle’s body.
• Improper handling: The vehicle’s handling characteristics can be negatively affected if the wheel’s position alters the scrub radius or other suspension geometry parameters.
• Damage to components: Improper fitment can cause premature wear on tires, suspension components, and even the wheel itself.
• Safety risks: In extreme cases, incorrect wheel fitment can compromise the vehicle’s stability and braking performance, increasing the risk of accidents.

Converting Between Backspace and Offset

Converting between backspace and offset requires the wheel width. The following formulas are used:

Offset (mm) = ((Backspace (inches)

• (Wheel Width (inches) / 2))
• 25.4)

Backspace (inches) = (Offset (mm) / 25.4) + (Wheel Width (inches) / 2)

For example, a wheel with a 7-inch width and 5.5 inches of backspace would have an offset of approximately +40mm:

1. Calculate the distance from the back of the wheel to the centerline

5.5 inches – (7 inches / 2) = 2 inches.

2. Convert to millimeters

2 inches25.4 mm/inch = 50.8 mm.

• 3. Calculate the offset

  Offset = ((5.5 – (7 / 2))

• 25.4) = 50.8 mm (rounded to +40mm).

Final Review

And there you have it, my students! We’ve journeyed through the intricacies of measuring wheel backspace, from understanding its essence to mastering the techniques. Remember, accurate measurements are the foundation of proper fitment. By avoiding common mistakes and considering all the specifications, you can confidently choose wheels that not only look stunning but also perform flawlessly. May your rides be smooth, your tires rub-free, and your knowledge of wheel fitment be a source of pride.

Go forth, and may Allah bless your endeavors!

FAQ Guide

What’s the difference between backspace and offset, Ustad?

My dear students, backspace and offset are related but distinct. Backspace is the distance from the mounting surface to the back edge of the wheel, while offset is the distance from the mounting surface to the wheel’s centerline. They work together, like two sides of the same coin, to determine how the wheel sits in the wheel well. Both are important to know.

Can I use a regular ruler to measure backspace, Ustad?

While a regular ruler can provide a rough estimate, my friends, it’s not ideal. A straight edge and a measuring tape are preferred for accuracy. Remember, precision is key in this field. A slight error can lead to big problems!

What if my car has big brakes, Ustad?

Ah, a wise question! Big brakes can significantly impact wheel fitment. You’ll need to pay extra attention to backspace to ensure the wheel clears the calipers. This often requires wheels with a specific backspace, or even spacers. Always double-check clearance before fitting new wheels.

How often should I measure backspace, Ustad?

If you’re changing wheels or tires, my friends, measuring backspace is essential. It’s also a good idea to check it if you notice any rubbing or handling issues. In general, it’s always good to check your work.
