Backspacing, in its essence, is the distance from the mounting surface of the wheel to the innermost edge of the wheel. Think of it as the unseen hand that guides the wheel’s position within the wheel well. A proper understanding of backspacing is crucial, as it determines how your tires will sit – whether they’ll gracefully embrace the fenders, or stubbornly rub against them.

Incorrect backspacing can lead to poor handling, uneven tire wear, and, Allah forbid, a compromise in safety. We will explore the tools needed, the step-by-step procedures, and the nuances of different wheel types, all in the spirit of knowledge and understanding.

Understanding Backspacing

Let’s delve into the crucial world of wheel backspacing, a measurement often overlooked but fundamentally important for vehicle fitment, performance, and safety. This seemingly simple dimension can make or break your driving experience, influencing everything from handling to tire wear.

Definition of Backspacing

Backspacing, in the simplest terms, is the distance from the mounting surface of the wheel (the part that bolts to the hub) to the innermost edge of the wheel’s rim. Think of it as how far back the wheel’s mounting surface sits relative to the back of the wheel. This measurement is typically expressed in inches or millimeters. A wheel with more backspacing has its mounting surface positioned closer to the back of the wheel, pushing the wheel further inward toward the vehicle’s suspension and body.

Conversely, less backspacing means the mounting surface is closer to the front of the wheel, causing the wheel to sit further outward.

Critical Situations for Backspacing

Backspacing becomes particularly critical in several scenarios, where even slight variations can lead to significant problems.

• Wheel Fitment: When upgrading to aftermarket wheels, backspacing is essential to ensure the wheel clears the vehicle’s suspension components, such as brake calipers, control arms, and struts. Incorrect backspacing can cause the wheel to rub against these components, leading to damage and compromised performance.
• Tire Clearance: The choice of tire size directly correlates with backspacing. Larger tires often require specific backspacing to prevent them from rubbing against the inner fender wells or the vehicle’s body. A tire that rubs can cause uneven wear, reduced fuel efficiency, and even a dangerous loss of control.
• Suspension Modifications: If you’ve modified your vehicle’s suspension, such as by lowering it or installing a lift kit, backspacing becomes even more critical. These modifications can alter the position of the wheels relative to the body and suspension, requiring adjustments to the backspacing to maintain proper clearance and handling.
• Off-Road Applications: In off-road scenarios, where larger tires and increased suspension travel are common, backspacing plays a crucial role in preventing tire rubbing during articulation. Properly chosen backspacing allows the tires to move freely through their range of motion without contacting the vehicle’s body or suspension.

Impact of Incorrect Backspacing

The consequences of choosing the wrong backspacing can range from minor annoyances to significant safety hazards.

• Rubbing and Interference: This is the most common issue. Wheels with incorrect backspacing will rub against suspension components, the inner fender, or the vehicle’s body. This rubbing can damage the tires, wheels, and suspension components, leading to a poor driving experience and potential safety issues.
• Poor Handling: Incorrect backspacing can alter the vehicle’s scrub radius, which affects steering feel and stability. This can make the vehicle feel less responsive, more difficult to control, and prone to wandering.
• Accelerated Tire Wear: Rubbing or improper alignment caused by incorrect backspacing can lead to uneven tire wear, requiring premature tire replacement.
• Damage to Suspension Components: In severe cases, incorrect backspacing can put excessive stress on suspension components, such as ball joints and wheel bearings, leading to premature failure.
• Safety Concerns: In extreme cases, incorrect backspacing can lead to tire failure, loss of control, and accidents. For instance, if a tire rubs against a suspension component at high speed, it could cause a sudden loss of air pressure or a catastrophic failure.

Tools and Equipment Needed: How To Measure Back Spacing On A Wheel

Measuring backspacing, while seemingly straightforward, requires the right tools to ensure accuracy. Using the correct equipment not only simplifies the process but also eliminates potential errors that can lead to improper wheel fitment. Having these tools readily available is crucial for anyone working on wheels, whether a seasoned mechanic or a DIY enthusiast.

Essential Tools for Backspacing Measurement

To accurately measure backspacing, a few essential tools are needed. These tools work in concert to provide the precise measurements necessary for wheel selection and fitment. Each tool plays a specific role in the process, contributing to the overall accuracy of the final result.

• A Straightedge: A straightedge, such as a metal ruler or a carpenter’s square, is fundamental for establishing a baseline.
• A Ruler or Measuring Tape: A ruler or measuring tape is crucial for determining the distance between the hub mounting surface and the inside edge of the wheel. It provides the actual backspacing measurement.
• A Wheel or Tire Mounting Surface: This is the surface of the wheel that bolts to the vehicle’s hub. It serves as the reference point from which the backspacing is measured.
• A Flat Surface: A flat, level surface is necessary to place the wheel on during the measurement process. This ensures that the wheel is positioned correctly and that measurements are accurate.

Alternative Methods and Tools

If specialized tools are unavailable, alternative methods can be employed to measure backspacing. These methods may require more care and attention to detail but can still yield accurate results. The key is to be precise and methodical in the approach.

• Using a Straightedge and Ruler: Place the wheel face down on a flat surface. Position the straightedge across the back of the wheel, touching the wheel’s outer edge. Measure the distance from the straightedge to the hub mounting surface using a ruler. This measurement is the backspacing.
• Employing a Caliper: A caliper, while not strictly essential, can significantly improve accuracy. Place the wheel face down on a flat surface. Use the caliper to measure the distance between the hub mounting surface and the inside edge of the wheel.

Purpose of Each Tool in the Measurement Process

Each tool plays a vital role in ensuring an accurate backspacing measurement. The interplay of these tools allows for a precise determination of the critical dimension needed for wheel fitment. Understanding the function of each tool enhances the overall accuracy of the process.

• Straightedge: The straightedge serves as a visual guide, ensuring that the ruler or measuring tape is held perpendicular to the wheel’s hub mounting surface. This is critical for getting a precise measurement. It also establishes a clear and consistent reference point.
• Ruler or Measuring Tape: This tool provides the actual measurement of the backspacing. It’s essential to use a ruler or tape with clear markings and to ensure that the measurement is taken accurately, perpendicular to the hub mounting surface.
• Wheel or Tire Mounting Surface: This is the critical reference point for the backspacing measurement. All measurements are taken from this surface to the inside edge of the wheel.
• Flat Surface: The flat surface provides a stable and level base for the wheel during the measurement process. This ensures that the wheel is properly positioned, and measurements are accurate. A level surface prevents any tilt or skew in the wheel, which could lead to measurement errors.

Measuring Backspacing

Now that you understand the concept of backspacing and have gathered your tools, it’s time to get down to the practical part: measuring the backspacing of your wheel. This process, while seemingly straightforward, requires precision to ensure accurate results. A slight mismeasurement can lead to significant issues when fitting the wheel to your vehicle. Let’s delve into the step-by-step procedure.

Measuring Backspacing: Step-by-Step Procedure

The following steps Artikel the procedure for accurately measuring the backspacing of a wheel. Paying close attention to each step will help you achieve reliable measurements, regardless of the wheel’s design or any irregularities it may have.

• Prepare the Wheel: Begin by ensuring the wheel is clean and free of any debris or obstructions, such as dirt, grease, or stickers. This is crucial for obtaining accurate measurements. Place the wheel face down on a flat, stable surface. A workbench or a clean concrete floor works well.
• Identify the Mounting Surface: Locate the mounting surface of the wheel – the area where the wheel makes contact with the vehicle’s hub. This is typically the flat, machined area around the bolt holes or lug nut studs.
• Place the Straight Edge: Carefully position a straight edge, such as a metal ruler, across the back of the wheel. The straight edge should be perfectly aligned with the mounting surface. It is critical to ensure the straight edge makes contact with the highest point of the wheel’s inner lip. This lip is the edge of the wheel that sits closest to the vehicle’s hub.

• Measure the Distance: Using a ruler or measuring tape, measure the distance from the mounting surface to the inside edge of the wheel’s rim. This is the backspacing measurement. Ensure your measuring tool is perpendicular to the mounting surface and straight edge for the most accurate result.
• Record the Measurement: Note down the backspacing measurement in inches or millimeters, depending on your preferred unit of measurement. It’s a good practice to measure at several points around the wheel and average the results, especially if the wheel shows any signs of irregularity.
• Account for Variations and Irregularities: Wheels may have variations or imperfections. For instance, a wheel might have slight imperfections or variations in the rim’s inner edge. To account for this:
• Multiple Measurements: Take several measurements at different points around the wheel’s circumference. This helps to average out any inconsistencies.
• Use a Digital Caliper: For greater precision, consider using a digital caliper. Calipers can provide highly accurate measurements, even on uneven surfaces. This tool is particularly useful when dealing with wheels that have unusual shapes or features.
• Consider the Mounting Pad Thickness: If the wheel has a recessed mounting pad, make sure to include the thickness of the pad in your measurements. The mounting pad’s thickness can affect the backspacing.
• Double-Check the Results: After completing the measurement, it’s always wise to double-check your work. Remeasure the backspacing to confirm the initial result. Compare the measurement with the wheel’s specifications, if available.

Backspacing Measurement = Distance from Mounting Surface to the Inside Edge of the Rim

Common Wheel Types and Backspacing Considerations

The world of wheels is diverse, offering a multitude of styles and materials. Each type presents unique characteristics, and understanding how backspacing interacts with these variations is crucial for achieving the desired fit and performance. The differences in manufacturing processes and materials significantly influence the backspacing of a wheel and how it impacts the vehicle’s stance and handling.

Steel Wheels and Backspacing

Steel wheels, known for their durability and affordability, often have different backspacing characteristics compared to alloy wheels. Their construction method, typically involving stamping and welding, affects the precision of the backspacing.Steel wheels often have relatively simple designs, making backspacing measurement straightforward. The flat, often unadorned, surface of the wheel’s inner barrel provides a clear reference point for measurements. However, it’s essential to note that the manufacturing tolerances in steel wheels can sometimes be wider than those of alloy wheels.

This means there might be slight variations in backspacing even within the same model.

Alloy Wheels and Backspacing

Alloy wheels, typically made from aluminum or a combination of aluminum and other metals, offer a wider range of designs and performance benefits. Their manufacturing processes, such as casting or forging, allow for greater design flexibility and tighter tolerances in backspacing.Alloy wheels can present more complex designs, including intricate spoke patterns and decorative elements. This can sometimes make measuring backspacing slightly more challenging, especially if the wheel’s inner barrel has curves or recesses.

It’s crucial to use accurate measuring tools and techniques to ensure precise results.

One-Piece Wheels and Backspacing

One-piece wheels are constructed from a single piece of material, whether steel or alloy. This design simplifies the manufacturing process and typically results in a consistent backspacing measurement.The backspacing measurement for a one-piece wheel is generally taken in the same way, regardless of the material. The key is to find the correct reference point on the wheel’s mounting surface and measure to the inner edge of the wheel’s rim.

Two-Piece and Multi-Piece Wheels and Backspacing

Two-piece or multi-piece wheels consist of multiple components, often a barrel and a face, bolted or otherwise connected together. These wheels offer significant design flexibility and often feature custom backspacing options.Measuring backspacing on these wheels requires careful attention to the wheel’s construction. The measurement must be taken from the mounting surface to the inner edge of the barrel, taking into account any variations in the barrel’s design.

These wheels often allow for adjustments in backspacing, making it crucial to verify the specified backspacing before installation. The different components of the wheel, along with the way they are joined, influence the final backspacing measurement.

Comparing Backspacing for Different Wheel Materials

Here’s a comparison of backspacing considerations for different wheel materials:

Backspacing and Wheel Fitment

Understanding backspacing is crucial for ensuring your wheels not only look good but also function safely and without causing damage to your vehicle. Incorrect backspacing can lead to a host of problems, from tire rubbing to compromised handling. This section delves into the intricate relationship between backspacing and wheel fitment, equipping you with the knowledge to make informed decisions for your vehicle.

Backspacing’s Influence on Wheel Well Fitment

The backspacing of a wheel directly dictates its position within the wheel well. It determines how far the wheel’s mounting surface sits from the back edge of the wheel. A wheel with more backspacing will tuck further inward towards the suspension components, while a wheel with less backspacing will extend outward, closer to the fender. This positioning is critical, as it impacts the available space for the tire and wheel assembly.

The vehicle’s suspension design, including the location of the control arms, shocks, and other components, limits the available space. Therefore, selecting wheels with appropriate backspacing is essential to prevent the tire from contacting these components or the fender. Incorrect backspacing can cause the tire to rub against the inner fender, suspension parts, or the outer fender lip, leading to tire wear, damage to the vehicle, and potential safety hazards.

Calculating Necessary Backspacing, How to measure back spacing on a wheel

Determining the correct backspacing for your vehicle involves a few steps, often requiring careful measurements and a bit of calculation. The process usually begins with measuring the existing wheel and tire setup, including the width of the tire and the backspacing of the current wheel. If you’re upgrading to a different tire size or wheel width, you’ll need to consider how the new tire dimensions will affect the overall fitment.

It’s helpful to measure the distance from the mounting surface of the hub to the inner fender, suspension components, and outer fender lip. This provides a baseline for how much space is available. Consider the tire’s section width, which is the widest point of the tire when inflated. A wider tire will require more clearance. Also, factor in any suspension modifications, such as lift kits or lowering springs, as these can significantly alter the required backspacing.

Let’s consider an example: Imagine you want to install new wheels and tires on a Jeep Wrangler. The stock wheels have 5.5 inches of backspacing. You want to upgrade to a tire that is 1 inch wider than the original tire. First, measure the distance from the mounting surface of the hub to the inner fender (let’s say it’s 7 inches). Then, measure the distance from the mounting surface to the outer fender lip (let’s say it’s 8 inches). The new tire will extend 0.5 inches further inward and 0.5 inches further outward compared to the original tire. To maintain sufficient clearance and avoid rubbing on the inner fender, you need to ensure the new wheel’s backspacing is no more than 5.5 inches + 0.5 inches = 6 inches. To avoid rubbing on the outer fender, the backspacing needs to be adjusted so that the tire remains within the 8-inch limit. Therefore, you would need to choose a wheel with backspacing between 5.5 inches and 6 inches, depending on the desired stance and clearance. In this scenario, the calculation highlights the importance of balancing tire width, wheel backspacing, and available space to ensure proper fitment.

Troubleshooting Measurement Issues

Even seasoned mechanics can stumble when measuring backspacing. The process, while seemingly straightforward, is prone to errors that can lead to incorrect wheel fitment and potential damage. Understanding these pitfalls and knowing how to correct them is crucial for ensuring accurate measurements and a successful wheel upgrade.

Common Measurement Errors

Several common errors can compromise the accuracy of your backspacing measurements. Being aware of these errors and how they arise can help you avoid them.

• Incorrect Zero Point: Failing to establish the correct zero point is a primary source of error. The zero point is the mounting surface of the wheel, and any measurement that doesn’t originate from this point will be inaccurate.
• Using the Wrong Tools: Using tools that are not suitable for the task can also lead to inaccuracies. For instance, using a flexible ruler that can bend during the measurement can result in an incorrect reading.
• Measurement Angle Issues: Measuring at an angle, rather than perpendicular to the wheel’s mounting surface, can introduce significant errors, especially on wheels with complex spoke designs.
• Wheel Debris Interference: Debris, such as dirt, rust, or paint buildup on the wheel’s mounting surface, can create an uneven surface and throw off the measurement.
• Misreading the Measurement: Simple misreading of the measurement tool, whether a ruler or a digital caliper, is another common source of error.

Correcting Measurement Errors

Correcting measurement errors requires a systematic approach. By addressing the root causes of these errors, you can significantly improve the accuracy of your backspacing measurements.

• Verifying the Zero Point: Always double-check the zero point. Ensure the measuring tool is flush against the wheel’s mounting surface and that you are measuring from the correct plane.
• Using the Right Tools: Employ the appropriate tools for the job. A straight, rigid ruler or a digital caliper is recommended for accuracy.
• Ensuring Perpendicularity: Measure perpendicular to the mounting surface. Use a square or a straight edge to verify the measurement angle.
• Cleaning the Mounting Surface: Thoroughly clean the mounting surface of any debris before measuring. This ensures a consistent and accurate starting point.
• Double-Checking Measurements: Always take multiple measurements and compare them. This helps to catch any misreadings or inconsistencies.

Tips for Ensuring Accurate Measurements

Following these tips can significantly increase the accuracy of your backspacing measurements, leading to a more successful wheel fitment process.

• Work in a Well-Lit Area: Adequate lighting is essential for accurate measurements. It allows you to clearly see the wheel, the measuring tool, and the measurements themselves.
• Measure Several Times: Take multiple measurements and average the results. This helps to account for minor variations and minimizes the impact of potential errors.
• Use a Wheel Fitment Guide: Consult a wheel fitment guide or online database to understand the recommended backspacing for your vehicle. This can serve as a reference point for your measurements.
• Consider Offset: Remember that backspacing and offset are related but distinct measurements. Understanding how they interact is crucial for wheel fitment. Offset is the distance from the wheel’s centerline to the mounting surface.
• Take Notes and Pictures: Document your measurements and take pictures of the process. This will help you keep track of your progress and provide a reference if you encounter any issues.

Interpreting Backspacing Measurements

Understanding backspacing is crucial, but knowing how to translate those measurements into real-world implications for your vehicle’s stance and handling is where the rubber truly meets the road. This section delves into the practical side of backspacing, equipping you with the knowledge to make informed decisions about wheel fitment.

Understanding Backspacing and Wheel Width Relationship

The backspacing measurement, when considered alongside wheel width, provides a comprehensive understanding of how a wheel will sit within the wheel well. This relationship determines the wheel’s position relative to the vehicle’s hub and the inner and outer fender edges.Consider the following points:

• Wider Wheels and Backspacing: A wider wheel generally requires more backspacing to prevent the tire from rubbing against the inner suspension components. Conversely, less backspacing can push the wheel and tire further outwards.
• Narrower Wheels and Backspacing: Narrower wheels offer more flexibility. They can often accommodate a wider range of backspacing measurements without causing fitment issues.
• The Role of Offset: Backspacing is directly related to wheel offset. Offset is the distance between the wheel’s mounting surface and the wheel’s centerline.

Converting Backspacing to Offset

Backspacing and offset are two sides of the same coin, describing the wheel’s position relative to the hub. Converting between them is a straightforward calculation that requires the wheel width. This conversion is essential for comparing wheels with different widths or understanding the implications of a particular backspacing measurement.Here’s how to convert between backspacing and offset:

Offset (mm) = [(Backspacing (inches)

• (Wheel Width (inches) / 2))
• 25.4]

To illustrate:

• Example 1: A wheel is 8 inches wide with 5 inches of backspacing.
• First, find the wheel’s centerline: 8 inches / 2 = 4 inches.
• Then, calculate the offset: (5 inches – 4 inches)
  – 25.4 mm/inch = 25.4 mm. This is a positive offset, meaning the mounting surface is closer to the front of the wheel.
• Example 2: A wheel is 10 inches wide with 4 inches of backspacing.
• First, find the wheel’s centerline: 10 inches / 2 = 5 inches.
• Then, calculate the offset: (4 inches – 5 inches)
  – 25.4 mm/inch = -25.4 mm. This is a negative offset, meaning the mounting surface is closer to the back of the wheel.

Implications of Backspacing Measurements on Wheel Fitment

The backspacing measurement directly impacts how a wheel fits within the wheel well. The wrong backspacing can lead to rubbing, reduced turning radius, and even damage to suspension components or body panels.Consider these scenarios:

• High Backspacing: A wheel with high backspacing pushes the wheel and tire further inward. This can cause the tire to rub against the inner fender, suspension components, or brake calipers. This is common in vehicles with limited space inside the wheel well.
• Low Backspacing: A wheel with low backspacing pushes the wheel and tire further outward. This can cause the tire to rub against the outer fender, particularly during turning or suspension compression. This can create a more aggressive stance, but it increases the risk of rubbing.
• Neutral Backspacing: Neutral backspacing (where the wheel’s mounting surface is close to the wheel’s centerline) provides a balanced fit, typically minimizing rubbing. However, it is not always possible to achieve perfect fitment without some adjustments, especially when upgrading to larger wheels.

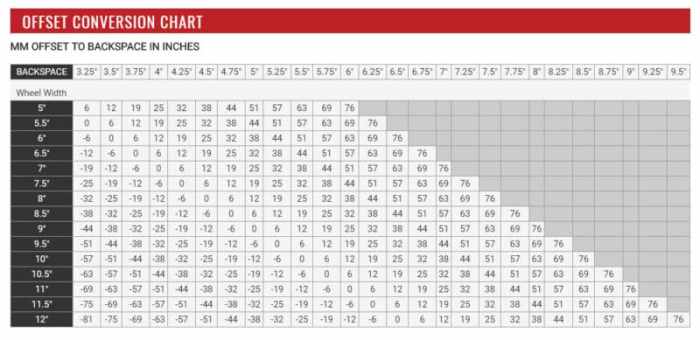

The following table provides examples of how different backspacing measurements can affect wheel fitment, considering a wheel width of 8 inches.

Backspacing vs. Offset: Comparison and Contrasts

In the intricate dance of wheel fitment, two key players often take center stage: backspacing and offset. While both measurements dictate where a wheel sits relative to the vehicle’s hub, they approach the task from different angles. Understanding their nuances is crucial for achieving the perfect stance and avoiding those dreaded rubbing issues. Let’s delve into their contrasting characteristics and how they interact to shape the overall fit.

Comparing Backspacing and Offset

Backspacing and offset, though both critical, describe wheel position using different reference points. Backspacing measures the distance from the hub mounting surface to the inside edge of the wheel. Offset, on the other hand, measures the distance from the hub mounting surface to the wheel’s centerline.The following points highlight the key distinctions:

• Definition: Backspacing is the distance from the hub mounting surface to the inside edge of the wheel. Offset is the distance from the hub mounting surface to the wheel’s centerline.
• Measurement Reference: Backspacing uses the wheel’s inner edge as its reference point. Offset uses the wheel’s centerline.
• Impact on Wheel Position: Backspacing directly influences how far the wheel’s inner edge sits from the suspension components. Offset affects the wheel’s overall position relative to the fender.
• Units of Measurement: Both are typically measured in inches (backspacing) or millimeters (offset).
• Relationship: Backspacing and offset are related, and converting between them requires knowing the wheel’s width.

The Relationship Between Backspacing, Offset, and Wheel Fitment

The interplay between backspacing and offset, combined with the wheel’s width, determines how a wheel fits within the wheel well. A change in one measurement necessitates an adjustment in the other to maintain the same wheel position. For instance, increasing backspacing pushes the wheel further inward, potentially causing it to contact suspension components. Conversely, a positive offset also pushes the wheel inward.Consider these scenarios:

• Positive Offset: The hub mounting surface is closer to the front (road-facing) side of the wheel. This typically tucks the wheel further inside the wheel well. This is common on modern vehicles.
• Zero Offset: The hub mounting surface is perfectly centered.
• Negative Offset: The hub mounting surface is closer to the back (inboard) side of the wheel. This pushes the wheel further outward, giving a wider stance. This is often seen on older vehicles or those with aggressive aftermarket fitments.

Understanding these relationships is vital for selecting wheels that clear all components and achieve the desired aesthetic. A wheel with excessive backspacing or a high positive offset might rub against suspension components, while a wheel with too little backspacing or a negative offset could protrude beyond the fenders.

Advantages and Disadvantages of Each Measurement

Both backspacing and offset offer unique advantages and disadvantages when considering wheel fitment. The choice of which measurement to prioritize often depends on the specific application and desired outcome.Here’s a breakdown:

• Backspacing Advantages:
• Directly indicates clearance to suspension components.
• Easier to measure on the wheel.
• Can be critical when dealing with specific suspension modifications or tight clearances.
• Backspacing Disadvantages:
• Doesn’t directly reflect the wheel’s position relative to the fender.
• Requires knowing the wheel width to determine the offset.
• Less commonly used in modern wheel specifications compared to offset.
• Offset Advantages:
• Provides a clear indication of the wheel’s overall position relative to the fender.
• Standardized measurement used by most wheel manufacturers.
• Easier to calculate and understand the impact on the vehicle’s stance.
• Offset Disadvantages:
• Doesn’t directly reveal clearance to suspension components.
• Can be challenging to determine without knowing the wheel’s width.
• Requires considering the wheel width to fully assess fitment.

Backspacing and Brake Clearance: Important Relationship

The dance between backspacing and brake caliper clearance is a critical one for any enthusiast or mechanic venturing into the realm of wheel fitment. Understanding this relationship can save you from costly mistakes and ensure your vehicle not only looks good but also performs safely. Backspacing directly influences the available space between the wheel’s inner surface and the vehicle’s brake components, making it a pivotal factor in whether your new wheels will actually – fit*.

Backspacing’s Influence on Brake Caliper Fitment

The amount of backspacing on a wheel directly impacts how much space is available for the brake calipers. A wheel with insufficient backspacing can collide with the caliper, preventing the wheel from mounting properly. Conversely, excessive backspacing might push the wheel inwards, potentially causing it to rub against suspension components or the inner wheel well.Consider these scenarios:

• Scenario 1: Insufficient Backspacing. Imagine you’re fitting a new set of wheels, eager to enhance your vehicle’s stance. However, the wheels’ backspacing is too low. As you attempt to mount them, the inner barrel of the wheel, the part closest to the vehicle, makes contact with the brake caliper. This contact prevents the wheel from sitting flush against the hub, rendering it impossible to secure with lug nuts.

  This situation necessitates either a wheel with more backspacing, or the use of wheel spacers.

• Scenario 2: Excessive Backspacing. Now, let’s flip the script. You’ve chosen wheels with significant backspacing. The wheel clears the caliper, which is a victory! However, the wheel’s inner surface is now very close to the suspension components, such as the control arms or tie rods. With the wheel mounted, the tire may rub against these parts during normal driving, especially during turns or when encountering bumps.

  This can lead to tire damage and compromised handling.

• Scenario 3: Just Right Backspacing. The ideal scenario. The wheel has the perfect amount of backspacing. It provides adequate clearance for the brake caliper, allowing the wheel to spin freely. Furthermore, it positions the wheel and tire in a way that avoids contact with any suspension or body components, ensuring a smooth and safe driving experience.

Visual Representation of Backspacing and Brake Clearance

Imagine a cross-section of a wheel, brake caliper, and hub assembly.
Description of the Visual Representation:
A side-view illustration depicting the relationship between a wheel, brake caliper, and hub assembly.

• Wheel: The wheel is shown in profile. The center of the wheel is the hub mounting surface. The inner barrel of the wheel extends towards the vehicle.
• Brake Caliper: The brake caliper, a rectangular component, is positioned behind the wheel, close to the hub.
• Hub Assembly: The hub assembly, the part to which the wheel mounts, is shown at the center.
• Backspacing Measurement: A line extends from the hub mounting surface to the inner edge of the wheel’s rim. This represents the backspacing.
• Clearance Gap: The space between the inner surface of the wheel and the brake caliper is highlighted. This clearance gap is crucial.
• Impact of Backspacing:
  • If the backspacing is too small, the wheel’s inner surface will intersect the caliper.
  • If the backspacing is sufficient, a clear gap will exist between the wheel and the caliper.

This visual aid helps clarify how variations in backspacing can directly affect the amount of space available for the brake caliper. The image clearly demonstrates that the correct backspacing is vital for achieving the correct fitment.

The whispers started with the wheel, a silent plea for its backspacing to be measured. But shadows loomed, and the cost of the road ahead felt heavy, almost as daunting as the secrets hidden within. The question of how much is 18 wheeler insurance echoed in the darkness, a financial labyrinth. Returning to the wheel, its perfect alignment was the only path forward, a silent promise of safe passage.

Last Point

My dear students, we have reached the end of our lesson, but not the end of our learning. We have traversed the path of backspacing, understanding its significance, its measurement, and its relationship to the very soul of a wheel. Remember, the knowledge we have gained is a tool – use it wisely, with care, and with the intention of improving the world around you, one wheel at a time.

May Allah bless your endeavors, and may your wheels always turn true. Go forth, and apply what you have learned, and may your vehicles always ride with grace and safety.

FAQ Explained

What’s the difference between backspacing and offset, Ustad?

Ah, a wise question! Backspacing is the distance from the mounting surface to the back edge of the wheel. Offset is the distance from the mounting surface to the
-centerline* of the wheel. They are related, like two sides of a coin, but measure different aspects of the wheel’s position.

What if I don’t have the specialized tools, Ustad?

Do not despair, my friend! You can use a straight edge, a ruler, and a flat surface. Place the wheel flat, lay the straight edge across the back of the wheel, and measure from the mounting surface to the straight edge. Then, subtract the thickness of the straight edge from the final measurement to find the backspacing.

Can I use backspacing to determine what size tires I can fit, Ustad?

Indeed! Backspacing plays a vital role in determining tire fitment. By knowing the backspacing, you can calculate the space available within the wheel well. This helps prevent rubbing and ensures proper clearance. It is a key factor, a guiding light, in choosing the right tires for your vehicle.

Why is backspacing important for brake clearance, Ustad?

The relationship between backspacing and brake clearance is a delicate dance. Sufficient backspacing provides the necessary space for the brake caliper. Insufficient backspacing may cause the wheel to interfere with the brakes, and this is very dangerous. So, consider backspacing when choosing wheels to ensure your brakes work safely and effectively.
