How to Measure the Bolt Pattern of a Wheel A Practical Guide

Alright, gearheads! Let’s talk wheels. Specifically, how to measure the bolt pattern of a wheel. Ever tried to swap rims and found out they just…won’t fit? That’s likely because the bolt pattern is off. Think of it like this: your car’s wheel hubs are the base, and the bolt pattern is the secret handshake that allows the wheel to connect.

Getting this measurement right is crucial for safety and, let’s be honest, looking fly on the road.

So, what exactly is a bolt pattern? It’s the arrangement of the lug nuts that secure your wheel to your car. We’re talking about the number of lug nuts (like 4, 5, or even 6) and the diameter of the circle they form. Measuring this accurately is the key to a perfect fit, preventing any wobbles or, worse, a wheel detaching while you’re cruising.

We’ll break down the tools you need, the methods for different wheel configurations, and even how to handle those tricky odd-lug patterns.

Introduction: Understanding Bolt Patterns

Knowing your vehicle’s bolt pattern is essential for selecting the correct wheels. A mismatched bolt pattern will prevent the wheel from mounting properly and can be dangerous. Understanding the fundamentals of bolt patterns ensures a safe and successful wheel upgrade or replacement.A bolt pattern refers to the arrangement of the bolt holes on a wheel and the corresponding studs on the vehicle’s hub.

This pattern is defined by two key measurements: the number of bolt holes and the diameter of the circle on which those holes are positioned.Accurate measurement is critical because even a slight discrepancy in the bolt pattern can lead to wheel wobble, vibration, and ultimately, wheel detachment while driving. Correctly identifying the bolt pattern guarantees a secure and properly fitting wheel.

Bolt Pattern Terminology

The bolt pattern is typically expressed as two numbers: the number of bolts and the bolt circle diameter (BCD).

• Number of Bolts: This is simply the count of the holes on the wheel. Common examples include 4, 5, 6, and 8 bolt patterns.
• Bolt Circle Diameter (BCD): This measurement represents the diameter of an imaginary circle that passes through the center of each bolt hole. This is measured in millimeters (mm) or inches, depending on the vehicle and region.

For instance, a bolt pattern of “5×114.3mm” indicates a wheel with five bolt holes arranged on a circle with a diameter of 114.3 millimeters. Similarly, a “4×4.5 inch” bolt pattern means a wheel with four bolt holes on a 4.5-inch diameter circle.

Tools Needed for Measurement

To accurately measure a wheel’s bolt pattern, you’ll need a few essential tools. Having the right equipment ensures you get precise measurements, which is crucial for selecting the correct replacement wheels. Using the wrong tools or inaccurate measurements can lead to wheels that don’t fit, posing safety risks and causing frustration. Let’s look at the necessary tools and how to use them effectively.

Essential Tools

To measure a wheel’s bolt pattern, you’ll need a few key tools. These tools are readily available and relatively inexpensive.

• Measuring Tool (Ruler or Caliper): This is the primary tool for taking the actual measurements.
• Pen or Pencil: To record your measurements, making sure to clearly write down the bolt pattern information.
• Paper or Notebook: For keeping a record of your measurements, including the bolt pattern and any other relevant wheel specifications.

Measuring Tool Characteristics, How to measure the bolt pattern of a wheel

The measuring tool is the most important component of the process. The choice between a ruler and a caliper depends on your preference and the accuracy you need.

• Ruler: A standard ruler, preferably one with both inches and millimeters, can be used. For accurate bolt pattern measurements, use a ruler with clear markings. Place the ruler carefully across the wheel’s bolt holes to determine the distance. Ensure the ruler is straight and parallel to the wheel’s surface.
• Caliper: A caliper, either digital or dial, provides the most precise measurements. Digital calipers are generally easier to read. Place the caliper jaws on opposite sides of the bolt holes, extending across the center. Take measurements from the center of one bolt hole to the center of the opposite bolt hole. Calipers minimize parallax errors, providing a more accurate reading.

Alternative Tools

If you don’t have a caliper, there are alternative methods for measuring bolt patterns. These methods may be less precise, but they can still provide usable results.

• Using a Bolt Pattern Template: Bolt pattern templates are readily available online or at auto parts stores. They are essentially diagrams with pre-measured bolt patterns. Align the template with the wheel’s bolt holes to find a match. This is a quick and easy method, especially for common bolt patterns.
• Measuring with a Ruler and Estimating: While less accurate than a caliper, you can use a ruler to measure the distance between the centers of opposing bolt holes. This method requires care to ensure the ruler is aligned correctly. If the wheel has an odd number of bolts, measure from the center of one bolt hole to the center of the hole directly opposite it.

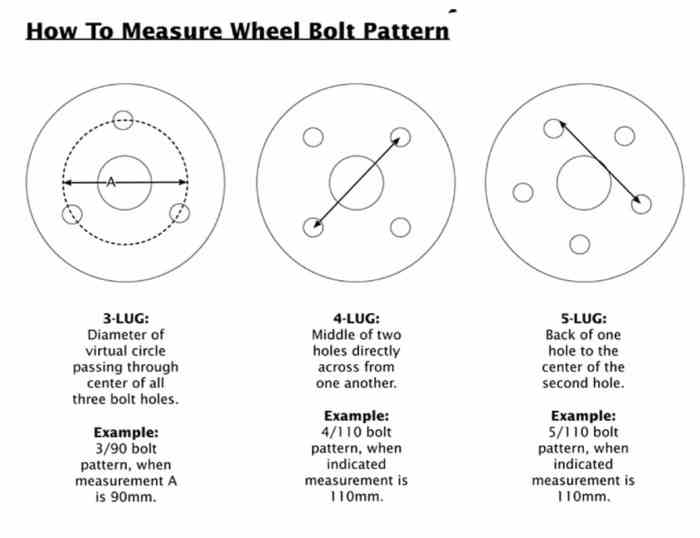

  For wheels with an even number of bolts, measure from the center of one bolt hole to the center of the bolt hole directly across from it.

Measuring Bolt Pattern

Understanding your wheel’s bolt pattern is crucial for ensuring proper fitment and safety. This section focuses on measuring bolt patterns, providing you with the knowledge to accurately determine the dimensions needed for wheel replacement or upgrades. This is especially important when you’re looking at aftermarket wheels, as getting the bolt pattern wrong can lead to serious issues.

Measuring Bolt Pattern: 4-Lug Wheels

Measuring the bolt pattern on a 4-lug wheel is a straightforward process, but accuracy is key. You’ll primarily use a ruler or measuring tool for this task. The bolt pattern is expressed as two numbers: the number of lug nuts (in this case, four) and the diameter of the circle formed by the lug nuts.To measure a 4-lug bolt pattern, follow these steps:

1. Identify the Lug Nuts: First, visually confirm that your wheel has four lug nuts.
2. Measure from Center to Center: Find any two adjacent lug studs (or the holes where the lug nuts go). Measure the distance between the centers of these studs.
3. Calculate the Bolt Circle Diameter: This is where it gets a little more involved. Because you’re measuring across two adjacent studs, you need to use a formula or a specific method to determine the overall bolt circle diameter (BCD).
4. Use the Formula: If you measured the distance ‘A’ between adjacent studs, the bolt circle diameter can be calculated using the formula:


   BCD = A / 0.707

5. Alternative Method (Less Precise): You can also try to measure directly across from one stud to the stud directly opposite it, but this is less accurate, and prone to measurement error.
6. Record the Measurement: Once you’ve calculated or measured the BCD, you now have your bolt pattern. For example, if your measurement resulted in a 4.5-inch BCD, your bolt pattern would be expressed as 4×4.5 (four lugs with a 4.5-inch bolt circle diameter).

Diagram Description: Imagine a wheel with four lug nuts. In the first step, a ruler is placed between two adjacent lug nuts, showing the measurement ‘A’. Then, in the next step, a calculation is made, or the ruler is placed to measure the bolt circle diameter directly. This visual helps to clarify the measuring process.Here’s a table of common 4-lug bolt patterns and their corresponding dimensions:

Measuring Bolt Pattern

Now that you know what a bolt pattern is and have gathered your tools, let’s get down to the actual measurement. This section focuses on measuring bolt patterns for wheels with five lug nuts. The process differs slightly from the 4-lug method, so pay close attention.

Measuring Bolt Pattern: 5-Lug Wheels

Measuring the bolt pattern on a 5-lug wheel requires a bit more precision, but it’s still manageable with a ruler. The key is understanding how to measure from the center of one lug nut to the center of the lug nut directly opposite it. Because there isn’t a lug nut directly across from another, we need to be a little more creative.Here’s how to do it:

1. Identify the Lug Nuts: First, make sure you know which are the lug nuts you will be working with.
2. Measure the Diameter: Imagine a circle that passes through the center of all five lug nuts. You are going to measure the diameter of this circle. This is done by measuring from the center of one lug nut to the center of the lug nut directly across from it.
3. Find the Opposite Lug Nut: Pick a lug nut. Now, find the lug nut that is two positions away from your first lug nut. For example, if you label the lug nuts 1 through 5, and you started with lug nut 1, the lug nut you need is lug nut 3.
4. Measure the Distance: Using your ruler, carefully measure the distance between the center of the first lug nut and the center of the second lug nut.
5. Double-Check: To ensure accuracy, repeat the measurement from a different lug nut pair. The measurement should be the same.

Here’s a visual representation:

Diagram 1: Imagine a wheel with five lug nuts. A straight line is drawn from the center of one lug nut to the center of the lug nut two positions away (e.g., from lug nut 1 to lug nut 3). This line represents the diameter we are measuring. The diagram shows the ruler positioned to measure this distance.

Diagram 2: A close-up view of two lug nuts on a wheel. A ruler is shown, precisely aligned to measure the distance between the centers of the lug nuts, representing the bolt pattern diameter. The measurement is taken across the wheel, from the center of one lug nut to the center of the lug nut two positions away.

Understanding common 5-lug bolt patterns is important when selecting wheels. Here’s a table showing some of the most common 5-lug patterns and their dimensions:

This table provides a starting point. Always double-check the bolt pattern specifications for your specific vehicle year and model, as they can vary.

Measuring Bolt Pattern

Let’s get into the nitty-gritty of measuring bolt patterns. This is a crucial skill for anyone dealing with wheels, whether you’re a seasoned mechanic or just trying to jazz up your ride. We’ve covered the basics, now it’s time to tackle the slightly trickier scenarios, especially those with an odd number of lug nuts.

Measuring Bolt Pattern: Odd Number of Lugs (e.g., 3, 7)

Wheels with an odd number of lug nuts (like 3, 5, or 7) require a different approach because you can’t simply measure across from one lug nut to another. You’ll need to use a slightly different method to determine the bolt circle diameter (BCD).Here’s how to measure the bolt pattern on a wheel with an odd number of lugs:

1. Identify the Number of Lugs

First, count the number of lug nuts on the wheel. This will tell you which method to use. For this example, we’ll assume a 5-lug pattern.

2. Locate Two Adjacent Lug Holes

Choose any two lug holes that are next to each other.

3. Measure from Center to Center

Use a ruler or caliper to measure the distance between the center of one lug hole to the center of the next lug hole.

4. Use the Formula

The BCD is calculated using a formula that varies depending on the number of lugs. For a 3-lug pattern, use a specific formula; for a 5-lug pattern, another. Let’s focus on a common scenario, a 5-lug pattern:

Bolt Circle Diameter (BCD) = (2

Distance Between Adjacent Holes) / 0.587785

For other odd numbers, the constant in the formula changes. You’ll need to find the correct constant for the specific number of lugs. There are online calculators and charts available to help with this.

5. Calculate and Note

Perform the calculation to determine the BCD. Write down this measurement. This measurement, combined with the number of lugs, is the bolt pattern. For example, a wheel might be 5×4.5 (5 lugs with a 4.5-inch BCD). Diagram of a 5-Lug Wheel Measurement* Description: Imagine a wheel with five lug nuts evenly spaced around the center.

A straight line is drawn from the center of one lug nut hole to the center of the adjacent lug nut hole. The measurement of this line represents the ‘Distance Between Adjacent Holes’. The diagram shows this measurement being taken with a ruler. The formula is then applied to calculate the BCD. Diagram of a 3-Lug Wheel Measurement* Description: This diagram shows a 3-lug wheel.

The measurement is taken in the same way, from center to center of the lug nuts. However, the calculation is different. The image demonstrates that, for a 3-lug pattern, you will need to take the measurement between the center of the hole and the center of the opposite side. Examples of Vehicles with Odd-Lug Patterns* Older Vehicles: Some older vehicles, especially those from the 1960s and 1970s, might feature 5-lug patterns.

Specific Brands

Certain brands, like some models of Jeep, have used 5-lug patterns.

Specialty Applications

You might find 5-lug or other odd-lug patterns in certain racing applications or custom wheel designs.

Using a Caliper for Precise Measurement

Using a caliper offers a significant advantage when measuring bolt patterns due to its precision and ability to provide highly accurate measurements. This is especially crucial when dealing with wheels, where even slight discrepancies can lead to mounting issues and potential safety hazards. Unlike a ruler, which relies on visual estimations, a caliper gives you a direct and exact reading, minimizing the chance of errors.

Advantages of Using a Caliper Over a Ruler

A caliper’s superior accuracy stems from its design and functionality. Here’s why it’s the preferred tool for this task:* Increased Accuracy: Calipers provide measurements to a much finer degree of precision (often down to 0.01 mm or 0.001 inches) compared to a ruler. This is critical when dealing with bolt patterns, where even a small deviation can prevent proper wheel fitment.

Direct Measurement

Calipers directly measure the distance between points, eliminating the need for visual estimations and reducing the potential for parallax error.

Ease of Use

Digital calipers, in particular, offer a straightforward and easy-to-read display, simplifying the measurement process. They are also relatively easy to use even for those with limited experience.

Versatility

Calipers can measure both the diameter of the bolt circle and the diameter of the bolt holes, providing comprehensive data for accurate identification of the bolt pattern.

Step-by-Step Instructions for Using a Caliper to Measure Bolt Patterns

Here’s how to use a caliper to accurately measure the bolt pattern of a wheel:

1. Select the Correct Caliper Type: Choose either a digital or dial caliper. Digital calipers are generally easier to read, but dial calipers also provide accurate results. Ensure the caliper is in good working condition and has been recently calibrated.
2. Zero the Caliper: Before starting, close the jaws of the caliper completely and zero the display. On a digital caliper, press the “zero” or “origin” button. For a dial caliper, make sure the needle points to zero. This ensures that the measurements are relative to the starting point.
3. Measure the Bolt Circle Diameter (BCD): This is the distance between the centers of two opposing lug holes (for an even number of lugs) or the distance from the center of one lug hole to the midpoint between the two lug holes on the opposite side (for an odd number of lugs).
4. Position the Jaws: Open the caliper jaws wide enough to comfortably fit around the lug holes. Carefully position the caliper jaws, making sure they are centered on the lug holes. The caliper jaws should touch the edges of the lug holes without applying excessive force.
5. Take the Measurement: Slowly close the caliper jaws until they touch the opposite sides of the lug holes. Note the measurement displayed on the caliper. This reading represents the bolt circle diameter.
6. Repeat for Accuracy: Take the measurement at least two or three times, rotating the wheel slightly each time. This helps to account for any slight variations and ensures accuracy.
7. Measure the Bolt Hole Diameter: Use the caliper to measure the diameter of the individual bolt holes. This is useful information when selecting the correct lug nuts or bolts. Place the caliper jaws inside the bolt hole and measure the distance across the hole.
8. Record the Measurements: Write down all the measurements, including the bolt circle diameter and the bolt hole diameter. Include the number of lug holes (e.g., 5x100mm). This complete set of data is necessary to identify the correct wheel.

Reading Measurements from a Caliper

Understanding how to read the measurements from a caliper is crucial for accurate results. Here’s how to interpret the readings:* Digital Calipers: Digital calipers display the measurement directly on an LCD screen. Ensure that the units are set to the desired measurement (millimeters or inches).

Dial Calipers

Dial calipers have a main scale (similar to a ruler) and a dial. The main scale provides the whole number and tenth values. The dial indicates the hundredth (and sometimes thousandth) values. To read a dial caliper:

• Note the whole number and tenth value from the main scale.
• Read the value on the dial that aligns with the main scale.
• Add the values from the main scale and the dial to obtain the total measurement.

For example, if the main scale reads 25.0 mm and the dial indicates 0.15 mm, the total measurement is 25.15 mm.

Example

Suppose you’re measuring a wheel with a 5×114.3mm bolt pattern using a caliper. If your caliper reading is 114.25mm, this indicates a close match. Minor variations are common due to manufacturing tolerances. Always compare your measurements to known bolt pattern specifications to ensure proper fitment.

Identifying the Bolt Pattern

Okay, so you’ve measured the bolt pattern. Awesome! But the story doesn’t end there. Understanding how the bolt pattern interacts with other wheel specs, like offset and backspacing, is crucial for getting the right fit and avoiding headaches down the road. Let’s dive into how these factors play together.

Offset and Backspacing’s Relationship to Bolt Pattern

Offset and backspacing, while not directly part of the bolt pattern measurement itself, are critical considerations for wheel fitment. They describe where the wheel’s mounting surface sits relative to the wheel’s centerline. The bolt pattern determines

• if* the wheel fits, while offset and backspacing determine
• how* it fits within the wheel well.

How Offset and Backspacing Affect Wheel Fitment

The offset, measured in millimeters, is the distance between the wheel’s mounting surface and the wheel’s centerline. Positive offset means the mounting surface is towards the front (street side) of the wheel; negative offset means it’s towards the back (brake side). Backspacing, on the other hand, is the distance from the wheel’s mounting surface to the inside edge of the wheel.

Both influence how far the wheel sits in or out of the wheel well, affecting tire clearance to the suspension components and the fenders. An incorrect offset or backspacing can cause the tire to rub, damage components, or affect handling.

Potential Fitment Issues with an Incorrect Bolt Pattern

If the bolt pattern isn’t correct, the wheel simply won’t mount properly. Forcing a wheel with an incorrect bolt pattern can be incredibly dangerous. Here’s a breakdown of what can happen:

• Wheel Won’t Mount: This is the most obvious one. The lug nuts or bolts won’t align with the holes in the wheel.
• Damaged Wheel Studs: Trying to force the wheel on can strip or break the wheel studs, which are the bolts that hold the wheel to the hub. Replacing wheel studs is a tedious and potentially expensive repair.
• Vibration and Unsafe Driving: Even if you
  -think* you’ve gotten the wheel on, a mismatch can lead to vibration at higher speeds, making the vehicle unstable and dangerous.
• Incorrect Lug Nut Seating: The lug nuts might not seat correctly against the wheel, leading to loosening, and potentially causing the wheel to come off while driving.
• Damage to the Hub: Forcing the wheel on can damage the hub itself, which is the part of the axle that the wheel mounts to.

Common Bolt Pattern Terminology: How To Measure The Bolt Pattern Of A Wheel

Understanding the language of bolt patterns is essential for accurately identifying and matching wheels to your vehicle. Knowing terms like PCD and lug spacing will save you time and prevent costly mistakes when purchasing new wheels. Let’s break down the key terms you need to know.

Glossary of Terms

This glossary defines the common terms used when discussing wheel bolt patterns. Familiarizing yourself with these terms will make the process of selecting and measuring wheels much easier.

• Bolt Circle Diameter (BCD): This is the same as Pitch Circle Diameter (PCD).
• Pitch Circle Diameter (PCD): The diameter of an imaginary circle that passes through the center of all the wheel lug holes. This is the most crucial measurement. It’s often expressed in millimeters (mm).
• Lug Spacing: The distance between the center of one lug hole to the center of the adjacent lug hole. While not a primary measurement for identifying a bolt pattern, it can be useful in verifying a measurement or in specific situations.
• Lug Count: The number of lug holes on the wheel. Common lug counts are 4, 5, 6, and 8.
• Offset: The distance between the wheel’s mounting surface and the wheel’s centerline. Offset is measured in millimeters (mm) and can be positive, negative, or zero.

Visual Aid: Illustrating Bolt Pattern Terms

To visualize these terms, imagine a wheel with five lug holes. A diagram would illustrate the following:

PCD is represented by a circle. This circle passes through the exact center of each of the five lug holes. The diameter of this circle is the PCD measurement.

The diagram would also show a line segment connecting the center of one lug hole to the center of an adjacent lug hole. The length of this line segment represents the lug spacing. The diagram would also clearly indicate the lug count by numbering the lug holes (1 through 5). A central hub would be shown in the middle of the PCD circle, representing where the wheel mounts to the vehicle’s hub.

The diagram would also include labels for each term, making the relationships clear.

Troubleshooting Measurement Issues

Measuring bolt patterns might seem straightforward, but it’s easy to make mistakes that can lead to buying the wrong wheels. Let’s look at some common pitfalls and how to avoid them to ensure you get the right fit every time.

Common Measurement Mistakes

Several errors can crop up during the bolt pattern measurement process. Understanding these mistakes can prevent wasted time and money.

• Incorrect Hole Selection: The most common mistake is measuring the wrong holes. Ensure you are consistently measuring from the center of one lug nut hole to the center of the hole directly across (for even-numbered bolt patterns) or to the appropriate hole for odd-numbered patterns.
• Inaccurate Caliper Usage: Using a caliper incorrectly can introduce significant errors. This includes not zeroing the caliper, applying too much or too little pressure, or reading the measurement incorrectly.
• Misinterpreting Measurements: Bolt patterns are expressed in millimeters or inches. Mixing these units can result in buying wheels that won’t fit. For example, a 5×114.3mm bolt pattern is
  -not* the same as a 5×4.5 inch bolt pattern (which is roughly equivalent).
• Rounding Errors: Rounding measurements, especially when using a tape measure, can lead to inaccurate results. Rounding can become a problem, especially when working with tight tolerances.
• Ignoring the Hub Bore: While not part of the bolt pattern measurement, neglecting the hub bore size can cause fitment issues. The hub bore of the wheel must be the same size or larger than the vehicle’s hub.

Overcoming Measurement Challenges

Sometimes, the measurement process isn’t perfectly smooth. Here’s how to deal with some common challenges.

• Damaged or Obstructed Holes: If a lug nut hole is damaged or obstructed, try to measure from the closest available point that is still accurate. If this is impossible, measure from the adjacent holes and calculate the pattern using geometry.
• Uneven Surfaces: If the wheel isn’t lying flat, it can be tricky to get an accurate measurement. Ensure the wheel is placed on a level surface. You can also use a straight edge to help align the caliper.
• Rust or Debris: Rust or debris in the lug nut holes can affect measurement accuracy. Clean the holes thoroughly before taking measurements.
• Using a Wheel Stud as a Guide: In some cases, you can use the wheel studs to help align the caliper or tape measure.

Tips for Ensuring Accuracy

Accuracy is crucial when measuring bolt patterns. Following these tips will help ensure you get the correct measurements.

• Use the Right Tools: A digital caliper is the most accurate tool. A tape measure can be used, but is less precise. Always ensure your caliper is properly calibrated.
• Double-Check Your Measurements: Always measure the bolt pattern at least twice and compare the results. If the measurements are different, take a third measurement to resolve the discrepancy.
• Consult Online Resources: Use online wheel fitment guides and databases to cross-reference your measurements. Many websites allow you to enter your vehicle’s make, model, and year to find the correct bolt pattern.
• Consider Professional Help: If you’re unsure, consult a professional mechanic or tire shop. They have experience and specialized tools to ensure accurate measurements.
• Document Everything: Keep a record of your measurements, the tools you used, and any challenges you encountered. This documentation can be valuable if you need to troubleshoot fitment issues later.

Bolt Pattern Charts and Resources

Finding the correct bolt pattern for your wheels can be tricky, but thankfully, a wealth of information is available online. Bolt pattern charts and databases are invaluable tools for quickly identifying the correct pattern for your vehicle, saving you time and the potential headache of ordering the wrong wheels. These resources compile vast amounts of data, making the process much simpler than manually measuring every time.

Online Bolt Pattern Databases

Several websites offer comprehensive bolt pattern databases. These databases allow you to look up bolt patterns based on your vehicle’s make, model, and year. They often include additional information like wheel offset, center bore size, and lug nut thread pitch.Here are a few popular and reliable resources:

• Wheel-Size.com: A widely used database with an extensive collection of bolt patterns, wheel sizes, and tire sizes.
• OnlineWheelStore.com: Provides detailed vehicle specifications, including bolt patterns, and often includes visual diagrams.
• 1010Tires.com: Offers a comprehensive database with a user-friendly interface for searching bolt patterns.

These websites typically allow you to search by vehicle make, model, and year. You simply enter the required information, and the database will provide the corresponding bolt pattern, along with other relevant wheel specifications. Always double-check the information against your vehicle’s specifications, as discrepancies can occur.

Sample Bolt Pattern Chart

Bolt pattern charts provide a quick reference for common vehicles and their corresponding patterns. The data in these charts is generally presented in a clear, organized format, making it easy to find the information you need. The example chart below illustrates the structure and type of information you can expect to find:

This chart includes several vehicle examples, demonstrating the range of bolt patterns used across different makes and models. The bolt pattern is expressed in millimeters (mm), representing the diameter of the bolt circle. The number of bolts and the center bore diameter are also listed.

Interpreting Bolt Pattern Information

Understanding how to read the information in bolt pattern charts is essential. The bolt pattern is often described using two numbers, such as “5×114.3mm.” The first number indicates the number of lug bolts (in this case, five). The second number (114.3mm) is the Bolt Circle Diameter (BCD), the diameter of the circle formed by the lug bolt holes. The center bore is the size of the hole in the center of the wheel that fits over the hub of the vehicle.

Understanding your wheel’s bolt pattern is crucial, starting with measuring the distance between the lug nuts. But before you even think about upgrading your wheels, consider the visual transformation possible. Many enthusiasts choose to change the appearance of their wheels by utilizing how to powder coat wheels , allowing for customization. Once the perfect look is achieved, double-check that bolt pattern, ensuring a secure and perfect fit on your vehicle.

Example: “5×114.3mm” means a wheel with 5 lug bolts and a bolt circle diameter of 114.3 millimeters.

The center bore diameter is crucial because it ensures the wheel fits properly onto the vehicle’s hub. If the center bore is too small, the wheel will not fit. If the center bore is too large, the wheel may not center correctly, potentially causing vibrations. Using a hub-centric ring can resolve minor discrepancies in center bore size, ensuring a snug fit.

By correctly interpreting these details, you can select wheels that are compatible with your vehicle.

Epilogue

In a nutshell, mastering how to measure the bolt pattern of a wheel is a must-have skill for anyone who tinkers with their ride. From understanding the basics to wielding a caliper like a pro, you’ve got the knowledge to avoid costly mistakes and get those wheels spinning smoothly. Remember to double-check your measurements, consult those online resources, and don’t be afraid to ask for help if you’re unsure.

Now go forth and conquer the world of wheel fitment!

FAQ Section

What does “PCD” mean in relation to bolt patterns?

PCD stands for Pitch Circle Diameter. It’s the diameter of the circle formed by the center of your wheel’s lug holes. Basically, it’s another way to describe the bolt pattern.

Can I use a ruler to measure a 5-lug bolt pattern?

Yes, but it’s less accurate than using a caliper. You can measure from the center of one lug nut to the center of the lug nut directly opposite it. For accuracy, it is highly recommended to use a caliper or use an online bolt pattern database to verify your measurement.

What if my wheel has an odd number of lug nuts (e.g., 3 or 7)?

Measuring wheels with odd numbers of lugs requires a specific method, often involving measuring from the center of one lug nut to the midpoint between the two lug nuts opposite it. The exact method may vary, so check online resources for diagrams specific to your wheel’s configuration.

Where can I find a bolt pattern chart for my car?

Many websites offer comprehensive bolt pattern databases. Search online for “bolt pattern database” or “wheel fitment guide” along with your vehicle’s make, model, and year. You can also visit local tire shops and ask them to verify the bolt pattern for you.

What happens if I get the bolt pattern wrong?

Incorrect bolt patterns can cause serious issues, including improper wheel fitment, vibration, wheel detachment, and potential damage to your car’s suspension and braking system. Always double-check your measurements before purchasing wheels or attempting to install them.
